Hyundai Elantra CN7: Steering Wheel (Heated Steering Wheel)
Components and components location
| Components |
[G 1.6 MPI / LPI]

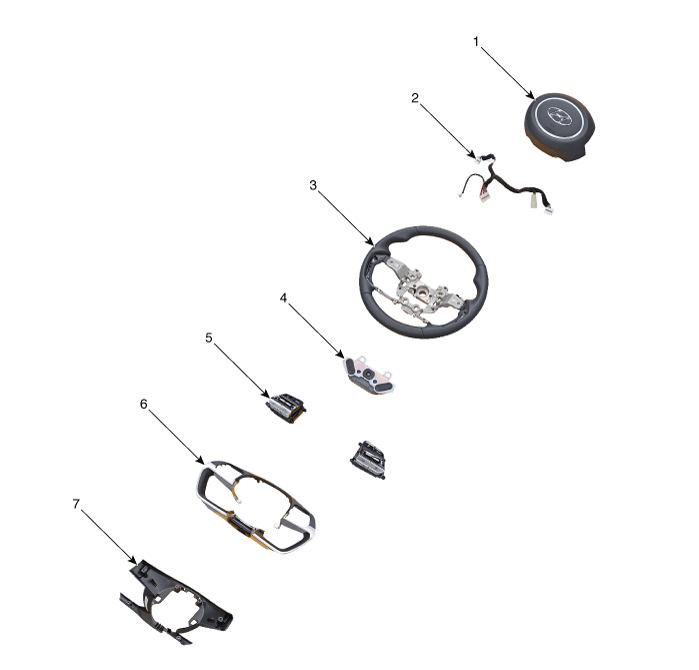

| 1. Drive air bag module (DAB) 2. Wiring 3. Steering wheel 4. Damper | 5. Remote control switch 6. Switch bezel 7. Lower cover |
[G 1.6 T-GDI]

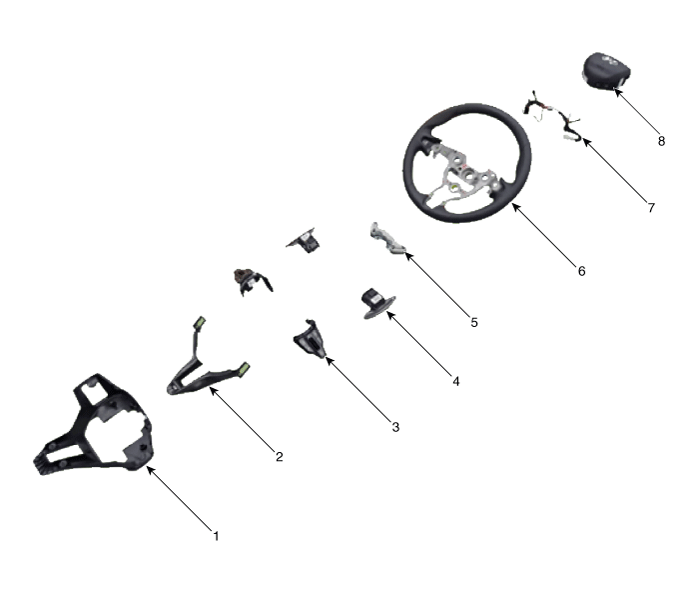

| 1. Lower cover 2. Switch bezel 3. Remote control switch 4. Paddle shift | 5. Damper 6. Steering wheel 7. Wiring 8. Drive air bag module (DAB) |
Repair procedures
| Removal |
| 1. | Turn the ignition switch OFF and disconnect the battery negative (-) cable. |
| 2. | Turn the steering wheel so that the front wheels can face straight ahead. |
| 3. | Remove the drive airbag module. (Refer to Restraint - "Drive Air Bag Module") |

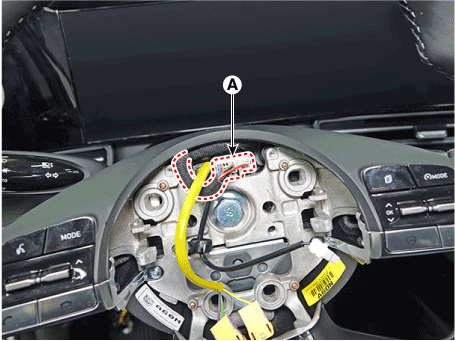

| 4. | Disconnect the steering wheel connector (A). [G 1.6 MPI / LPI]
[G 1.6 T-GDI]
|

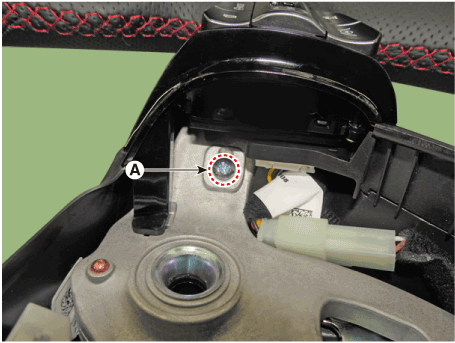

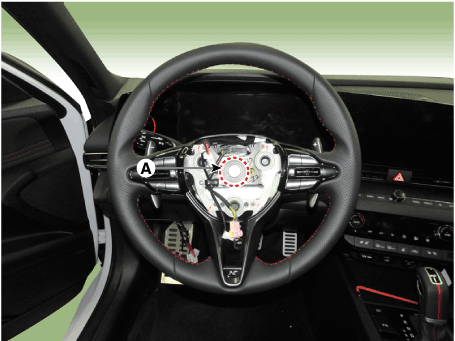

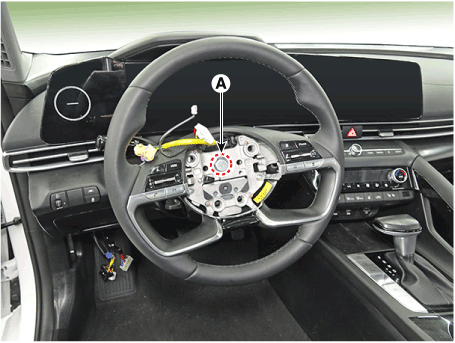

| 5. | Remove the steering wheel after loosening the steering wheel lock bolt (A).
[G 1.6 MPI / LPI]
[G 1.6 T-GDI]
|
| Installation |
| 1. | Install in the reverse order of removal. |
| Disassembly |
[G 1.6 MPI / LPI]

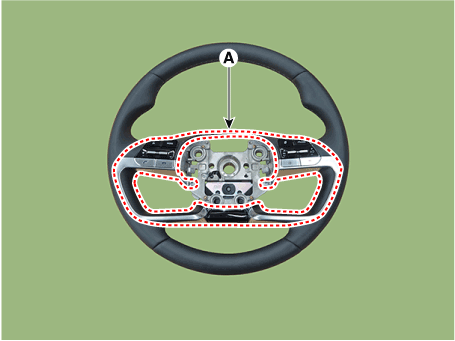

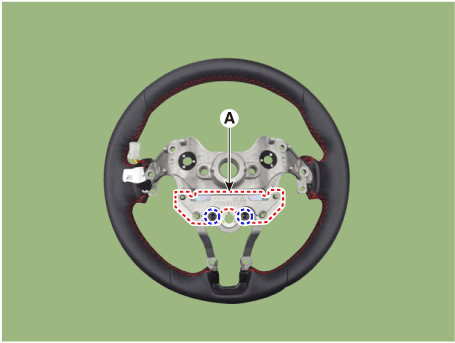

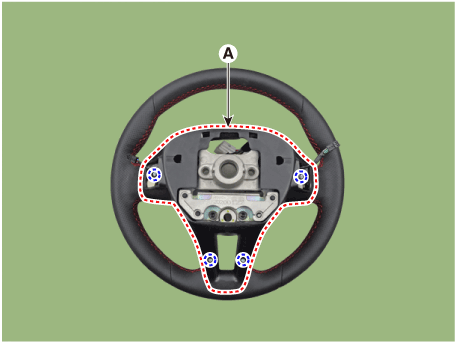

| 1. | Remove the lower cover (A) after loosening the screw.
|

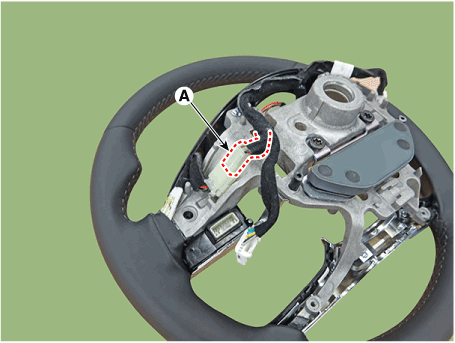

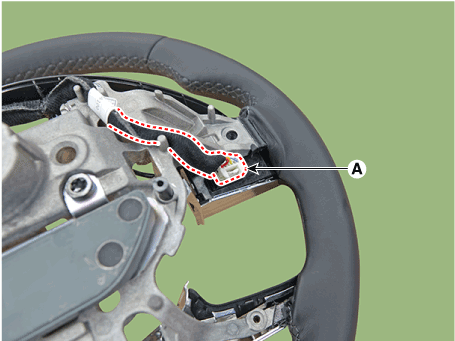

| 2. | Disconnect the remote control switch connector (A). [LH]
[RH]
|

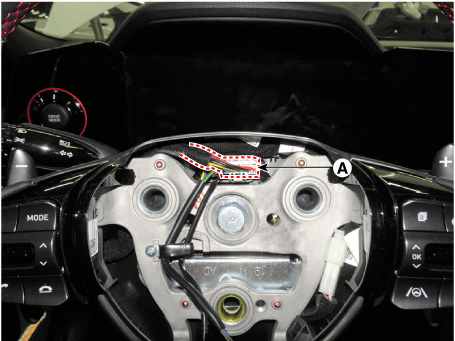

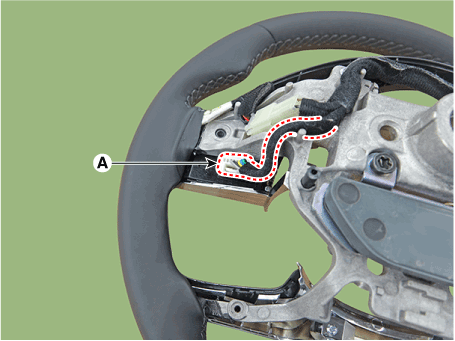

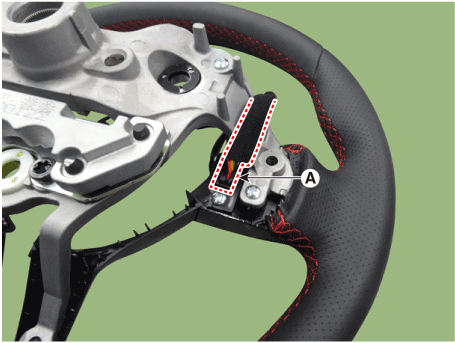

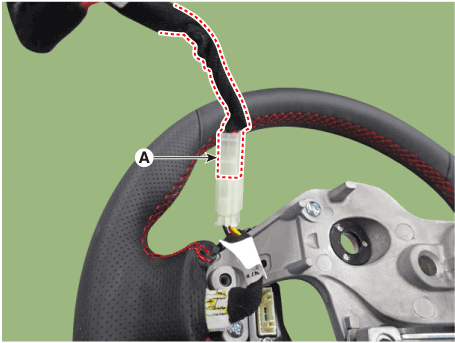

| 3. | Remove the wiring after disconnecting the heated steering wheel connector (A).
|
| 4. | Remove the switch bezel (A) after loosening screw.
|

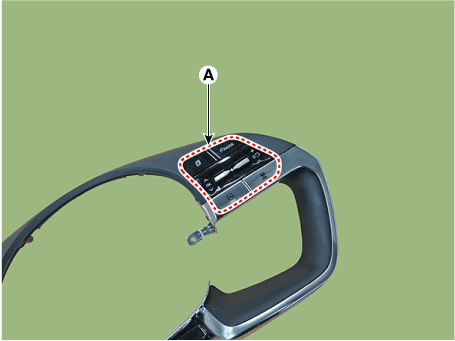

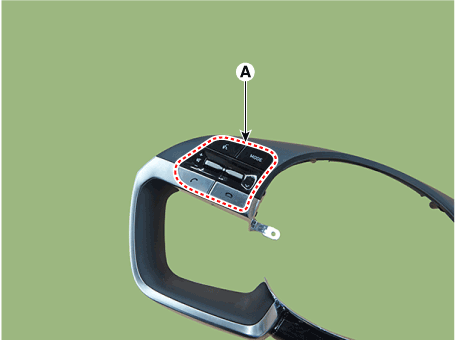

| 5. | Remove the remote control switch (A) after loosening the screw. [LH]
[RH]
|

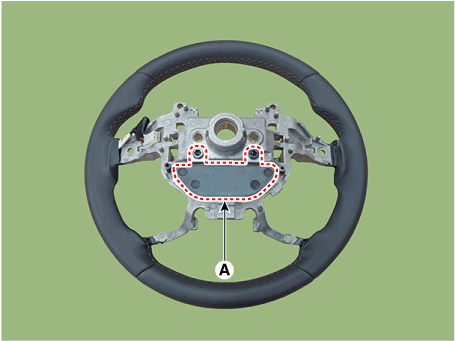

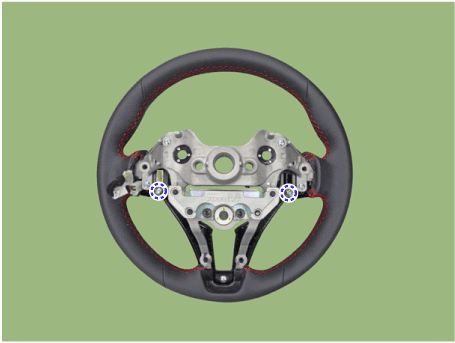

| 6. | Remove the steering wheel damper (A) after loosening the mounting bolts.
|
[G 1.6 T-GDI]

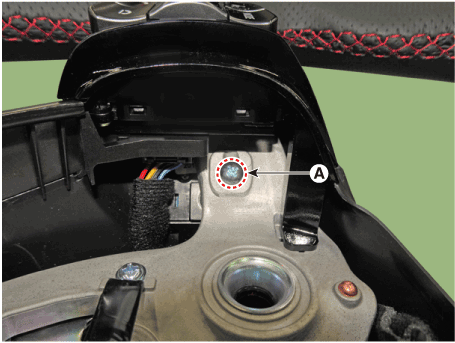

| 1. | Loosen the Paddle shift mounting screw (A). [LH]
[RH]
|

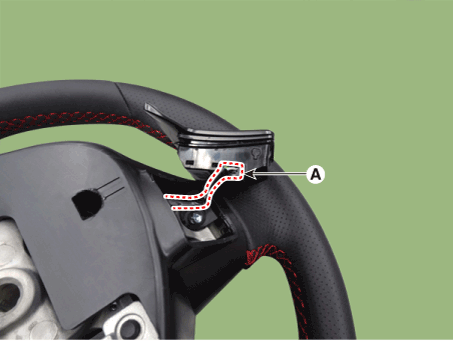

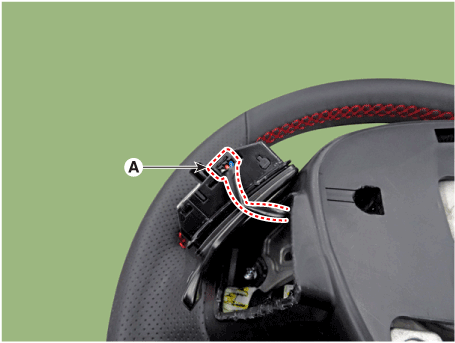

| 2. | Disconnect the Paddle shift connector (A). [LH]
[RH]
|

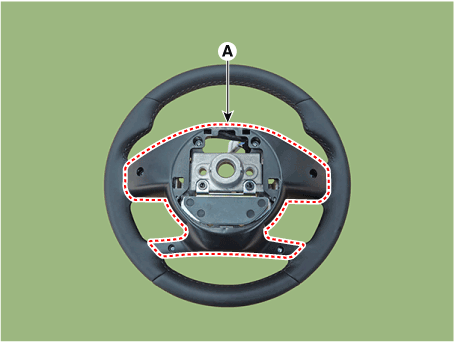

| 3. | Remove the lower cover (A) after loosening the mounting screw.
|

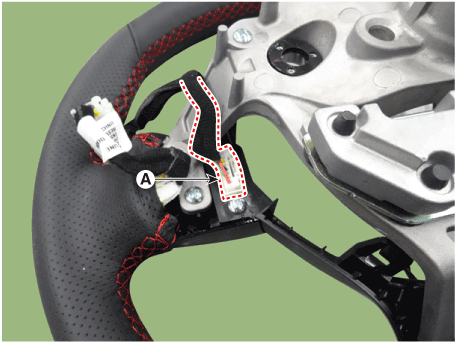

| 4. | Disconnect the remote control switch connector (A). [LH]
[RH]
|
| 5. | Remove the wiring after disconnecting the heated steering wheel connector (A).
|

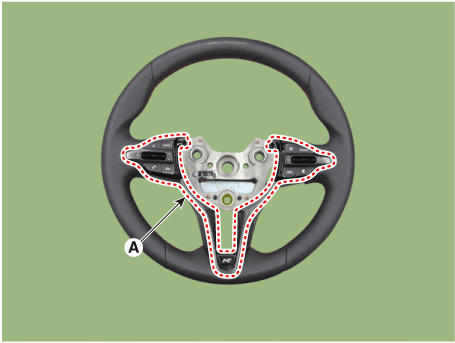

| 6. | Remove the switch bezel & remote control switch (A) after loosening the mounting screw.
|
| 7. | Remove the steering wheel damper (A) after loosening the mounting bolts.
|
| Reassembly |
| 1. | To reassembly, reverse the disassembly procedure. |
Heated Steering Wheel Switch
Description and operation
| Description |

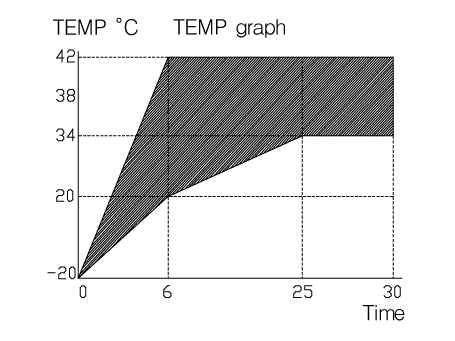

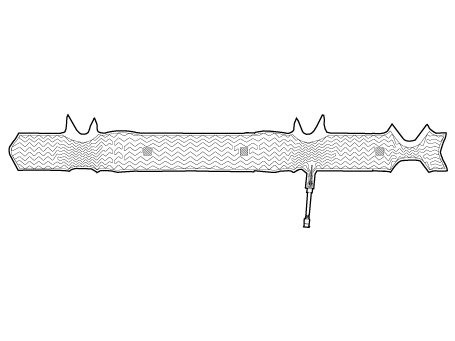

For the convenience of drivers during the winter, exothermic paint is applied to the surface of the steering wheel to generate heat when it is gripped.
| 1. | Heated Control Unit (Integrated Body Control Unit (IBU))
Heated pad
|
Components and components location
| Compoents Location |
[G 1.6 MPI / LPI]

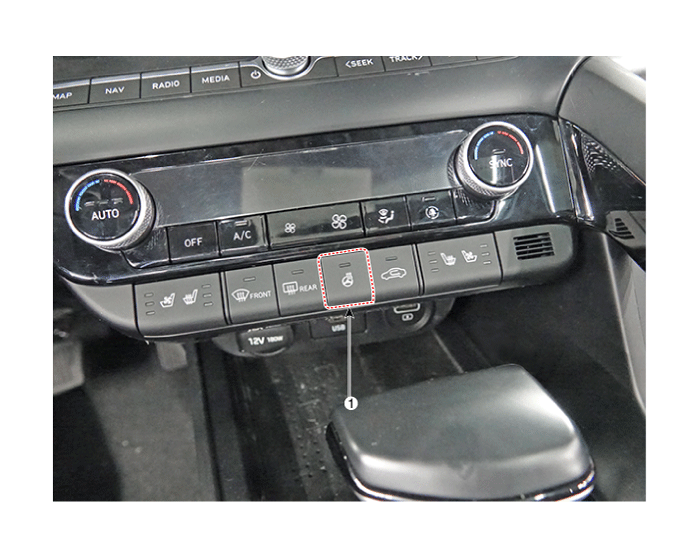

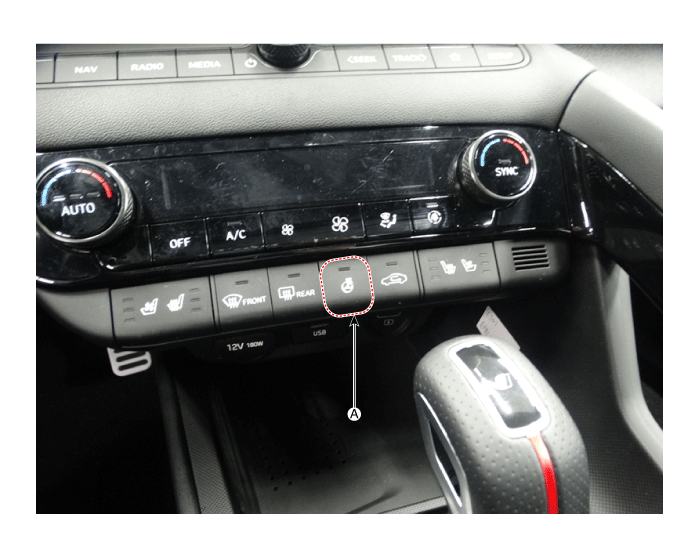

| 1. Heated steering wheel switch |
[G 1.6 T-GDI]
| 1. Heated steering wheel switch |
Specifications
| Specifications |
|
Item
|
Specification
|
| Voltage | 13.5 V |
| Heated pad resistance | 1.5 - 1.9 Ω [22°C (71.6°F)] |
| NTC resistance | 9.70 - 10.3 kΩ |
Repair procedures
| Removal |
[Heated steering wheel switch]

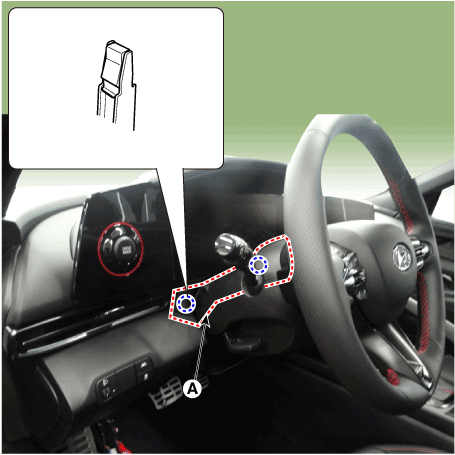

| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the steering column shroud upper panel (A) by using the screw driver or remover. [G 1.6 MPI / LPI]
[G 1.6 T-GDI]
|
| 3. | Remove the floor console side garnish (A) by using the screw driver or remover.
|
| 4. | Remove the crash pad garnish [CTR] (A) by using the screw driver or remover.
|
| 5. | Remove the heater and heated steering switch (A) after loosening the screw.
|
| 6. | Disconnect the connector (A) and hose (B) after pushing the lock pin.
|
[Heated Steering Wheel Control Module (Integrated Body Control Unit (IBU)]
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the glove box upper cover. (Refer to Body - "Glove Box Upper Cover Assembly") |
| 3. | Remove the IBU (A) after loosening the mounting nuts and bolt.
|
| 4. | Remove the IBU after disconnecting the connector.
|
| Inspection |
| 1. | Measure a resistance of NTC and Heated pad.
|

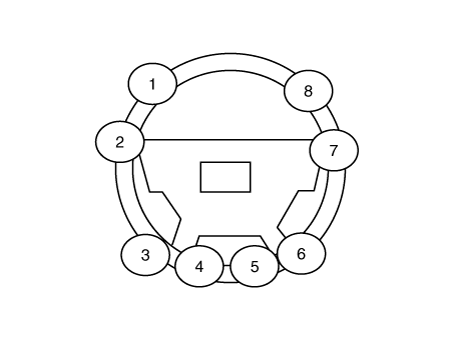

| 2. | Measure a temperature.
|

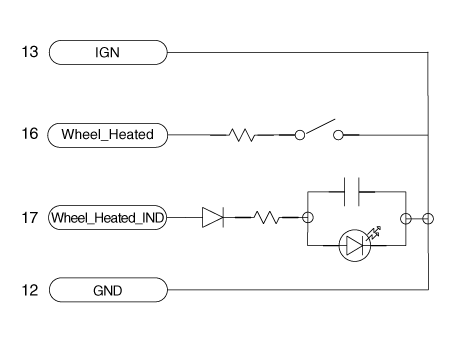

| 3. | Check for continuity between the terminals in each heated steering switch.
|
| Installation |
| 1. | To install, reverse the removal procedure. |
