Service Adjustment Procedure
Steering Wheel Play Inspection
1.
Turn the steering wheel so that the front wheels can face straight ahead.
2.

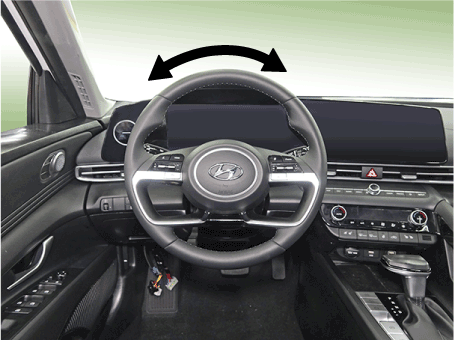

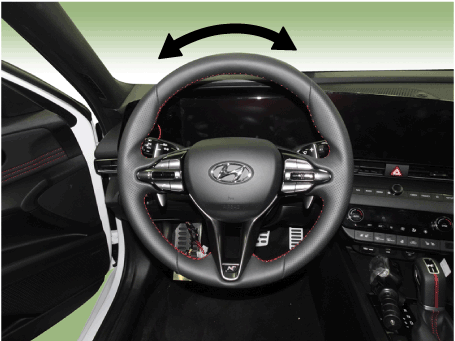

Measure the distance the steering wheel can be turned without moving the front wheels.
Standard value : 0 - 30 mm (1.18 in.)
[G 1.6 MPI / LPI]

[G 1.6 T-GDI]

3.
If the play exceeds standard value, inspect the steering column, shaft, and linkages.
Checking Stationary Steering Effort
1.
Position the vehicle on a level surface and place the steering wheel in the straight ahead position.
2.

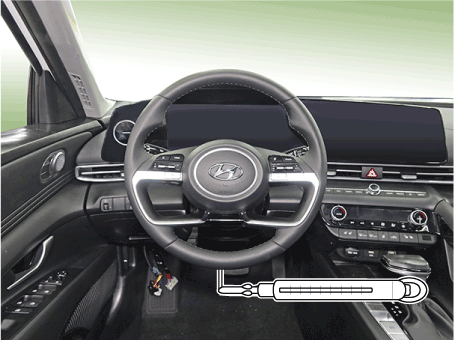

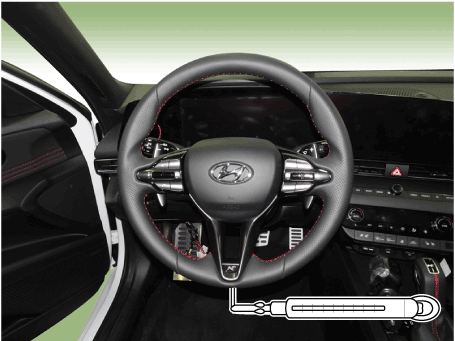

While maintaining the engine speed at IDLE RPM, apply the spring balance to the end of the steering wheel and pull the scale to measure the force when the steering wheel starts moving.
Standard value : 29.4 N.m (3.0 kgf.m, 21.7 Ib-ft)
[G 1.6 MPI / LPI]

[G 1.6 T-GDI]

3.
If the measured value exceeds standard value, inspect the steering gear box and MDPS system.
