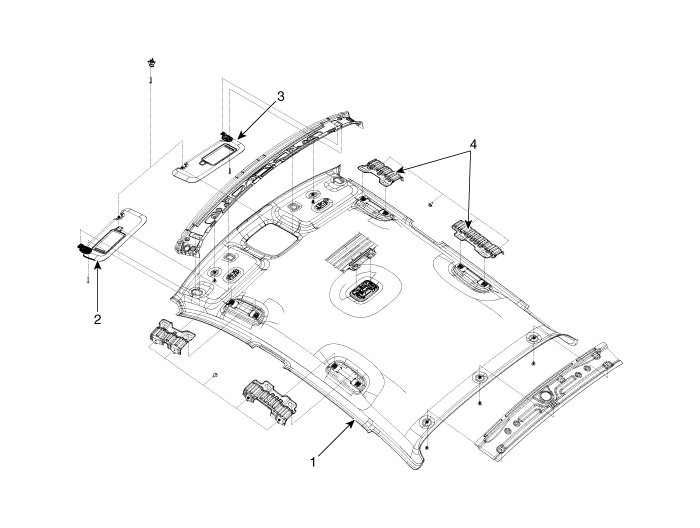

Components and components location
1 . Roof trim
2 . Sunvisor [LH]
| 3. Sunvisor [RH]
4. Assist handle bracket
|

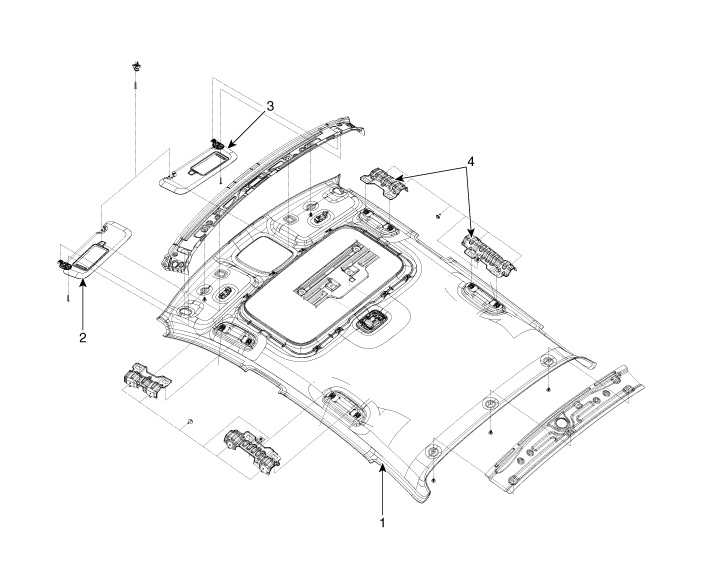

1 . Roof trim
2 . Sunvisor [LH]
| 3. Sunvisor [RH]
4. Assist handle bracket
|

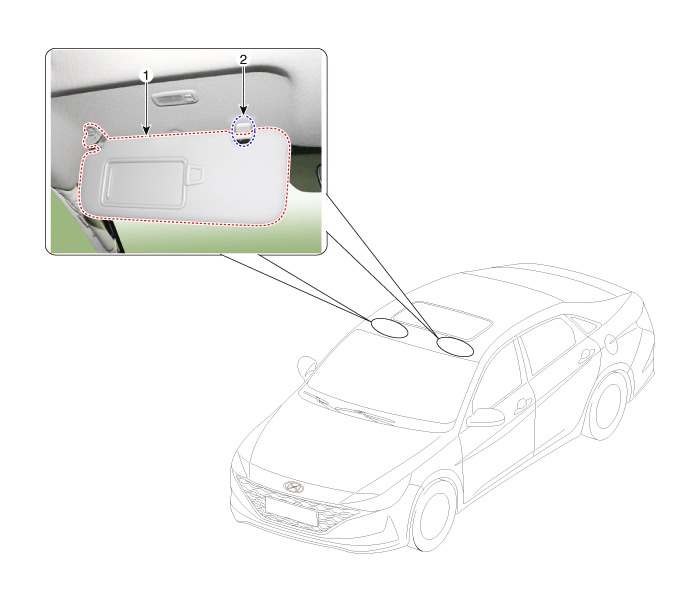

Sunvisor
Components and components location
Repair procedures
| •
| When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to bend or scratch the trim and panels. |
|

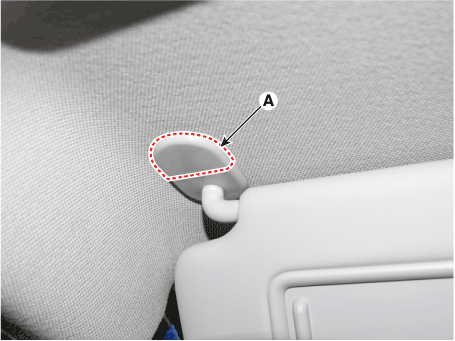

| 1. | Using a screwdriver or remover, remove the sunvisor pivot cover (A).
|

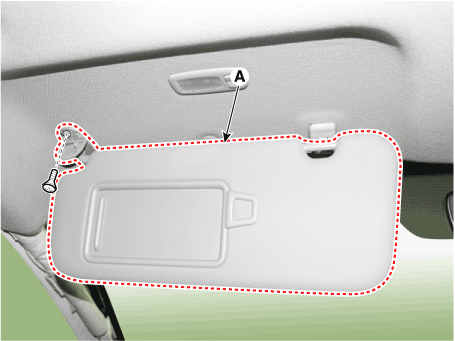

| 2. | Loosen the mounting screws, remove the sunvisor (A).
|

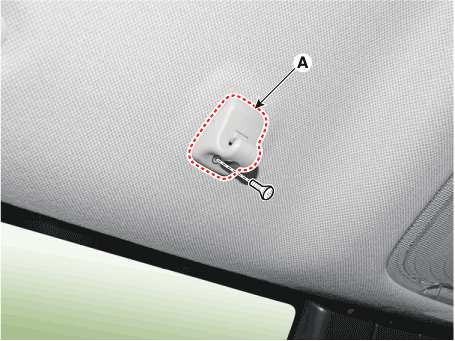

| 3. | Loosen the mounting screw, remove the retainer (A).
|
| 4. | Install in the reverse order of removal. |

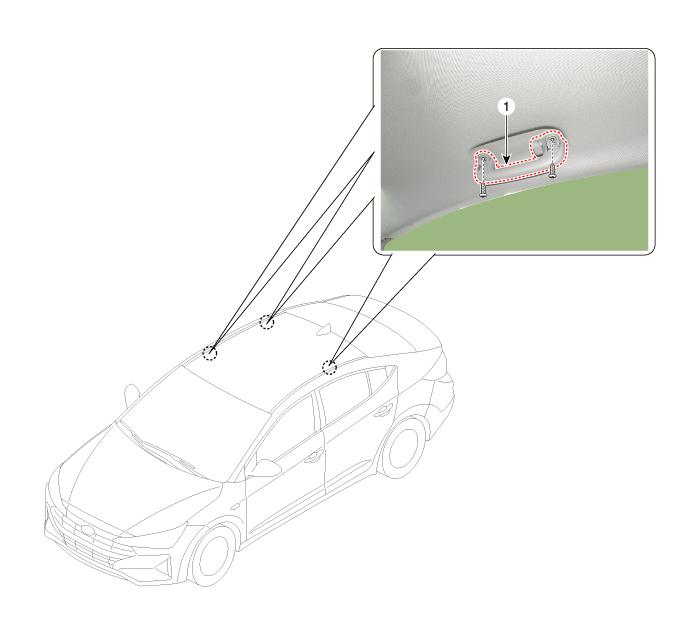

Assist Handle
Components and components location
Repair procedures
| •
| When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to bend or scratch the trim and panels. |
|

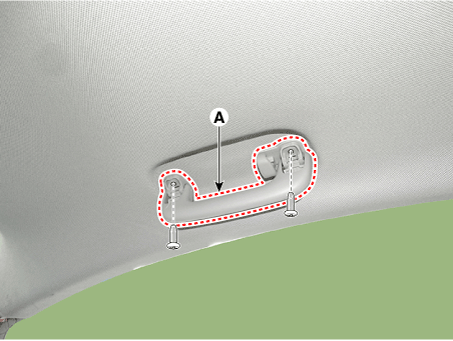

| 1. | After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).
|
| 2. | To install, reverse the removal procedure. |
Roof Trim Assembly
Components and components location
Repair procedures
| •
| When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to bend or scratch the trim and panels. |
|
| 1. | Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") |
| 2. | Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly") |
| 3. | Remove the front pillar trim. (Rear to Interior Trim - "Front Pillar Trim") |
| 4. | Remove the canter pillar upper trim. (Rear to Interior Trim - "Center Pillar Trim") |
| 5. | Remove the rear pillar trim. (Rear to Interior Trim - "Rear Pillar Trim") |
| 6. | Remove the sunvisor and retainer. (Rear to Roof Trim - "Sunvisor") |
| 7. | Remove the assist handle. (Rear to Roof Trim - "Assist Handle") |
| 8. | Remove the overhead console lamp. (Rear to Body Electrical System - "Overhead Console Lamp") |
| 9. | Remove the room lamp. (Rear to Body Electrical System - "Room Lamp") |
| 10. | Disconnect the rear view mirror connector. (Refer to Body Electrical System - "Electro Chromic Inside Rear View Mirror") |
| 11. | Disconnect the rain sensor connector. (Refer to Body Electrical System - "Rain Sensor") |

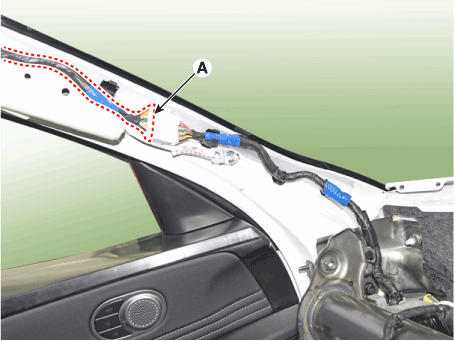

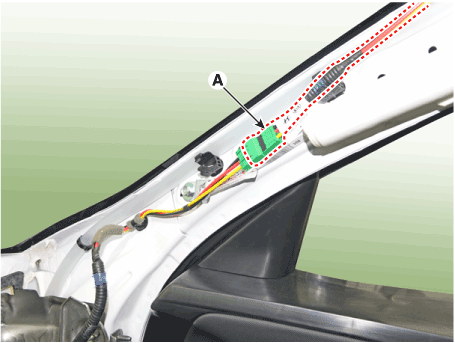

| 12. | Disconnect the roof trim main connector (A) and the mounting clips in the front pillar. [LH]
[RH]
|

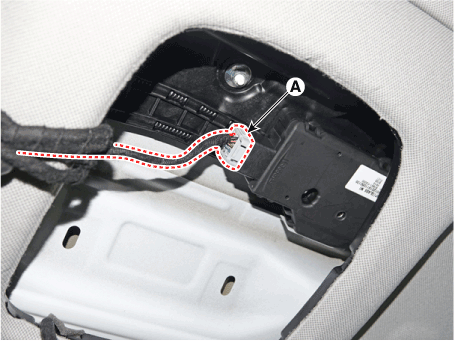

| 13. | Disconnect the sunroof motor connector (A).
|
| 14. | Remove the rear window galss. (Refer to "Windshield Glass") |

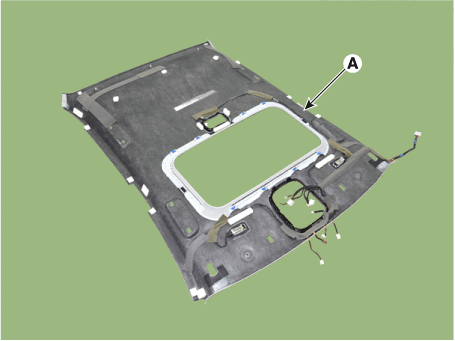

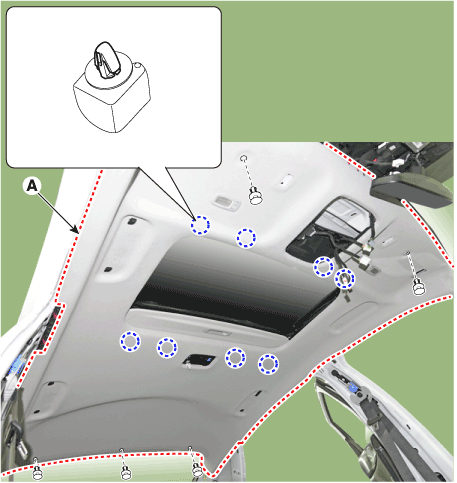

| 15. | Remove the roof trim mounting clip and remove the roof trim assembly (A). | •
| Be careful not to wrinkle on the roof trim. |
|
|
| 16. | Remove roof trim wiring harness (A) from the roof trim. | •
| Take care not to damage the roof trim wiring harness (A) when removing. |
|
| 1) | When installing the roof trim wiring harness (A) on the roof trim, apply the hot melt continuously by using the hot melt gun tool. |
| 2) | Put anti-noise pad on roof trim to prevent the noise. |
|
|
| 17. | To install, reverse the removal procedure. | •
| Make sure the connector is connected in properly. |
| •
| Make sure the connector are connected in properly. |
| •
| Replace any damaged clips (or pin - type retainers). |
|
|
