Components and components location

Components

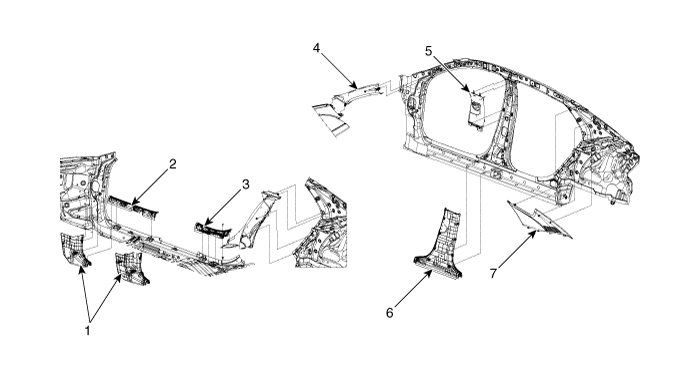

1. Cowl side trim 2. Front door scuff trim 3. Rear door scuff trim 4. Front pillar trim

5. Center pillar upper trim 6. Center pillar lower trim 7. Rear pillar trim

Door Scuff Trim

Components and components location

Component Location

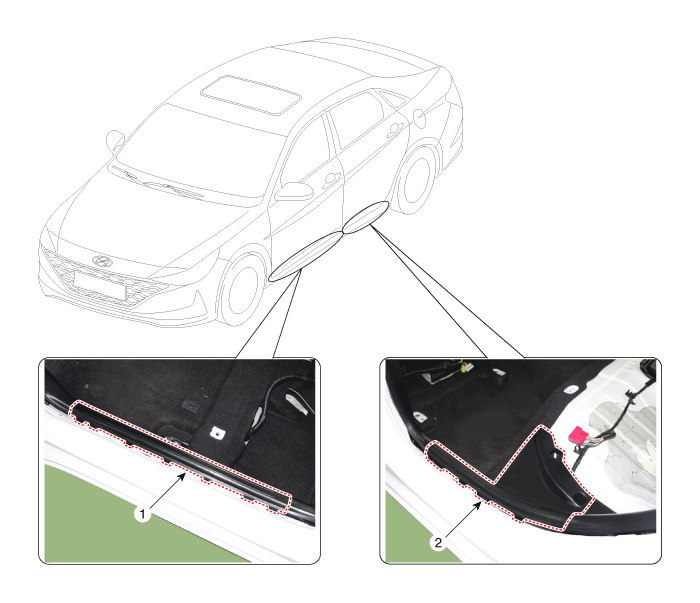

1. Front door scuff trim

2. Rear door scuff trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the front door body side weatherstrip. (Refer to Front Door - "Front Door Side Weatherstrip")

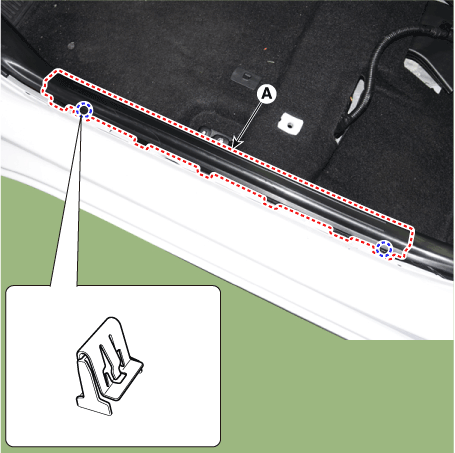

2.	Using a screwdriver or remover, remove the front door scuff trim (A).

3.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the rear door body side weatherstrip. (Refer to Rear Door - "Rear Door Side Weatherstrip")

2.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

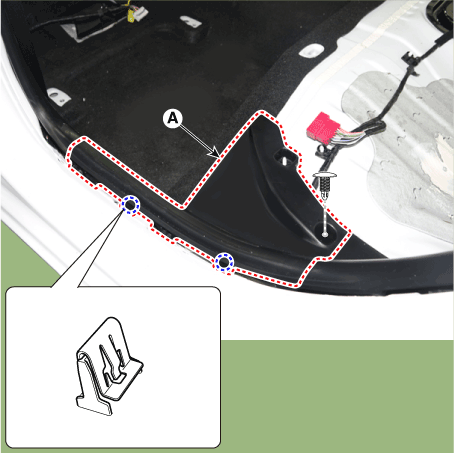

3.	Loosen the mounting screws and remove the rear door scuff trim (A).

4.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

Cowl Side Trim

Components and components location

Component Location

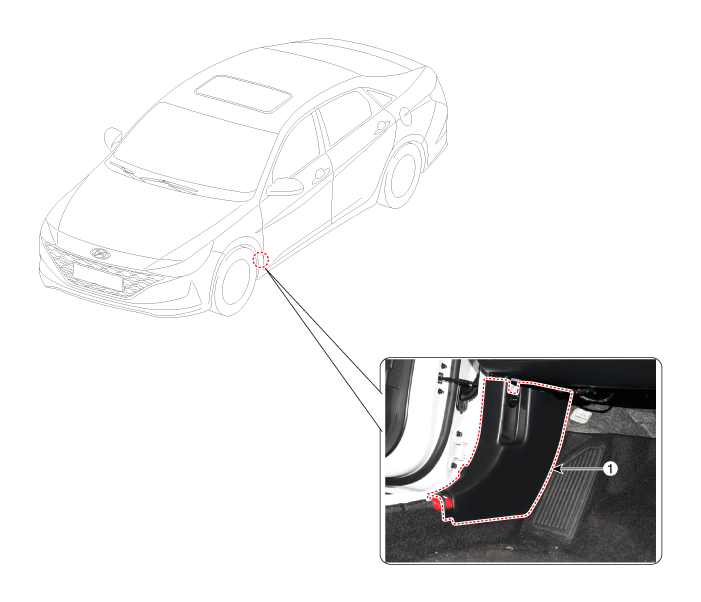

1. Cowl side trim

Repair procedures

Replacement

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the front door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

2.	Remove the hood latch release handle. (Refer to Hood - "Hood Latch Release Handle")

3.	Remove the front door body side weatherstrip. (Refer to Front Door - "Front Door Side Weatherstrip")

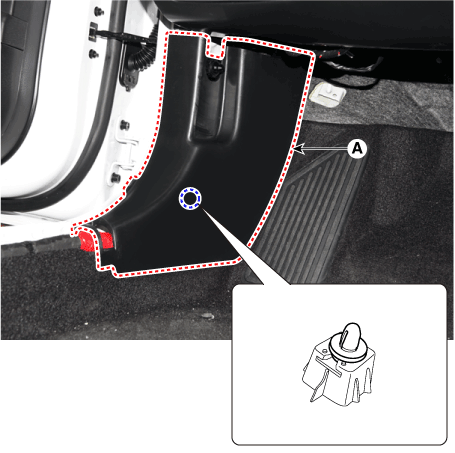

4.	Using a screwdriver or remover, remove the cowl side trim (A).

5.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

Front Pillar Trim

Components and components location

Component Location

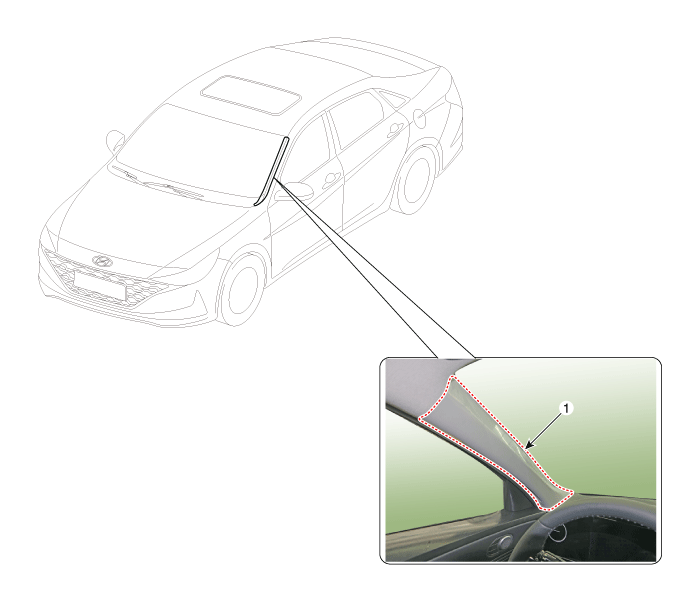

1. Front pillar trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.

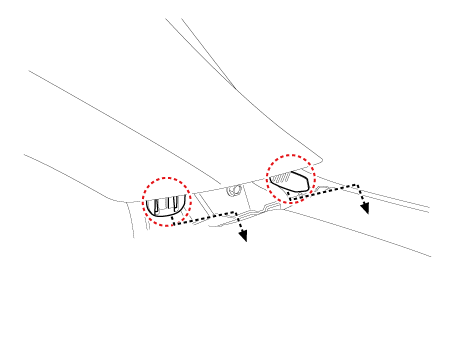

Remove the front pillar trim. (1) To remove the front pillar trim, the fastener remover (A) below must be used. (2) After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it. • Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim. (3) Remove the front pillar trim (A). [LH] [RH] • Front Pillar Trim Mounting Method • Once the front pillar trim is removed, be sure to replace the clip (A) with new ones.

2.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers). • Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.

Center Pillar Trim

Components and components location

Component Location

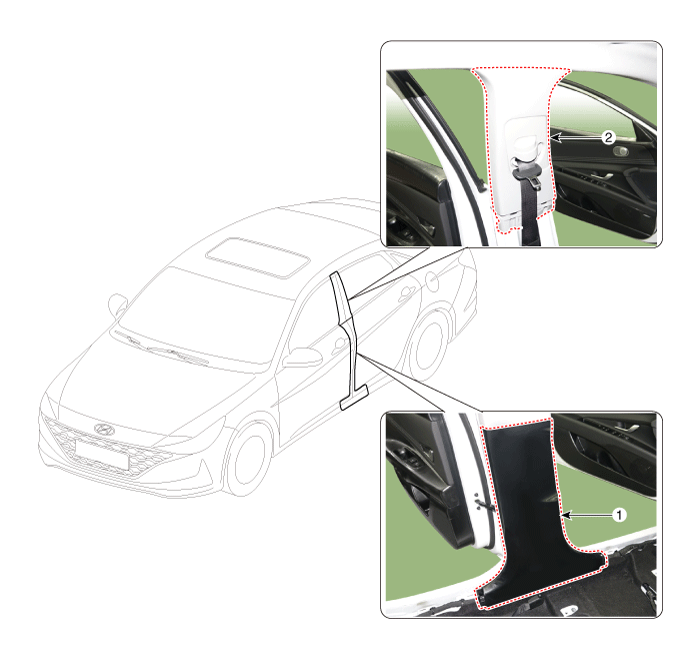

1. Center pillar lower trim

2.Center pillar upper trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the front door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

2.	Remove the rear door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

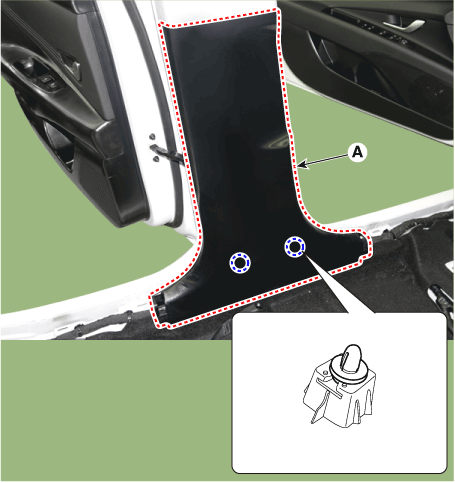

3.	Using a screwdriver or remover, remove the center pillar lower trim (A).

4.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the center pillar lower trim. (Refer to Interior Trim - "Center Pillar Trim")

2.	Remove the front seat belt lower anchor cover (A).

3.	Loosen the mounting bolt, remove the front seat belt lower anchor (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

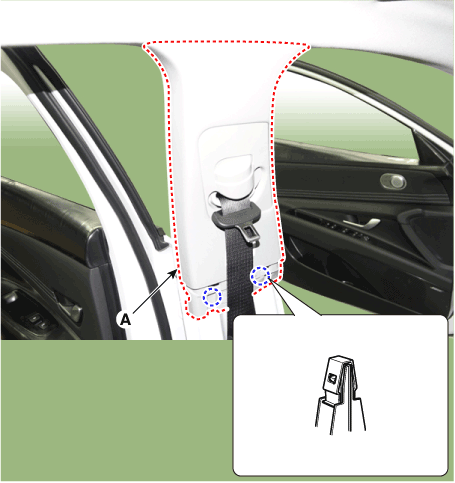

4.	Using a screwdriver or remover, remove the center pillar upper trim (A).

5.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

Rear Pillar Trim

Components and components location

Component Location

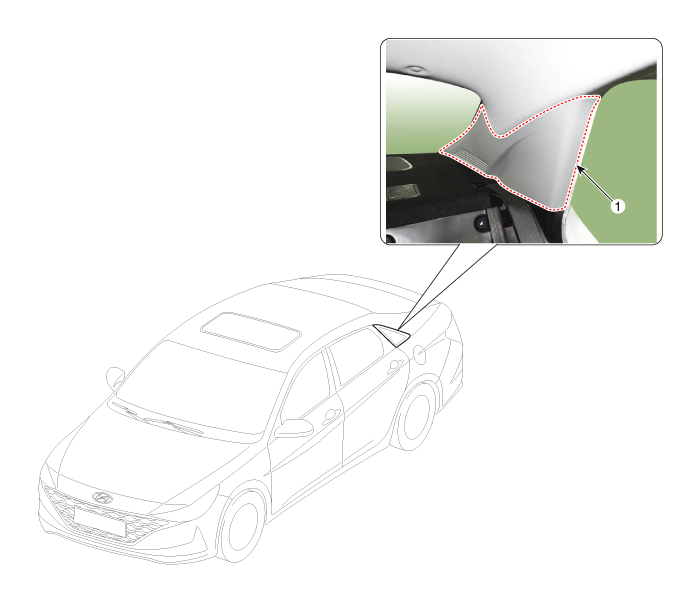

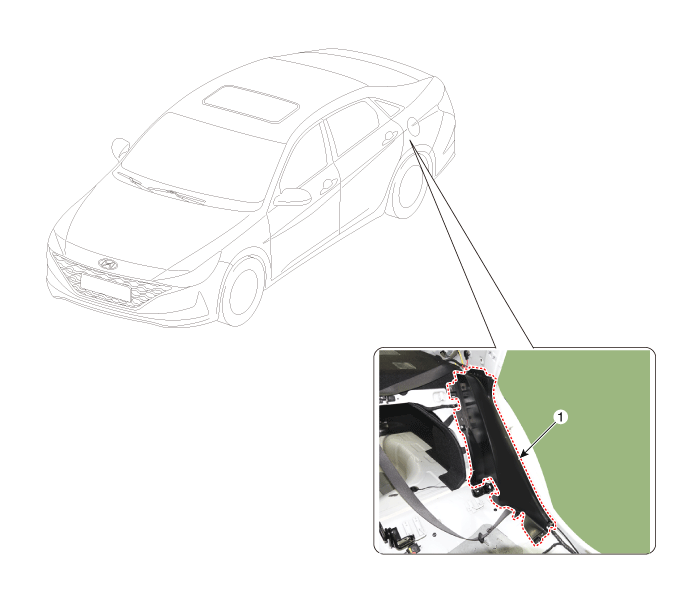

1. Rear pillar trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the rear door body side weatherstrip. (Refer to Rear Door - "Rear Door Side Weatherstrip")

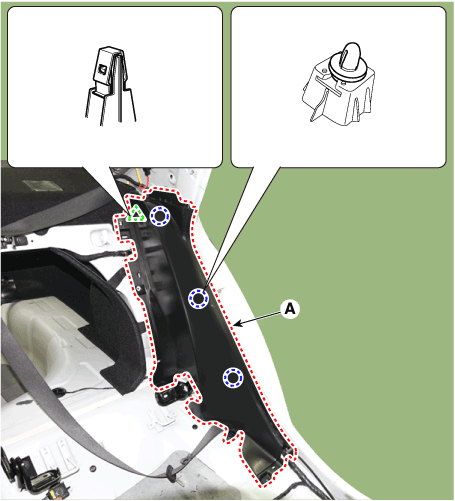

2.	Using screwdriver or remover, remove the rear pillar trim (A).

3.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

Rear Wheel House Trim

Components and components location

Component Location

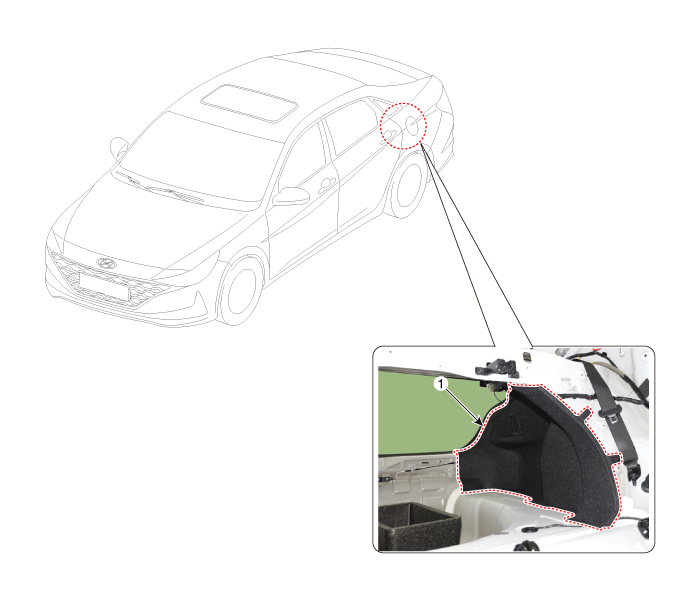

1. Rear wheel house trim

Repair procedures

Replacement

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Using screwdriver or remover, remove the rear door scuff trim (A).

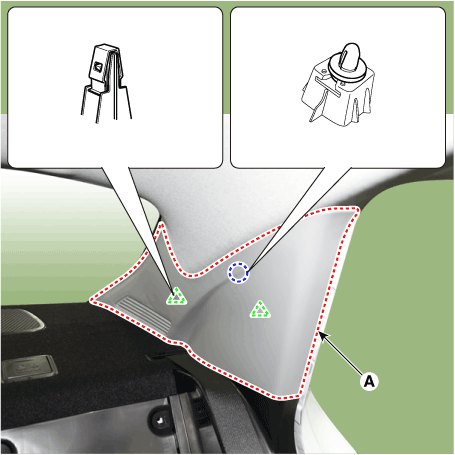

3.	Using screwdriver or remover, remove the rear pillar trim (A).

4.	Loosen mounting clips and bolts, remove the luggage partition side trim (A) and (B).

5.	After loosening the mounting bolts, remove the rear wheel house trim (A).

6.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

Rear Package Tray Trim

Components and components location

Component Location

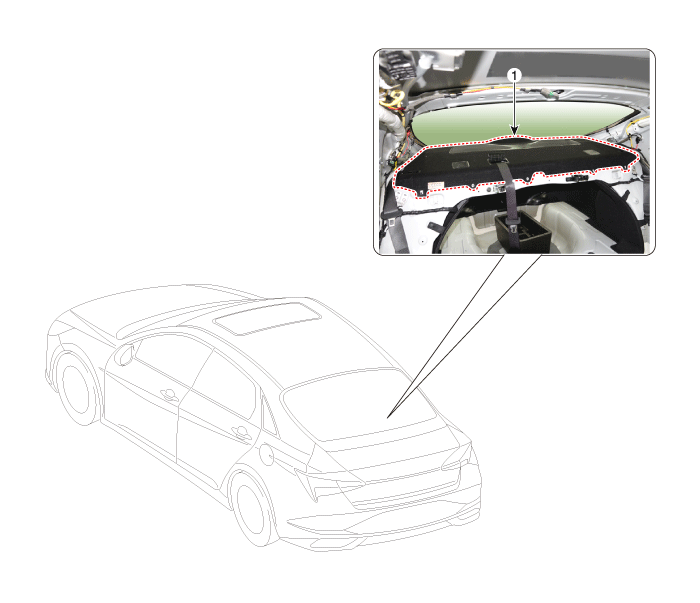

1. Rear package tray trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Using a screwdriver or remover, remove the rear door scuff trim (A).

3.	Using a screwdriver or remover, remove the rear pillar trim (A).

4.	Loosen mounting clips and bolts, remove the luggage partition side trim (A) and (B).

5.	After loosening the mounting bolts, remove the rear wheel house trim (A).

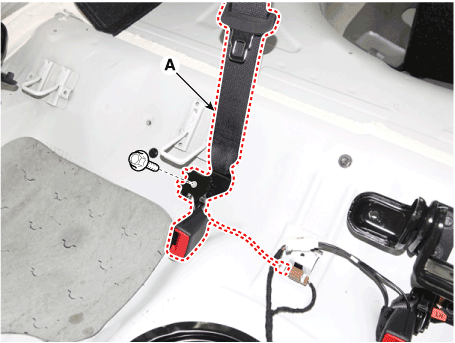

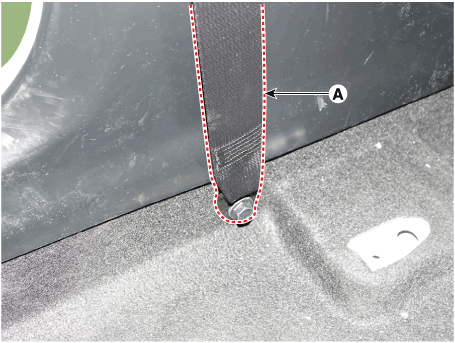

6.	Loosen the mounting bolt, remove the rear seat belt lower anchor (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft) [LH] [CTR] [RH]

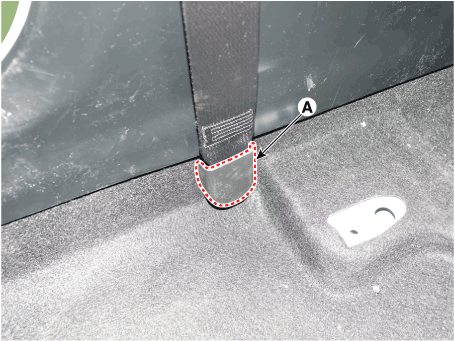

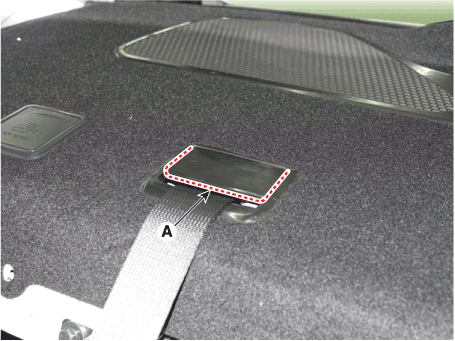

7.	Open the rear seat belt cover (A).

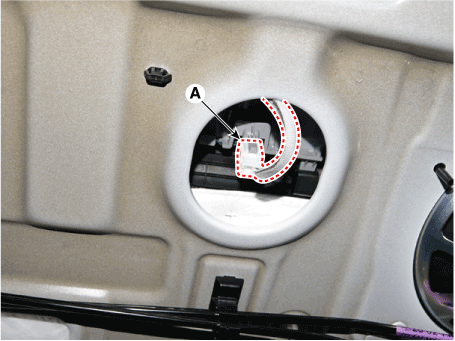

8.	Press the lock pin, separate the connector (A).

9.	Using a screwdriver or remover, remove the rear package tray trim (A).

10.	To install, reverse the removal procedure. • Make sure the connector are connected in properly. • Replace any damaged clips (or pin - type retainers).

Rear Transverse Trim

Components and components location

Component Location

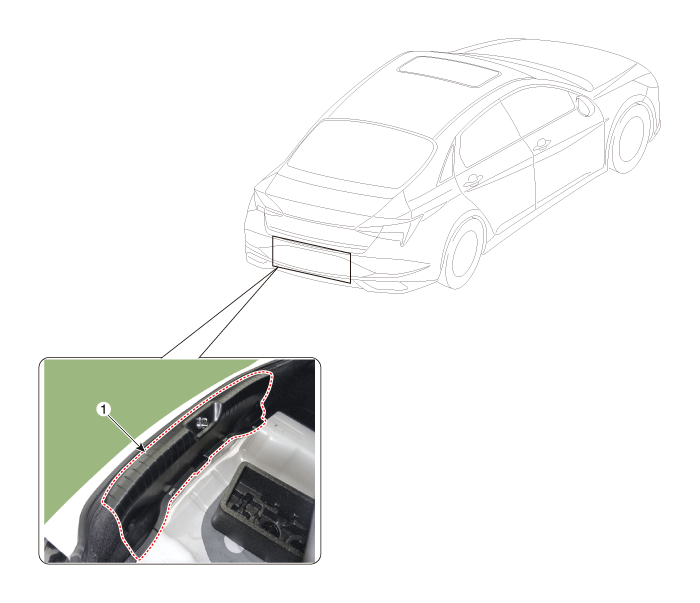

1. Rear transverse trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

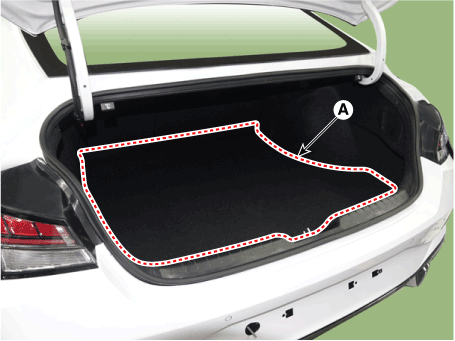

1.	Remove the luggage boad (A).

2.	Loosen the mounting clips and remove the rear transverse trim (A).

3.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).

Luggage Side Trim

Components and components location

Component Location

1. Luggage side trim

Repair procedures

Replacement

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand injuries.

• Take care not to bend or scratch the trim and panels.

1.	Detach the clips, then remove the front door body side weatherstrip (A). [LH] [RH]

2.	Remove the rear seat assembly (Refer to Rear Seat - "Rear Seat Assembly")

3.	Loosen the mounting screws and remove the rear door scuff trim (A).

4.	Remove the luggage boad (A).

5.	Loosen the mounting clips and remove the rear transverse trim (A).

6.	Loosen mounting clips and bolts, remove the luggage partition side trim (A) and (B).

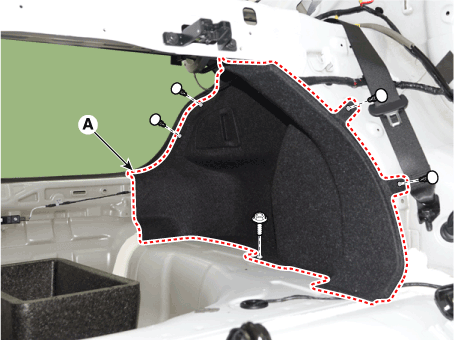

7.	After loosening the mounting bolts and screws, remove the luggage side trim (A).

8.	To install, reverse the removal procedure. • Replace any damaged clips (or pin - type retainers).
