Components and Components Location

Components

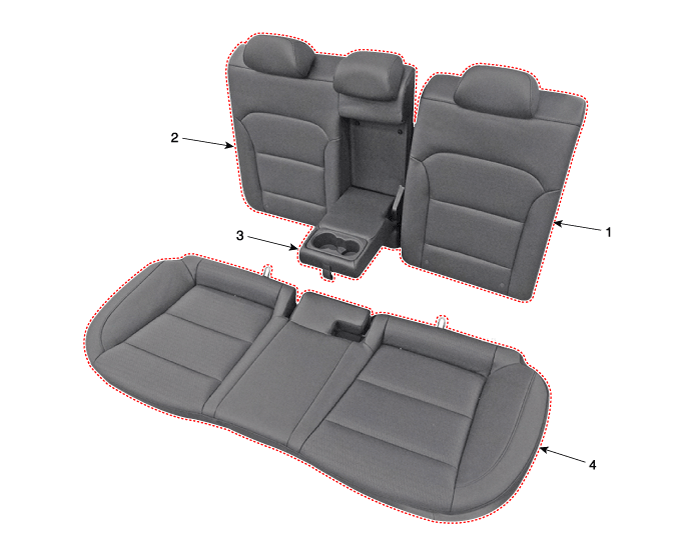

1. Rear seat back assembly [LH] 2. Rear seat back assembly [RH]

3. Rear back armrest 4. Rear seat cushion assembly

Rear Seat Assembly Components and Components Location

Component Location

1. Rear seat cushion assembly

2. Rear seat back assembly

Rear Seat Assembly Repair procedures

Replacement

[Rear seat cushion assembly]

1.	Loosen the mounting bolts, remove the rear seat cushion assembly (A).

2.	Disconnect the rear seat cushion extension connector (A).

3.	To install, reverse the removal procedure.

[Rear seat back assembly]

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

3.	After loosening the mounting bolts, remove the rear seat assembly (A). Tightening torque : 16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)

4.	To intall, reverse the removal procedure.

Rear Seat Back Cover Components and Components Location

Component Location

1. Rear seat back cover [LH]

2. Rear seat back cover [RH]

Rear Seat Back Cover Repair procedures

Replacement

[LH]

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat assembly [LH]. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Push the lock pins, and remove the rear seat headrest (A).

3.	Using a screwdriver or remover, remove the cap (A).

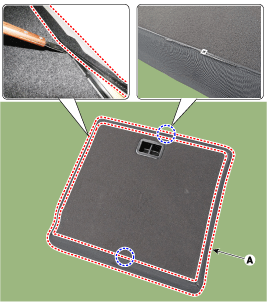

4.	Using a screwdriver or remover, remove the rear seat back cover (A).

5.	Pull out the rear seat headrest guides (A) while pinching both sides of the lower part of the guides, and remove them.

6.	Remove the rear seat back cover assembly (A) from the rear seat back frame.

7.	After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).

8.

To intall, reverse the removal procedure. • Make sure that the connectors are connected completely • Replace any damaged clips (or pin-type retainers). • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A). • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

[RH]

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat assembly [RH]. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Remove the rear back armrest. (Refer to Rear Seat - "Rear Back Armrest")

3.	Push the lock pins, and remove the rear seat headrest (A).

4.	Using a screwdriver or remover, remove the cap (A).

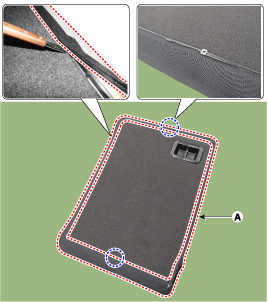

5.	Using a screwdriver or remover, remove the rear seat back cover (A).

6.	Remove the rear seat armrest board (A).

7.	Pull out the rear seat headrest guides (A) while pinching both sides of the lower part of the guides, and remove them.

8.	Remove the rear seat back cover assembly (A) from the rear seat back frame.

9.	After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).

10.

To intall, reverse the removal procedure. • Make sure that the connectors are connected completely. • Replace any damaged clips (or pin-type retainers). • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A). • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Rear Seat Cushion Cover Components and Components Location

Component Location

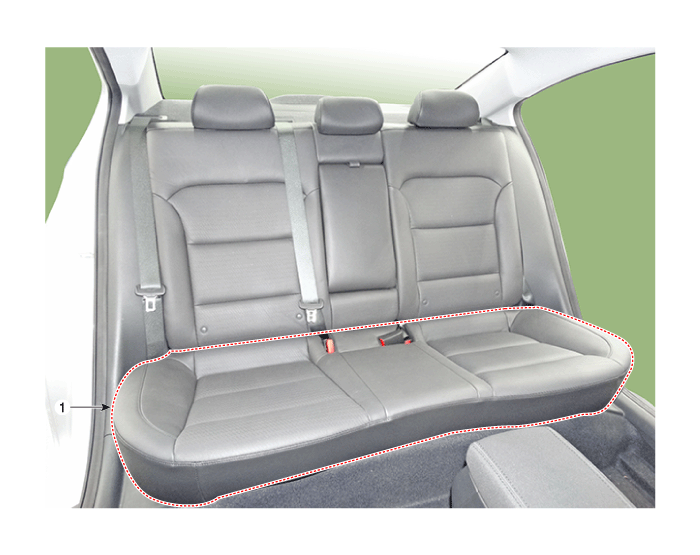

1. Rear seat cushion cover

Rear Seat Cushion Cover Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Remove the seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C). [Front side] [Rear side]

3.

To intall, reverse the removal procedure. • Make sure that the connectors are connected completely. • Replace any damaged clips (or pin-type retainers). • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A). • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Rear Back Armrest Repair procedures

Replacement

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Use a plastic panel removal tool to remove interior trim pieces without marring the surface. • Take care not to bend or scratch the trim and panels.

1.	Fold the rear seat back assembly [LH] (A) by pulling the folding lever in the direction of the arrow.

2.	Separate the rear back armrest (A) after removing the cap and then loosening the bolt.

3.	To install, reverse the removal procedure.

Rear Seat Folding Lever Components and Components Location

Components

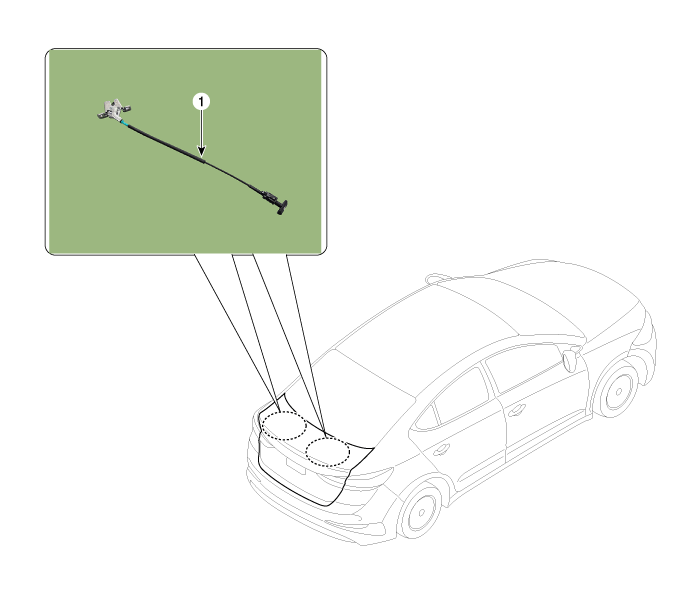

1. Rear seat folding lever

Rear Seat Folding Lever Repair procedures

Replacement

1.	Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

2.	Loosen the mounting clips and bolts, remove the rear seat folding lever (A).

3.	To install, reverse the removal procedure.
