Hyundai Elantra AD: Front Seat Belt - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Front Seat Belt

Components and Components Location

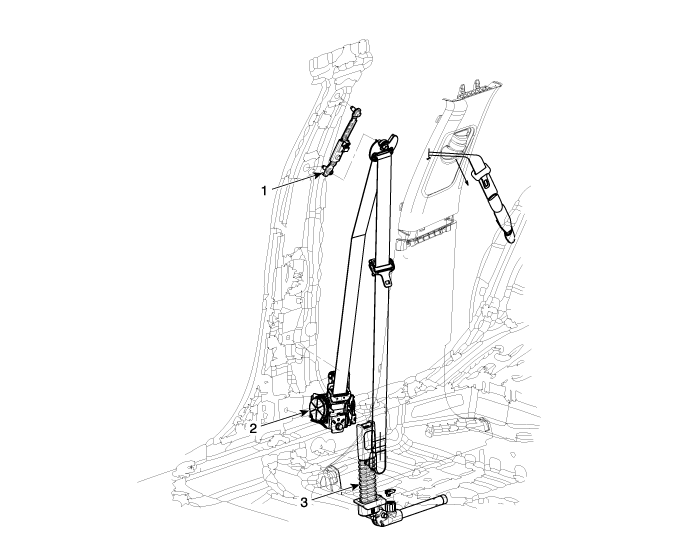

Components

1. Height adjust
2. Front seat belt pretensioner / EFD system
3. Anchor pretensioner

Front Seat Belt Pretensioner Components and Components Location

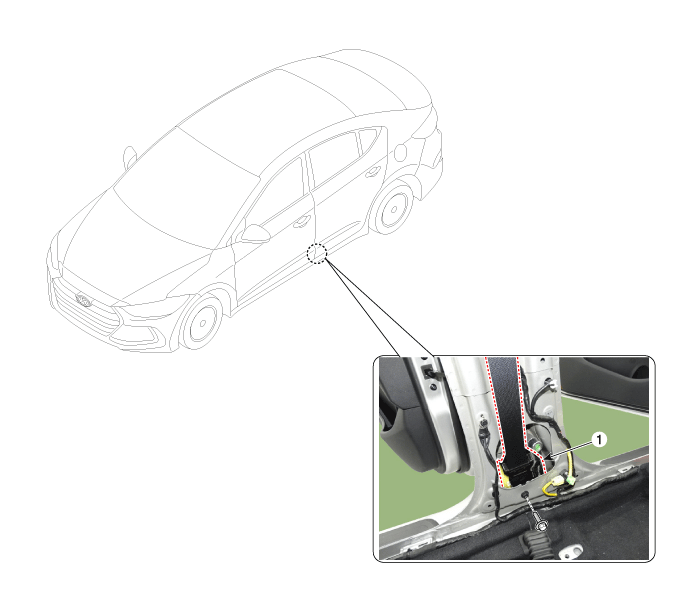

Component Location

1. Front seat belt pretensioner


Front Seat Belt Pretensioner Repair procedures

Replacement

• When installing the belt, make sure not to damage the pretensioner.
1. Remove the center pillar upper trim.

(Refer to Interior Trim - "Center Pillar Trim")
2. After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

3. Disconnect the connector (A)
4. Loosen the mounting bolt and removing the front safety belt retractor (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

5. To intall, reverse the removal procedure.

• After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
• Make sure the connector is plugged in properly.
• Replace any damaged clips (or pin-type retainers).

Height Adjust Components and Components Location

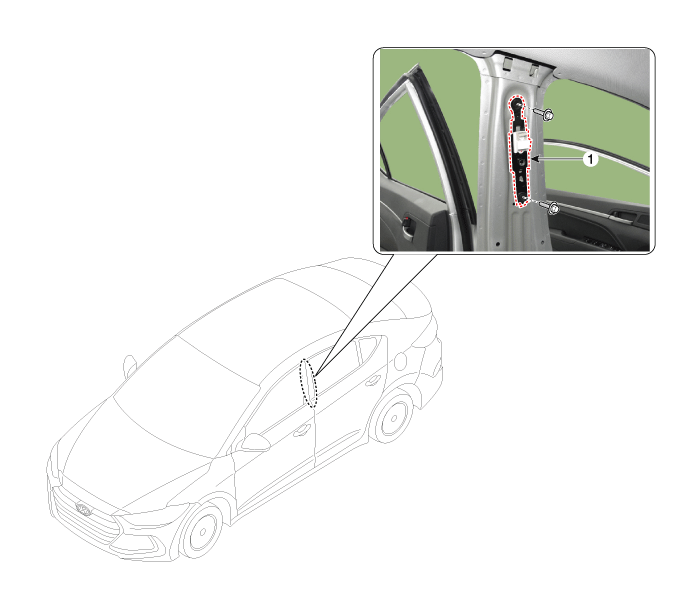

Component Location

1. Height adjust

Height Adjust Repair procedures

Replacement
1. Remove the front seat belt upper anchor.

(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2. After loosening the mounting bolts, remove the height adjust (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

3. To intall, reverse the removal procedure.

• Replace any damaged clips (or pin-type retainers).

Front Seat Belt Buckle Components and Components Location

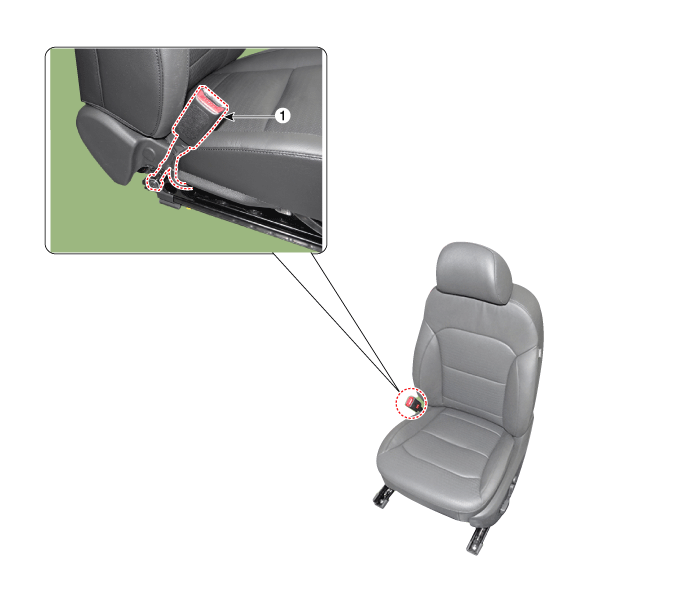

Component Location

1. Front seat belt buckle

Front Seat Belt Buckle Repair procedures

Replacement
1. Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")
2. Disconnect the front seat belt buckle connector wiring (A).
3. After loosening the mounting bolt, remove the front seat belt buckle (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

4. To intall, reverse the removal procedure.

• Make sure the connector is plugged in properly.
