Hyundai Elantra AD: Rear Seat Belt - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Rear Seat Belt

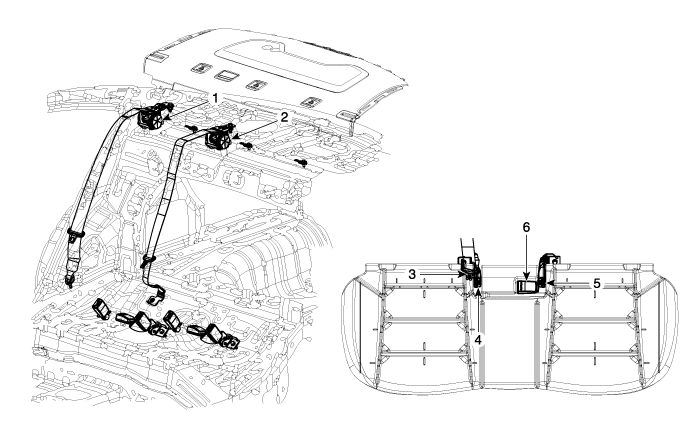

Components and Components Location

Components

1. Rear seat belt retractor [RH]
2. Rear center seat belt retractor
3. Center seat belt
4. Rear seat belt buckle [RH]
5. Rear seat belt buckle [LH]
6. Rear center seat belt buckle

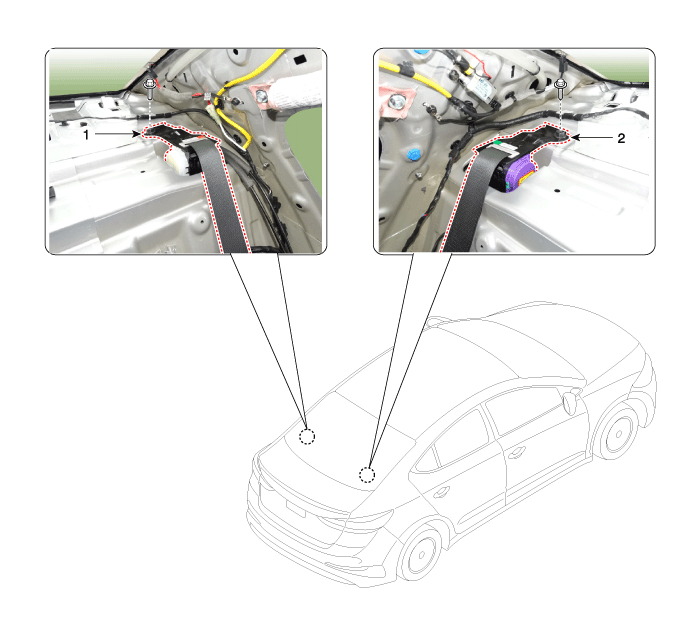

Rear Seat Belt Retractor Components and Components Location

Component Location

1. Rear seat belt retractor [LH]
 2. Rear seat belt retractor [RH]

Rear Seat Belt Retractor Repair procedures

Replacement

• When installing the belt, make sure not to damage the retractor.
1. Remove the package tray trim.

(Refer to Interior Trim - "Package Tray Trim")
2. After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

3. Loosen the retractor (A) mounting bolt, remove the rear seat belt (B).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
[LH]

[RH]
4. To intall, reverse the removal procedure.

• Replace any damaged clips (or pin-type retainers).

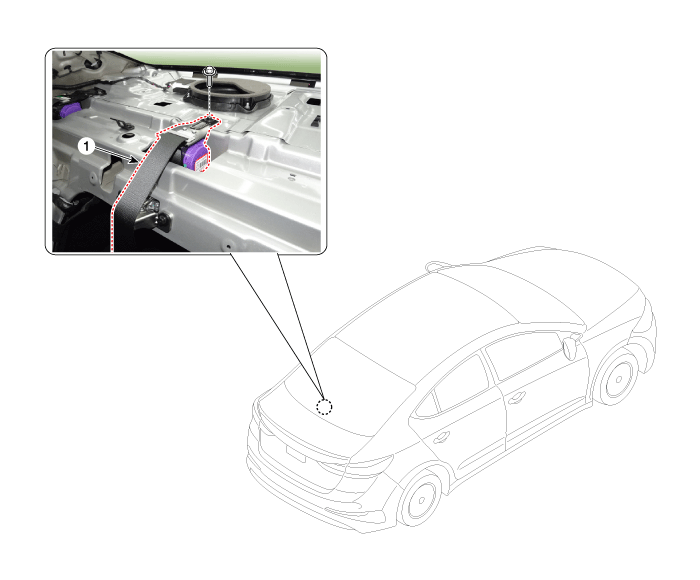

Rear Center Seat Belt Retractor Components and Components Location

Component Location

1. Rear center seat belt retractor

Rear Center Seat Belt Retractor Repair procedures

Replacement

• When installing the belt, make sure not to damage the retractor.
1. Remove the package tray trim.

(Refer to Interior Trim - "Rear Package Tray Trim")
2. After loosening the mounting bolts, remove the rear center seat belt retractor (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

3. To intall, reverse the removal procedure.

• Replace any damaged clips.

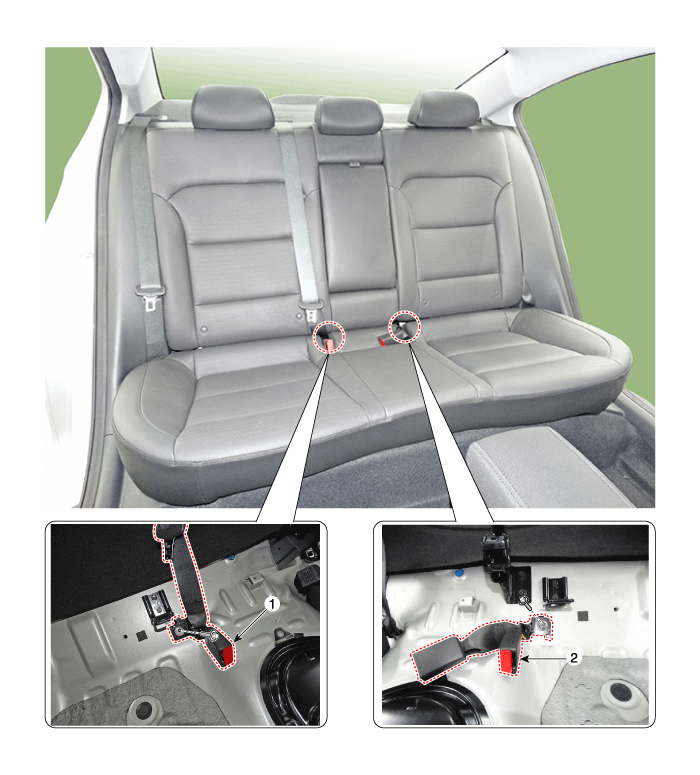

Rear Seat Belt Buckle Components and Components Location

Component Location

1. Rear seat belt buckle [RH]
 2. Rear center seat belt buckle [LH]

Rear Seat Belt Buckle Repair procedures

Replacement
1. Remove the rear seat cushion assembly.

(Refer to Rear Seat - "Rear Seat Cushion Assembly")
2. Loosen the mounting bolt, remove the rear seat belt buckle (A).

[LH]

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

[RH]
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

3. To intall, reverse the removal procedure.

• The buckle and tongue of different types are impossible to be latched, so check that the buckle & tongue have the same types.
• Distinguish the rear side seat buckle from the center seat buckle before latching.
• If foreign materials are stuck in the inside button of buckle, it may cause interference during the latching process, leading to a functional problem (for example- beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.).
• After latching the buckle and tongue, check the fastening force using a Push-Pull Gauge (fastening force: 3kgf or less).
