Hyundai Elantra AD: Rear Bumper - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Rear Bumper

Components and Components Location

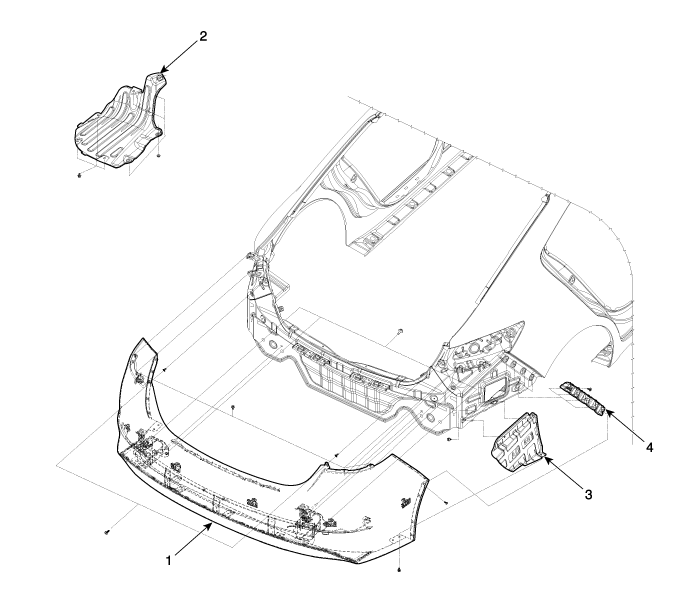

Components

1. Rear bumper assembly
2. Rear bumper under cover assembly
 3. Rear bumper lower guard
4. Rear bumper side bracket

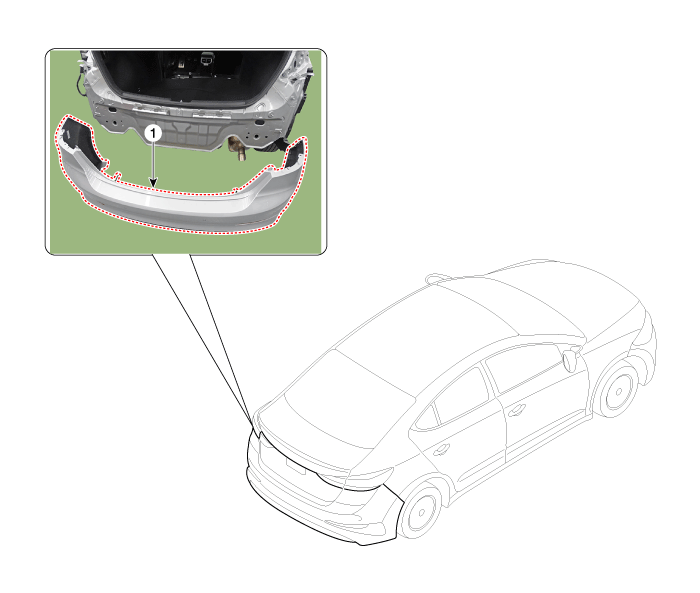

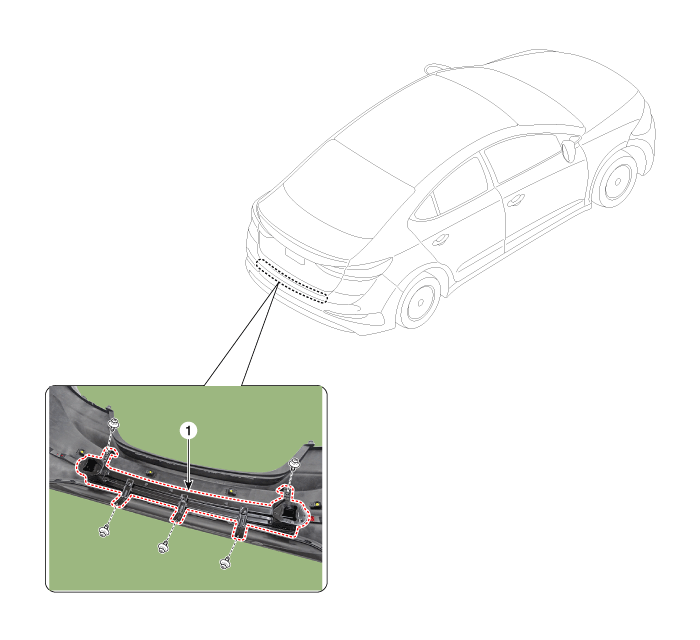

Rear Bumper Cover Components and Components Location

Component Location

1. Rear bumper cover

Rear Bumper Cover Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the combination lamp cover (A).
2. Disconnect the mounting nuts and rear combination lamp connector (A).
3. Remove the rear combination lamp (A).
4. Loosen the mounting clips and nuts, remove the rear bumper retainer cover (A).
5. Loosen the mounting bolts.
6. Disconnect the rear bumper connector (A).
7. After loosening the pin-type retainers and screws on the side of rear bumper (A), detach the side part of rear bumper.

• Be careful not to damage the tabs on the side part of front bumper.

8. Remove the rear bumper cover (A).
9. To intall, reverse the removal procedure.

• Make sure the connector is plugged in properly.
• Replace any damaged clips (or pin-type retainers).

Rear Bumper beam Assembly Components and Components Location

Component Location

1. Rear bumper beam assembly

Rear Bumper beam Assembly Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the rear bumper cover.

(Refer to Rear Bumper - "Rear Bumper Cover")
2. Disconnect the rear bumper beam mounting wiring harness (A).
3. Loosen the mounting bolts and remove the smart key antenna (A).
4. After loosening the mounting clips, remove the rear bumper beam assembly (A).
5. To intall, reverse the removal procedure.

• Make sure the connector is plugged in properly.
• Replace any damaged clips (or pin-type retainers).
