Hyundai Elantra AD: Front Bumper - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Front Bumper

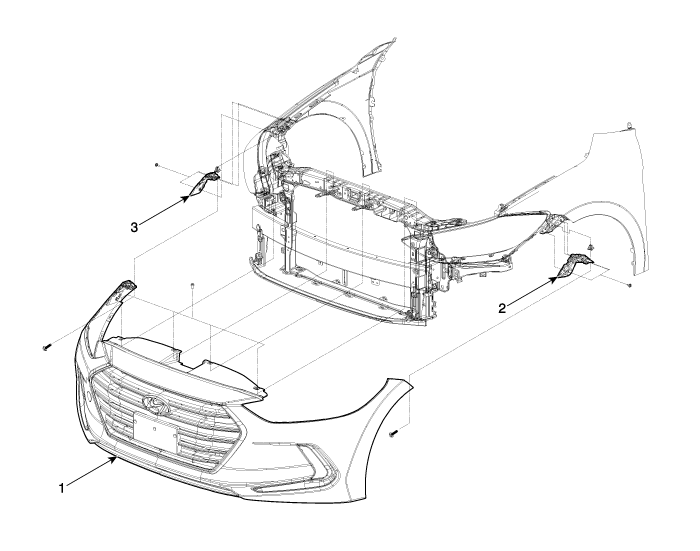

Components and Components Location

Components

1. Front bumper cover
2. Front bumper side bracket [LH]
 3. Front bumper side bracket [RH]

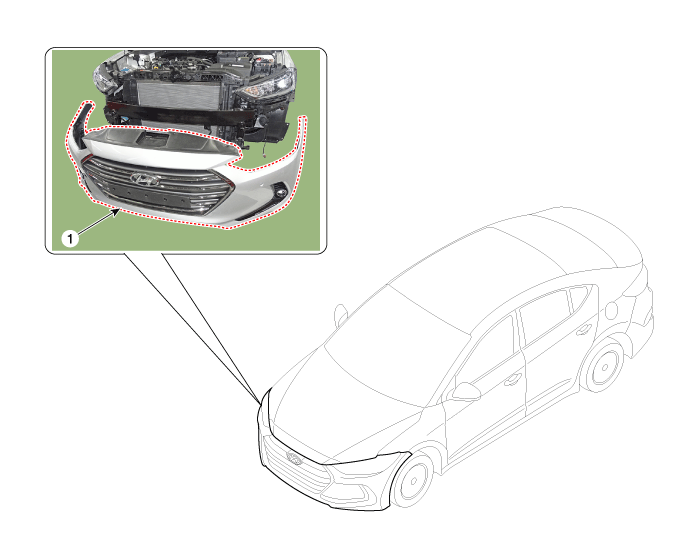

Front Bumper Cover Components and Components Location

Component Location

1. Front bumper cover

Front Bumper Cover Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. Loosen the bolts of the front bumper upper.

2. Loosen the front bumper lower mounting clips.
3. After loosening the pin-type retainers and screws on the side of front bumper (A), detach the side part of front bumper.

• When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.

4. Disconnect the front bumper connector (A).

[LH]

[RH]
5. Remove the front bumper cover (A).
6. To intall, reverse the removal procedure.

• Make sure the connector is plugged in properly.
• Replace any damaged clips (or pin-type retainers).

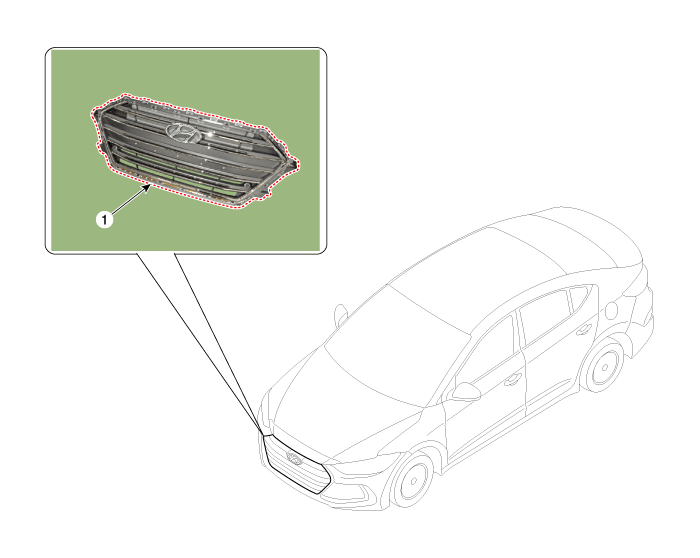

Radiator Grill Components and Components Location

Component Location

1. Radiator grill

Radiator Grill Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the front bumper cover.

(Refer to Front Bumper - "Front Bumper Cover")
2. Separate the front bumper wiring (A).
3. Remove the fixing clip and then the front bumper energy absorber (A).
4. Using a screwdriver or remover, remove the radiator grill cover (A).
5. Loosen the radiator grill mounting screws.
6. Using a screwdriver or remover, pull the clip upward and remove the radiator grill (A).
7. To intall, reverse the removal procedure.

• Replace any damaged clips (or pin-type retainers).
