Hyundai Elantra AD: Floor Carpet - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Floor Carpet

Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the floor console assembly.

(Refer to Floor Console - "Floor Console Assembly")
2. Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")
3. Remove the rear seat cushion assembly.

(Refer to Rear Seat - "Rear Seat Assembly")
4. Remove the cowl side trim.

(Refer to Interior Trim - "Cowl Side Trim")
5. Remove the center pillar lower trim.

(Refer to Interior Trim - "Center Pillar Trim")
6. Remove the footrest (A).
7. Remove the floor carpet assembly (B).
8. To intall, reverse the removal procedure.

• Replace any damaged clips (or pin-type retainers).

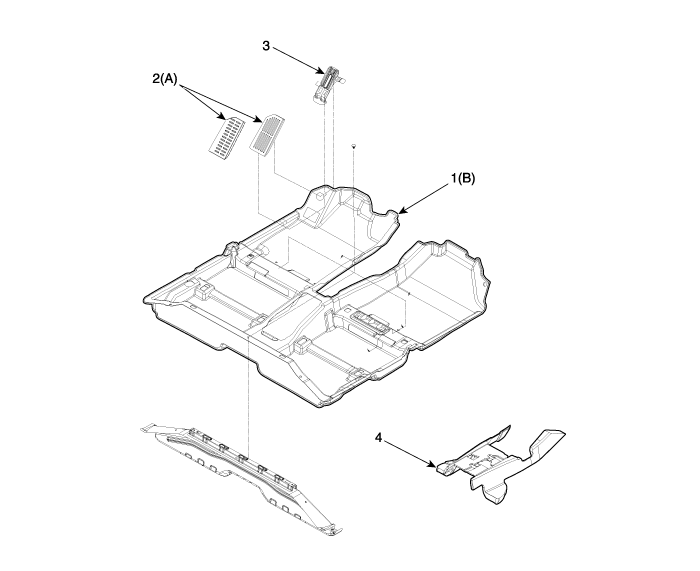

1. Front floor carpet assembly
2. Footrest
3. Footrest bracket
4. Front tunnel pad
