Hyundai Elantra CN7: Power Door Mirrors

Seventh generation (CN7; 2021–2024) / Hyundai Elantra CN7 2021-2024 Workshop Manual / Body Electrical System / Power Door Mirrors

Components and components location

Component Location

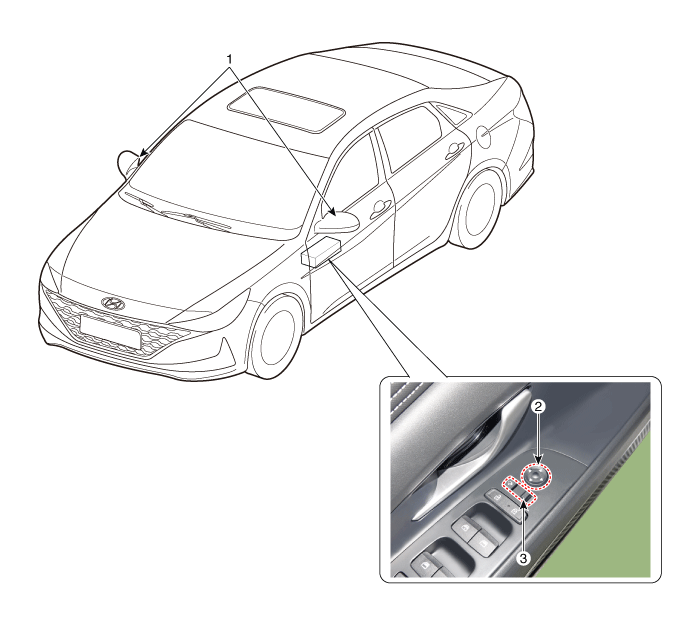

1. Power door mirror
2. Power door mirror switch

3. Power folding mirror switch

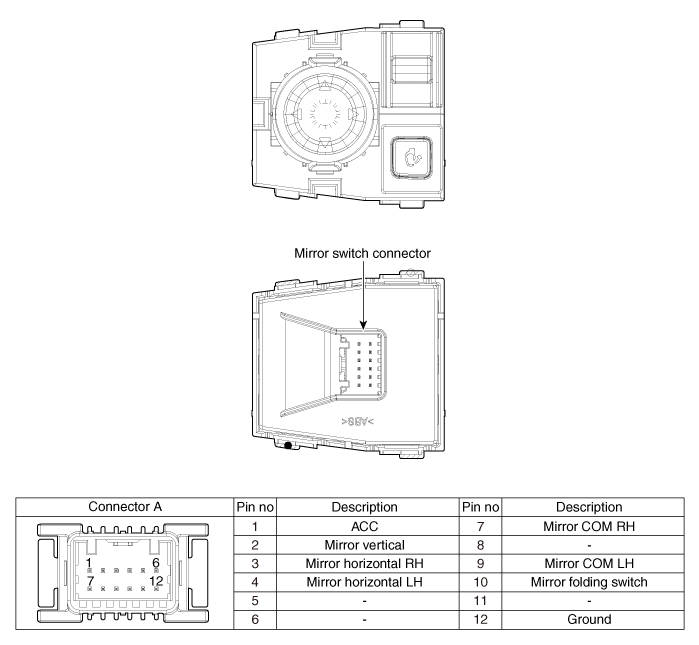

Power Door Mirror Switch

Components and components location

Components

Schematic diagrams

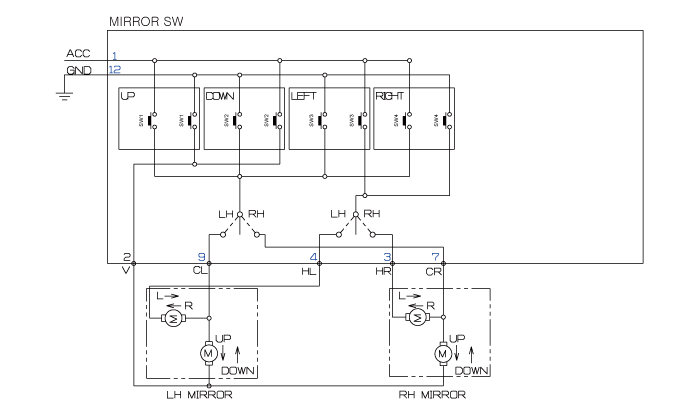

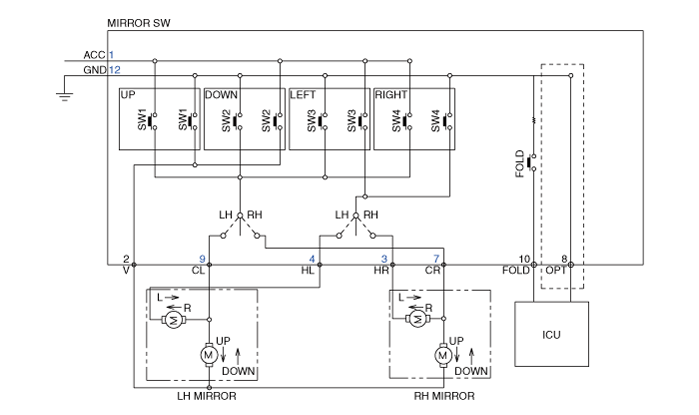

Circuit Diagram

Without Mirror Folding

With Mirror Folding

Repair procedures

Inspection

[Power Window Switch]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the driver door trim. (Refer to Body - "Front Door Trim")

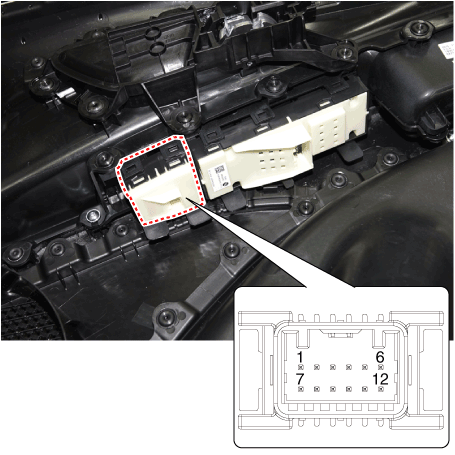

3.	Disconnect the power mirror switch connector from the door trim.

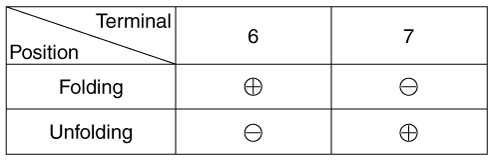

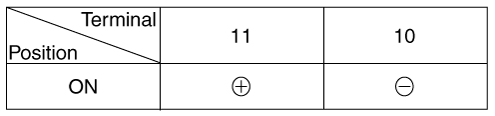

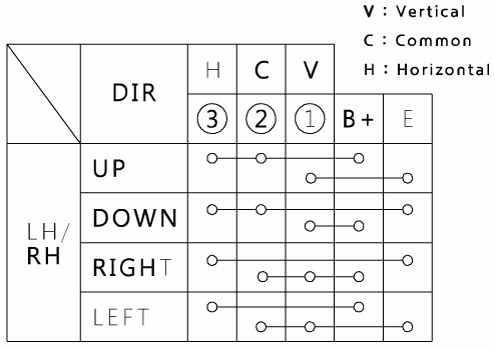

4.	Check for continuity between the terminals in each switch position according to the table. [Power Folding Mirror Switch]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front Door Trim")

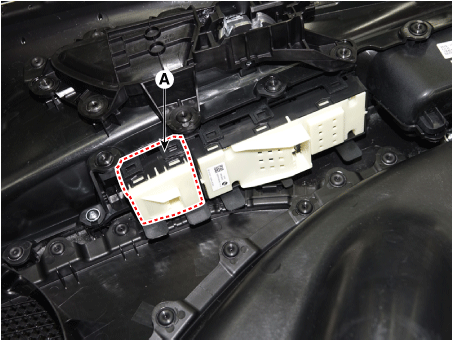

3.	Remove the power window assembly (A).

Installation

1.	Install the power window switch assembly.

2.	Install the front door trim after connect the connector.

Connect the negative (-) battery terminal.

•	Make sure that the switch connectors are plugged in properly.

•	Check the power door mirror system for normal operation.

Power Door Mirror Actuator

Repair procedures

Removal

1.	Disconnect (-) battery terminal.

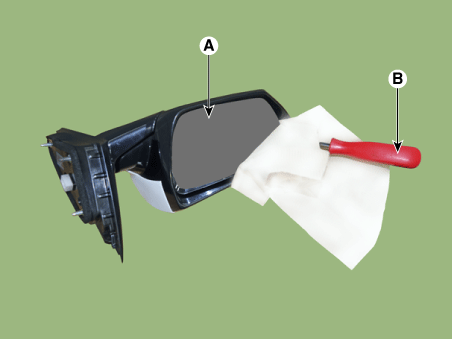

Using a fastener remover (C), remove the mirror (A) as illustration below.

•	Protect mirror from removing tool with cloth (B) wrapped.

•	Be careful not to damage mirror and mirror housing during removing process.

•	Apply force around the center of mirror because to apply force the end of mirror will break it.

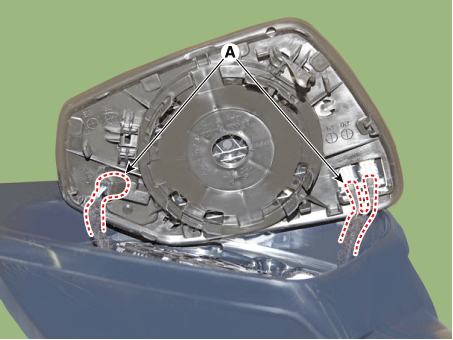

3.	Disconnect heat wire connectors (A) and then remove the mirror.

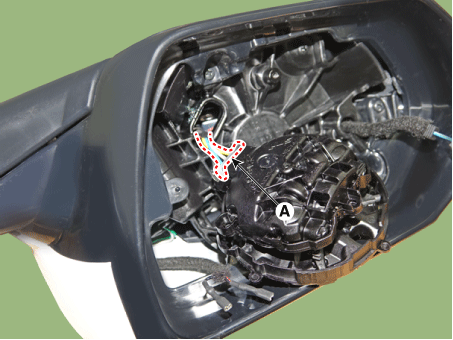

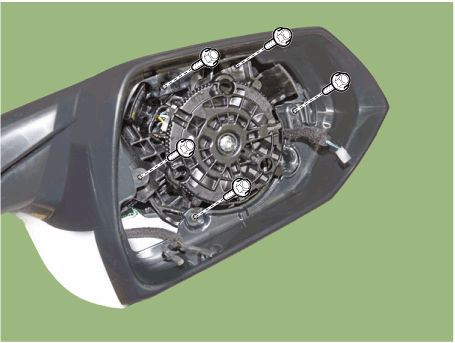

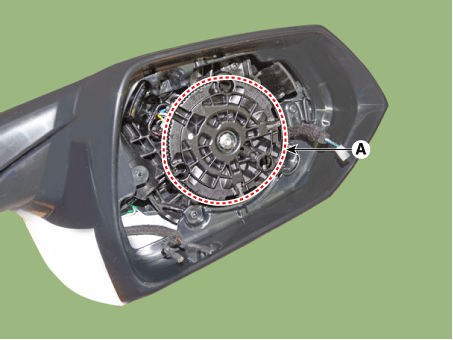

4.	Remove the mirror actuator (A) mounting screw.

5.	Disconnect the connector (A) and then remove the mirror actuator.

Installation

1.	Connect the actuator connector and then install the mirror actuator.

2.	Connect mirror heat wire connector and then install the mirror.

3.	Connect (-) battery terminal then check if mirror works normally.

Power Door Mirror Assembly

Components and components location

Components

1. Warning indicator

2. Side repeater lamp

Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

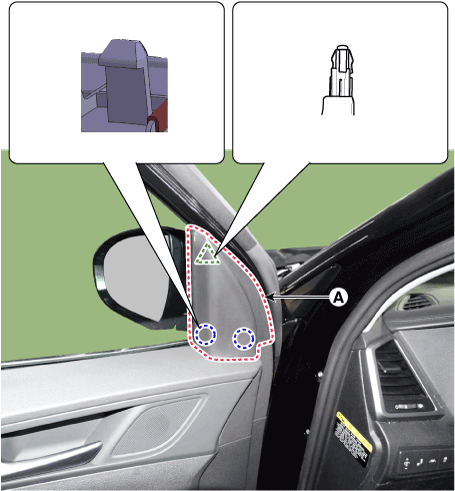

2.	Remove the front door quadrant inner cover (A).

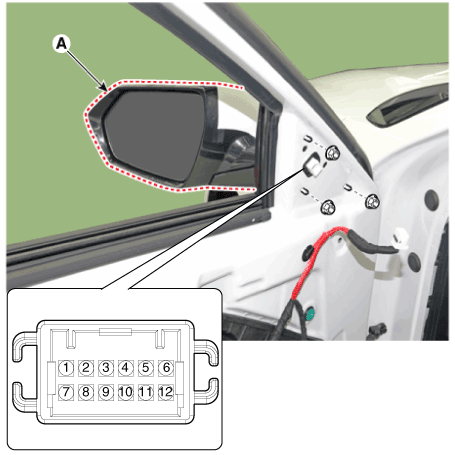

3.	Disconnect the power door mirror connector from the harness.

4.	Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly. [Mirror Control (LH/RT)] [Warning indicator] [Mirror Heater] [Side Repeater Lamp] [Mirror Fording Motor]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front door trim")

Using a fastener remover (C), remove the mirror (A) as illustration below.

•	Protect mirror from removing tool with cloth (B) wrapped.

•	Be careful not to damage mirror and mirror housing during removing process.

•	Apply force around the center of mirror because to apply force the end of mirror will break it.

4.	Disconnect heat wire connectors (A) and then remove the mirror.

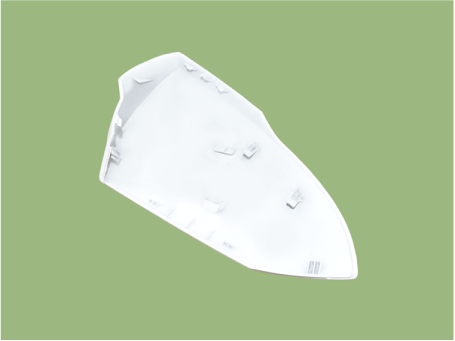

Remove the scalp.

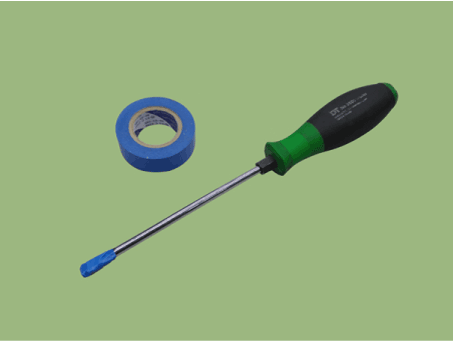

(1)	Attach protection tape at the end of the screw driver.

(2)

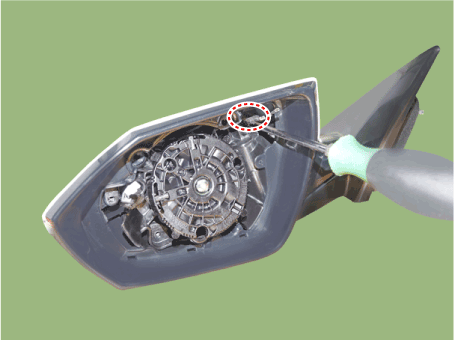

Insert screw driver in where you can see the back of scalp.

•	When inserting screw driver, avoid to touch internal wires in the mirror housing.

(3)

Hold the mirror assembly with one hand and hold the screwdriver with the other hand and strike it vertically as shown illustration below.

•	It is the way that screw driver strikes inner side of scalp cover to remove.

•	Lift screw driver and door mirror assembly about 20cm height from floor then smash them vertically.

•	Scalp is thrown and removed because screw driver push the back of scalp cover to remove.

•	After removing the scalp, make sure that the clip and hook on the back of the scalp are not damaged.

•	If clips and hooks are damaged, replace the scalp with a new one as noise may occur in driving.

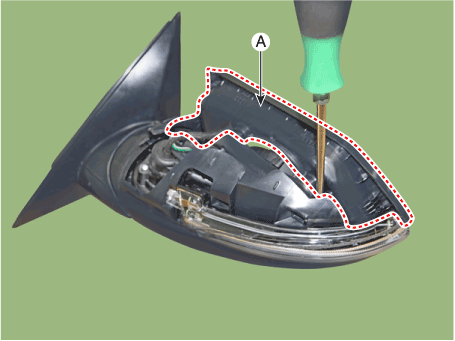

6.	Remove the fornt housing cover after loosening mounting screws.

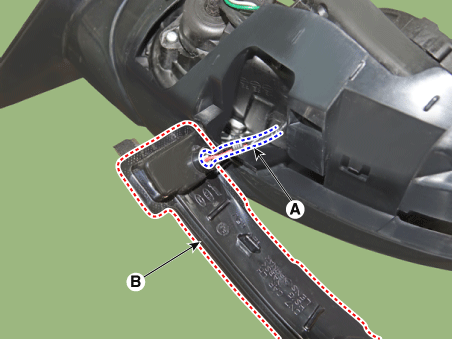

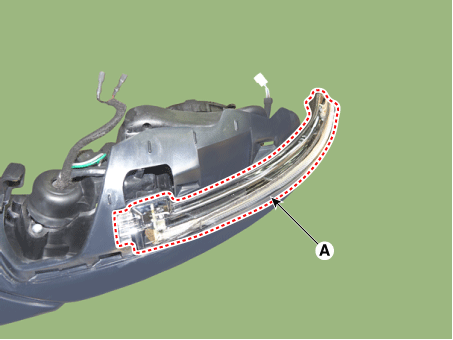

7.	Using a fastener remover, remove the LED side repeater lamp (A) as illustration below.

8.	Disconnect the connector (A) and then remove the LED side repeater lamp (B).

Installation

1.	Install the side repeater lamp.

Install the front housing cover.

•	When front housing cover installing, install the folded area first and then the far area.

•	Pushing the around of front housing cover with both hands and then make sure that it is completely installed.

Install the scalp.

•	Install the scalp in the vertical direction that the inner fixing hook is not damaged.

•	When scalp installing, install the folded area first and then the far area.

•	Pushing the around of scalp with both hands and then make sure that it is completely installed.

4.	Connect mirror wire connectors.

5.	Install the door mirror assembly.

6.	Connect (-) battery terminal then check if door mirror lamp works normally.
