Outside Rear View Mirror
Components and components location

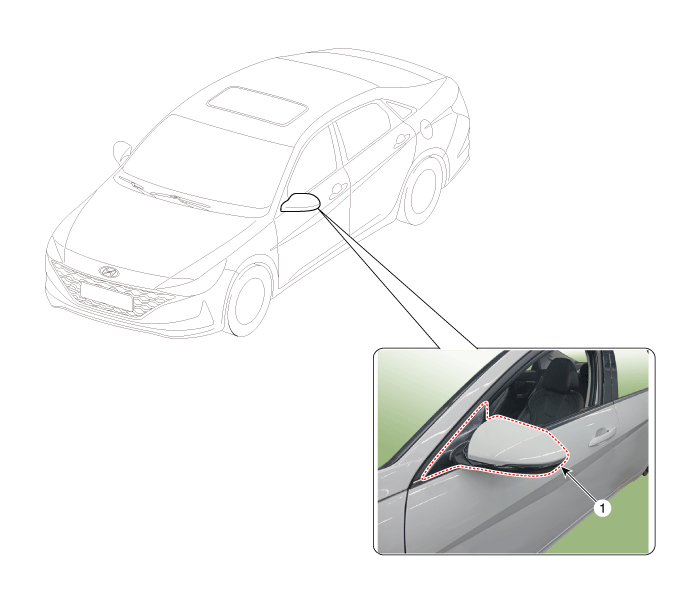

1. Outside rear view mirror
|
|
Repair procedures
| •
| When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| 1. | Remove the front door trim. (Refer to Front Door - "Front Door Trim") |
| 2. | Disconnect the outside rear view mirror connector (A).
|

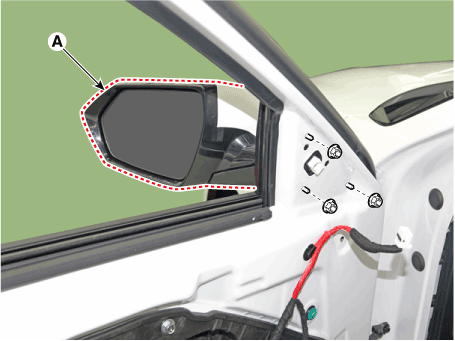

| 3. | After loosening the mounting nuts, remove the outside rear view mirror (A). Tightening torque : 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft) |
|
| 4. | To install, reverse the removal procedure. | •
| Make sure the connector is connected properly. |
| •
| Replace any damaged clips (or pin - type retainers). |
|
|
Inside Rear View Mirror
Components and components location

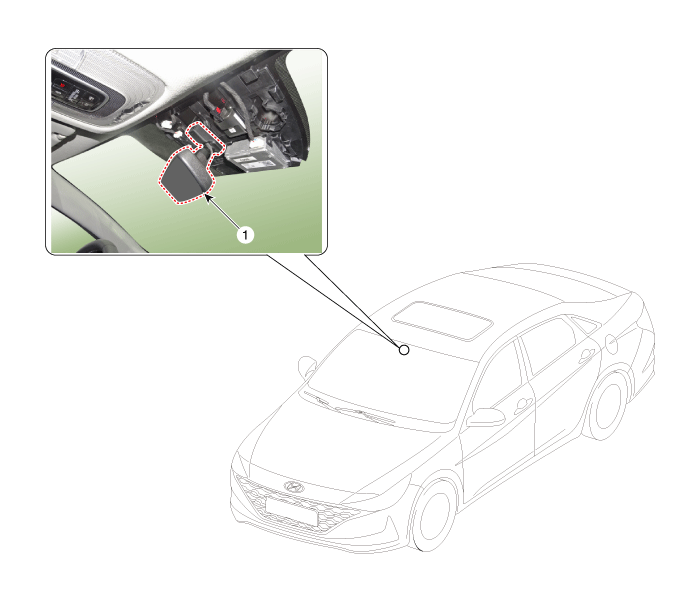

1. Inside rear view mirror
|
|
Repair procedures
| •
| When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| 1. | Remove the inside rear view mirror cover (A).
|
| 2. | Using a screwdriver or remover, remove the rain sensor cover (A).
|
| 3. | Disconnect the inside rear view mirror connector (A).
|
| 4. | Loosen the mounting screw and push the inside rear view mirror base upward to remove the inside rear view mirror assembly (A).
|
| 5. | To install, reverse the removal procedure. | •
| Make sure the connector is connected properly. |
| •
| Be careful not to damage the windshield glass. |
|
|
