Components and components location

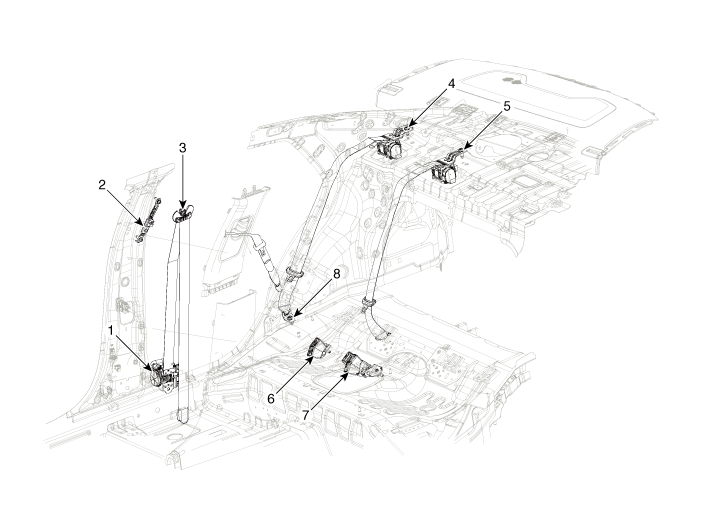

1. Front seat belt retractor
2. Height adjust
3. Front seat belt upper anchor
4. Rear seat belt retractor [RH]
| 5. Rear seat belt retractor [CTR]
6. Seat belt buckle [RH]
7. Seat belt buckle [LH, CTR]
8. Rear Seat belt lower anchor
|
Front Seat Belt Pretensioner
Components and components location

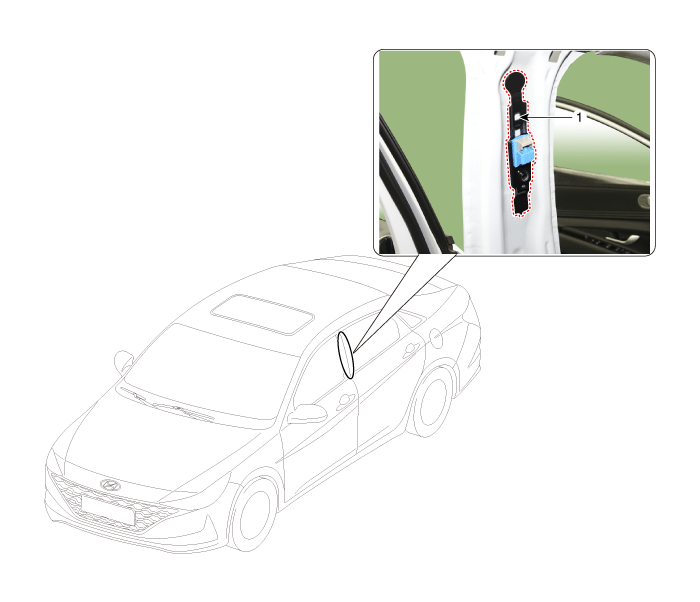

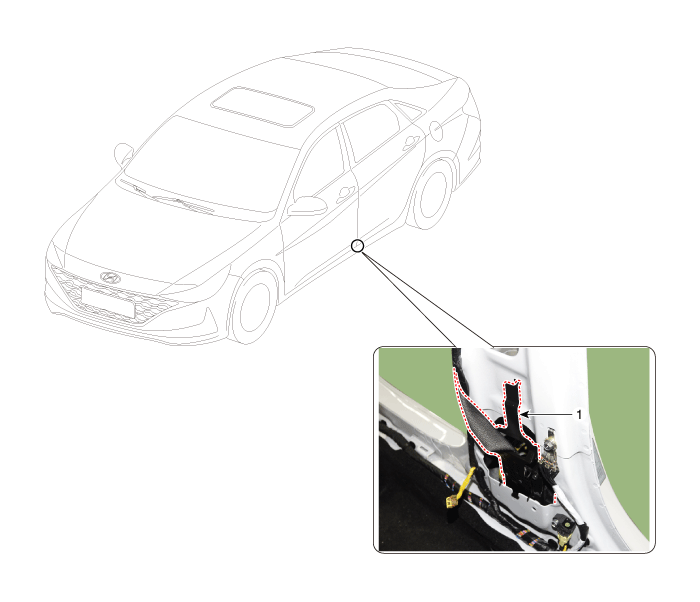

1. Front seat belt pretensioner
|
|
Repair procedures
| •
| When installing the belt, make sure not to damage the pretensioner. |
|
| 1. | Remove the center pillar upper trim. (Refer to Interior Trim - "Center Pillar Trim") |
| 2. | Remove the center pillar lower trim. (Refer to Interior Trim - "Center Pillar Trim") |

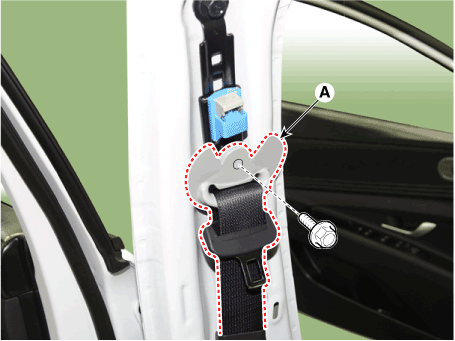

| 3. | After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft) |
|

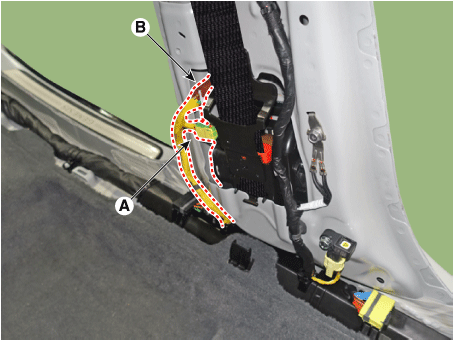

| 4. | Separate the seat belt retractor connector (A) and pre-active seat belt connector (B).
|

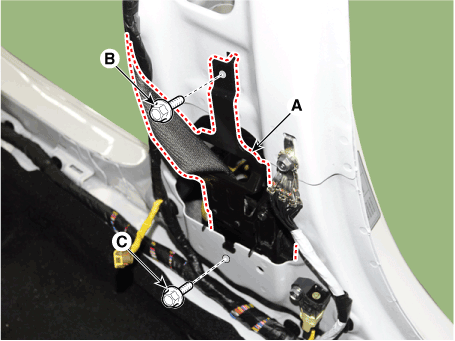

| 5. | Loosen the mounting bolt (B) and (C), remove the front seat belt retractor (A). Tightening torque : Bolt B : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft) Bolt C : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft) |
|
| 6. | Install in the reverse order of removal. | •
| After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out. |
| •
| Make sure the connector is plugged in properly. |
| •
| Replace any damaged clips (or pin - type retainers). |
|
|
Height Adjust
Components and components location
Repair procedures
| 1. | Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Pretensioner") |

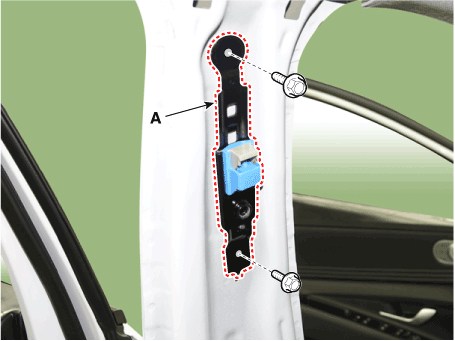

| 2. | After loosening the mounting bolts, remove the height adjust (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft) |
|
| 3. | To install, reverse the removal procedure. | •
| Replace any damaged clips (or pin - type retainers). |
|
|
Front Seat Belt Buckle
Components and components location

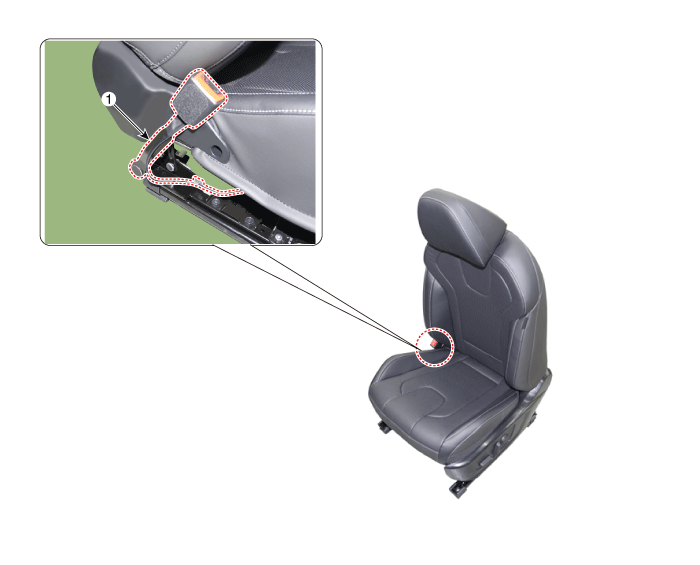

1. Front seat belt buckle
|
|
Repair procedures
| 1. | Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") |
| 2. | Disconnect the front seat belt buckle connector wiring (A).
|
| 3. | After loosening the mounting bolt, remove the front seat belt buckle (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft) |
|
| 4. | To install, reverse the removal procedure. | •
| Make sure the connector Is connected in properly. |
| •
| Replace any damaged clips. |
|
|
