Components and components location
1. Front seat belt retractor
2. Height adjust
3. Front seat belt upper anchor
4. Rear seat belt retractor [RH]
| 5. Rear seat belt retractor [CTR]
6. Seat belt buckle [RH]
7. Seat belt buckle [LH, CTR]
8. Rear Seat belt lower anchor
|
Rear Seat Belt Retractor

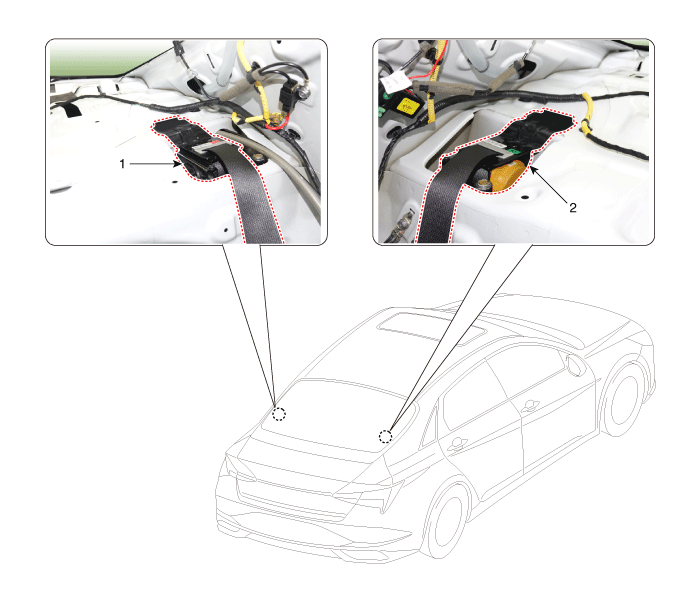

Components and components location
1. Rear seat belt retractor [LH]
| 2. Rear seat belt retractor [RH]
|
Repair procedures
| •
| When installing the belt, make sure not to damage the retractor. |
|
| 1. | Remove the package tray trim. (Refer to Interior Trim - "Package Tray Trim") |

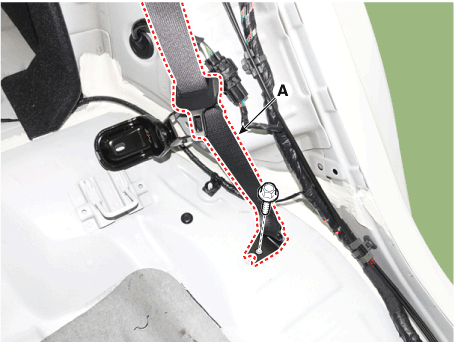

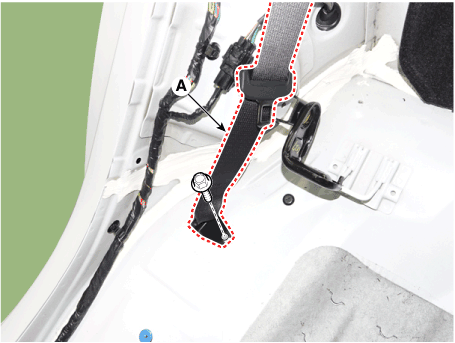

| 2. | After loosening the mounting bolt, remove the rear seat belt lower anchor (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft) |
[LH]
[RH]
|

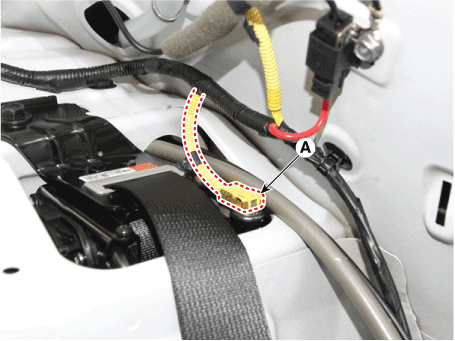

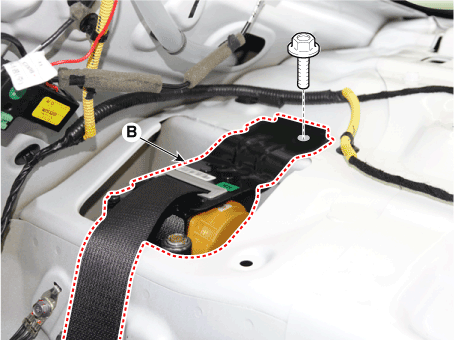

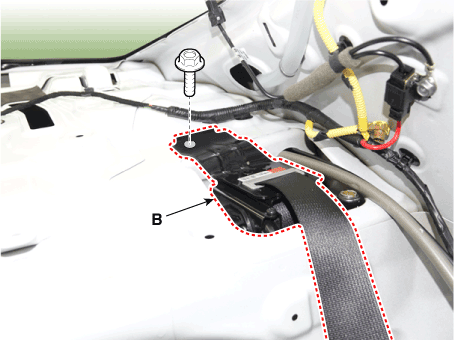

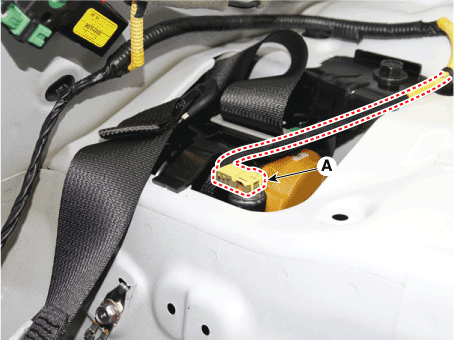

| 3. | Separate the rear seat belt connector (A) and loosen the mounitng bolt, remove the rear seat belt retratcor (B). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft) |
[LH]
[RH]
|
| 4. | Install in the reverse order of removal. | •
| Replace any damaged clips (or pin - type retainers). |
|
|
Rear Center Seat Belt Retractor

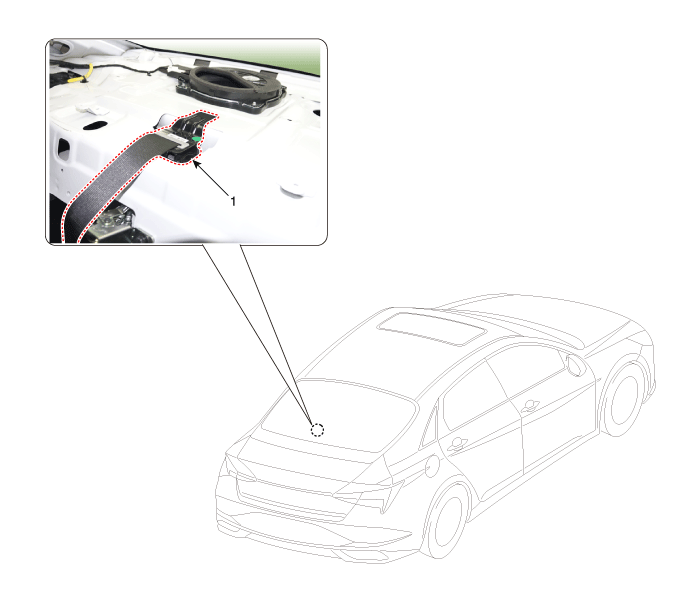

Components and components location
1. Rear center seat belt retractor
|
|
Repair procedures
| •
| When installing the belt, make sure not to damage the retractor. |
|
| 1. | Remove the package tray trim. (Refer to Interior Trim - "Rear Package Tray Trim") |

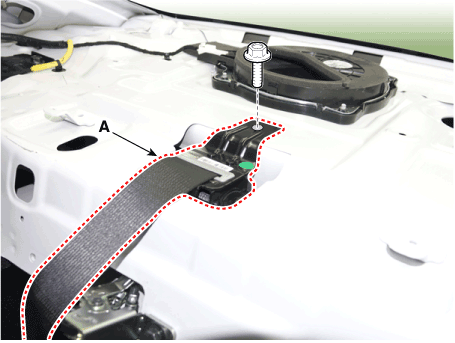

| 2. | After loosening the mounting bolts, remove the rear center seat belt retractor (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft) |
|
| 3. | To install, reverse the removal procedure. | •
| Replace any damaged clips. |
|
|
Rear Seat Belt Buckle

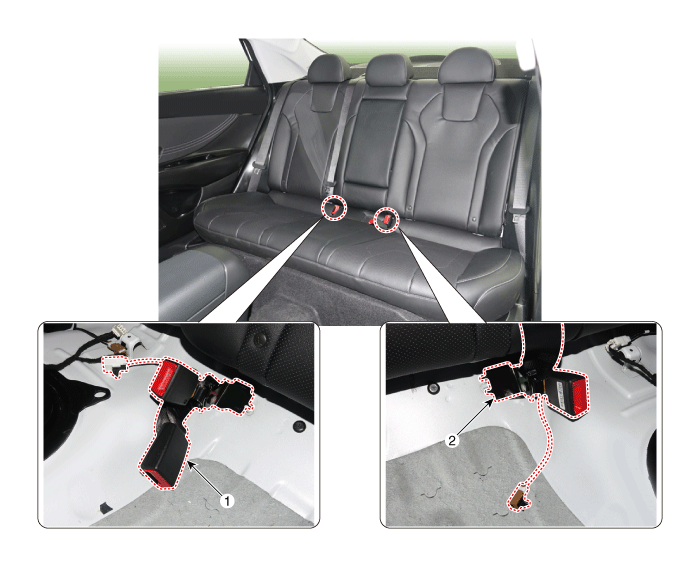

Components and components location
1. Rear seat belt buckle [RH, CTR]
| 2. Rear seat belt buckle [RH]
|
Repair procedures
| 1. | Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly") |

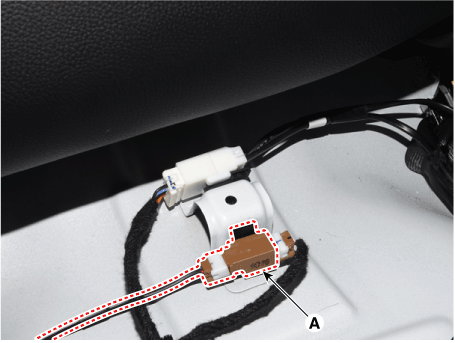

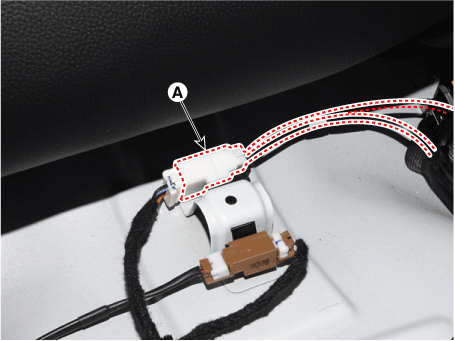

| 2. | Remove the rear seat belt buckle. [LH, CTR] | 1) | Press the lock pin, separate the rear seat belt connector (A).
|

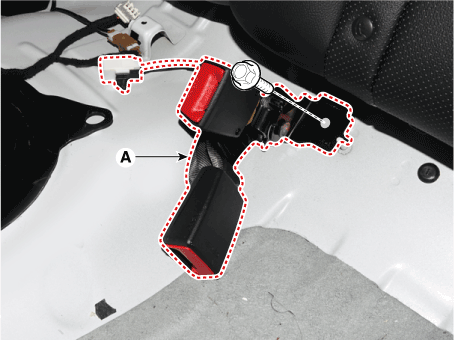

| 2) | Loosen the mounting bolt, remove the rear seat belt buckle (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft) |
|

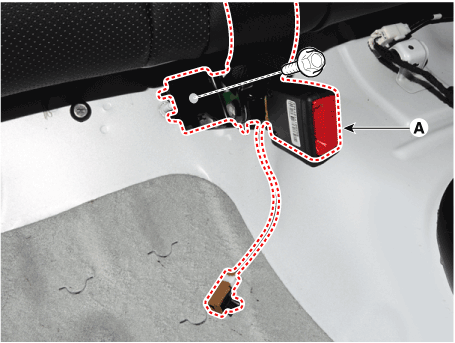

[RH] | 1) | Press the lock pin, separate the rear seat belt connector (A).
|
| 2) | Loosen the mounting bolt, remove the rear seat belt buckle (A). Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft) |
|
|
| 3. | To install, reverse the removal procedure. | •
| The buckle and tongue of different types are impossible to be latched, so check that the buckle & tongue have the same types. |
| •
| Distinguish the rear side seat buckle from the center seat buckle before latching. |
| •
| If foreign materials are stuck in the inside button of buckle, it may cause interference during the latching process, leading to a functional problem (for example - beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.) |
| •
| After latching the buckle and tongue, check the fastening force using a Push - Pull Gauge (fastening force: 3kgf or less). |
|
|
