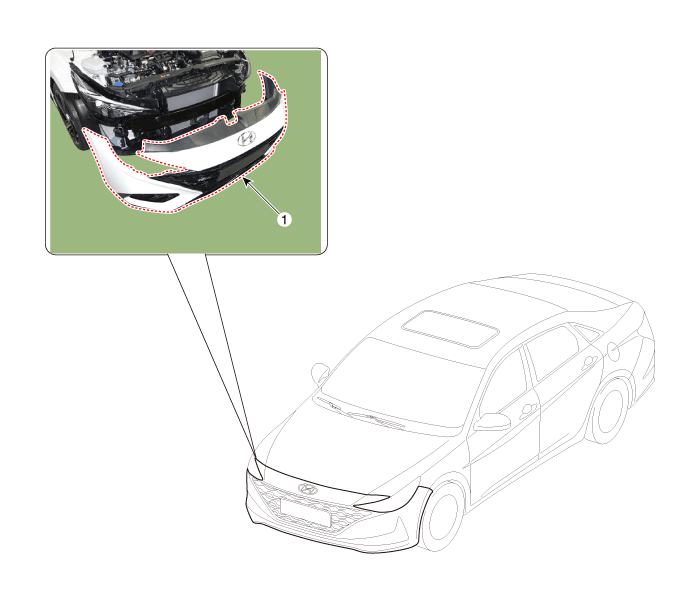

Components and components location
[General type]

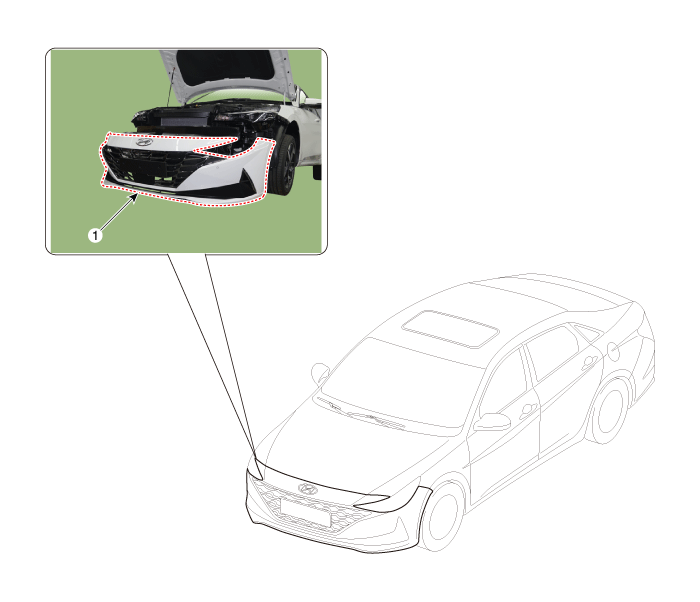

1. Front bumper assembly
2. Front bumper side bracket [LH]
| 3. Front bumper side bracket [RH]
|

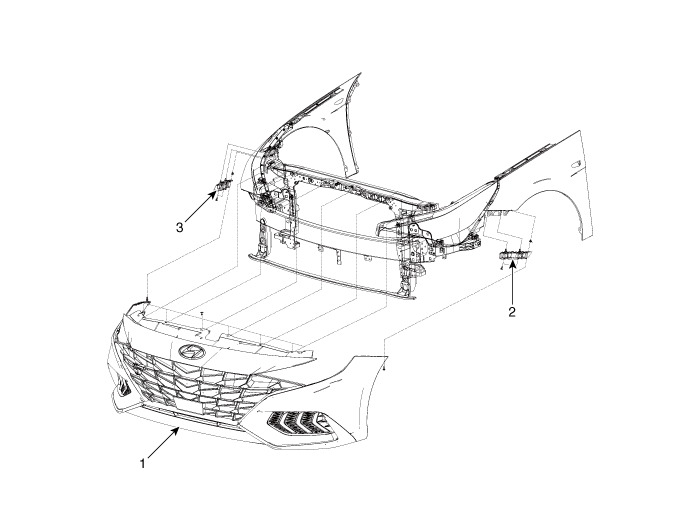

[N Line]
1. Front bumper assembly
2. Front bumper side bracket [LH]
| 3. Front bumper side bracket [RH]
|
Front Bumper Assembly
Components and components location
[General type]
[N Line]
Repair procedures
| •
| When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to bend or scratch the bumper cover and panels. |
|

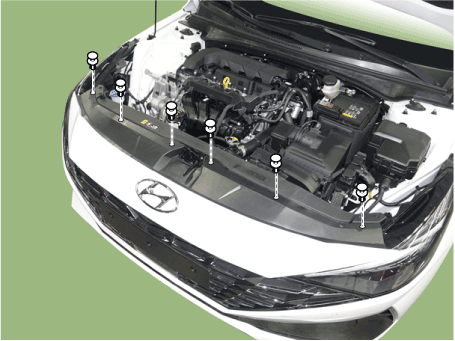

| 1. | Loosen the front bumper upper mounting clips.
|

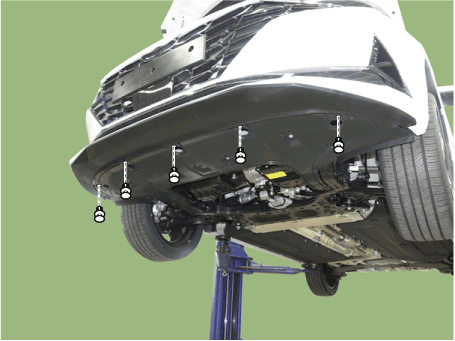

| 2. | Loosen the front bumper lower mounting clips.
|

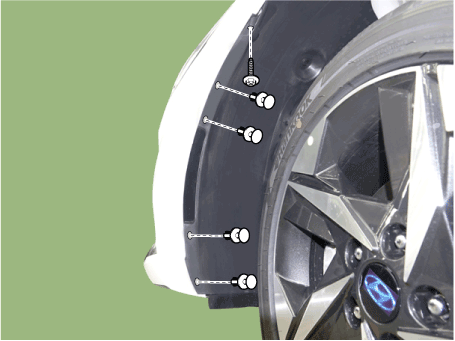

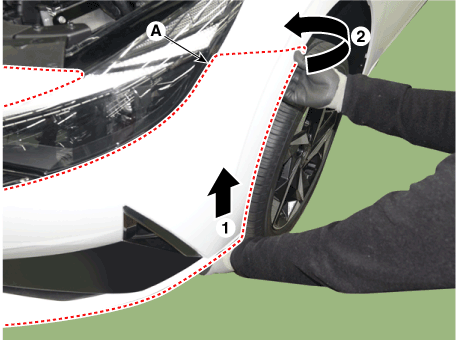

| 3. | After loosening the pin-type retainers and screws on the side of front bumper (A), detach the side part of front bumper. | •
| Be careful not to damage the tabs on the side part of front bumper (A). |
|
|

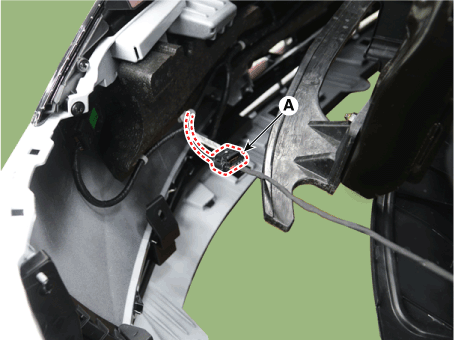

| 4. | Disconnect the front bumper main connector (A).
|

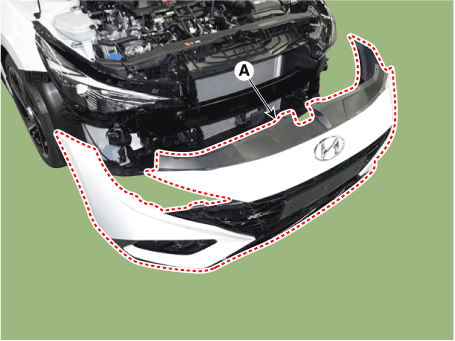

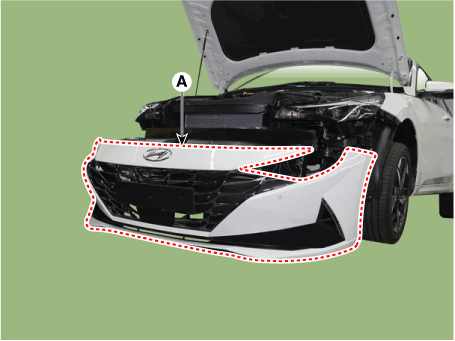

| 5. | Remvoe the front bumper assembly (A). [General type]
[N Line]
|
| 6. | To install, reverse the removal procedure. | •
| Make sure the connector is connected properly. |
| •
| Replace any damaged clips (or pin - type retainers). |
|
|
Radiator Grill

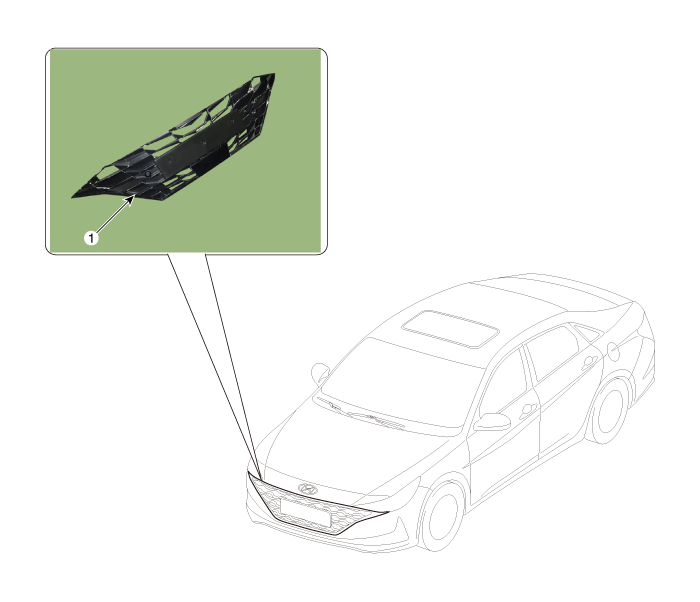

Components and components location
Repair procedures
[General type]
| •
| When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to bend or scratch the bumper cover and panels. |
|
| 1. | Remove the front bumper assembly. (Refer to Front Bumper - "Front Bumper Assembly") |

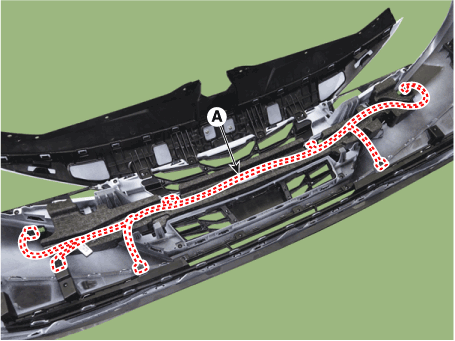

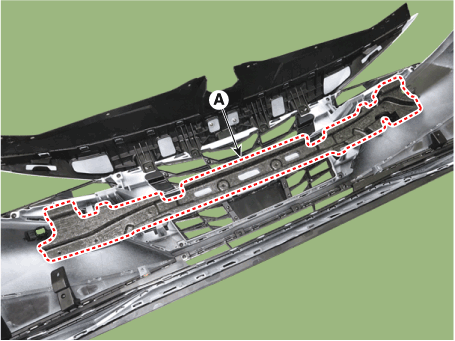

| 2. | Detach the wiring (A) mounted on the front bumper assembly and energy absober.
|

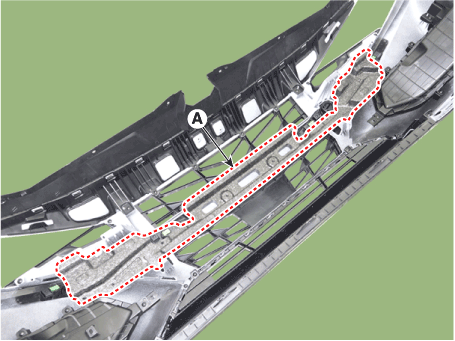

| 3. | Remove the front bumper energy absorber (A).
|
| 4. | Loosen the mounting screws, remove the radiator grill (A).
|
| 5. | To install, reverse the removal procedure. | •
| Make sure the connector is connected properly. |
|
|
[N Line]
| •
| When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to bend or scratch the bumper cover and panels. |
|
| 1. | Remove the front bumper assembly. (Refer to Front Bumper - "Front Bumper Assembly") |

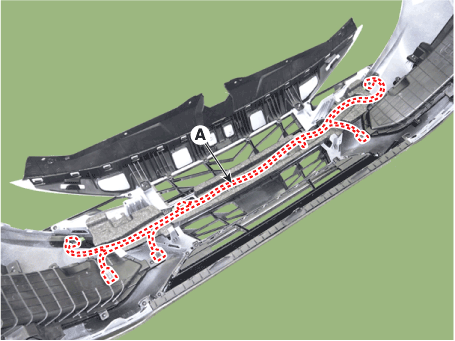

| 2. | Detach the wiring (A) mounted on the front bumper assembly and energy absober.
|
| 3. | Remove the front bumper energy absorber (A).
|

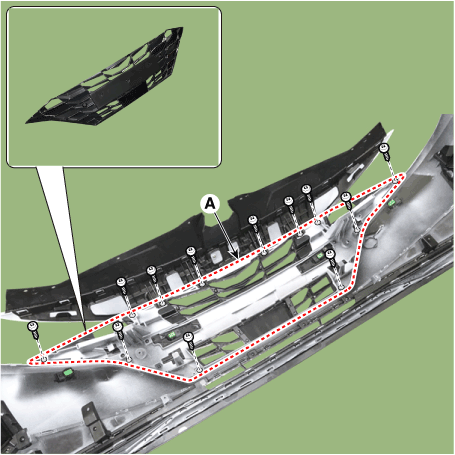

| 4. | Loosen the mounting screws, remove the radiator grill upper cover (A).
|

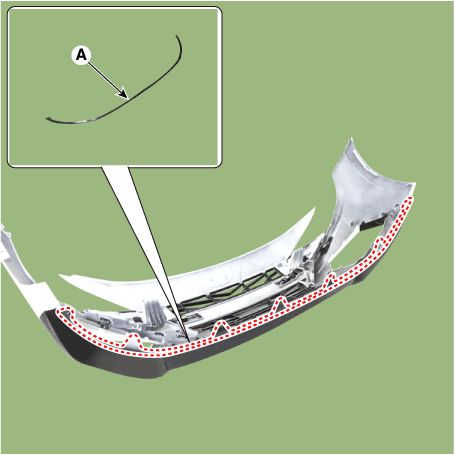

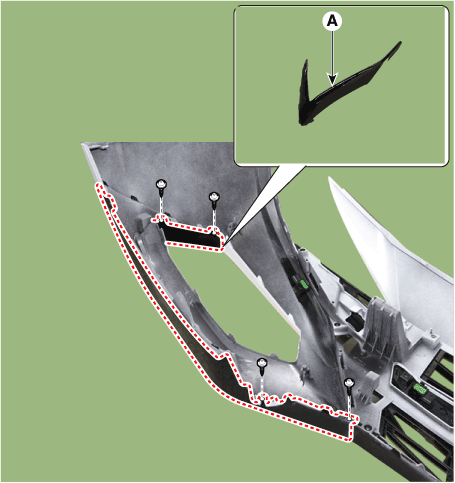

| 5. | Remove the front bumper lip (A).
|

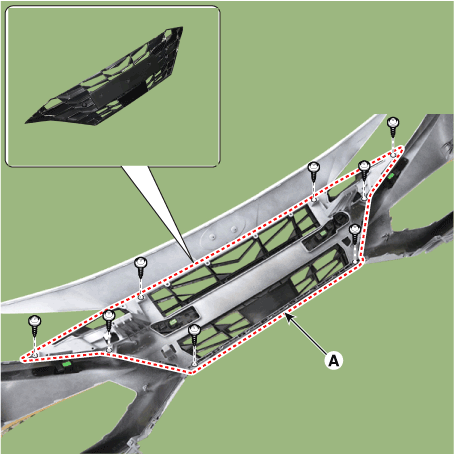

| 6. | Loosen the mounting screws, remove the front bumper grill (A).
|

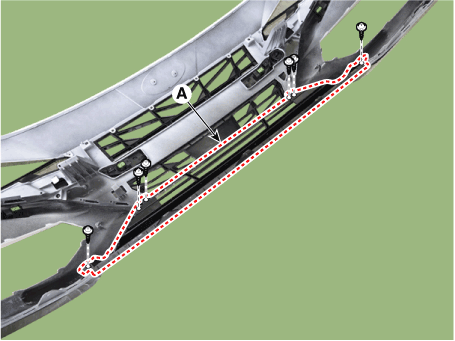

| 7. | Loosen the mounting screws, remove the front bumper molding (A).
|
| 8. | Loosen the mounting screws, remove the radiator grill (A).
|
| 9. | To install, reverse the removal procedure. | •
| Make sure the connector is connected properly. |
|
|
