Hyundai Elantra CN7: Floor Carpet - Body (Interior and Exterior) - Hyundai Elantra CN7 2021-2024 Workshop ManualHyundai Elantra CN7: Floor Carpet

Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
4.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
5.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
6.

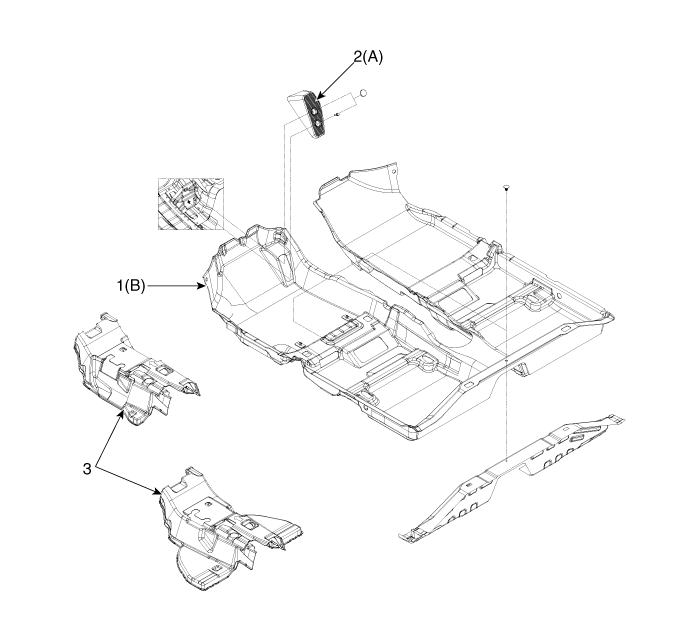

Remove the footrest (A).
7.
Remove the floor carpet assembly (B).
8.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).

1. Floor carpet assembly
2. Footrest
3. Front tunnel pad
