Hyundai Elantra AD: Floor Console - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Floor Console

Components and Components Location

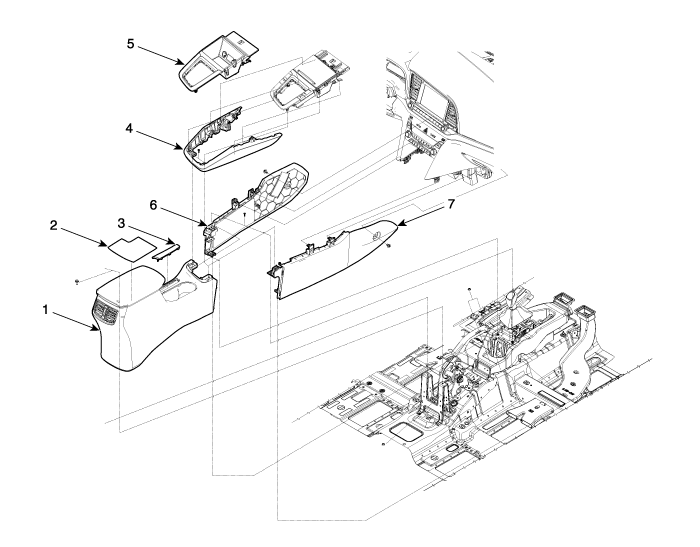

Components
[M/T]

1. Floor console assembly
2. Console tray mat
3. Parking brake cover
4. Console garnish assembly
5. Console upper complete assembly
6. Front console side cover [LH]
7. Front console side cover [RH]

[A/T]

1. Floor console assembly
2. Console tray mat
3. Parking brake cover
4. Console garnish assembly
5. Console upper complete assembly
6. Front console side cover [LH]
7. Front console side cover [RH]

Floor Console Assembly Components and Components Location

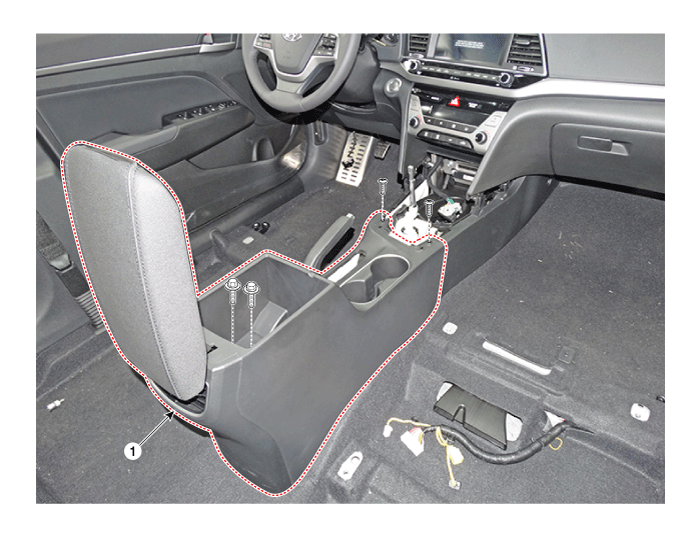

Component Location

1. Floor console assembly

Floor Console Assembly Repair procedures

Replacement
[M/T]

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the gear knob & boots (A) pull both of it up.
2. Remove the rubber mat (A).
3. Using a screwdriver or remover, remove the parking brake cover (A).

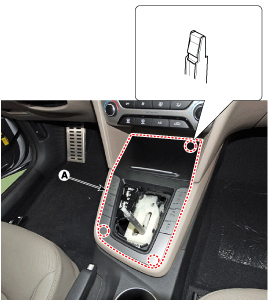

4. Using a screwdriver or remover, remove the console upper cover (A).
5. Disconnect the connector (A).
6. Using a screwdriver or remover, remove the console garnish (A).
7. Remove the storage box pad (A).

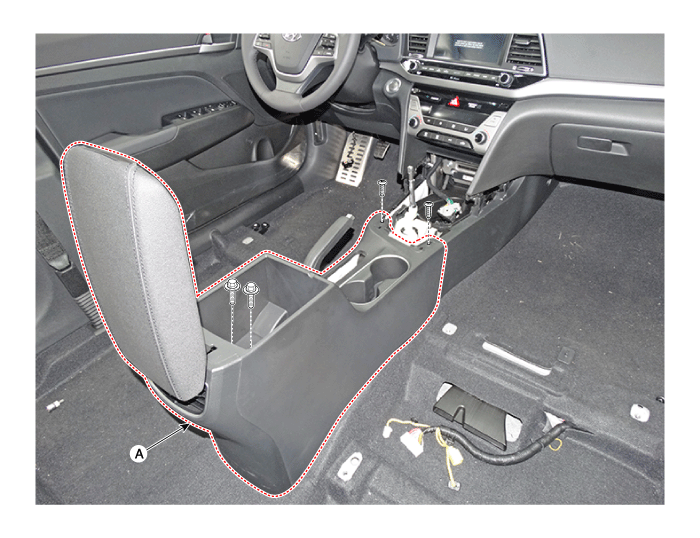

8. After loosening the mounting screws and bolts, remove the console rear complete assembly (A).
9. Disconnect the sigajcak connectors (A).
10. Loosen the mounting screws and remove the console front complete assembly (A).
11. To intall, reverse the removal procedure.

• Make sure the connector is connected properly.
• Replace any damaged clips (or pin-type retainers).
[A/T]

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. To remove the gear knob & gear boots (A) pull both of it up.
2. Remove the rubber mat (A).
3. Using a screwdriver or remover, remove the floor console upper cover (A).
4. Disconnect the connectors (A) from the floor console upper cover.
5. Using a screwdriver or remover, remove the console garnish (A).
6. Using a screwdriver or remover, remove the parking brake cover (A).
7. Remove the storage box pad (A).
8. After loosening the mounting screws and bolts, remove the floor console assembly (A).
9. Disconnect the sigajcak connectors (A).
10. Loosen the mounting screws and remove the console front complete assembly (A).
11. To intall, reverse the removal procedure.

• Make sure the connector is connected properly.
• Replace any damaged clips (or pin-type retainers).

Rear Console Cover Components and Components Location

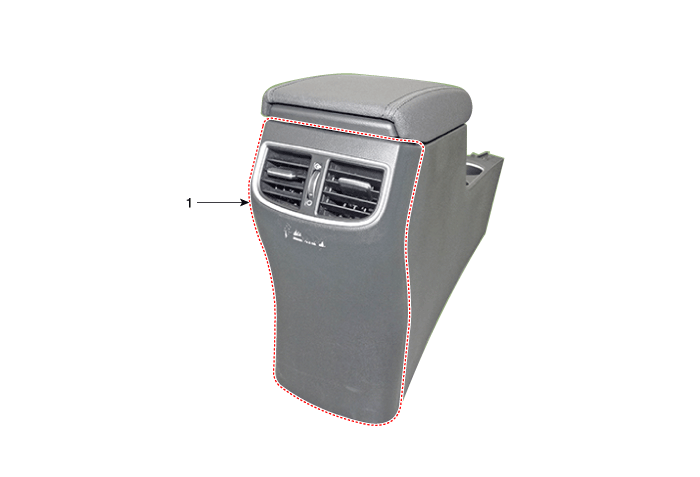

Component Location

1. Rear console cover

Rear Console Cover Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the floor console assembly.

(Refer to Floor Console - "Floor Console Assembly")
2. Loosen the rear console mounting screws.
3. Using a screwdriver or remover, remove the rear console cover (A).
4. To intall, reverse the removal procedure.

• Make sure the connector is connected properly.
• Replace any damaged clips (or pin-type retainers).

Console Armrest Components and Components Location

Component Location

1. Console armrest

Console Armrest Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.
1. Remove the floor console assembly.

(Refer to Floor Console - "Floor Console Assembly")
2. Remove the rear console cover.

(Refer to Floor Console - "Rear Console Cover")
3. Loosen the mounting screws and remove the console armrest (A).
4. To intall, reverse the removal procedure.

• Replace any damaged clips (or pin-type retainers).
