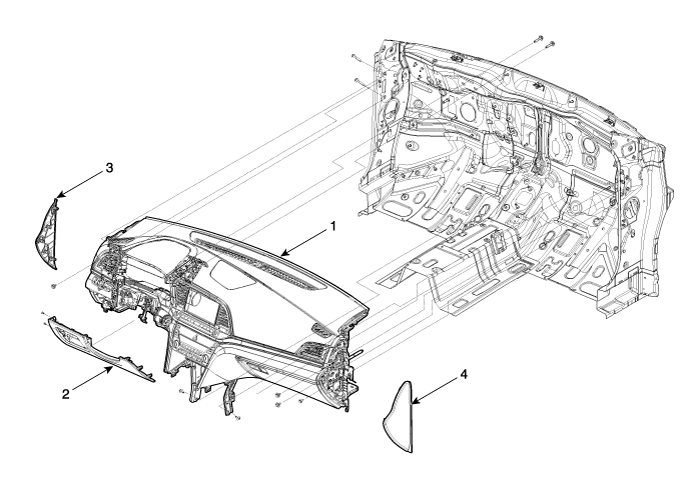

Components and Components Location
1. Crash pad assembly
2. Crash pad lower panel
|
3. Crash pad side cover [LH]
4. Crash pad side cover [RH]
|

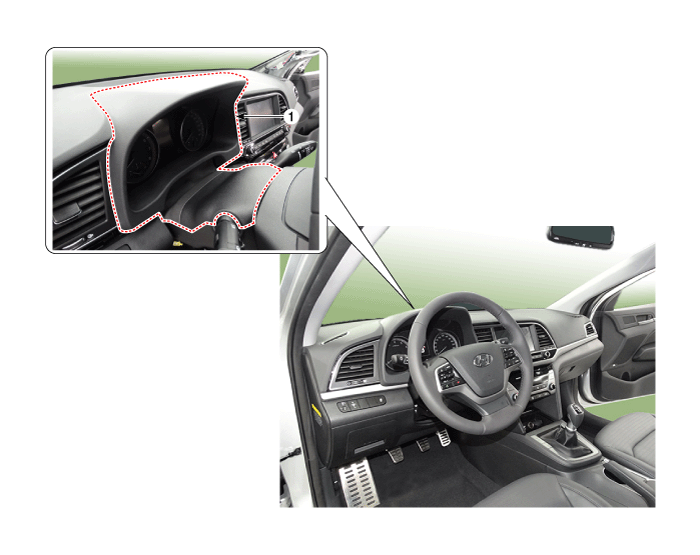

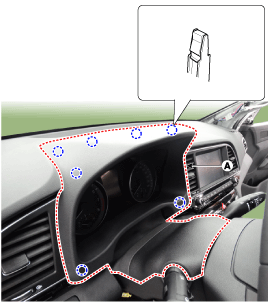

Cluster Fascia Panel Components and Components Location
Cluster Fascia Panel Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Using a screwdriver or remover,
remove the crash pad side cover (A). [LH]
[RH]
|
| 2. |
Loosen the mounting screws and
remove the crash pad molding (A). [LH]
[RH]
|
| 3. |
Using a screwdriver or remover,
remove the cluster fascia panel (A).
|
| 4. |
To intall, reverse the removal
procedure.
| •
|
Make sure the
connector are connected in properly. |
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

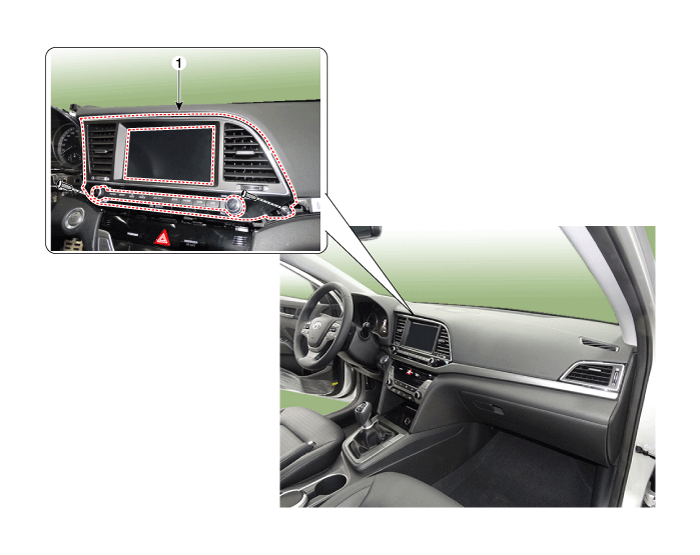

Center Fascia Panel Components and Components Location
Center Fascia Panel Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
|
| 1. |
Remove the cluster fascia panel.
(Refer to Cluster Pad - "Center Fascia Panel")
|
| 2. |
Loosen the mounting screws and
remove the center fascia panel (A).
|
| 3. |
To intall, reverse the removal
procedure.
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

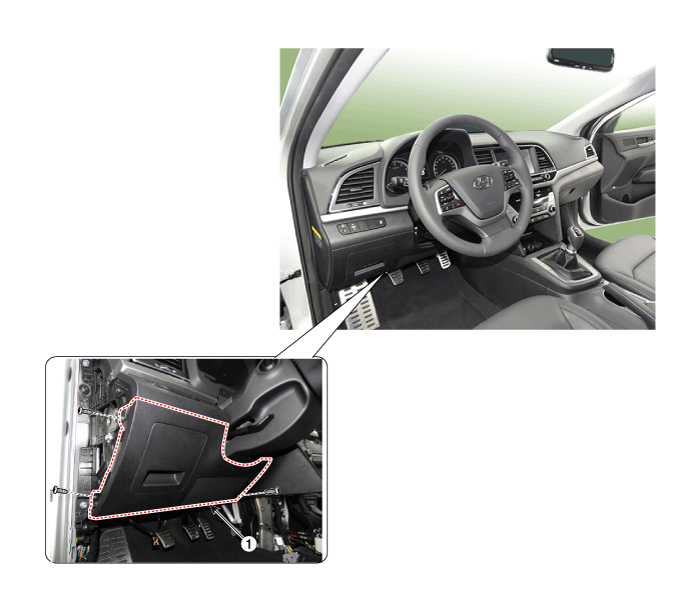

Crash Pad Lower Panel Components and Components Location
Crash Pad Lower Panel Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
|
| 2. |
Using a screwdriver or remover,
remove the crash pad side cover [LH] (A).
|
| 3. |
Loosen the mounting screws and
remove the crash pad lower panel (A).
|
| 4. |
Disconnect the diagnosis connector
(A) and airbag connector (B).
|
| 5. |
To intall, reverse the removal
procedure.
| •
|
Make sure the
connector are connected in properly. |
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

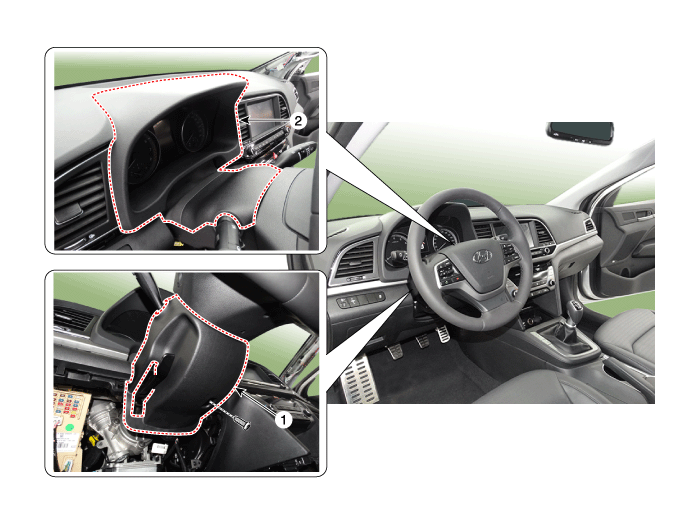

Steering Column Shroud Panel Components and Components Location
1. Steering column shroud lower panel
|
2. Steering column shroud upper panel
|
Steering Column Shroud Panel Repair procedures
[Steering column shroud lower panel]
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Remove the crash pad lower panel.
(Refer to Crash Pad - "Crash Pad Lower Panel")
|
| 2. |
Loosen the mounting screws by
turning the steering wheel to the left and right, and remove the steering
column shroud lower panel (A).
|
| 3. |
To intall, reverse the removal
procedure.
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|
[Steering column shroud upper panel]
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Using a screwdriver or remover,
remove the crash pad side cover (A). [LH]
[RH]
|
| 2. |
Loosen the mounting screws and
remove the crash pad molding (A). [LH]
[RH]
|
| 3. |
Using a screwdriver or remover,
remove the cluster fascia panel (A).
|
| 4. |
To intall, reverse the removal
procedure.
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

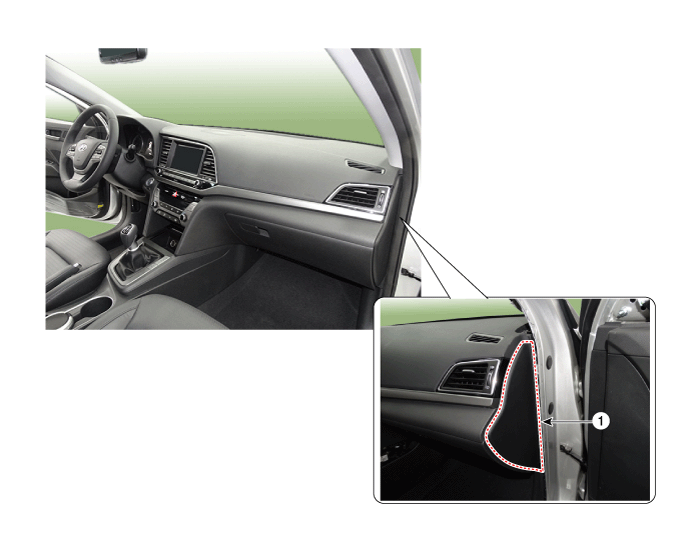

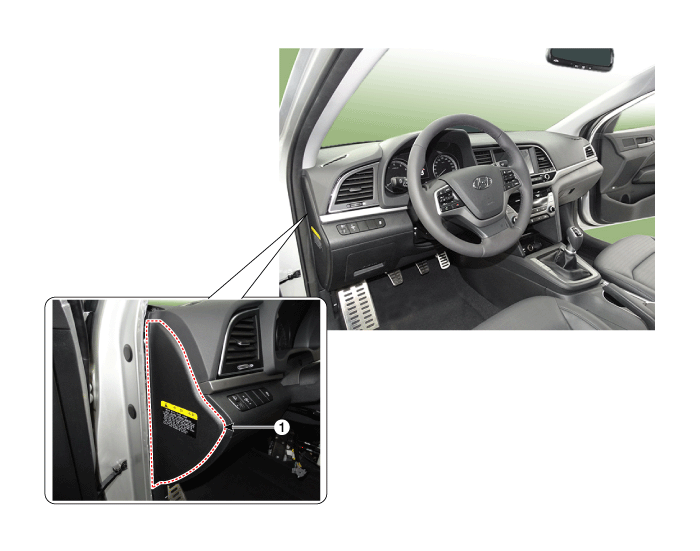

Crash Pad Side Cover Components and Components Location
1. Crash pad side cover [LH]
|
|
1. Crash pad side cover [RH]
|
|
Crash Pad Side Cover Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Using a screwdriver or remover,
remove the crash pad side cover (A). [LH]
[RH]
|
| 2. |
To intall, reverse the removal
procedure.
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|
Crash Pad Under Cover Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Using a screwdriver or remover,
remove the crash pad under cover [RH] (A).
|
| 2. |
To intall, reverse the removal
procedure.
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

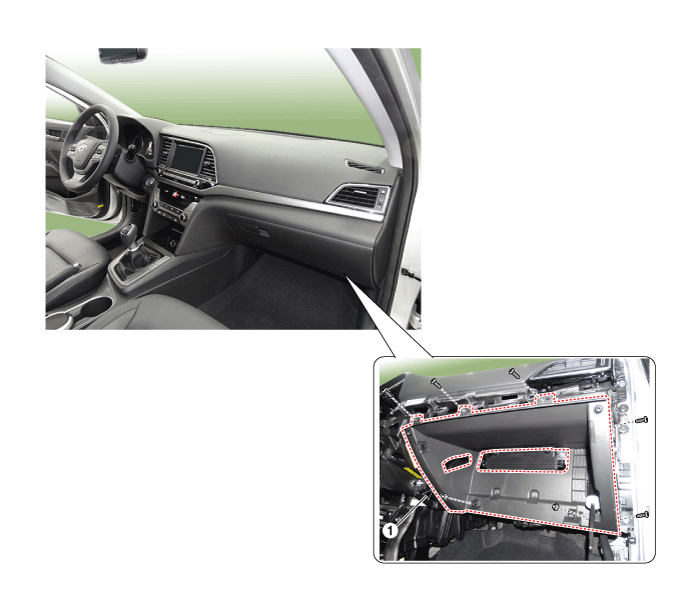

Glove Box Upper Cover Housing Components and Components Location
1. Glove box upper cover housing
|
|
Glove Box Upper Cover Housing Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
|
| 2. |

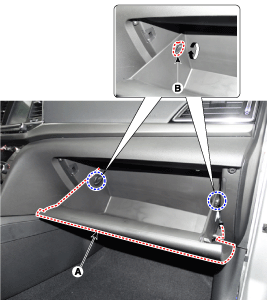

Remove both stoppers (B) from
the glove box (A) by turning the stoppers.
|
| 3. |
Separate the air damper (A) from
the glove box (B).
|
| 4. |

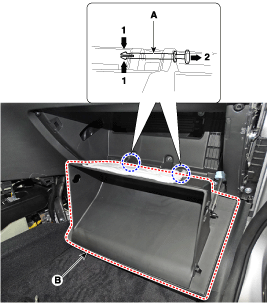

Disconnect the pushpins (A) and
then remove the glove box (B).
|
| 5. |
Using a screwdriver or remover,
remove the crash pad side cover [RH] (A).
|
| 6. |
Using a screwdriver or remover,
remove the crash pad under cover [RH] (A).
|
| 7. |
Loosen the mounting screws and
remove the crash pad molding [RH] (A).
|
| 8. |
Loosen the mounting screws and
remove the crash pad side garnish assembly [RH] (A).
|
| 9. |
After loosening the mounting
screws and nuts, remove the glove box upper cover assembly (A).
|
| 10. |
To intall, reverse the removal
procedure.
| •
|
Make sure the
connector are connected in properly. |
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

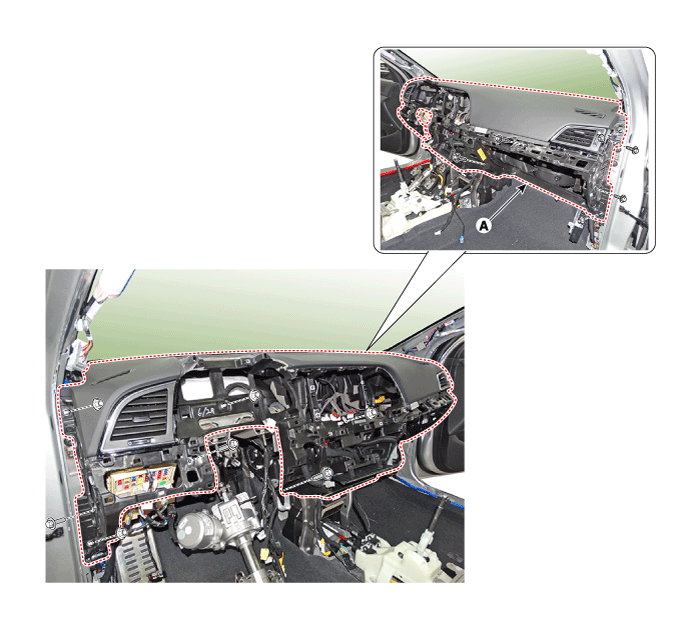

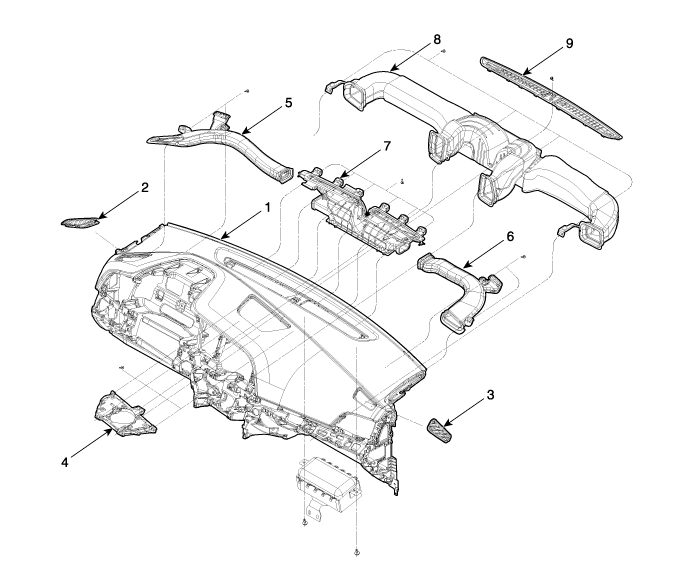

Main Crash Pad Assembly Components and Components Location
1. Main crash pad assembly
2. Side defroster nozzle assembly [LH]
3. Side defroster nozzle assembly [RH]
4. Defroster center nozzle assembly
5. Side defroster hose assembly [LH]
|
6. Side defroster hose assembly [RH]
7. Defroster nozzle assembly
8. Heater connection duct connector assembly
9. Defroster nozzle cover assembly
|
1. Main crash pad assembly
|
|
Main Crash Pad Assembly Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
|
| 3. |
Remove the crash pad lower panel.
(Refer to Crash Pad - "Crash Pad Lower Panel")
|
| 4. |
Remove the cluster fascia panel.
(Refer to Cluster Pad - "Center Fascia Panel")
|
| 5. |
Remove the heater & A/C control
unit . (Refer to Heating,Ventilation, Air Conditioning - "Heater & A/C
Control Unit (MANUAL)")
(Refer to Heating,Ventilation, Air Conditioning - "Heater & A/C Control
Unit (DATC)") |
| 6. |
Remove the glove box upper cover
assembly. (Refer to Crash Pad - "Crash Pad Center Panel")
|
| 7. |
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
|
| 8. |
Remove the steering column shroud
lower panel. (Refer to Crash Pad - "Steering Column Shroud Panel")
|
| 9. |
Remove the multifunction switch
assembly. (Refer to Body Electrical System - "Multifunction Switch")
|
| 10. |
Remove the instrument cluster.
(Refer to Body Electrical System - "Instrument Cluster")
|
| 11. |
Disconnect the security lamp
connector (A).
|
| 12. |
Using a screwdriver or remover,
remove the crash pad center lower cover [LH] (A).
|
| 13. |
Disconnect the start button connector
(A).
|
| 14. |
Loosen the mounting screws and
remove the crash pad side garnish assembly [LH] (A).
|
| 15. |
Disconnect the crash pad side
garnish connector (A).
|
| 16. |
Loosen the mounting screws and
remove the center garnish (A).
|
| 17. |
Disconnect the center speaker
connector (A).
|
| 18. |
Loosen the mounting bolts (A).
|
| 19. |
Loosen the mounting bolts and
nuts and remove the main crash pad assembly (A).
|
| 20. |
Disconnect the passenger's airbag
connectors (A).
|
| 21. |
To intall, reverse the removal
procedure.
| •
|
Make sure the
crash pad fits onto the guide pins correctly. |
| •
|
Before tightening
the bolts, make sure the crash pad wire harnesses are not
pinched. |
| •
|
Make sure the
connectors are plugged in properly, and the antenna lead
is connected properly. |
| •
|
Make sure that
each of the assembly components operates properly. |
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|

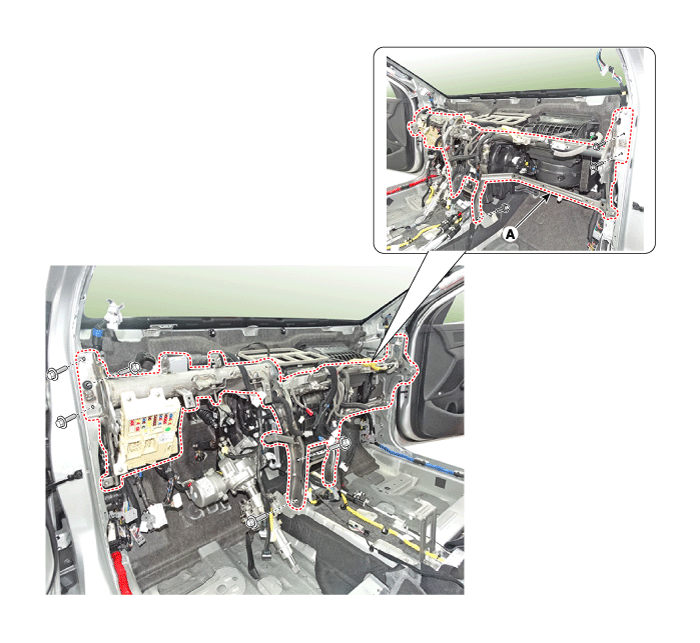

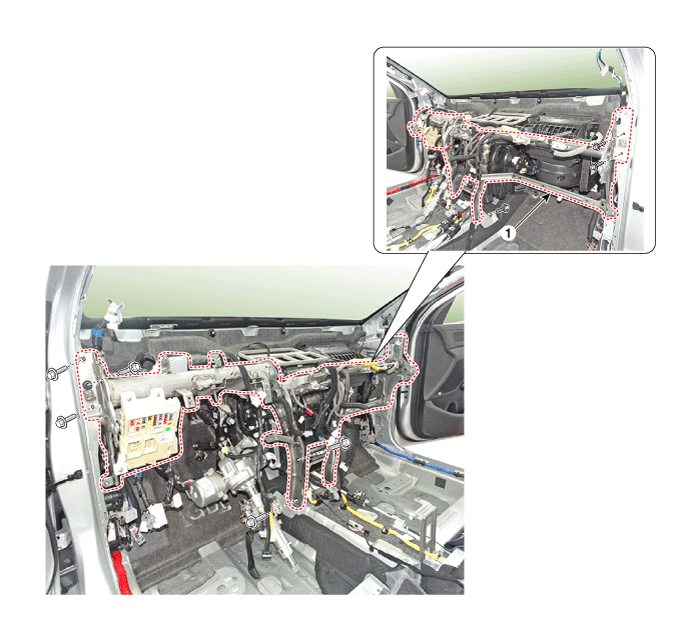

Cowl Cross Bar Assembly Components and Components Location
1. Cowl cross bar assembly
|
|
Cowl Cross Bar Assembly Repair procedures
| • |
Put on gloves to prevent
hand injuries. |
|
| • |
When removing with a
flat-tip screwdriver or remover, wrap protective tape around the
tools to prevent damage to components. |
| • |
Use a plastic panel removal
tool to remove interior trim pieces without marring the surface. |
| • |
Take care not to bend
or scratch the trim and panels. |
|
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Recover the refrigerant with
a recovery/recycling/charging station. |
| 3. |
Remove the cowl top cover.
(Refer to "Cowl Top Cover")
|
| 4. |
Remove the main crash pad assembly.
(Refer to Crash Pad - "Main Crash Pad Assembly")
|
| 5. |
Disconnect the steering column
connectors. (Refer to Steering System - "Steering Column and Shaft")
|
| 6. |
Loosen the mounting nuts and
through bolts in the frontal area and lower the steering column. (Refer
to Steering System - "Steering Column and Shaft")
|
| 7. |
Disconnect the expansion valve
from the evaporator core. (Refer to Heating,Ventilation And Air Conditioning
- "Heater Unit")
|
| 8. |
Disconnect the inlet and outlet
heater hoses from the heater unit. (Refer to Heating,Ventilation And Air
Conditioning - "Heater Unit")
|
| 9. |
Remove both sides of front seat
assembly. (Refer to Front Seat - "Front Seat Assembly")
|
| 10. |
Remove the main crash pad assembly.
(Refer to Crash Pad - "Main Crash Pad Assembly")
|
| 11. |
Remove the shift lever assembly.
(Refer to Manual Transaxle System - "Shift lever")
(Refer to Automatic Transaxle System - "Shift lever") |
| 12. |
Loosen the cowl cross member
mounting bolts.
|
| 13. |
Loosen the mounting nut and remove
the center console duct (A).
|
| 14. |
Disconnect the airbag control
module (SRSCM) connector (A).
|
| 15. |
Remove the rear air duct (A)
|
| 16. |
Separate the floor carpet (A)
to obtain space for removing the rear heating duct.
|
| 17. |
Loosen the mounting nuts and
remove the front air duct (A).
|
| 18. |
Disconnect the connector (A)
and the mounting wiring fasteners in the front pillar. [Driver's]
[Passenger's]
|
| 19. |
Disconnect the passenger compartment
junction box connectors (A).
|
| 20. |
Disconnect the multi box connectors
(A). [Driver's]
[Passenger's]
|
| 21. |
Disconnect the heater and blower
unit connector. [Driver's]
| (1) |
Disconnect the mode actuator
(A) and temperature actuator (B).
|
[Passenger's]
| (1) |
Disconnect the temperature
actuator (A), evaporator temperature sensor (B) and power mosfet
(C).
|
| (2) |
Disconnect the auto defogging
actuator (A) and intake actuator connector (B).
|
| (3) |
Disconnect the blower
motor connector (A).
|
|
| 22. |
After loosening the bolts and
nuts, remove the cowl cross bar assembly (A).
|
| 23. |
To intall, reverse the removal
procedure.
| •
|
Make sure the
crash pad fits onto the guide pins correctly. |
| •
|
Before tightening
the bolts, make sure the crash pad wire harnesses are not
pinched. |
| •
|
Make sure the
connectors are plugged in properly, and the antenna lead
is connected properly. |
| •
|
Enter the anti-
theft code for the radio, then enter the customer`s radio
station presets. |
| •
|
Make sure that
each of the assembly components operates properly. |
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|
Components and Components Location
Components
[M/T]
1. Floor console assembly
2. Console tray mat
3. Parking brake cover
4. Console garnish assembly ...
Components and Components Location
Components (1)
[General Type]
1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle
...
Hyundai Elantra AD: Crash Pad
