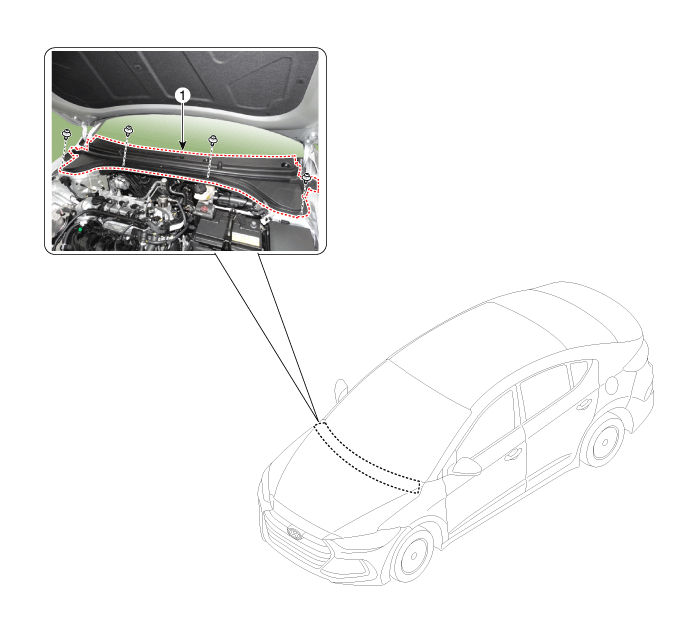

Components and Components Location
Repair procedures
| 1. |
Remove the plug hole.
|
| 2. |
Loosen the mounting nuts and
remove the wiper arm (A).
Tightening torque :22.6
~ 26.5 N.m (2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft)
|
|
| 3. |
Using a screwdriver or remover,
remove the cowl side cover (A).
|
| 4. |
Disconnect the washer nozzle
(A). |
| 5. |
Detach the clips, then remove
the cowl top cover (B).
|
| 6. |
To intall, reverse the removal
procedure.
| •
|
Replace any damaged
clips (or pin-type retainers). |
|
|
