Blower Unit Components and Components Location

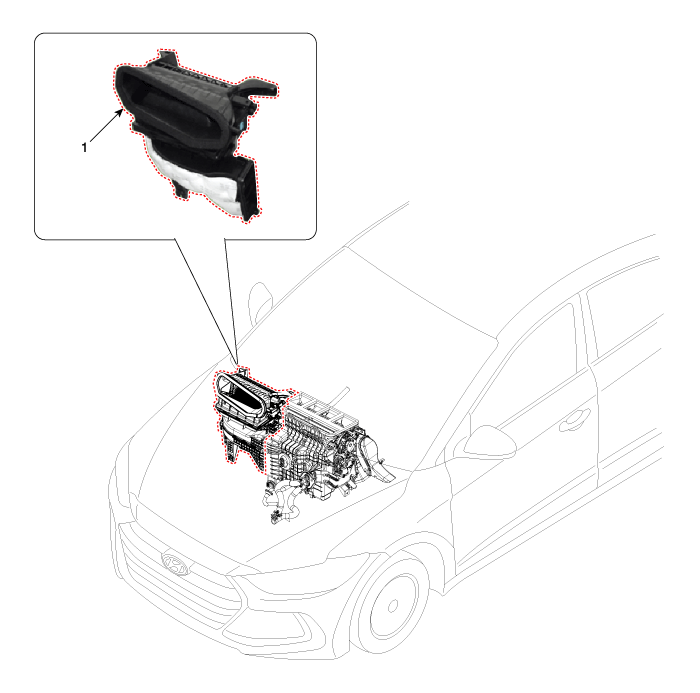

Component Location

1. Blower unit assembly

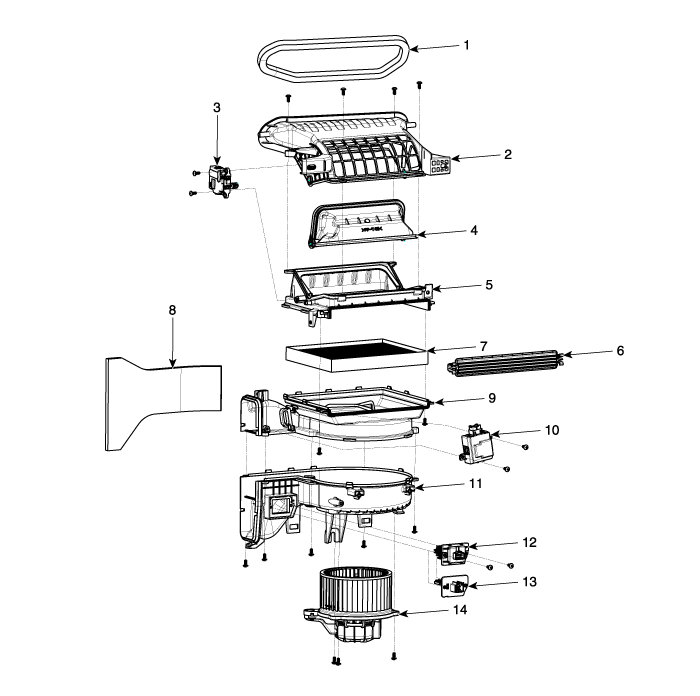

Components

1. Seal
2. Intake duct case
3. Intake actuator
4. Intake door
5. Intake duct case [A]
6. Air filter cover
7. Air filter

8. Blower unit pad
9. Blower upper case
10. Cluster ionizer
11. Blower lower case
12. Power mosfet
13. Resistor
14. Blower motor

Blower Unit Repair procedures

Replacement

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

1.	Disconnect the negative (-) battery terminal.

2.	Recover the refrigerant with a recovery / recycling / charging station.

3.	When the engine is cool, drain the engine coolant from the radiator. (Refer to Engine Mechanical System - "Coolant")

4.	Remove the cowl top cover. (Refer to Body - "Cowl Top Cover")

Remove the bolts and the expansion valve (A) from the evaporator core.

Tightening torque :

8.8 ~ 13.7 N.m ( 0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 Ib-ft)

•	Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

•	When installing, replace with a new O-ring.

Disconnect the heater hoses (A) from the heater unit.

•	Engine coolant will run out when the hoses are disconnected; drain it into a clean drip pan. Be sure not to let coolant spill on electrical parts or painted surfaces. If any coolant spills, rinse it off immediately.

7.	Loosen the cowl cross member mounting bolts.

8.	Remove the floor console assembly. (Refer to Body - "Floor Console Assembly")

9.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

10.	Remove both sides of the front pillar trim. (Refer to Body - "Front Pillar Trim")

11.	Remove the cowl side trim. (Refer to Body - "Cowl Side Trim")

12.	Remove the steering column shroud lower panel. (Refer to Body - "Steering Column Shroud Panel")

13.	Remove the steering wheel. (Refer to Steering System - "Steering Wheel")

14.	Remove the multifunction switch. (Refer to Body Electrical System - "Multifunction Switch")

15.	Lower the steering column after loosening the mounting bolts. (Refer to Steering System - "Steering Column and Shaft")

16.	Remove the shift lever assembly. (Refer to Automatic Transmission System - "Shift Lever")

17.	Remove the crash pad under cover [RH](A).

18.	Remove the rear air duct (A).

19.	Separate the floor carpet (A) to obtain space for removing the rear heating duct.

20.	Loosen the mounting nut and remove the front air duct (A).

21.	Disconnect the airbag control module (SRSCM) connector (A).

22.	Disconnect the junction box connectors (A).

23.	Disconnect the multi box connectors (A). [Driver's side] [Passenger's side]

24.	Disconnect the connectors (A) and the mounting clips in the front pillar. [Driver's side] [Passenger's side]

25.	Remove the drain hose (A).

26.

Loosen the cowl blower unit mounting bolts.

Tightening torque :

3.9 ~ 5.9 N.m ( 0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 Ib-ft)

27.	After loosening the bolts and nuts remove the main crash pad and cowl cross bar assembly (A) together.

28.

Disconnect the heater & blower unit connectors.

(1)	Disconnect the auto defogging actuator connector (A), intake actuator connector (B) and remove the wiring mounting clips.

(2)	Disconnect the driver's temperature control actuator (A), mode control actuator (B) and remove the wiring mounting clips.

(3)	Disconnect the blower motor connector (A) and remove the wiring mounting clips.

(4)	Disconnect the passenger's side temperature control actuator (A), evaporator temperature sensor connector (B), power mosfet connector (C) and remove the wiring mounting clips.

29.	Loosen the heater & blower unit mounting bolt (A).

30.

Remove the heater and blower unit (A) from the crash pad after loosening the mounting nuts.

Tightening torque :

3.9 ~ 5.9 N.m ( 0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 Ib-ft)

31.	Separate the blower unit (A) from the heater unit (B) after loosening the screws.

32.	To intall, reverse the removal procedure.

Blower Motor Repair procedures

Inspection

1.	Connect the battery voltage and check the blower motor rotation.

2.	If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.

3.	Replace the blower motor if it is proved that there is a problem with it.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the cowl side trim. (Refer to Body - "Cowl Side Trim")

3.	To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down.

4.	Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.

5.	To intall, reverse the removal procedure.

Power Mosfet Description and Operation

Description

It is installed to the DATC and adjusts the fan rpm by precisely controlling the voltage applied to the blower motor.

Power Mosfet Repair procedures

Inspection

1.	Turn the ignition switch ON.

2.	Manually operate the control switch and measure the voltage of the blower motor.

Select the control switch to raise the voltage until high speed.

Specification

Fan Speed (Manual)	Motor Voltage (V)
1	3.4 ± 0.5 (A/C OFF) 3.8 ± 0.5 (A/C ON)
2	5.1V
3	6.3V
4	7.6V
5	8.8V
6	10.1V
7	11.3V
8	Battery

Diagnosis With GDS

The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).

? The diagnostic system (GDS) provides the following information.

(1) Self diagnosis : Checking the failure code (DTC) and display.

(2) Current data : Checking the system input/output data state.

(3) Actuation test : Checking the system operation condition.

(4) Additional function : Other controlling such as he system option and zero point adjustment.

2.	Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.

3.	Select the 'Current data' menu to search the current state of the input / output data. The input / output data for the sensors corresponding to the Power Mosfet can be checked.

4.	To perform compulsory operation on Power Mosfet input factors, select "ACTUATION TEST".

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad center panel. (Refer to Body - "Crash Pad Center Panel")

3.	Remove the passenger's side shower duct (A) after loosening the screw.

4.	Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.

5.	To intall, reverse the removal procedure.

Blower Resistor (Manual) Repair procedures

Inspection

1.	Measure the resistance between the terminals.

2.	The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad center panel. (Refer to Body - "Crash Pad Center Panel")

3.	Remove the passenger's side shower duct (A) after loosening the screw.

4.	Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.

5.	To intall, reverse the removal procedure.

Climate Control Air Filter Description and Operation

Description

The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.

Climate Control Air Filter Repair procedures

Replacement

1.	Remove the stopper (B) from the glove box (A).

2.	Disconnect the air damper (A) from the glove box (B).

3.	Remove the filter cover (A) by pressing the knob.

Replace the air filter (A) with a new one according to the direction of air filter.

•	To remove the filter easily, press the right side inward then pull out the filter.

•	In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

5.	To intall, reverse the removal procedure.

Intake Actuator Components and Components Location

Components Location

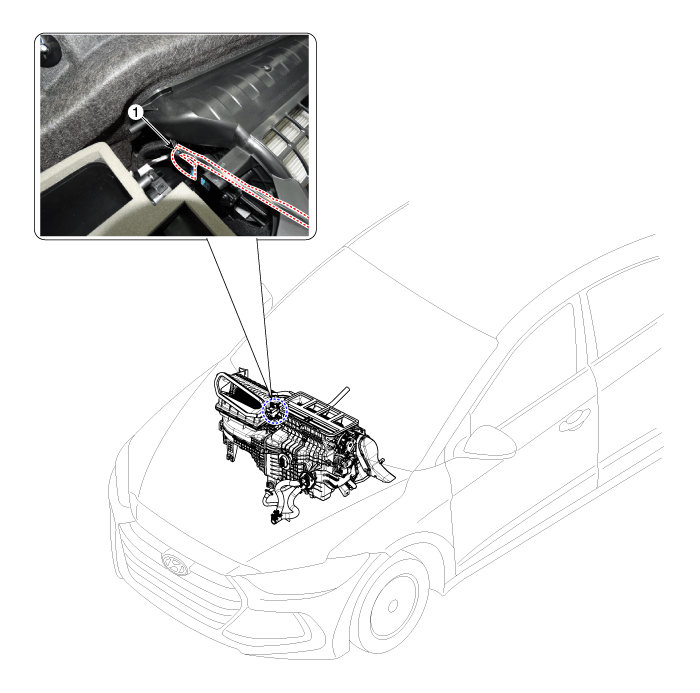

1. Intake actuator

Intake Actuator Description and Operation

Description

The intake actuator is located at the blower unit. It regulates the intake door by a signal from the control unit. Pressing the intake selection switch will shift between recirculation and fresh air modes.

Intake Actuator Specifications

Specifications

Door position	Voltage (V)	Error detecting
Max. cooling	0.3 ± 0.15	Low voltage : 0.1V or less
Max. heating	4.7 ± 0.15	High voltage : 4.9V or more

Intake Actuator Repair procedures

Inspection

1.	Turn the ignition switch OFF.

2.	Disconnect the intake actuator connector.

Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4.

Verify that the intake actuator operates to the recirculation position when connected in reverse.

Pin NO	Function
1	-
2	-
3	Fresh air
4	Sensor (+5V)
5	Feedback signal
6	Sensor ground
7	Recirculated air

4.	Connect the intake actuator connector.

5.	Turn the ignition switch ON.

6.	Check the voltage between terminal 6 and 5.

7.	If the measured voltage is not within specification, check the operation by replacing the existing intake actuator with a new genuine part. After that, determine whether replacement of the temperature control actuator is required or not.

Diagnosis With GDS

The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).

? The diagnostic system (GDS) provides the following information.

(1) Self diagnosis : Checking the failure code (DTC) and display.

(2) Current data : Checking the system input/output data state.

(3) Actuation test : Checking the system operation condition.

(4) Additional function : Other controlling such as he system option and zero point adjustment.

2.	Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.

3.	Select the 'Current data' menu to search the current state of the input / output data. The input / output data for the sensors corresponding to the Intake Actuator can be checked.

4.	To perform compulsory operation on Intake Actuator input factors, select "ACTUATION TEST".

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly")

3.	Disconnect the connector (A) and then remove the intake actuator (B) after loosening the mounting screws.

4.	To intall, reverse the removal procedure.
