Hyundai Elantra MD/UD: 4Door. Rear Body - Body Dimensions - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: 4Door. Rear Body

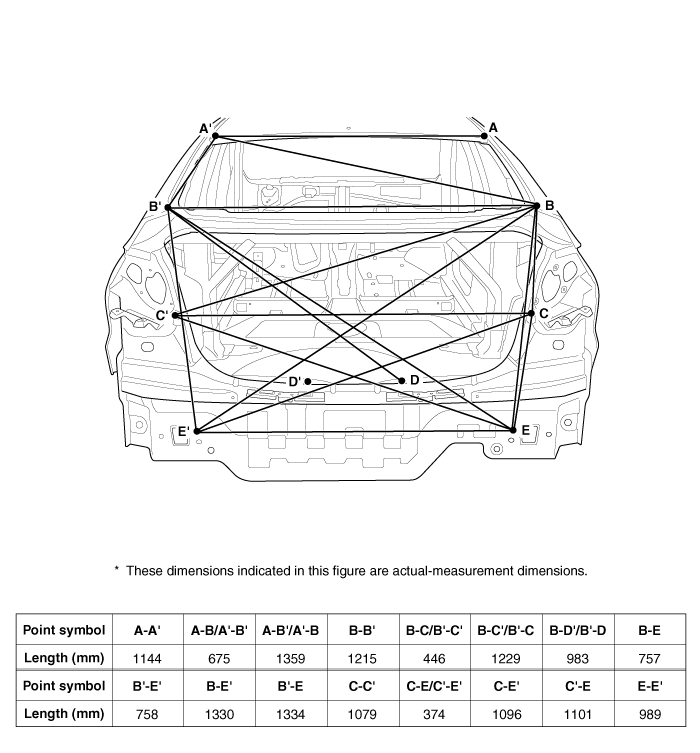

Rear Body

Roof panel rear corner

Side outer panel rear corner

Rear bumper mounting hole (8.5X8.5)

Rear transverse trim mounting hole
(Ø8.5)
Rear bumper mounting hole (10X14)

Rear bumper mounting hole (Ø10)



Interior D
