Under Body

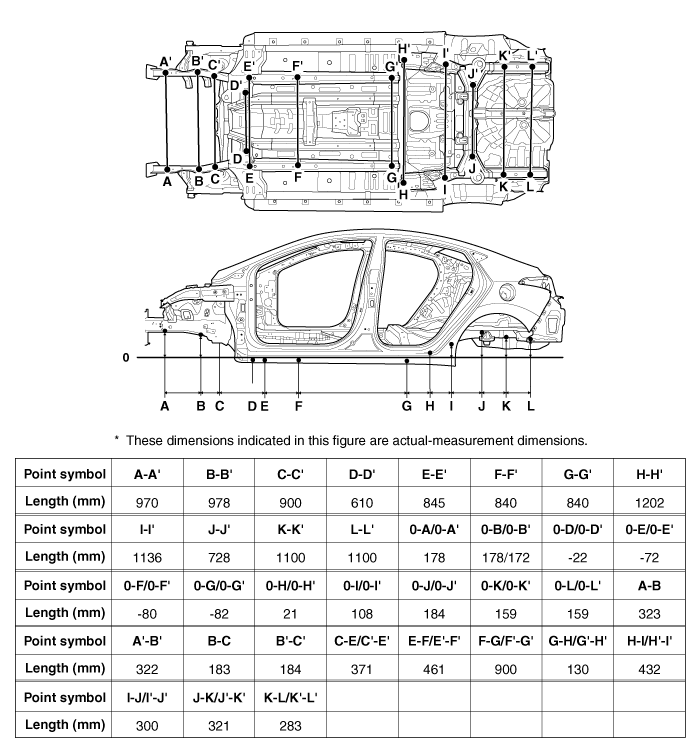

Projected Dimensions

Front side member tooling hole (Ø20)

Side cover mounting hole (Ø6.6)

Sub frame mounting bolt

Sub frame mounting hole (Ø22)

Front side member tooling hole (Ø11)

Front side member tooling hole (Ø13)

Center floor side member tooling hole
(Ø7)
Rear floor side member tooling hole
(Ø10)
Rear floor side member tooling hole
(Ø10)

Rear floor center cross member tooling hole (Ø10)
Rear floor side member tooling hole
(Ø20)
Rear floor side member tooling hole
(Ø7)

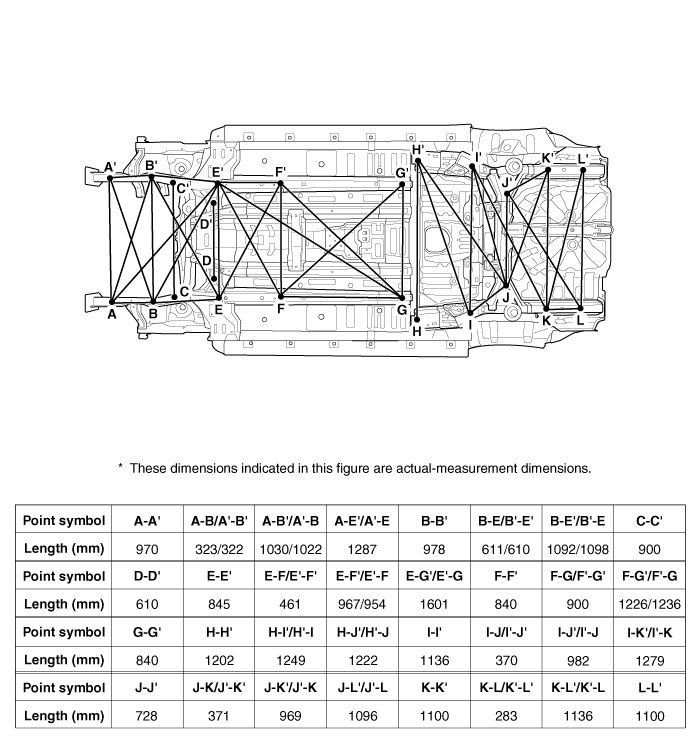

Actual Measurement Dimensions

Front side member tooling hole (Ø20)

Side cover mounting hole (Ø6.6)

Sub frame mounting bolt

Sub frame mounting hole (Ø22)

Front side member tooling hole (Ø11)

Front side member tooling hole (Ø13)

Center floor side member tooling hole
(Ø7)
Rear floor side member tooling hole
(Ø10)
Rear floor side member tooling hole
(Ø10)

Rear floor center cross member tooling hole (Ø10)
Rear floor side member tooling hole
(Ø20)
Rear floor side member tooling hole
(Ø7)
