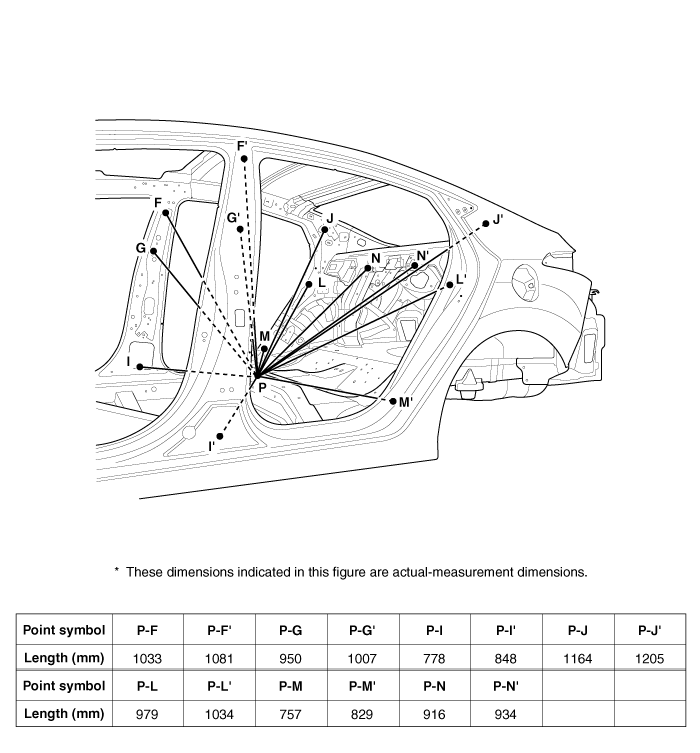

Hyundai Elantra MD/UD: Interior D - 4Door. Interior - Body Dimensions - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Interior D

Seat belt height adjuster upper mounting hole (Ø16)
Seat belt height adjuster lower mounting hole (Ø16)
Seat belt retractor mounting hole
(Ø12)

Quarter inner upper panel tooling hole
(Ø6.6)
Quarter inner lower panel tooling hole
(Ø16)
Quarter inner lower panel tooling hole
(Ø8.5)


Rear package tray panel tooling hole
(Ø10.5)
Rear floor panel tooling hole (Ø7)
