Repair procedures

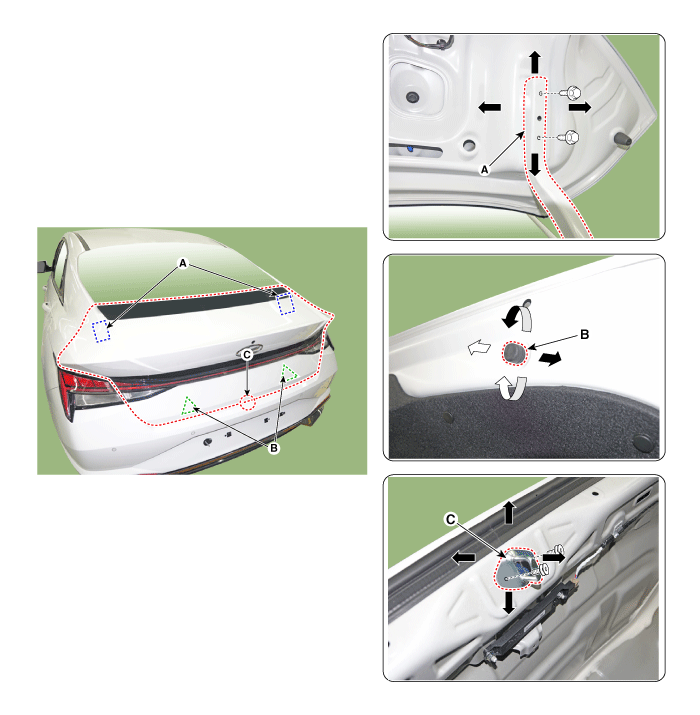

| 1. | Place the car on a flat surface and check whether the body and trunk lid are well - aligned. |
| 2. | After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down or from side to side. |
| 3. | Adjust the gap between the trunk lid and body by turning the trunk lid overslam bumpers (B). |
| 4. | After loosening the trunk lid striker (C) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts. |
| 5. | Make sure the trunk lid opens or closes properly.
|
Trunk Lid Assembly

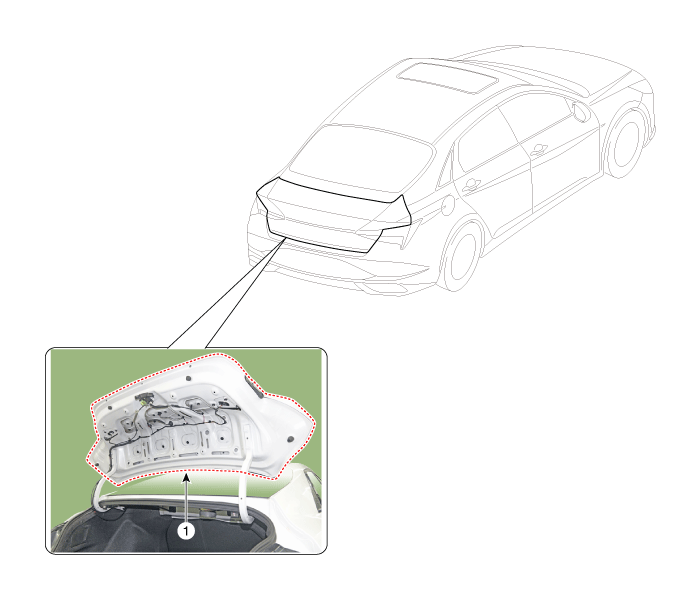

Components and components location
Repair procedures
| •
| When removing and installing the trunk lid, an assistant is necessary. |
|
| •
| Be careful not to damage the trunk lid and body surface. |
|
| 1. | Remove the trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim") |

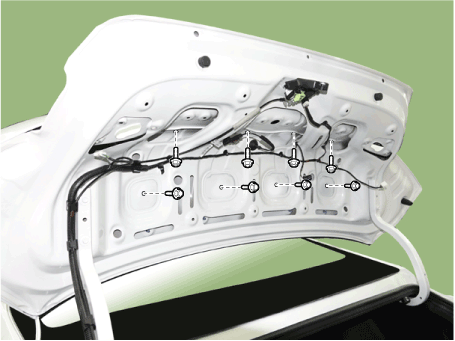

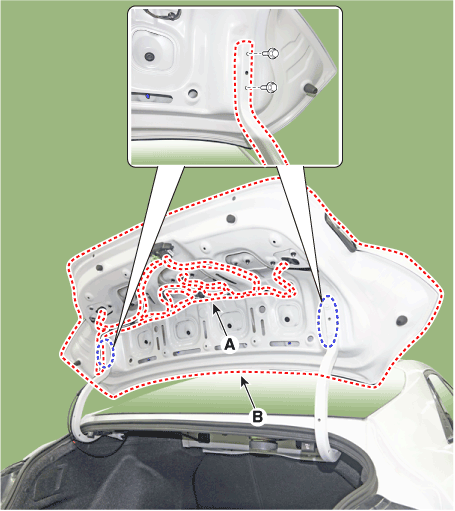

| 2. | Disconnect the connectors and trunk lid wiring harness (A). |
| 3. | After loosening the mounting bolts, remove the trunk lid assembly (B). Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft) |
|
| 4. | To install, reverse the removal procedure. | •
| Make sure the trunk lid locks / unlocks and opens / closes properly. |
| •
| Adjust the trunk lid as necessary. |
| •
| Make sure the connectors are connected in properly. |
| •
| Replace any damaged clips. |
|
|
Trunk Lid Trim

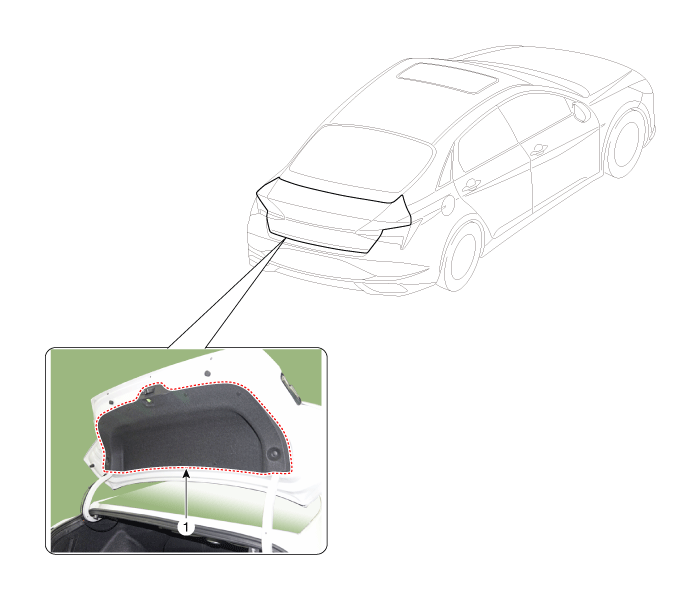

Components and components location
Repair procedures
| •
| When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|

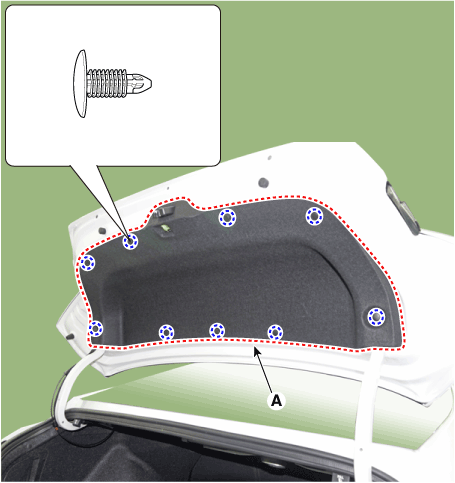

| 1. | After loosening the mounting screw and clips, then remove the trunk lid trim (A).
|
| 2. | To install, reverse the removal procedure. | •
| Replace any damaged clips. |
|
|
Trunk Lid Latch
Repair procedures
[Trunk lid latch]
| •
| When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| •
| Take care not to scratch the body surface. |
|
| 1. | Remove the tail trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim") |

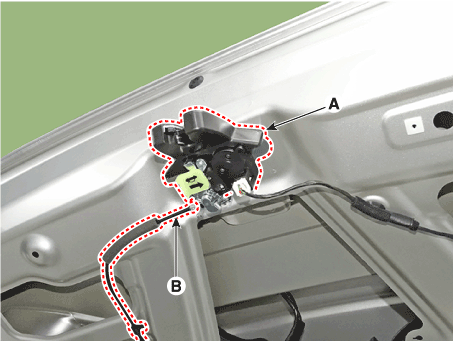

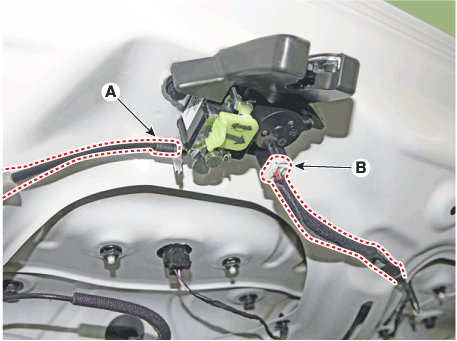

| 2. | Disconnect the connector (A) and cable (B).
|

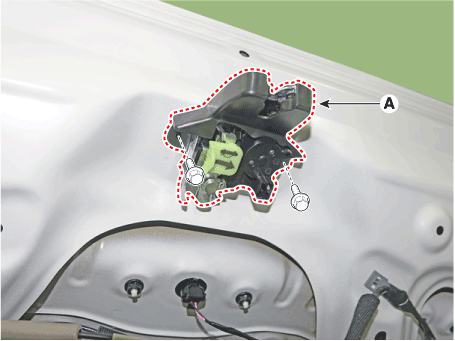

| 3. | Loosen the mounting bolts and remove the trunk lid latch (A). Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft) |
|
| 4. | To install, reverse the removal procedure. | •
| Make sure the tail gate locks / unlocks and opens / closes properly. |
| •
| Make sure the connectors are connected in properly. |
|
|
| 1. | Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") |
| 2. | Remove the rear seat assembly. (Refer to rear Seat - "Rear Seat Assembly") |
| 3. | Remove the floor console assembly. (Refer to Floor Console - "Floor Console Assembly") |
| 4. | Remove the center pillar lower trim. (Refer to Interior Trim - "Center Pillar Trim") |
| 5. | Remove the cowl side trim. (Refer to Interior Trim - "Cowl Side Trim") |
| 6. | Remove the luggage side trim. (Refer to Interior Trim - "Cowl Side Trim") |
| 7. | Remove the floor carpet. (Refer to "Floor carpet") |
| 8. | Remove the tail trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim") |

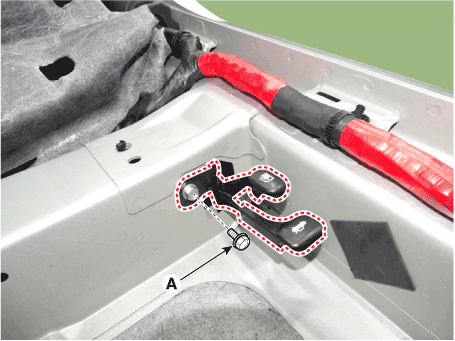

| 9. | Loosen the trunk lid catch mounting bolt (A). Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft) |
|

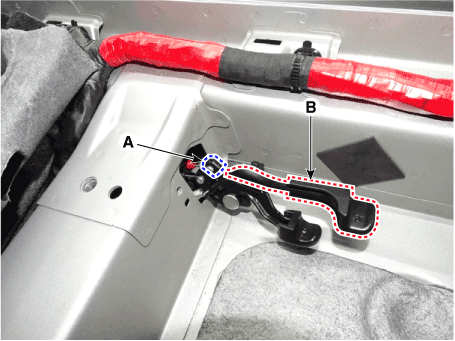

| 10. | Detach the cable (A) and remove the trunk lid catch (B).
|
| 11. | Remove the cable (B) from the trunk lid catch (A).
|

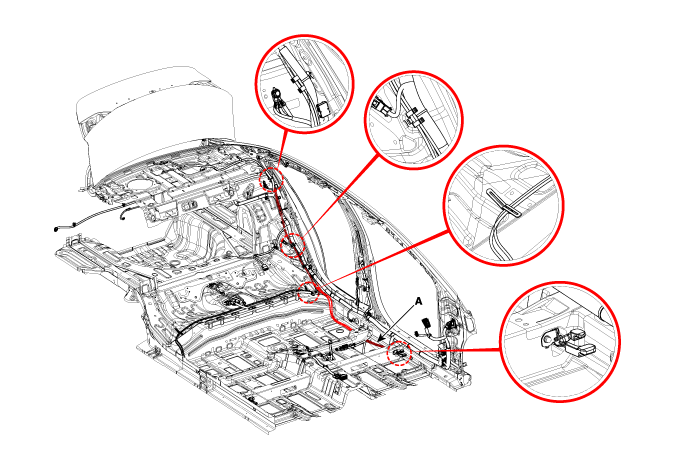

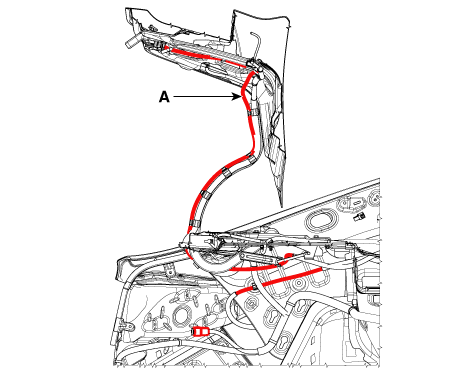

| 12. | Remove the trunk lid cable (A).
|
| 13. | To install, reverse the removal procedure. | •
| Make sure the trunk lid locks/unlocks and opens / closes properly. |
|
|
| 1. | Remove the front seat assembly [LH]. (Refer to Front Seat - "Front Seat Assembly") |
| 2. | Remove the front door scuff trim [LH]. (Refer to Interior Trim - "Front Door Scuff Trim") |
| 3. | Remove the cowl side trim [LH]. (Refer to Interior Trim - "Cowl Side Trim") |
| 4. | Remove the floor console assembly. (Refer to Floor Console - "Floor Console Assembly") |
| 5. | Separate the floor carpet to obtain space for removing the rear heating duct. |
| 6. | Loosen the trunk lid catch mounting bolt (A). Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft) |
|
| 7. | Detach the cable (A) and remove the trunk lid catch (B).
|
| 8. | To install, reverse the removal procedure. | •
| Make sure the tail gate locks / unlocks and opens / closes properly. |
|
|
Trunk Lid Back Panel
Components and components location
Repair procedures
| •
| When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| •
| Put on gloves to prevent hand injuries. |
|
| 1. | Remove the trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim") |
| 2. | Disconnect the rear combination lamp connector (A). |
| 3. | Loosen the mounting bolts, remove the rear combination lamp (B).
|

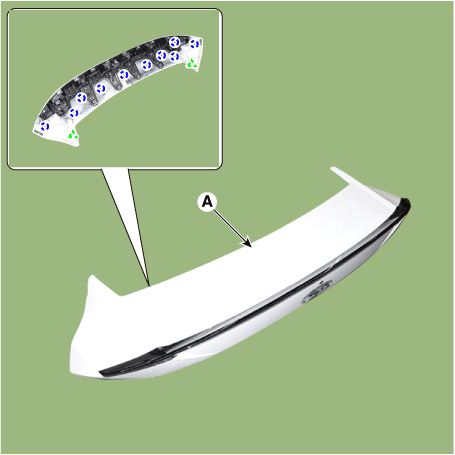

| 4. | Loosen the mounting bolts, remove the trunk lid back panel (A).
|
| 5. | To install, reverse the removal procedure. | •
| Make sure the connectors are connected in properly. |
| •
| Replace any damaged clips. |
|
|
Trunk Lid Weatherstrip
Repair procedures
| •
| Do not apply sealant to the body. |
|

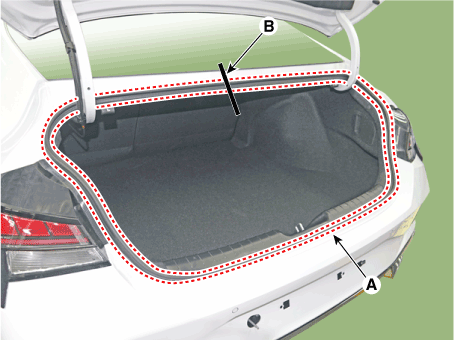

| 1. | Remove the trunk lid weatherstrip (A).
|
| 2. | To install, reverse the removal procedure. | •
| When installing the trunk lid weatherstrip, check the center - marking line (B). |
|
|
