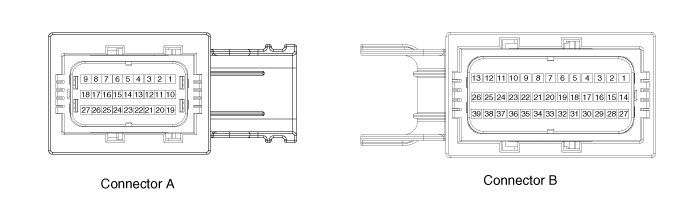

Hyundai Elantra MD/UD: SRSCM Connector Terminal - Schematic Diagrams - SRSCM - Restraint - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: SRSCM Connector Terminal

Pin
Function (Connector A)
 Pin
Function (Connector A)
1
 Ignition
 1
 Seat belt pretensioner [Passenger] Low
2
 -
 2
 Anchor Pretensioner [Passenger] Low
3
 (1st stage) Passenger airbag Low
 3
 Seat belt pretensioner [Driver] Low
4
 Front impact sensor [Driver] Low
 4
 Anchor Pretensioner [Driver] Low
5
 (2nd stage) Passenger airbag Low
 5
 Side airbag [Driver] Low
6
 Front impact sensor [Passenger] Low
 6
 Side airbag [Passenger] Low
7
 (1st stage) Driver airbag Low
 7
 Curtain airbag [Passenger] Low
8
 (2nd stage) Driver airbag Low
 8
 Curtain airbag [Driver] Low
9
 -
 9
 -
10
 -
 10
 -
11
 -
 11
 -
12
 (1st stage) Passenger airbag High
 12
 -
13
 Front impact sensor [Driver] High
 13
 -
14
 (2nd stage) Passenger airbag High
 14
 Seat belt pretensioner [Passenger] High
15
 Front impact sensor [Passenger] High
 15
 Anchor Pretensioner [Passenger] High
16
 (1st stage) Driver airbag High
 16
 Seat belt pretensioner [Driver] High
17
 (2nd stage) Driver airbag High
 17
 Anchor Pretensioner [Driver] High
18
 -
 18
 Side airbag [Driver] High
19
 Seat belt reminder
 19
 Side airbag [Passenger] High
20
 -
 20
 Curtain airbag [Passenger] High
21
 Crash Output
 21
 Curtain airbag [Driver] High
22
 -
 22
 -
23
 -
 23
 -
24
 Telltale lamp
 24
 -
25
 -
 25
 -
26
 CAN_Low
 26
 -
27
 CAN_High
 27
 Seat belt buckle switch [Passenger]


28
 -


29
 Pressure side impact sensor [Passenger] High


30
 Pressure side impact sensor [Driver] High


 31
 -


 32
 Seat belt buckle switch [Driver]


33
 Pressure side impact sensor [Driver] Low


 34
 Pressure side impact sensor [Passenger] Low
　
 　
 35
 Ground
　
 　
 36
 Side impact sensor [Passenger] Low
　
 　
 37
 Side impact sensor [Driver] Low
　
 　
 38
 Side impact sensor [Driver] High


39
 Side impact sensor [Passenger] High
