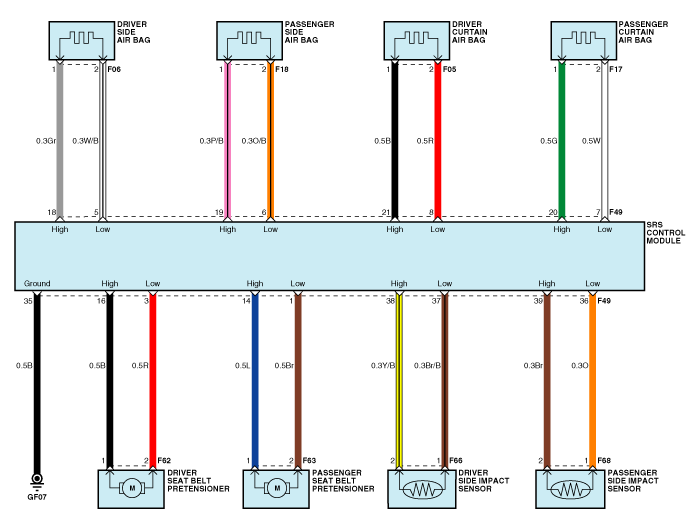

Hyundai Elantra MD/UD: Circuit Diagram (3) - Schematic Diagrams - SRSCM - Restraint - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Circuit Diagram (3)


SRSCM Connector Terminal
Pin Function (Connector A) Pin Function (Connector A) 1 Ignition 1 Seat belt pretensioner [Passe ...
