Hyundai Elantra AD: Rear Door - Body (Interior and Exterior) - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Rear Door

Components and Components Location

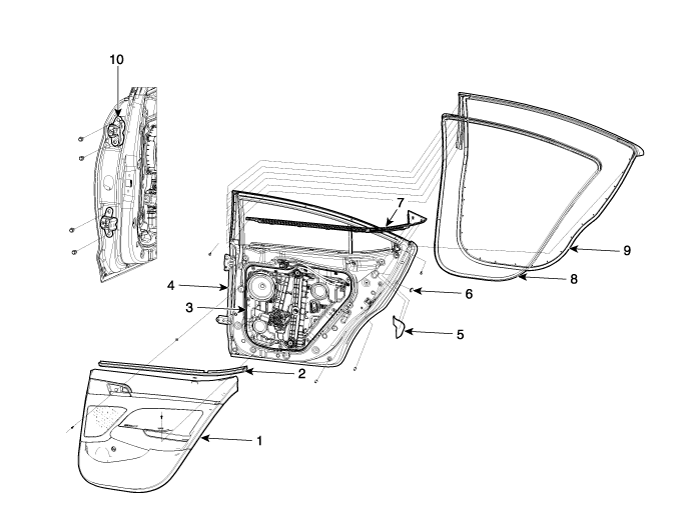

Components

1. Rear door trim
2. Rear door belt inside weatherstrip
3. Rear door module
4. Rear door panel
5. Rear door delta inner cover
6. Holl plue
7. Rear door belt outside weatherstrip
8. Rear door body side weatherstrip
9. Rear door side weatherstrip
10. Rear door hinge

Repair procedures

Adjustment
Glass Adjustment

Check the glass run channel for damage or deterioration, and replace them if necessary.
1. Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2. Separate the mounting plug hole (A) from the rear door module.

3. After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

4. Check the glass for normal operation.
Door Striker Adjustment

Make sure the door latches securely without slamming it. If necessary adjust the striker (A): The striker nuts are fixed. The striker can be fine adjusted up or down, and in or out.
1. After loosening the mounting screw, adjust the striker (A) by moving it forward and backward or from side to side and then tighten the bolts (B).

Tightening torque :

(B) : 18.6 ~ 21.6 N.m (1.9 ~ 2.9 kgf.m, 13.7 ~ 21.0 lb-ft)


2. Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.
3. Hold the outer handle out, and push the door against the body to make sure that the striker fits flush with the body. If the door latches properly, tighten the screws and recheck.
Door Position Adjustment

After installing the rear door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.
1. Check that the door and body edges are parallel.

2. Place the vehicle on a firm, level surface when adjusting the doors.

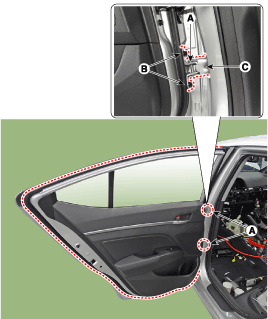

3. Adjust the hinges (A) :
A. Loosen the door mounting bolts slightly, and move the door in or out until it aligns flush with the body.
B. Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary to make the gaps equal.
C. Place a shop towel on the jack to prevent damage to the door when adjusting the door.

Tightening torque :

(B) : 21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

(C) : 37.3 ~ 41.2 N.m (3.8 ~ 4.2 kgf.m, 27.5 ~ 30.4 lb-ft)

4. Grease the pivot portions of the hinges indicated by the arrows.
5. Check for water leaks.

Rear Door Trim Components and Components Location

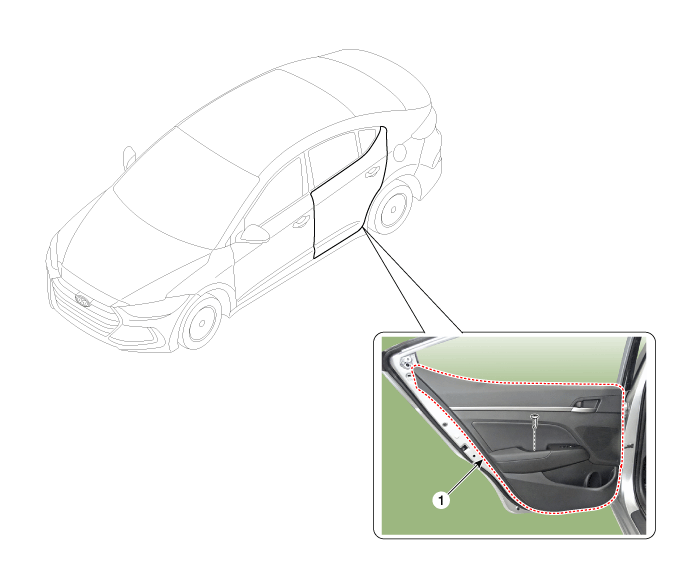

Component Location

1. Rear door trim


Rear Door Trim Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.
1. Using a screwdriver or remover, remove the rear door delta inner cover (A).

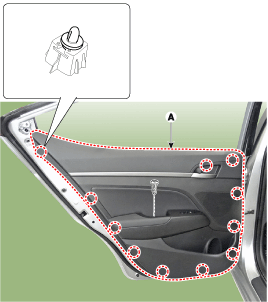

2. After loosening the mounting screws, remove the rear door trim (A).

3. Remove the rear door inside handle cage (A).

4. Disconnect the power window switch connector (A).

5. To intall, reverse the removal procedure.

Make sure the connector is connected properly.
Make sure the door locks / unlocks and opens / closes properly.
Replace any damaged clips (or pin-type retainers).
Make sure the glass moves properly.

Rear Door Inside Handle Repair procedures

Replacement
1. Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2. After loosening the mounting screws, remove the rear door inside handle (A).

3. To intall, reverse the removal procedure.

Make sure the door locks / unlocks and opens / closes properly.
Replace any damaged clips (or pin-type retainers).

Rear Door Window Glass Components and Components Location

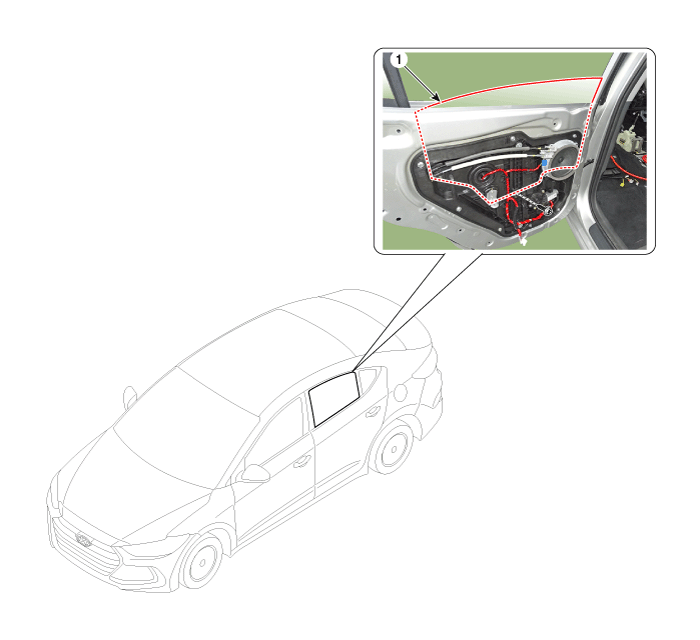

Component Location

1. Rear door window glass


Rear Door Window Glass Repair procedures

Replacement
1. Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2. Remove the rear door belt inside weatherstrip (A).

3. Pull down rear door window glass by pressing the power window glass switch.
4. Loosen the mounting screws and remove the rear door belt outside weatherstrip (A).

5. Completely loosen the rear door channel mounting bolts and unscrew the loosely as possible without removing them from the rear door panel.
6. Slightly push the rear door channel in the direction of arrow as below.

Tightening torque :

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)


7. Remove the rear door window glass mounting hole plug (A).


Be careful not to drop the glass and/or scratch the glass surface.

Use the door switch to align the mounting hole/bolt with the hole in the door.
If unable to operate the window motor, remove the motor and align the hole by hand.
8. Carefully adjust the rear door window glass (A) until the bolts are visible, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.

Tightening torque :

8.8 ~ 11.8 N.m (0.9 ~ 1.2 kgf.m, 6.5 ~ 8.7 lb-ft)


9. To intall, reverse the removal procedure.

Make sure that the glass rolls up and down smoothly.
Adjust glass position as needed.
Make sure the door locks and opens properly.
Replace any damaged clips (or pin-type retainers).

Rear Door Module Components and Components Location

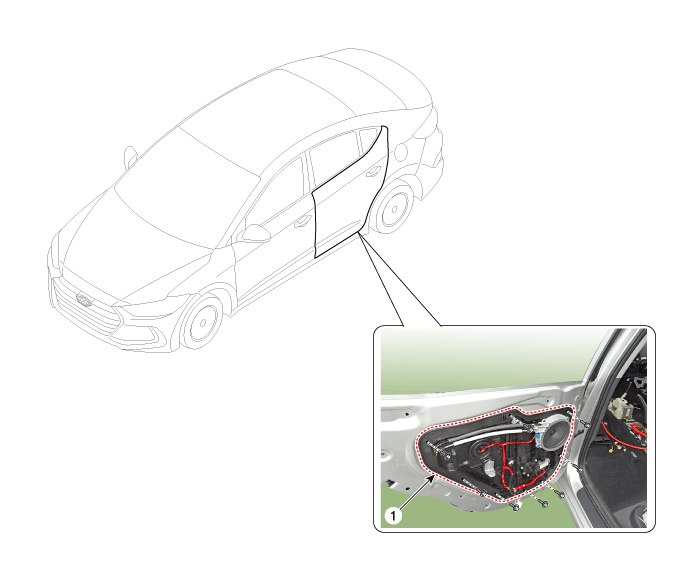

Component Location

1. Rear door module


Rear Door Module Repair procedures

Replacement
1. Remove the rear door window glass.

(Refer to Rear Door - "Rear Door Window Glass")

2. Remove the rear door outside handle.

(Refer to Rear Door - "Rear Door Outside Handle")

3. Loosen the rear door latch mounting screws.

Tightening torque :

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.0 ~ 8.0 lb-ft)


4. After loosening the mounting bolts, remove the rear door module (A).

Tightening torque :

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)


5. Remove the rear door latch assembly.

(Refer to Front Door - "rear Door Latch")

6. Reomove the rear speaker .

(Refer to Body Electrical System - "Speakers")

7. Remove the rear power window motor.

(Refer to Body Electrical System - "Power Window Motor")

8. To intall, reverse the removal procedure.

Make sure connectors are connected properly and each rod is connected securely.
Make sure the door locks / unlocks and opens / closes properly.

Rear Door Outside Handle Components and Components Location

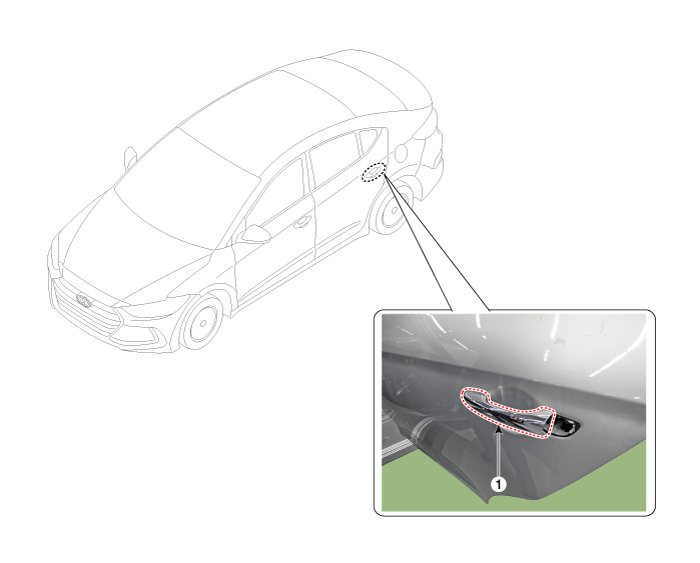

Component Location

1. Rear door outside handle


Rear Door Outside Handle Repair procedures

Replacement
1. Remove the plug hole (B).
2. After loosening the mounting bolt, remove the front door lock (A).

Tightening torque :

7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft)


3. Remove the rear door outside handle (A) by pushing it in the direction of arrow.

4. To intall, reverse the removal procedure.

Make sure the door locks / unlocks and opens / closes properly.
Be sure to install the outside handle pad (A) between the outside handle and the door panel.

Rear Door Latch Components and Components Location

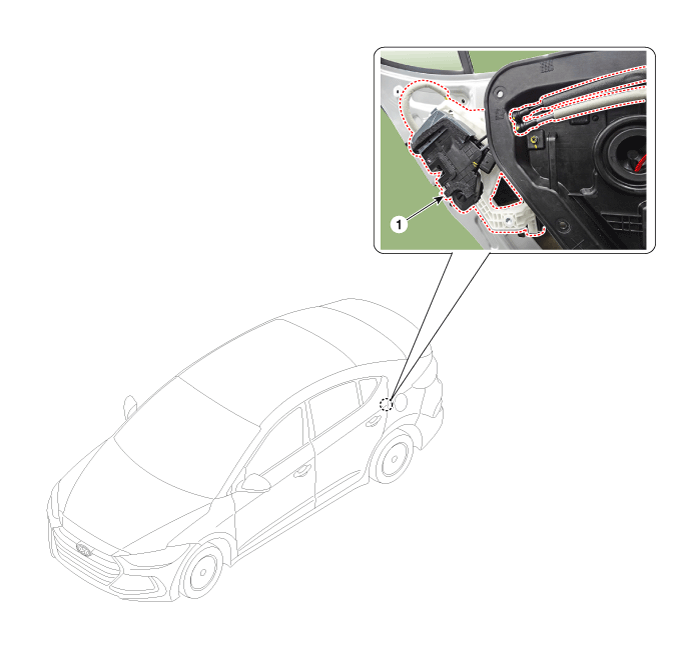

Component Location

1. Rear door latch


Rear Door Latch Repair procedures

Replacement
1. Remove the rear door module.

(Refer to Rear Door - "Rear Door Module")

2. Remove the rear door inside handle cage (A).

3. Disconnect the rear door latch connector (A).

4. Loosen the mounting bolt and remove the rear door latch (A).

5. Remove the rear door outside handle base (A) by pushing in the lock pins located in the back.

6. Remove the rear door outside handle cable (A).

7. To intall, reverse the removal procedure.

Make sure the connector is connected properly.
Make sure the door locks / unlocks and opens / closes properly.
Replace any damaged clips (or pin-type retainers).

Rear Door Belt Outside Weatherstrip Repair procedures

Replacement
1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.
2. After loosening the mounting screws, remove the rear door belt outside weatherstrip (A).

3. To intall, reverse the removal procedure.

Replace any damaged clips.

Rear Door Belt Inside Weatherstrip Repair procedures

Replacement
1. Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2. Remove the rear door belt inside weatherstrip (A).

3. To intall, reverse the removal procedure.

When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
Replace any damaged clips.

Rear Door Side Weatherstrip Repair procedures

Replacement
1. Loosen the rear door checker (B) mounting bolt.

Tightening torque :

16.7 ~ 21.6 N.m (1.7 ~ 2.2 kgf.m,12.3 ~ 15.9 lb-ft)


2. Detach the clips, remove the rear door side weatherstrip (A).

3. To intall, reverse the removal procedure.

Replace any damaged clips.
