Components and Components Location
1. DDM (Driver Door Module)
2. ADM (Assistant Door Module)
3. RRDM / RLDM (Rear Door Module)
|
4. Front window motor
5. Rear window motor
|
Description and Operation
| Function Of Safety Power Window |
When driver door power window auto-up switch is operated, safety function is activated.
| 1. |
Safety function condition When
detect the force of 100N (using the 10N/mm spring) during the window rising,
window is reversed.
|
| 2. |
Length of window reversing (except
holding the auto-up switch)
| A. |
When detect the jamming
during the 4mm ~ 250mm from top of the door. > Window is reversed
until 300mm from top of the door.
|
| B. |
When detect the jamming
over the 250mm from top of the door. > Window is reversed until
50mm from jamming position.
|
|
| 3. |
Length of window reversing (holding
the auto-up switch)
| A. |
When detect the jamming
during holding the auto-up switch. > Window is reverse until 25mm
from jamming position.
|
| B. |
Auto-up function is not
available during the 5 seconds from above condition. > When holding
the auto-up switch, window is operated as a manual-up function.
(Safety function is not activated.)
|
| C. |
When holding the auto-up
switch after 5 seconds from above condition. > Window is reverse
until 25mm from jamming position.
|
|
| 4. |
Safety function is not available
area Safety function is not available during the 4mm from top of the door.
|
Initializing Method of the Safety Power Window
| 1. |
Initializing of Battery Connection
When the battery power is removed for over 5 minutes, safety power window
switch need the initializing.
| (1) |
Power window operation
before initializing
| A. |
Manual-Up/Down
function is available |
| B. |
Auto-Up function
is not available (When holding the auto-up/down switch,
window is operated as a manual-up/down.)
|
|
| (2) |
Initializing method
Close the window in window open position, and holding the switch
in window full close position over the 0.2 second.
(If start the closing the window in window full close position,
initializing could be failed.) |
| (3) |
If initialize the safety
power window in jamming status, could occur below conditions.
| A. |
Safety function
is not available |
|
|
| 2. |
Initializing of fail safe mode
| (1) |
If the window moved by
compulsion and motor have a problem, power window switch could be
entering the fail safe mode for user’s safety. |
| (2) |
Power window operation
in fail mode
| A. |
Auto/Manual-Down
function is available |
| B. |
Auto/Manual-Up
function is not available (When auto/manual-up is operated,
window is rising 20mm and is stopped the moving.)
|
|
|

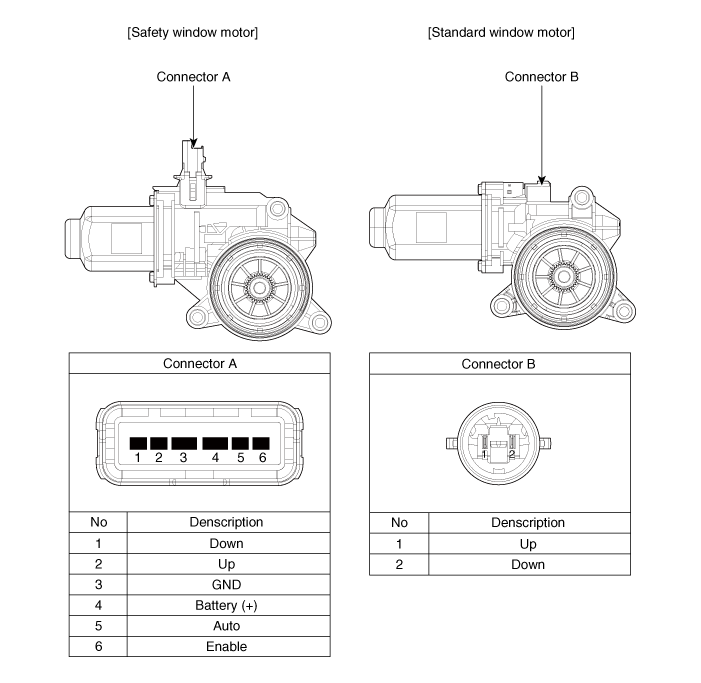

Power Window Motor Components and Components Location

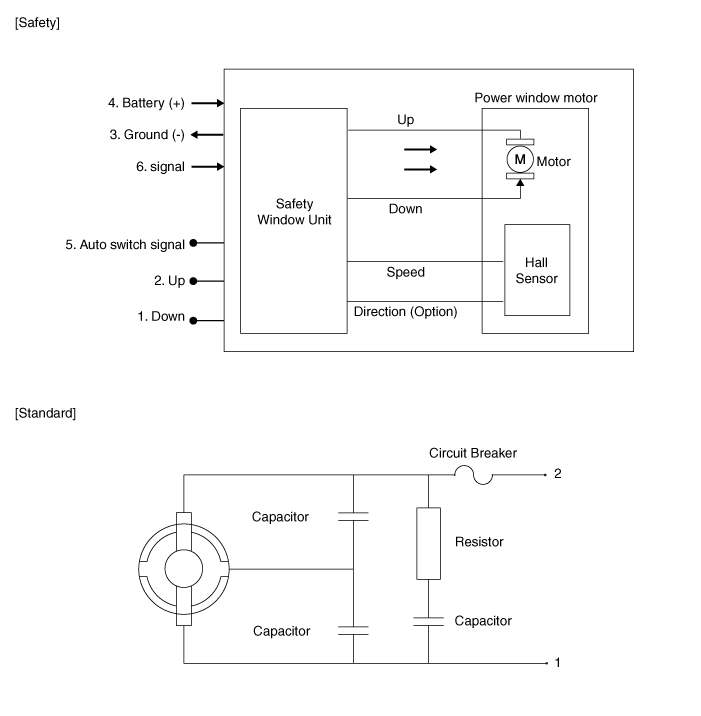

Power Window Motor Schematic Diagrams
Power Window Motor Repair procedures
| • |
Wrap the protective tape
on the tool to disassemble with the screwdriver or remover. |
| • |
Use caution in keeping
and handling during disassembling/assembling because it is easily
contaminated with lubricant and oil. |
| • |
Be careful not to scratch
the door trim and other parts. |
|
Front Power Window Motor
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the front door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Disconnect the motor connector
from the motor.
|
| 4. |
Connect the terminal No.1 and
No.2 to battery voltage (12V) and check that the motor operates smoothly
when connecting the terminals below. [Safety Window Motor]
|
| 5. |
Connect the motor terminals directly
to battery voltage (12V) and check that the motor operates smoothly. Next,
reverse the polarity and check that the motor operates smoothly in the reverse
direction. If the operation is abnormal, replace the motor. [Standard
Window Motor]
|
Rear Power Window Motor
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
|
| 3. |
Disconnect the motor connector
from the motor.
|
| 4. |
Connect the motor terminals No.1
and No.2 directly to battery voltage (12V) and check that the motor operates
smoothly. If the operation is abnormal, replace the motor.
[Safety Window Motor]
|
Power Window Switch Components and Components Location

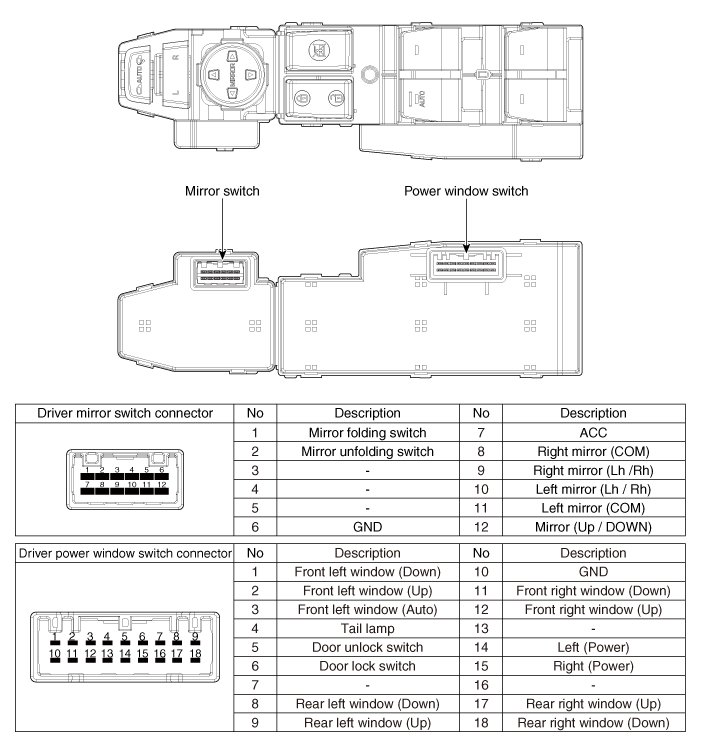

[Driver Power Window Switch]

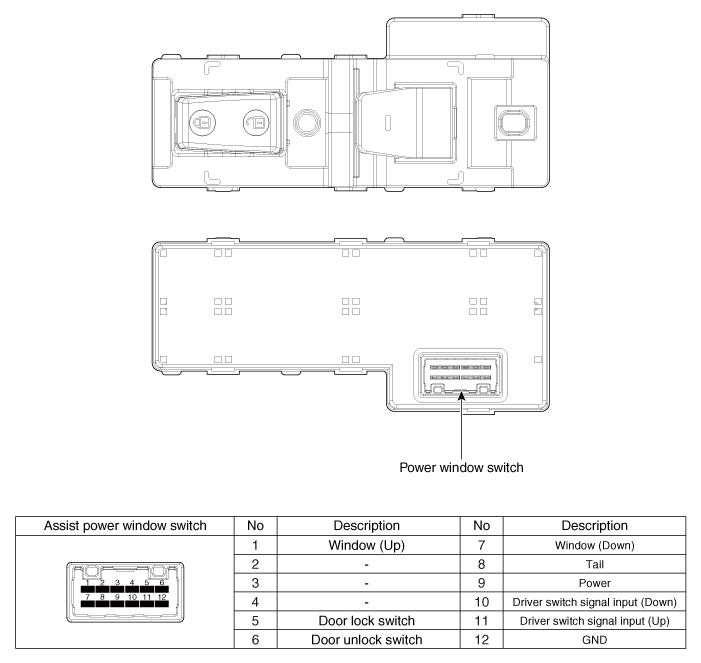

[Assist Power Window Switch]

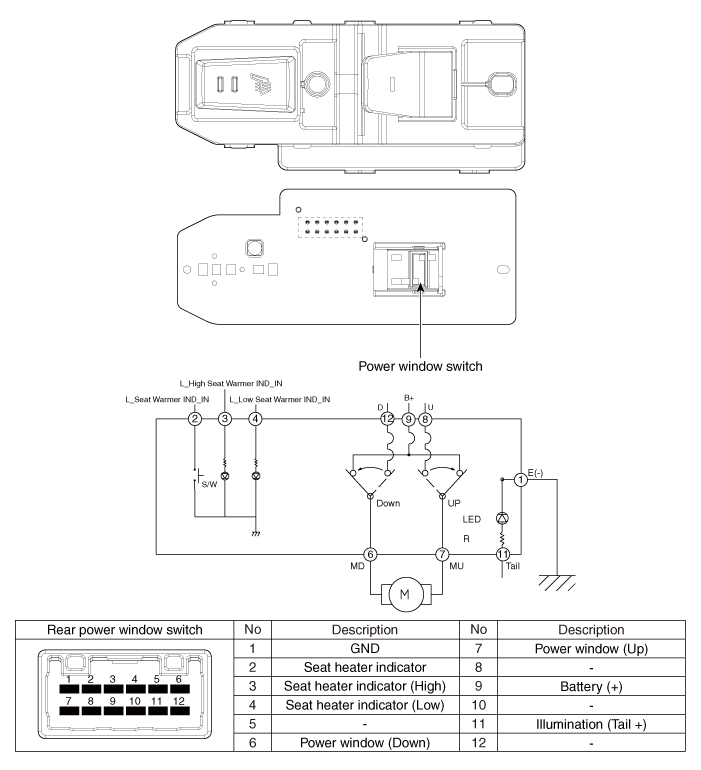

[Rear Power Window Switch]

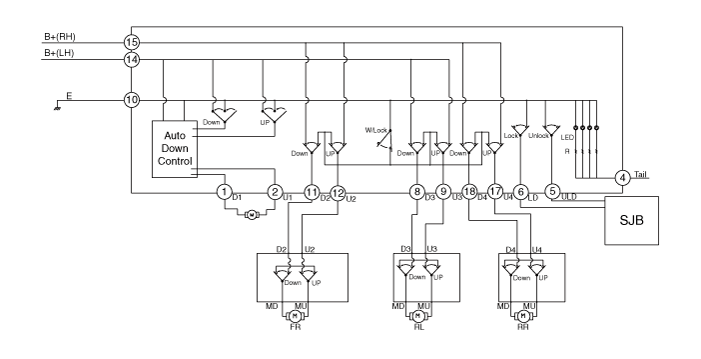

Power Window Switch Schematic Diagrams
| Driver Power Window Switch |

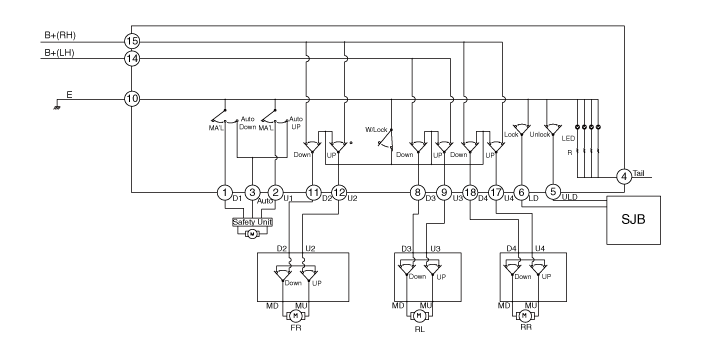

| [Driver Power Window Switch (Safety)] |
| [Driver Power Window Switch (Auto Down)] |

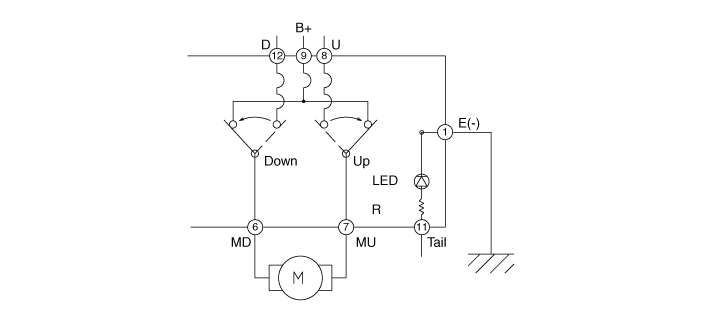

| Assist Power Window Switch |
| [Rear Power Window Switch (Manual)] |

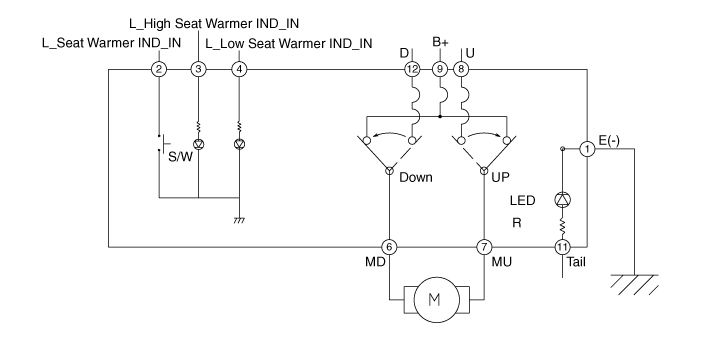

| [Rear Power Window Switch (Manual +
Seat Heater)] |
Power Window Switch Repair procedures
[Driver Power Window Switch]
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the driver door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Disconnect the power mirror switch
connector from the door trim.
|
| 4. |
Check for continuity between
the terminals in each switch position as shown below. [Power Window Switch
Inspection]
[Power Door Lock Switch Inspection]
[Power Window Lock Switch Inspection]
|
[Assist Power Window Switch]
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the assist door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Disconnect the power mirror switch
connector from the door trim. |
| 4. |
Check for continuity between
the terminals in each switch position as shown below.
|
Rear Power Window Switch
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
|
| 3. |
Disconnect the power mirror switch
connector from the door trim.
|
| 4. |
Check for continuity between
the terminals in each switch position as shown below. [Rear Power Window
Switch Inspection]
[Rear Sear Heater Switch Inspection]
|
Driver / Assist Power Window Switch
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the front door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Remove the power window switch
(A).
|
Rear Power Window Switch
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
|
| 3. |
Remove the power window switch
assembly after disengaging the mounting clips.
|
Driver / Assist Power Window Switch
| 1. |
Install the power window switch
assembly. |
| 2. |
Install the front door trim after
connect the connector. |
Rear Power Window Switch
| 1. |
Install the power window switch
assembly. |
| 2. |
Install the rear power window
switch. |
