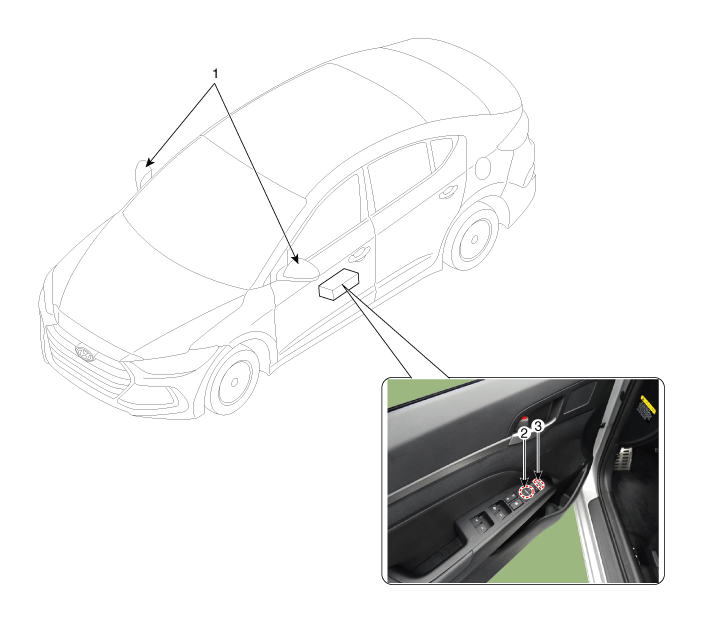

Components and Components Location
1. Power door mirror
2. Power door mirror switch
|
3. Power folding mirror switch
|

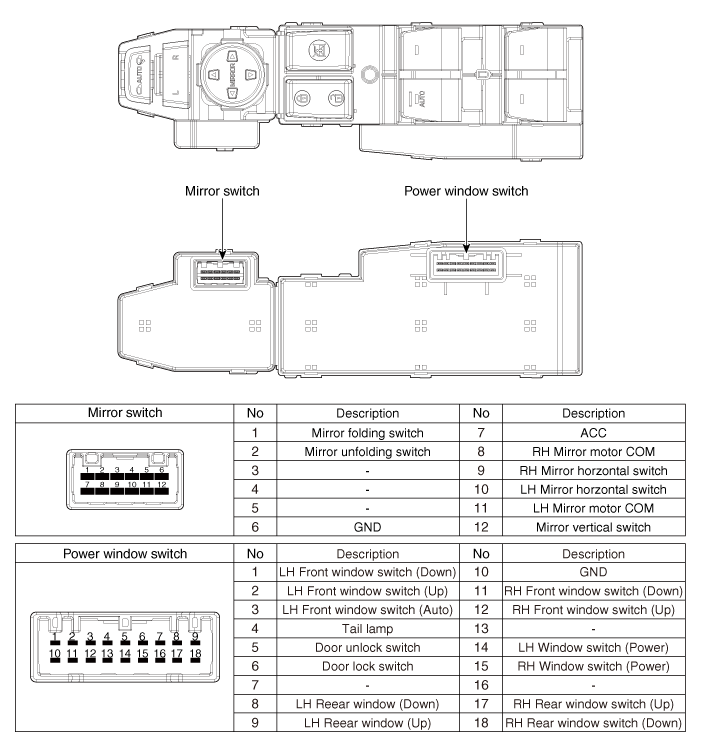

Power Door Mirror Switch Components and Components Location

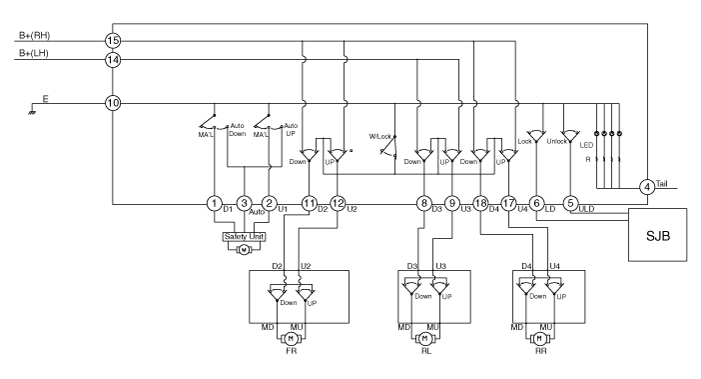

Power Door Mirror Switch Schematic Diagrams
Power Door Mirror Switch Repair procedures
[Power Window Switch]
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the driver door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Disconnect the power mirror switch
connector from the door trim.
|
| 4. |

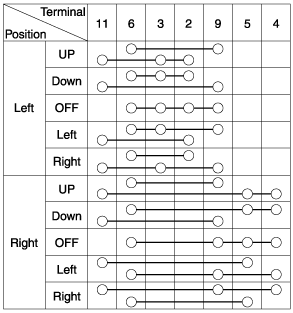

Check for continuity between
the terminals in each switch position according to the table. [Power Mirror
Switch]
|
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the front door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Remove the power window assembly
(A).
|
| 1. |
Install the power window switch
assembly. |
| 2. |
Install the front door trim after
connect the connector. |
| 3. |
Connect the negative (-) battery
terminal.
| •
|
Make sure that
the switch connectors are plugged in properly. |
| •
|
Check the power
door mirror system for normal operation. |
|
|

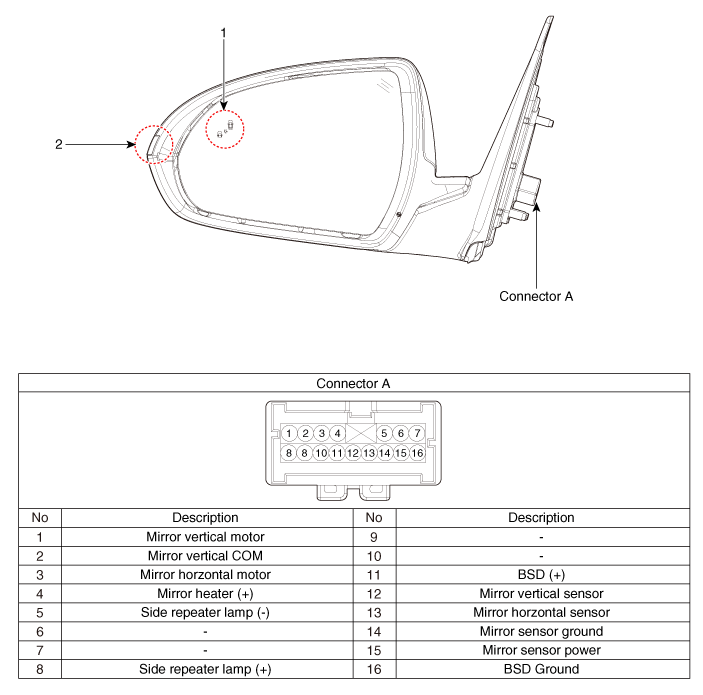

Power Door Mirror Actuator Components and Components Location
1. BSD Indicator
|
2. Side repeater lamp
|
Power Door Mirror Actuator Repair procedures
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the front door quadrant
inner cover (A).
|
| 3. |
Disconnect the power door mirror
connector from the harness.
|
| 4. |
Apply battery voltage to each
terminal as shown in the table and verify that the mirror operates properly.
[Mirror Control (LH/RT)]
[Puddle Lamp]
[BSD Indicator]
[Mirror Heater]
[Side Repeater Lamp]
|
