Manual Transaxle Fluid
General information
1. | Check & Change intervals
Check & Replenishment
| Change
| Capacity
| Oil specification
| Normal use
| Severe Use
| 60,000 km / 4 years (40,000 miles / 4years)
| No service required
| 120,000 km (80,000 miles)
| 1.5 - 1.6 L (0.39 - 0.42 U.S.gal., 1.59 - 1.69 U.S.qt., 1.32 - 1.40 lmp qt.)
| - API GL-4, SAE 70W, TGO-9 (MS517-14) • Recommended oil
–
| SHELL SPIRAX S6 GHME 70W |
–
| GS CALTEX GS MTF HD 70W |
|
Severe usage is defined as •
| Driving in dusty, rough roads |
•
| Driving in areas using salt or other corrosive materials or in very cold weather |
•
| Driving in mountainous areas |
•
| Driving for patrol car, taxi, commercial car or vehicle towing |
|
|
Repair procedures
1. | Uplift the vehicle with lift. |
2. | Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |

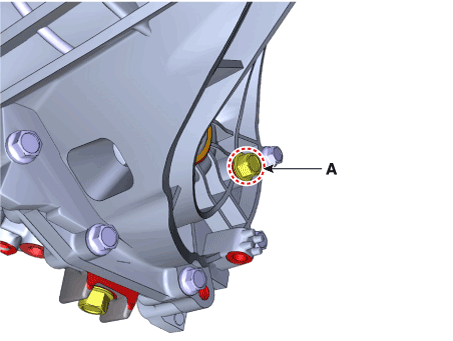

3. | Loosen the oil filler plug (A). ![](images/books/3027/spdmt12215e.gif)
|
4. | Check the oil level. •
| For the accuracy, inspect the oil level after the oil is completely drained. |
•
| Loosen the drain plug (A) and wait for over 10 minutes until the oil is drained enough. |
•
| Install the drain plug after drain the oil. Tightening torque: 58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft) |
![](images/books/3027/spdmt12216e.gif)
|
•
| The existing oil drain plug gasket (A) must be replaced with a new one. (Do not reuse it.) ![](images/books/3027/ssuat10300i.gif)
|
•
| After the inspection, inject the oil through the filler plug hole according to the specification. |
•
| Specified fluid : 1.5 - 1.6 L (0.40 - 0.42 U.S.gal., 1.58 - 1.69 U.S. qt., 1.32 - 1.40 lmp qt.) |
•
| While draining, some of the oil flows into the transmission part and the oil may be less than the specification by 0.1 - 0.15 L (0.03 - 0.04 U.S.gal., 0.10 - 0.16 U.S. qt., 0.09 - 0.13 lmp qt.) This is normal and additional oil injection is not required. |
|
|
5. | Injection the fluid and then tightening the filler plug (A) with new gasket. Tightening torque: 58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft) |
![](images/books/3027/spdmt12215e.gif)
•
| The existing oil filler plug gasket (A) must be replaced with a new one. (Do not reuse it.) ![](images/books/3027/ssuat10300i.gif)
|
|
|
6. | Install the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |
1. | Uplift the vehicle with lift. |
2. | Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |

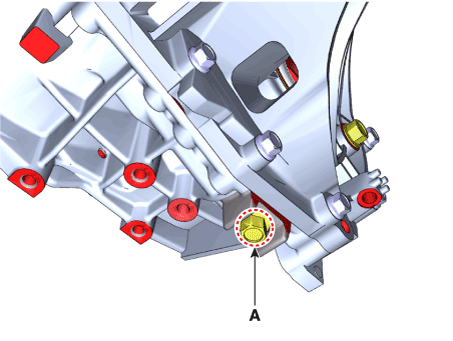

3. | Drain the manual transaxle oil after loosening the drain plug (A) and then tighten the drain plug with new gasket. Tightening torque : 58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft) |
![](images/books/3027/spdmt12216e.gif)
•
| The existing oil drain plug gasket (A) must be replaced with a new one. (Do not reuse it.) ![](images/books/3027/ssuat10300i.gif)
|
|
|
4. | Loosen the oil filler plug (A). ![](images/books/3027/spdmt12215e.gif)
|
5. | Add new fluid through the filler plug hole. Standard fluid : SAE 70W, API GL-4, TGO-9 (MS517-14) Recommnend oil: (SHELL : SPIRAX S6 GHME 70W, SK : HK MTF 70W, GS CALTEX : GS MTF HD 70W) Specified fluid : 1.5 - 1.6 L (0.40 - 0.42 U.S.gal., 1.58 - 1.69 U.S.qt., 1.32 - 1.40 lmp qt.) |
|

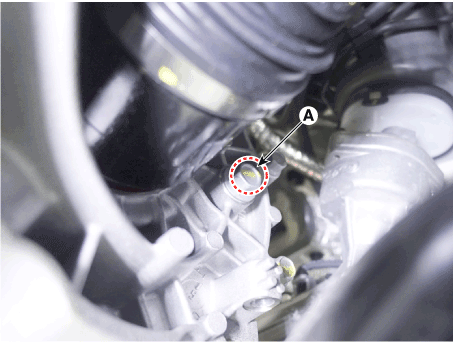

6. | Install the filler plug (A) with new gasket. Tightening torque : 58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft) |
![](images/books/3027/stlmt90001e_n.gif)
•
| The existing oil filler plug gasket (A) must be replaced with a new one. (Do not reuse it.) ![](images/books/3027/ssuat10300i.gif)
|
|
|
7. | Install the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |
Manual Transaxle
Components and components location
![](images/books/3027/scnmt11200l.gif)

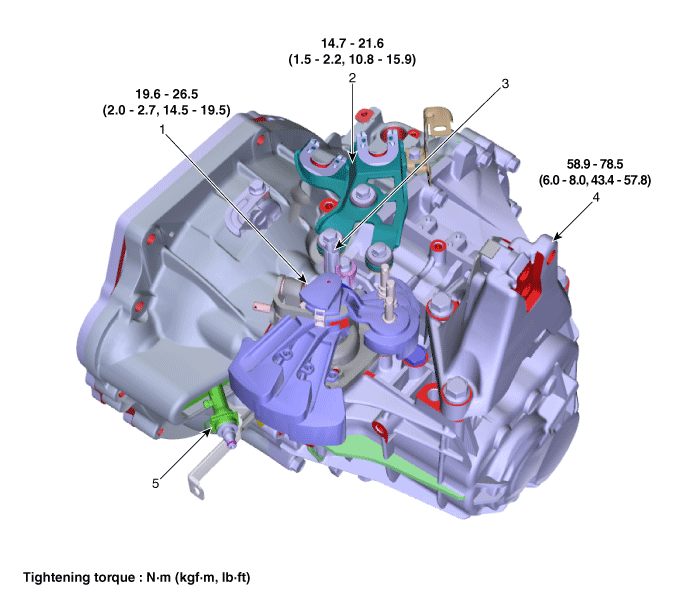

1. Control shaft complete 2. Control cable bracket 3. Back-up lamp switch
| 4. Manual transaxle bracket 5. Concentric slave cylinder
|
Repair procedures
1. | Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") |
2. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |
3. | Loosen the bolt and then separate the engine wiring (A). ![](images/books/3027/scnmt11309d.gif)
|
4. | Disconnect the back up lamp switch connector (A). ![](images/books/3027/scnmt11300d.gif)
|
5. | Remove the control cable bracket and control cable at the same time. 1) | Remove the snap pin (A) |
2) | Separate the shift cable (B) and select cable (C). ![](images/books/3027/scnmt11301d.gif)
|

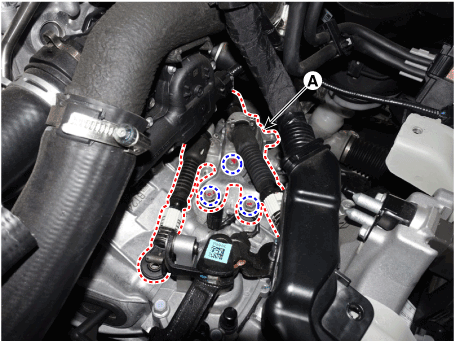

3) | Loosen the mounting bolts and then removing the control cable and control cable bracket (A) at the same time. Tightening torque : 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft) |
![](images/books/3027/scnmt11302d.gif)
|
|

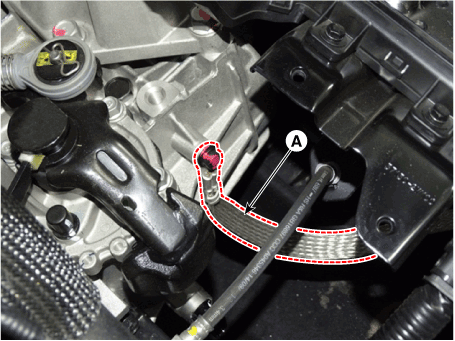

6. | Loosen the bolt and then separate the ground line (A). Tightening torque: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft) |
![](images/books/3027/stlma6105e_n.gif)
|

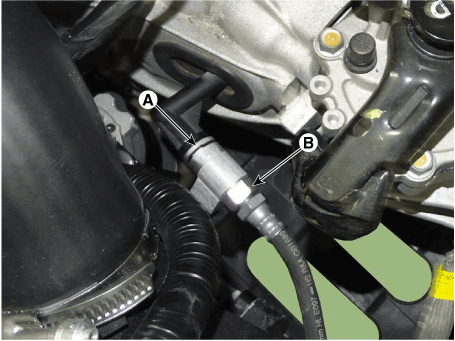

7. | Remove the snap pin (A) and the clutch hose (B). ![](images/books/3027/sadch70106d_n.gif)
|

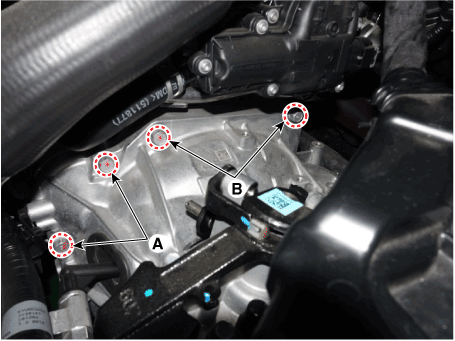

8. | Remove the starter motor mounting bolts (A) and the transaxle upper mounting bolts (B). Tightening torque : (A) 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft) (B) 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft) |
![](images/books/3027/scnmt11304d.gif)
|
9. | Assemble the engine support fixture use a (Beam SST No.: 09200 - 3N000, Adapter SST No.: 09200-4X000, Engine fixture adapter (rear) SST No.: 09200-L1100, Engine fixture adapter (front) SST No.: 09200-L1200. |
10. | Using the engine support fixture(A), hold the engine and transaxle assembly safely. ![](images/books/3027/scndc10308d.gif)
|
11. | Remove the dust cover (A). ![](images/books/3027/scndc10309d.gif)
|
12. | Loosen the transaxle bracket support mounting bolts (A). Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.1 lb-ft) |
![](images/books/3027/scndc10310d.gif)
|

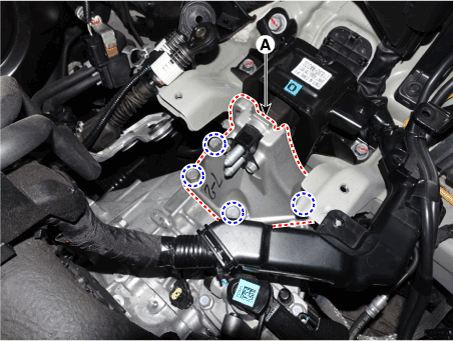

13. | Loosen the bolts and then removing the transaxle bracket (A). Tightening torque : 58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft) |
![](images/books/3027/scnmt11305d.gif)
|
14. | Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |
15. | After loosening the drain plug (A), drain the manual transaxle fluid, then install the drain plug. Tightening torque : 58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft) |
![](images/books/3027/spdmt12216e.gif)
•
| The existing oil drain plug gasket (A) must be replaced with a new one. (Do not reuse it.) ![](images/books/3027/ssuat10300i.gif)
|
|
|

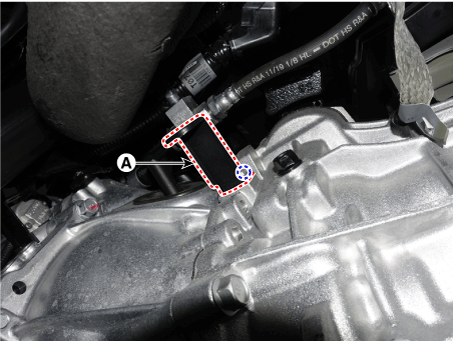

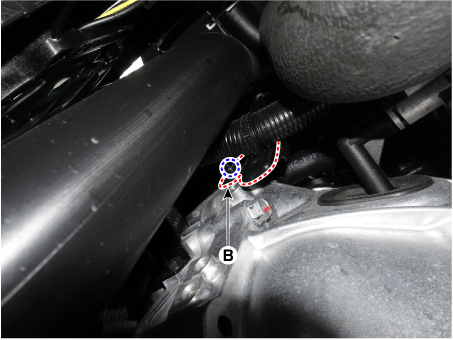

16. | Loosen the bolts and then removing the wiring bracket (A, B). ![](images/books/3027/scnmt11310d.gif)
![](images/books/3027/scnmt11311d.gif)
|

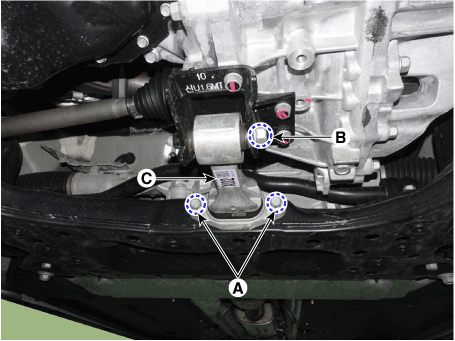

17. | Loosen the bolts (A, B) and then removing the roll rod assembly (C). Tightening torque : (A) : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft) (B) : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
![](images/books/3027/scnmt11306d.gif)
|

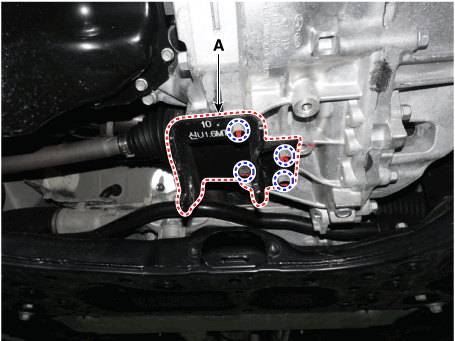

18. | Loosen the bolts and then removing the roll rod support bracket (A). Tightening torque : 49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft) |
![](images/books/3027/scnmt11307d.gif)
|
19. | Remove the drive shaft assembly. (Refer to Driveshaft and axle (2WD-FF) - "Front Driveshaft") |

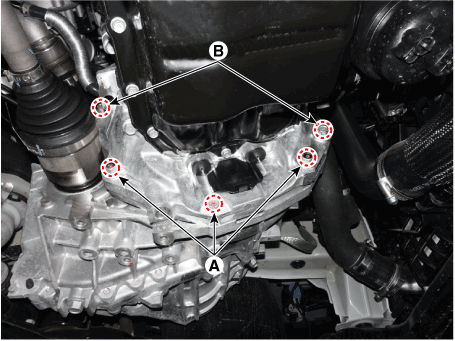

20. | Remove the lower mounting bolts (A), (B) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack. Tightening torque : (A) 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft) (B) 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft) |
•
| Be careful not to damage other system or parts near by when removing the engine and transaxle assembly. |
|
![](images/books/3027/scnmt11308d.gif)
|
•
| If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. |
•
| When installing the new oil seal, use the specialized tool. Oil seal installer both sides : 09453-2F300 |
![](images/books/3027/sammt2001l.gif)
|
|
1. | To install, reverse the removal procedures. |
2. | Injection the manual transaxle fluid. (Refer to Manual Transaxle System - "Manual Transaxle Fluid") |
3. | Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid. (Refer to Clutch System - "Repair Procedures") |
Back-up Lamp Switch
Description and operation
Component location : Control shaft complete
Operation principle : Back up lamp switch is pushed by the reverse lug sliding when select arm, and switches the back up lamp.
Function : Turn on the back up lamp when reversing.
Specifications
Item
|
Specification
|
Current voltage
| 12V
|
Working voltage
| DC 10~15V
|
Operating force
| 3.0kg Max
|
Voltage drop
| -0.4V
|
Working temperature
| -30°C ~ 100°C [-30°F ~ 212°F]
|
Repair procedures
1. | Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
2. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |
3. | Disconnect the back up lamp switch connector (A). ![](images/books/3027/scnmt11300d.gif)
|

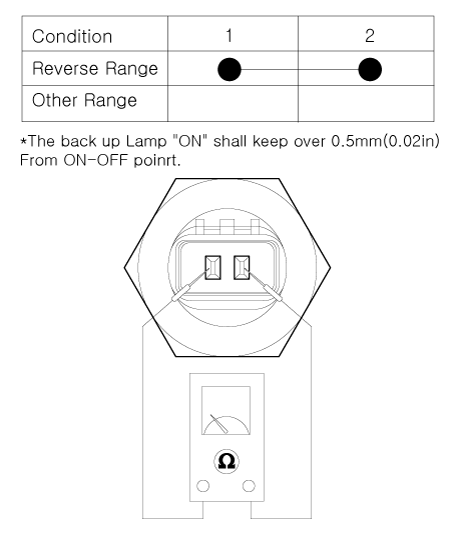

4. | Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity. ![](images/books/3027/lmjf003b_n.gif)
|
1. | Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
2. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |
3. | Disconnect the back up lamp switch connector (A). ![](images/books/3027/scnmt11300d.gif)
|

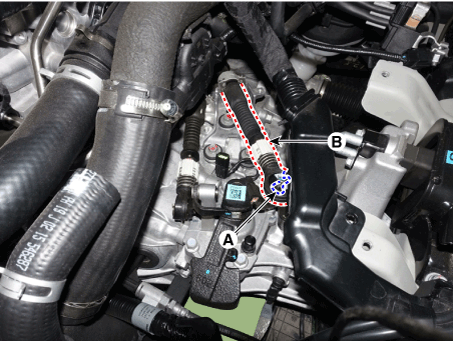

4. | Remove the snap pin (A) and then separate the shift cable (B). ![](images/books/3027/scnmt11312d.gif)
|

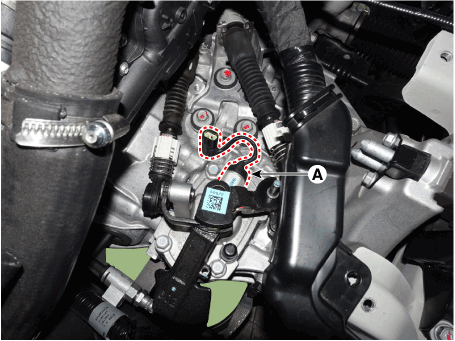

5. | Replace the back up lamp switch (A) with a new one. Tightening torque : 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft) |
![](images/books/3027/scnmt11313d.gif)
|
Special Service Tools
Tools
(Number and name)
Illustration
Use
Engine support fixture (Beam)0 ...
Shift Lever
Components and components location
Components1. Shift lever knob & boots2. Shift lever assembly3. Select cable4. Shift cable5. Retainer
Repair procedures
Removal1.Turn OFF ...
