Hyundai Elantra CN7: Integrated Body Control Unit (IBU) - Body Electrical System - Hyundai Elantra CN7 2021-2024 Workshop ManualHyundai Elantra CN7: Integrated Body Control Unit (IBU)

Description and operation

Description
Body Control Module Controls The Followings
–
Wiper & Washer Control
–
Defroster Control
–
Driving Control
–
Tailgate Control
–
Window Control
–
Interior Control
–
Exterior Control
–
Panic alarm Control
–
MTS
–
Flasher output Control
–
Door lock/unlock Control
–
Burglar alarm Control
–
Remote start Control
–
UMS(User Mode Setting) Control
–
Gateway/ Diagnosis
Integrated Body Control Unit (IBU)
Integrated body control unit has integrated several functions including body control module (IBU), smart key unit (SMK), and tire pressure monitoring system (TPMS).
1.
Body Control Module (IBU) Functions
Burglar Alarm
Trunk Burglar Alarm
Issues an alarm depending on the trunk operation.
Panic Alarm
Generates warning sound and displays flasher lamp (horn & flasher) depending on the panic signal.
Security Lamp Control
Controls security lamp in vehicle alert status.
External Lamp
Tail Lamp
Turns on / off the tail lamp automatically. It also turns off the tail lamp automatically when the driver forgot to turn off the lamp switch.
Auto Light
Turns on/off the tail lamp and head lamp automatically depending on whether it is day or night when the head lamp switch is placed at Auto.
Welcome Light
The welcome light function turns on the head lamp and tail lamp for 15 seconds when an unlock signal is detected while vehicle door is locked.
Escort Function
Turns on the escort lamp when the power is turned off while the head lamp is on.
–
It turns on the head lamp and maintains the state for 20 minutes if ignition is turned off while the head lamp is on.
–
The head lamp remains on only for 30 seconds when the driver seat door is opened and closed during the 20-minute period.
–
The head lamp turns off when remote control lock button is pressed twice while the head lamp is on.
Head Lamp (Low Beam / High Beam)
Controls high beam / low beam depending on the head lamp switch (multi-functional switch).
Daytime Driving Light Control
Controls the daytime driving light lamp depending on the conditions at the time of vehicle start.
Internal Lamp
Engine Start Maintenance Button Lamp
Turns on/off the SSB lamp depending on vehicle power conditions, door open / closed status, and alert mode.
Rheostat
Controls the brightness of interior electrical lamps (instrument cluster, HUD, AVN, etc.) depending on rheostat switch input.
Front / Rear Parking Assist
PDW Display
Receives a signal from parking assist sensor through LIN communication and displays it on the instrument cluster.
PDW Warning
Detects obstacles in front and rear sides using the parking assist sensor (PDW sensor) in the case of gear input (R or D) and issues a warning if there is an obstacle.
Warning
Seat Belt Reminder and Indicator Lamp
Issues a warning if the seat belt is not fastened, and prevents pattern activation if the vehicle is driven while the seat belt is not fastened.
Key Reminder Warning
Issues a warning if the driver seat door is open while ACC is on.
Parking Brake Warning
Generates a warning sound if vehicle speed exceeds 5 km/h while IGN is on and parking brake is on.
Wiper and Washer
Wiper (Low / High / Mist / Auto)
IBU receives wiper switch signal via B-CAN and sends the data to wiper motor (embedded) via LIN communication.
Front Washer
IBU sends the washer switch signal to front washer motor.

2.
Smart Key Unit (SMK) Functions
SMK
Door Lock and Unlock
Locks/Unlocks the door based on the door unlock signal and the signal from push buttons on the driver seat / passenger seat outside handles.
SMK Welcome Light
Controls door mirror and puddle lamp after smart key authentication when the driver with smart key approaches the vehicle.
Smart Trunk
Opens the trunk if the driver with valid smart key stays in front of the rear bumper (within LF antenna range) for 3 seconds or more.
SMK Warning
Key Reminder 1
When the driver attempts to lock the door, it checks if there is a smart key inside the vehicle and unlocks the door if there is one.
Key Reminder 2
Checks the door lock status for 0.5 seconds after the vehicle door is closed and unlocks the door and generates a warning sound using the external buzzer if the door is locked.
Door Lock Warning 1
Generates a warning sound with the external buzzer if the driver tries to leave the vehicle while ACC or IGN is on.
Door Lock Warning 2
Generates a warning sound with the external buzzer if the driver tries to lock the door and leave the vehicle while one or more doors are open.
Door Lock Warning 3
Searches for a smart key inside the vehicle when the driver tries to lock the door, and issues a warning and does not lock the door if there is a smart key inside.
Key Out Lamp Warning
If the vehicle moves at 3 km/h or less while ACC or IGN is on and the door is open, it searches for the smart key every 3 seconds and blinks the warning lamp if there is no smart key.
SMK RKE (Remote Keyless Entry)
Door Lock / Unlock
Locks/Unlocks the door based on the door unlock signal and the signal from push buttons on the driver seat / passenger seat outside handles.
Panic
Performs vehicle panic and panic stop functions based on the panic button signal.
Window Open
Opens/Closes vehicle window based on the smart key signal.
Engine Start
Start Stop Button (SSB), Immobilizer, Start Relay Power Control, SSB Lamp Control

3.
Tire Pressure Monitoring System (TPMS) Functions
Tire pressure monitoring system continuously monitors pressure and temperature inside the tire in order to warn the driver of the changes in tire pressure that may have influence on vehicle driving conditions. TPMS control module analyzes the data from the WE (Wheel Electronic) sensor attached inside each wheel and determines the tire conditions and generates a signal that is necessary for warning lamp control.
Communication Network Diagram
Abbreviation
Explanation
IBU
Interated Body Control Unit
DDM
Driver Door Module
PTGM
Power Tail Gate Module
ICU
Interated Control Unit
ECU
Engine Control Unit
CLU
Cluster
MDPS
Moter Driven Power Steering
SVM
Sorround View Monitor
ACU
Airbag Control Unit
VDC
Vehicle Dynamic Control
SCC
Smart Cruise Control
LKA
Lane Keeping Assist
BCW
Blind-Spot Collision Warning
SAS
Steering Angle Sensor
HUD
Head up Display
TCU
Transmission Control Unit
FR DATC
Dual Automatic Temp Control
4WD
Four Wheel Drive
F/PUMP
Fuel Pump Control Module
POCS
Passenger Occupant Classification System
IMS
Integrated Memory System
AMP
Amplifier
AVN
Head Unit (Audio / AVN)
HUD
Head Up Display
RR CAMERA
Rrar View Camera
FR CON
Front Console Switch
EOP
Electric Oil Pump
SBW
Shift BY Wire
W/CHAR
Wireless Power Chager
FR M/LP
Front Mood Lamp
3ND FOLD
3ND Seat Folding Control Unit
AUDIO
Audio unit
KEY BOARD
Center Fascia Keyboard

Components and components location

Components (1)
With Smart Key

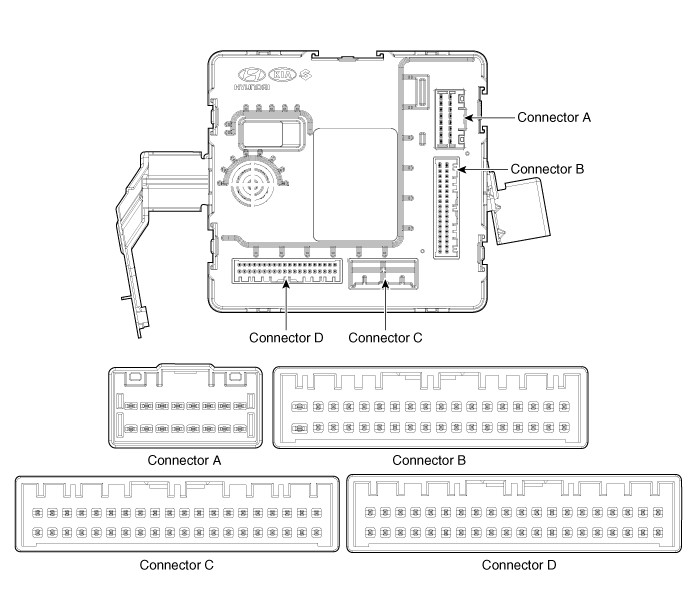

Connector Pin Information
Pin no
Connector A
Connector B
Connector C
Connector D
Connector E
1
ESCL (+)_output
-
-
-
-
2
Front heated nozzle_output
-
-
-
-
3
-
Puddle pocket lamp_output
-
Mirror folding_output
-
4
Front washer switch _Input
-
-
-

5
-
LIN(PDW)
-
-
ESCL enable_output
6
Ground_Power
R-PDW power_input
-
-
RPM_input
7
Ground_ECU
R-PDW power_output
-
-
Start relay_output
8
ESCL (-)_output
F-PDW power_output
-
-
ACC relay_output
9
Battery (+) ECU
ATM solenoid_output
-
Auto light sensor ground_output
Start feedback_input
10
Battery (+) Power
Head lamp high beam switch_input
-
Rear view camera switch_input
SSB switch2_input
11
IGN_Input
Front washer switch _Input
-
R-PDW switch_input
Trunk antenna (-)_output
12
Kiline_IMMO
Front wiper INT volume switch_input
-
P-Position_input
Interior2 antenna power(-)_output
13
-
Wiper parking switch_input
-
Passenger outside handle switch_input
-
14
-
External buzzer_output
-
Multifunction Switch ground _Input
Passenger outside handle antenna (-)_output
15
-
R-PDW switch IND_output
-
ACC_input
-
16
-
-
-
IGN2_input
-
17

-
-
Front wiper low back up switch_input
-
18

-
-
Brake switch_input
Driver outside handle antenna (-)_output
19

-
-
-
Immobilizer antenna ground_output
20

-
-
-
-
21

-
-
-
-
22

LIN 3(Rain sensor)
-
PDW option_input
-
23

Wiper power relay_output

Mirror unfolding_output
-
24

-

-
-
25

Wiper low relay_output

-
-
26

Wiper high relay_output

-
Wheel speed sensor_input
27

-

-
IGN2 relay_output
28

Fog lamp switch_input

-
IGN1 relay_output
29

Light switch_input

Auto light sensor power_output
SSB symbol illumination(+)_output
30

-

Auto light sensor signal_input
SSB switch1_input
31

-

Sunroof status_input
Trunk antenna (+)_output
32

-

ESCL unlock switch_input
Interior2 antenna power(+)_output
33

ESCL_COM

Clutch lock switch_input (MT)
-
34

EMS ECU wake up_output/Dood unlock signal_output

Driver outside handle switch_input

Passenger outside handle antenna (+)_output
35

-

B-CAN High
-
36

-

B-CAN Low
-
37



P-CAN High
-
38


P-CAN Low
Driver outside handle antenna (+)_output
39


-
Immobilizer antenna power_output
40


-
-

Without Smart Key

Connector Pin Information
Pin no
Connector A
Connector B
Connector C
Connector D
1
-
-
-
-
2
Front heated nozzle_output
-
-
-
3
-
-
-
Mirror folding_output
4
Front washer switch _Input
-
-
PDW option_input
5
-
LIN(PDW)
-
-
6
Ground_Power
R-PDW power_input
-
-
7
Ground_ECU
R-PDW power_output
-
-
8
-
F-PDW power_output
-
-
9
Battery (+) ECU
ATM solenoid_output
-
Auto light sensor ground_output
10
Battery (+) Power
Head lamp high beam switch_input
-
Rear view camera switch_input
11
IGN_Input
Front washer switch _Input
-
R-PDW switch_input
12
Kiline_IMMO
Front wiper INT volume switch_input
-
P-Position_input
13
-
Wiper parking switch_input
-
-
14
-
-
-
Multifunction Switch ground _Input
15
-
R-PDW switch IND_output
-
ACC_input
16
-
-
-
IGN2_input
17

-
-
Front wiper low back up switch_input
18

-
-
Brake switch_input
19

-
-
-
20

-
-
-
21

-
-
-
22

LIN 3(Rain sensor)
-
-
23

Wiper power relay_output

Mirror unfolding_output
24

-

-
25

Wiper low relay_output

B-CAN High
26

Wiper high relay_output

B-CAN Low
27

-

P-CAN High
28

Fog lamp switch_input

P-CAN Low
29

Light switch_input

Auto light sensor power_output
30

-

Auto light sensor signal_input
31

-

Sunroof status_input
32

-

Key solenoid_output
33

Key hall illumination_output

Start inhibit relay_output
34

EMS ECU wake up_output/Dood unlock signal_output

key in switch_input
35

-

-
36

-

-
37



Immobilizer antenna power_output
38


Immobilizer antenna ground_output
39


-
40


-

Specifications

Specifications
Items
Specifications
Rated voltage
DC 12V
Operating voltage
DC 9 - 16V
Operating temperature
-40°C to 85°C (-22°F to 185°F)
parastic current
4.0 mA
(2.5 mA increase for welcome light operation / 1.5 mA increase for security indicator operation)

Schematic diagrams

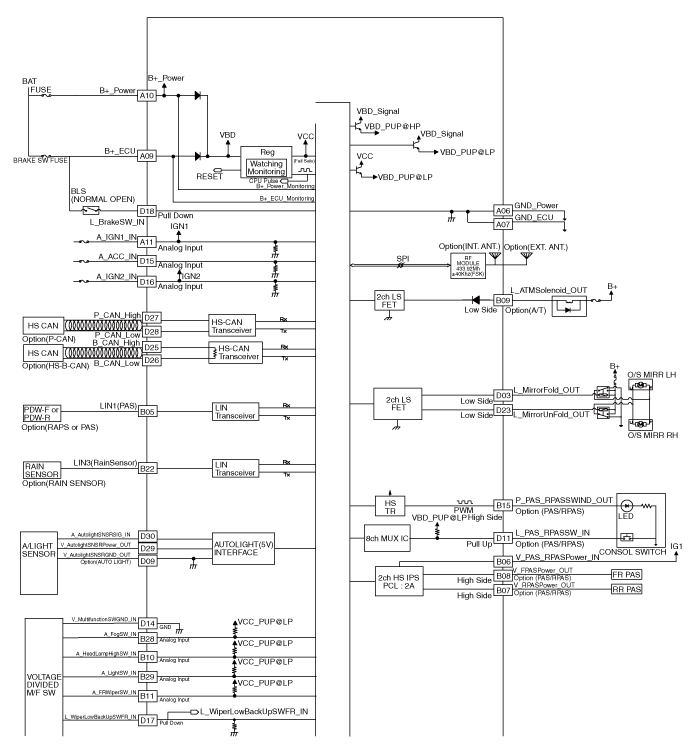

Circuit Diagram
With Smart Key

Without Smart Key

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the glove box housing cover.
(Refer to Body - "Glove Box Housing Cover")
3.
Remove the IBU unit (A) after loosening mounting nuts.

4.
Remove the IBU after disconnecting IBU connectors.

Installation
1.
Connect the integrated body control module connector.
2.
Install the integrated body control module.
3.
Install the glove box housing cover.
4.
Connect the negative (-) battery terminal.
Diagnosis With Diagnostic tool
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.
If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

3.
If check current status, select the "Data Analysis" and "Car model".

4.
Select the 'IBU_BCM' to search the current state of the input/output data.
