Hyundai Elantra MD/UD: Inspection - Repair procedures - Ignition Switch Assembly - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Inspection

1.
Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.
2.

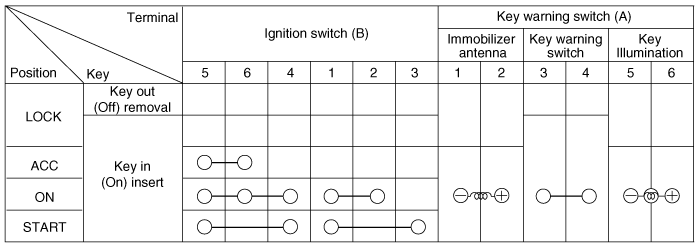

Check for continuity between the terminals.
3.
If continuity is not specified, replace the switch.
