Hyundai Elantra CN7: Horn - Body Electrical System - Hyundai Elantra CN7 2021-2024 Workshop ManualHyundai Elantra CN7: Horn

Components and components location

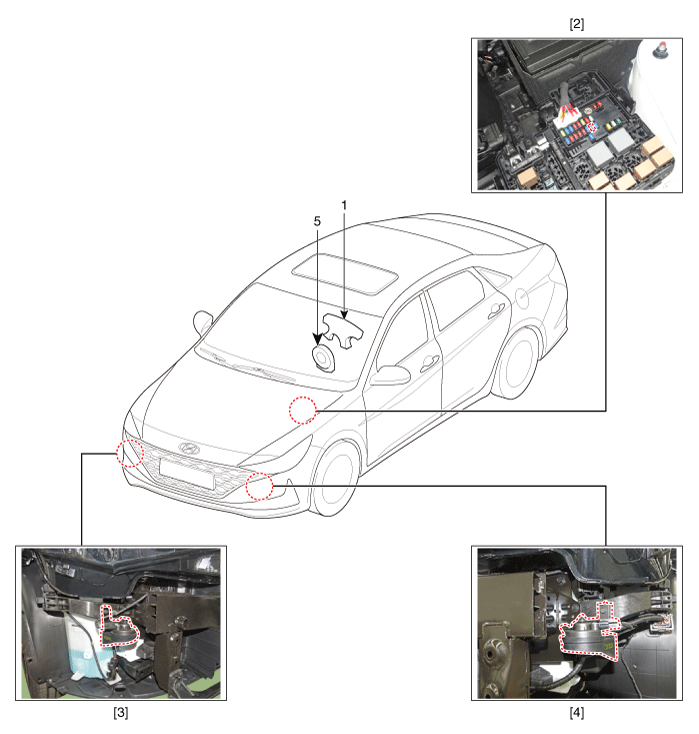

Component Location

1. Horn switch
2. Horn relay (Engine room compartment)
3. Horn (Low pitch)
4. Horn (High pitch)
5. Clock spring

Repair procedures

Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.
Remove the bolts and disconnect the horn connectors (A), then remove the horn (B).

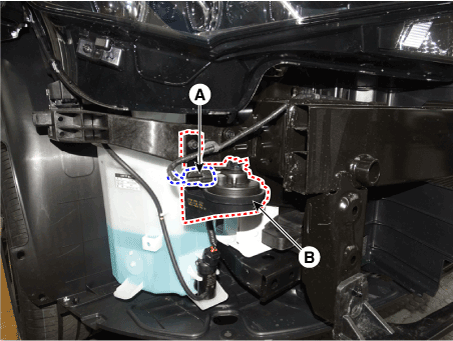

[Low pitch]

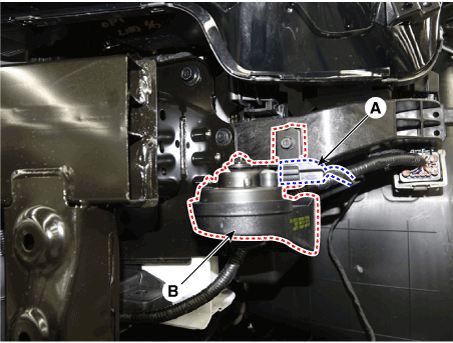

[High pitch]

Installation
1.
Install the horns after connect the horn connectors.
2.
Install the front bumper cover.
