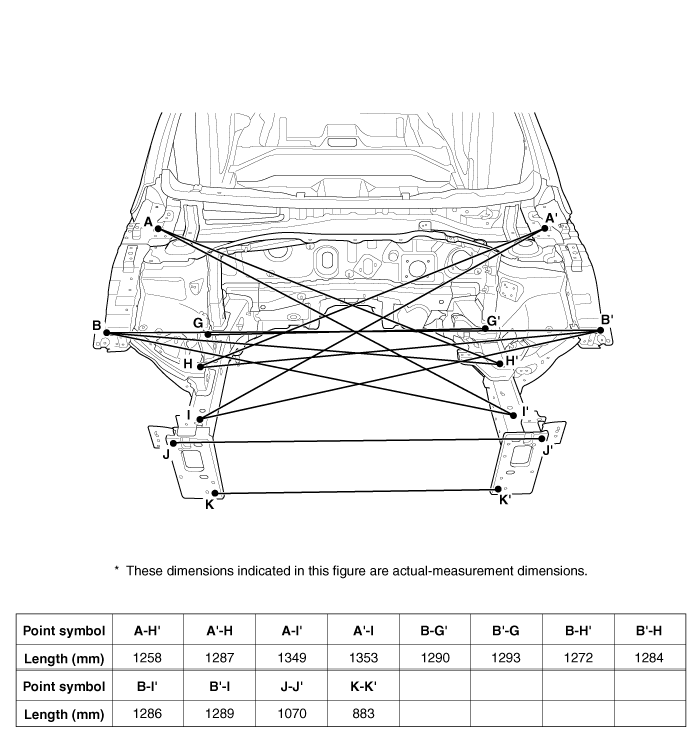

Hyundai Elantra MD/UD: Front Body B - 4Door. Front Body - Body Dimensions - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Front Body B

Hood hinge mounting hole (Ø10)

Fender apron upper member corner

Engine mounting bracket hole (Ø12)

Transaxle mounting hole (Ø12)

Engine mounting bracket hole (Ø15)

Transaxle mounting hole (Ø13)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)

Front end module mounting hole
(Ø11.5)



Front end module mounting hole
(Ø11.5)
