Hyundai Elantra HD: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location - Airbag Module - Restraint - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra HD: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

Fourth generation (HD; 2007–2010) / Hyundai Elantra HD 2006–2010 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

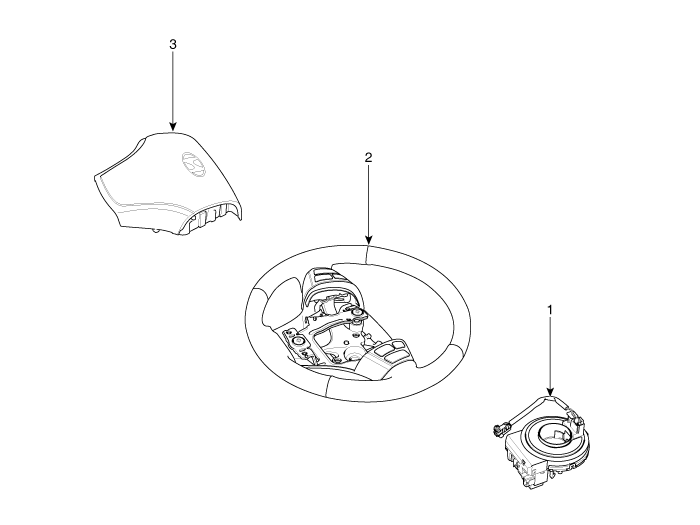

Components

1. Multi-Function Switch
2. Clock Spring
 3. Steering Wheel
4. Driver Airbag (DAB)


Driver Airbag (DAB) Module and Clock Spring. Description and Operation
Description Driver Airbag (DAB) is installed in steering wheel and electrically connected to SRSCM via clockspring. It protects the driver from danger by deploying a bag when frontal crash o ...

Driver Airbag (DAB) Module and Clock Spring. Repair procedures
Removal 1. Disconnect the battery negative cable and wait at least three minutes before beginning work. 2. Remove the three airbag module ...
