Hyundai Elantra AD: Body Dimensions
General Information
| General |
| 1. | This measurements are provided as reference for A/S, so it can not be used as specification. |
| 2. | Basically, all measurements in this manual are taken with a tracking gauge. |
| 3. | When a measuring tape is used, check to be sure there is no elongation, twisting or bending. |
| 4. | For measuring dimensions, both
projected dimension and actual-measurement dimension are used in this manual.
|
| Measurement Method |
| Projected Dimensions |
| 1. | These are the dimensions measured when the measurement points are projected into the reference plane, and are the reference dimensions used for body alterations. |
| 2. | If the length of the tracking
gauge probes is adjustable, make the measurement by lengthening one probe
by the amount equivalent to the difference in height of the two surfaces.
|
| Actual-Measurement Dimensions |
| 1. | These dimensions indicate the actual linear distance between measurement points, and are the reference dimensions for use if a tracking gauge is used for measurement. |
| 2. | Measure by first adjusting both
probes to the same length (A=A').
|
| Measurement Point |
| 1. | Measurements should be taken
at the hole center.
|

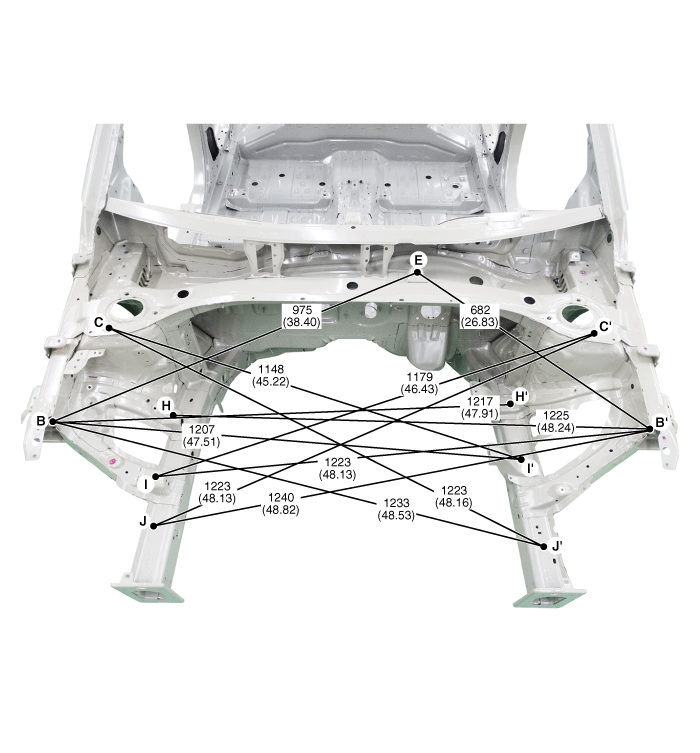

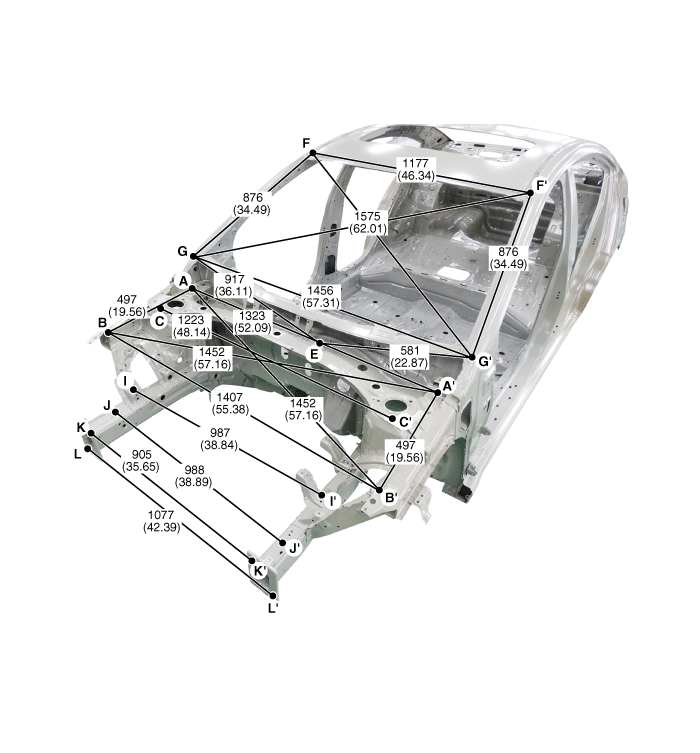

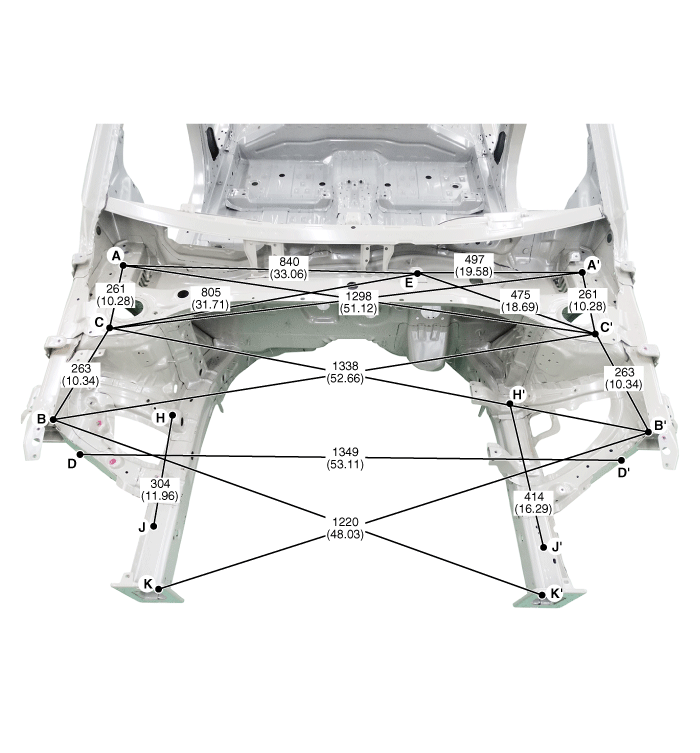

Front Body Body Repair
| Front Body A |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
| Front Body B |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |

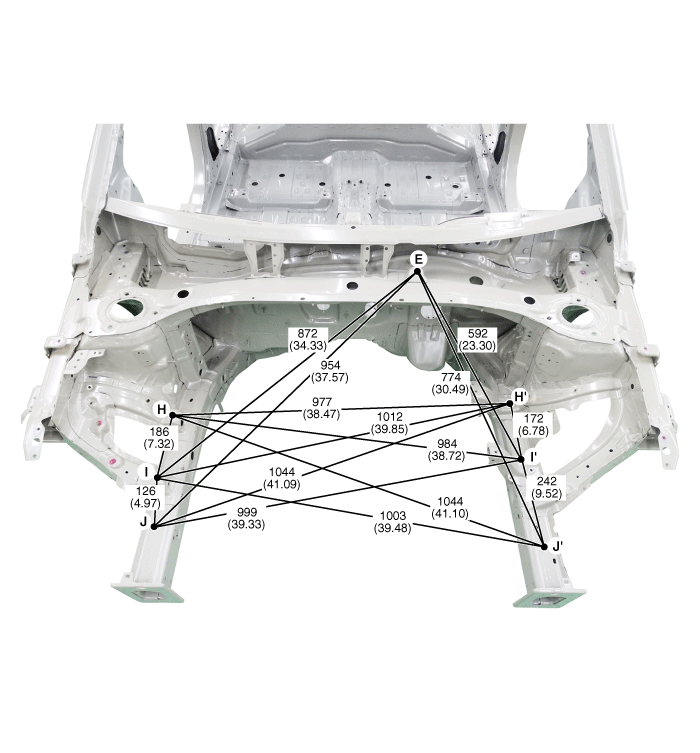

| Front Body C |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
| Front Body D |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
|
|
|
|
| Hood hinge mounting hole (O11) |
Hood hinge mounting hole (O11) |
Fender apron upper panel corner |
|
|
|
|
| Fender apron upper panel corner |
Front shock absorber mounting hole (O15) |
Front shock absorber mounting hole (O15) |
|
|
|
|
| Wiring tooling hole (O7) |
Wiper motor bracket mounting hole (O6.6) |
Front pillar outer corner |
|
|
|
|
| Front pillar outer corner |
Engine mounting bracket hole (O11) |
Transaxle mounting hole (O12) |
|
|
|
|
| Engine mounting bracket hole (O11) |
Transaxle mounting hole (O15) |
Wiring mounting hole (7X12) |
|
|
|
|
| Front side member mounting hole (O6.6) |
Front end module mounting hole (O9) |

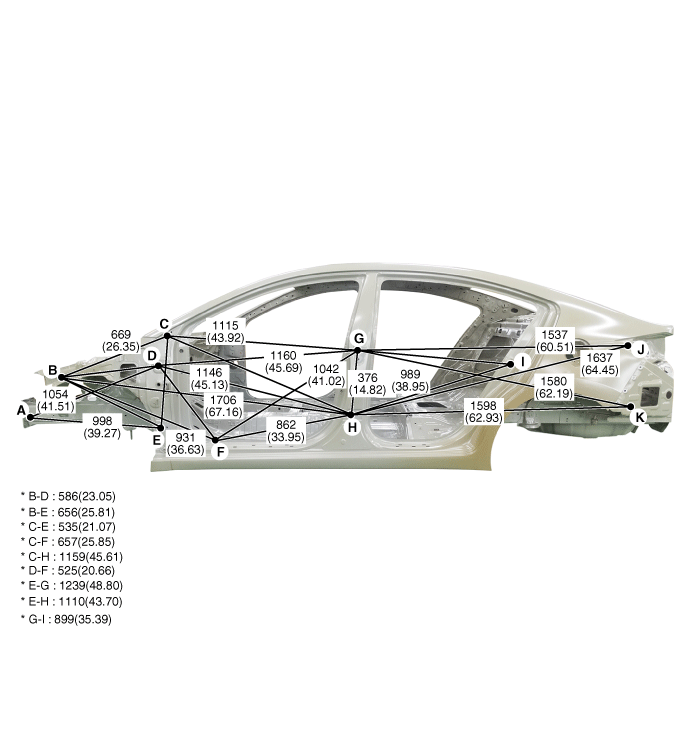

Side Body Body Repair
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
|
|
|
|
| Fornt side outer member mounting hole (O6.6) |
Fornt side outer member mounting hole (O6.6) |
Fender apron upper reinforcement tooling hole (O8) |
|
|
|
|
| Fender mounting hole (O11) |
Front door upper hinge mounting hole (O13) |
Front door lower hinge mounting hole (O13) |
|
|
|
|
| Side outer panel corner |
Rear door upper hinge mounting hole (O13) |
Rear door lower hinge mounting hole (O13) |
|
|
|
|
| Rear door switch mounting hole (O10) |
Rear combination lamp mounting hole (O15) |
Side outer panel tooling hole (O22) |

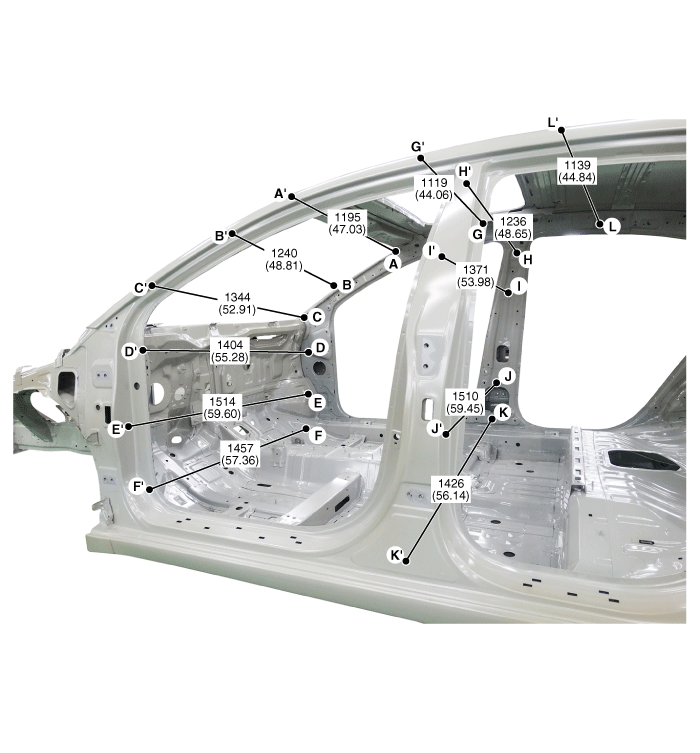

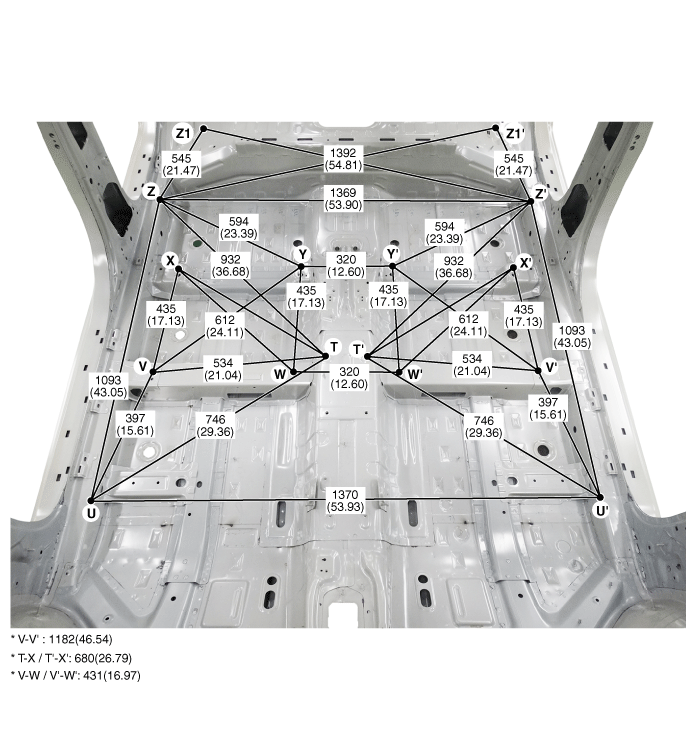

Interior Body Repair
| Interior A |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
| Interior B |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |

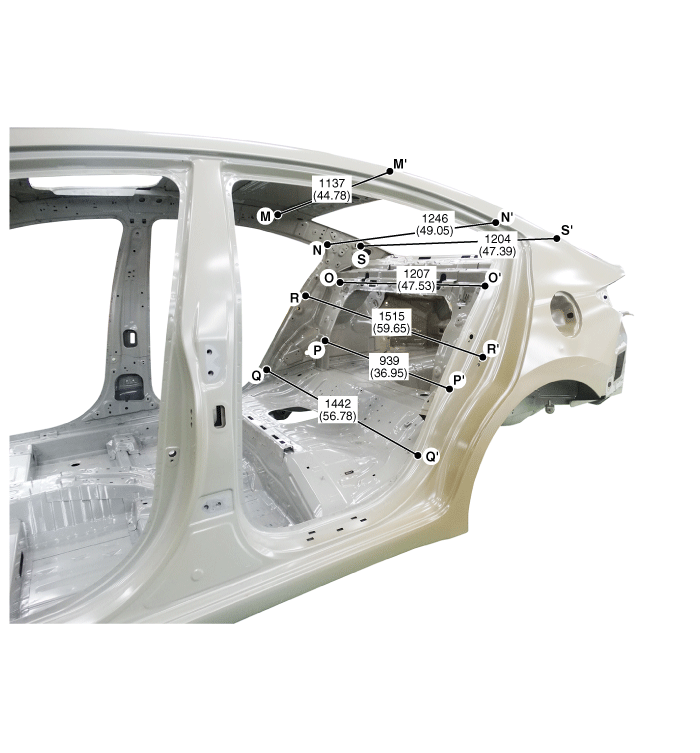

| Interior C |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
| Interior D |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
|
|
|
|
| Front inner upper pillar tooling hole (O6.6) |
Front inner upper pillar tooling hole (O6.6) |
Curtain airbag mounting hole (O6.6) |
|
|
|
|
| Curtain airbag mounting hole (O6.6) |
Cowl crossbar mounting hole (O9) |
Front door checker mounting hole (O13) |
|
|
|
|
| Cowl side trim mounting hole (O8.5) |
Curtain airbag mounting hole (O6.5) |
Seat belt height adjuster upper mounting hole (O16) |
|
|
|
|
| Seat belt height adjuster lower mounting hole (O16) |
Rear door checker mounting hole (O13) |
Seat belt pretensioner mounting hole (O14) |
|
|
|
|
| Curtain airbag mounting hole (O6.6) |
Curtain airbag mounting hole (O6.6) |
Curtain airbag mounting hole (O6.6) |
|
|
|
|
| Curtain airbag mounting hole (O6.6) |
Package tray mounting hole (O6.6) |
Package tray mounting hole (O6.6) |
|
|
|
|
| Rear package tray tooling hole (O5.5) |
Quarter inner panel tooling hole (O8.4) |
Rear door striker mounting hole (O13) |
|
|
|
|
| Quarter inner upper panel tooling hole (O7) |
Quarter inner upper panel tooling hole (O7) |
Wiring mounting hole (O9) |
|
|
|
|
| Front side sill corner |
Front seat mounting hole (O13) |
Front seat mounting hole (O11) |
|
|
|
|
| Front seat mounting hole (O11) |
Front seat mounting hole (O11) |
Side sill inner corner |
|
|
|
|
| Rear seat belt mounting hole (O16) |
Rear seat belt mounting hole (O16) |
Luggae trim mounting hole (O6.6) |
|
|
|
|
| Rear floor panel mounting hole (O6.6) |
Rear floor panel mounting hole (O6.6) |
Luggae trim mounting hole (O6.6) |
|
|
||
| Trunk lid striker mounting hole (O9) |

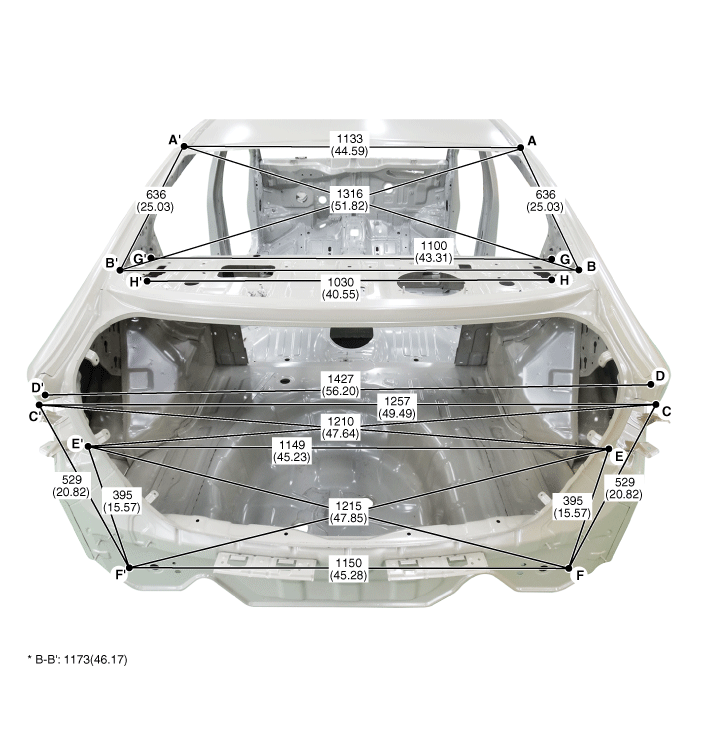

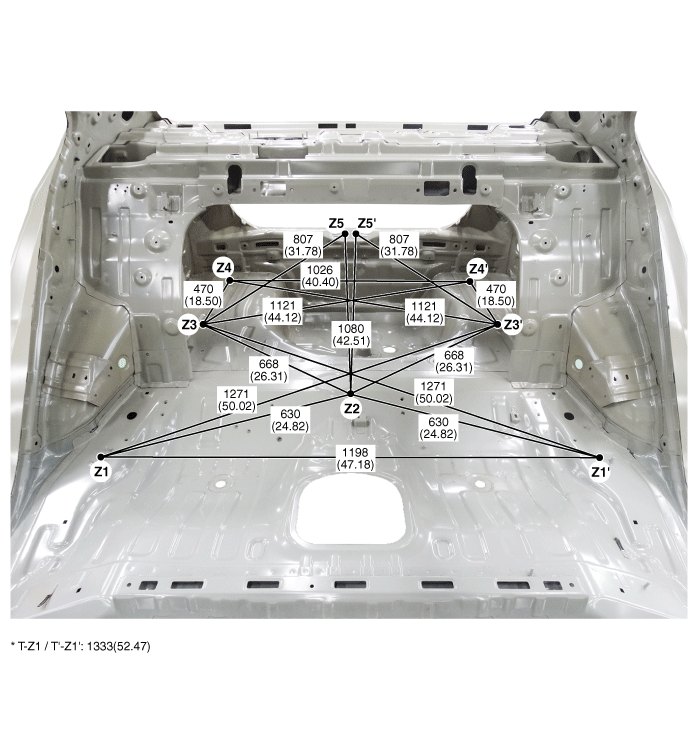

Rear Body Body Repair
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
|
|
|
|
| Side outer panel rear corner |
Side outer panel rear corner |
Side outer panel rear corner |
|
|
|
|
| Rear combination lamp mounting hole (O8) |
Rear bumper mounting hole (8.5X8.5) |
Rear bumper mounting hole (14X16) |
|
|
|
|
| Rear bumper mounting hole (14X16) |
Rear seat belt mounting hole (O13) |
Trunk lid hinge mounting hole (O12) |

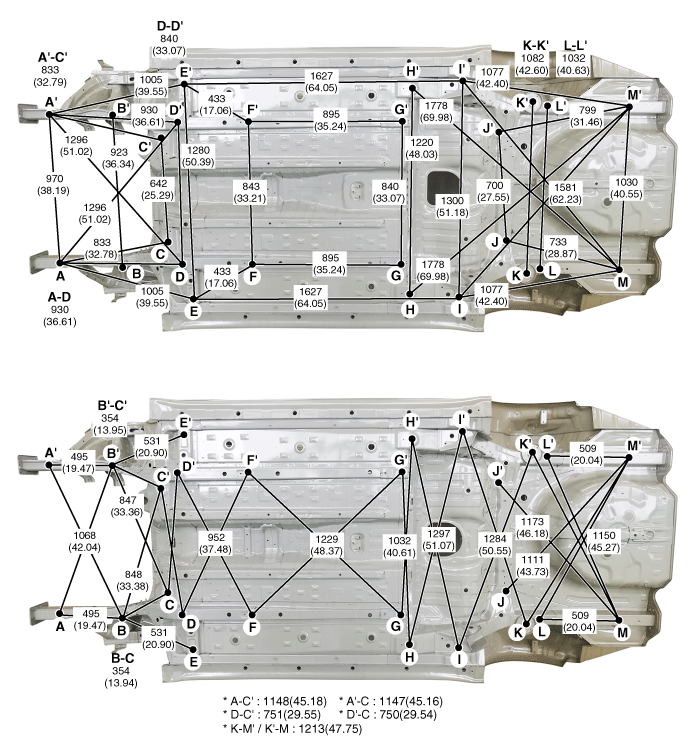

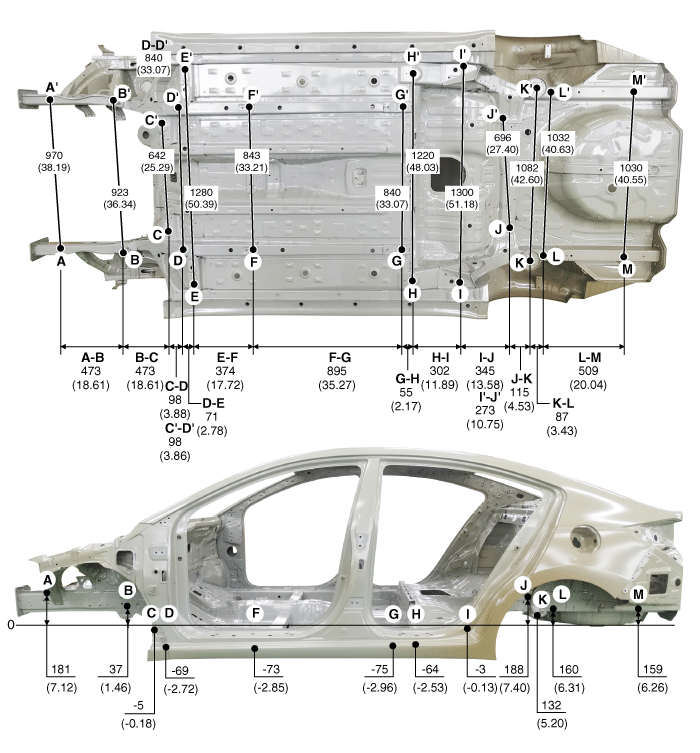

Under Body Body Repair
| Projected Dimensions |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
| Actual Measurement Dimensions |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
|
|
|
|
| Front side member tooling hole (O25) |
Front cross member mounting bolt |
Sub frame mounting hole |
|
|
|
|
| Under cover mounting hole (O11) |
Front side member reinforcement tooling hole (O8) |
Front side member mounting hole (O13) |
|
|
|
|
| Center floor side member extension tooling hole (O8) |
Rear side member front extension tooling hole (O25) |
Trailing arm bracket tooling hole (O10) |
|
|
|
|
| Rear floor center cross extension tooling hole (O8) |
Rear floor center cross extension tooling hole (O8) |
Rear suspension spring mounting hole (O6) |
|
|
|
|
| Rear floor side member mounting hole (O16) |
Rear floor side member mounting hole (O25) |
Rear floor side member mounting hole (O25) |

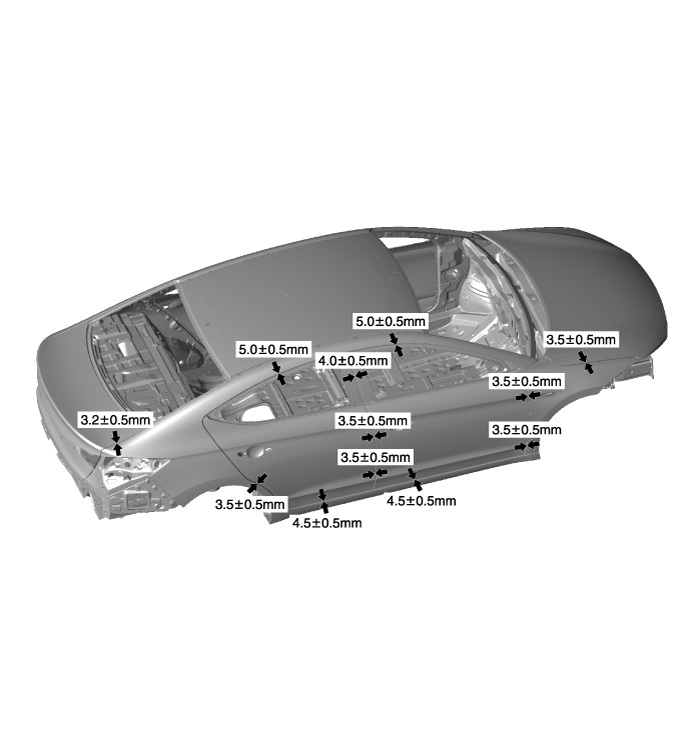

Body Panel Gaps Body Repair
Cross Member Body Repair

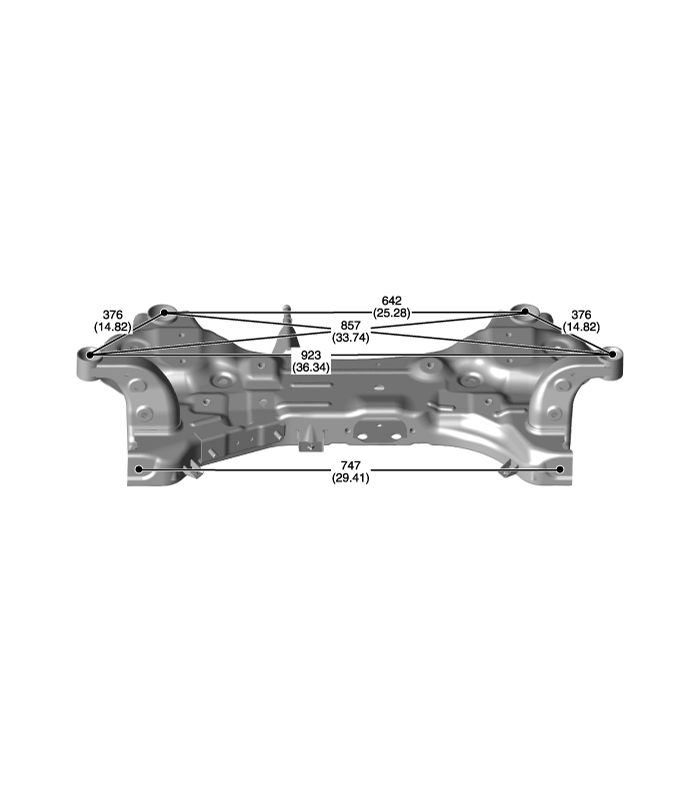

| Front Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |

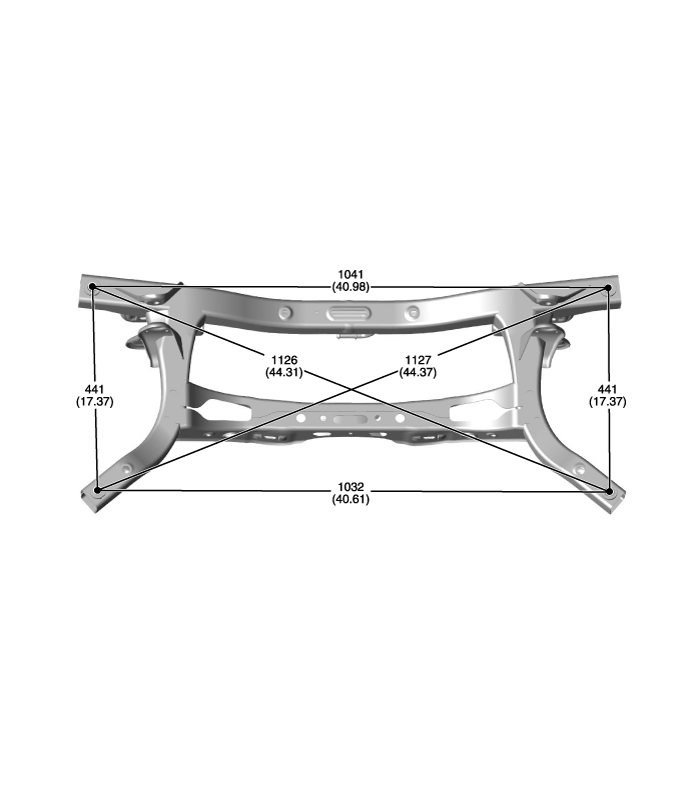

| Rear Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions.
[ Unit : mm (inch) ] |
