General safety information and caution
When Handling Refrigerant
| 1. | R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear gloves. |
| 2. | It is standard practice to wear goggles or glasses to protect your eyes, and gloves to protect your hands. If the refrigerant splashes into your eyes, wash them with clean water immediately. |
| 3. | The R-134a container is highly pressurized. Never leave it in a hot place, and check storage temperature is below 52°C (126°F). |
| 4. | An electronic leak detector should be used to check the system for refrigerant leakage. Bear in mind that the R-134a, upon coming into contact with flame, produces phosgene, a highly toxic gas. |
| 5. | Use only recommended lubricant for R-134a systems. If lubricants other than the recommended one used, system failure may occur. |
| 6. | PAG lubricant absorbs moisture from the atmosphere at a rapid rate, therefore the following precautions must be observed : | •
| When removing refrigerant components from a vehicle, cap the components immediately to prevent entry of moisture. |
| •
| When installing refrigerant components to a vehicle, do not remove the cap until just before connecting the components. |
| •
| Complete the connection of all refrigerant tubes and hoses without delay to prevent the A/C system from taking on moisture. |
| •
| Use the recommended lubricant from a sealed container only. |
|
| 7. | If an accidental discharge in the system occurs, ventilate the work area before resum of service. |
When Replacing Parts On A/C System
| 1. | Never open or loosen a connection before discharging the system. |
| 2. | Seal the open fittings of components with a cap or plug immediately to prevent intrusion of moisture or dust. |
| 3. | Do not remove the sealing caps from a Replacement component until it is ready to be installed. |
| 4. | Before connecting an open fitting, always install a new sealing ring. Coat the fitting and seal with refrigerant oil before making the connection. |
When Installing Connecting Parts

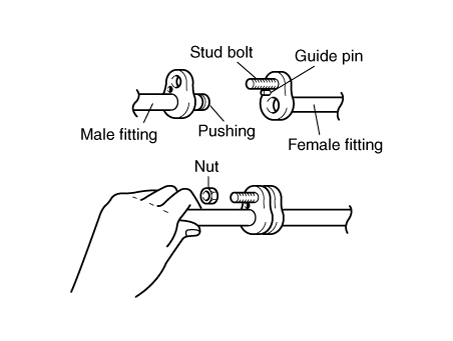

Flange With Guide Pin
Check the new O-ring for damage (use only the specified) and lubricate by using compressor oil. Tighten the nut to specified torque.
Handling Tubing And Fittings
The internal parts of the refrigeration system will remain in a state of chemical stability as long as pure moisture-free refrigerant and refrigerant oil are used. Abnormal amounts of dirt, moisture or air can upset the chemical stability and cause problems or serious damage.
The Following Precautions Must Be Observed
| 1. | When it is necessary to open the refrigeration system, have everything you will need to service the system ready so the system will not be left open any longer than necessary. |
| 2. | Cap or plug all lines and fittings as soon as they are opened to prevent the entrance of dirt and moisture. |
| 3. | All lines and components in parts stock should be capped or sealed until they are ready to be used. |
| 4. | Never attempt to rebind formed lines to fit. Use the correct line for the installation you are servicing. |
| 5. | All tools, including the refrigerant dispensing manifold, the gauge set manifold and test hoses, should be kept clean and dry. |
| •
| The R-1234yf liquid refrigerant is flammable gas. The gas reduces oxygen available for breathing and causes asphyxiation in high concentrations. The victim will not realize that he/she is suffocating. |
| •
| Inhalation may cause central nervous system effects and may cause drowsiness and dizziness. |
| •
| Ingestion may cause gastrointestinal discomfort. It may cause skin irritation, eye irritation and respiratory tract irritation. Do not breathe vapour. Avoid contact with skin, eyes and clothing. |
|
In case of emergency, the following precautions must be observed;First aider needs to protect himself. Take off all contaminated clothing immediately. | –
| Inhalation : Move to fresh air. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Use oxygen as required, provided a qualified operator is present. Call a physician. |
| –
| Skin contact : After contact with skin, wash immediately with plenty of water. Rapid evaporation of the liquid may cause frostbite. If there is evidence of frostbite, bathe (do not rub) with lukewarm (not hot) water. If water is not available, cover with a clean, soft cloth or similar covering. Call a physician. Wash contaminated clothing before re-use. |
| –
| Eye contact : Rinse immediately with plenty of water, also under the eyelids, for at least 15 minutes. In case of frostbite water should be lukewarm, not hot. Call a physician. |
| –
| Ingestion : Unlikely route of exposure. As this product is a gas, refer to the inhalation section. Do not induce vomiting without medical advice. If conscious, drink plenty of water. Never give anything by mouth to an unconscious person. Call a physician immediately. |
|
When handling the refrigerant, the following precautions must be observed; | –
| Wear personal protective equipment. |
| –
| Avoid contact with skin, eyes and clothing. |
| –
| Ensure that eyewash stations and safety showers are close to the workstation location. |
| –
| Use only in well-ventilated areas. |
| –
| Protect from sunlight and do not expose to temperatures exceeding 52°C (125°F). |
| –
| Follow all standard safety precautions for handling and use of compressed gas cylinders. |
| –
| Use authorized cylinders only. |
| –
| Protect cylinders from physical damage. |
| –
| Do not puncture or drop cylinders, expose them to open flame or excessive heat. |
| –
| Do not remove screw cap until immediately ready for use. |
| –
| Always replace cap after use. |
| –
| Container is hazardous when empty. |
| –
| Prevent the creation of flammable or explosive concentrations of vapour in air and avoid vapour concentration higher than the occupational exposure limits. |
| –
| Keep product and empty container away from heat and sources of ignition. |
| –
| Do not pressurize, cut, weld, braze, solder, drill, grind or expose containers to heat or sources of ignition. |
| –
| Take measures to prevent the build up of electrostatic charge. |
| –
| Electrical equipment should be protected to the appropriate standard. |
| –
| Use explosion-proof equipment. |
| –
| No sparking tools should be used. |
|
| –
| When storing the refrigerant, the following precautions must be observed; |
| –
| Pressurized container. Protect from sunlight and do not expose to temperatures exceeding 52°C (125°F). Do not pierce or burn, even after use. |
| –
| Keep containers tightly closed in a dry, cool and well-ventilated place. |
| –
| Keep away from heat and sources of ignition. |
| –
| Storage rooms must be properly ventilated. |
| –
| Ensure adequate ventilation, especially in confined areas. |
| –
| Protect cylinders from physical damage. |
| –
| Store away from incompatible substances. |
| –
| Store in original container. |
|
| •
| Un-controlled release of R-1234yf refrigerant in the work area may result in high concentrations of R-1234yf that can be flammable. Servicing of R-1234yf systems shall only be done in well ventilated work areas. |
| •
| When servicing, maintaining or repairing A/C systems using flammable refrigerants (mildly flammable or higher) the work place shall meet all applicable national, regional or local regulations for work place safety as related to high pressure or flammable gases. |
|
| •
| Avoid breathing any refrigerant vapor and lubricant mist. To remove refrigerant from a A/C system, use service equipment designed for recovery and removal that is certified to meet the requirements of the appropriate SAE Standards. |
| •
| Do not increase pressure, in any R-134a, or R-1234yf mobile A/C system with shop air or another refrigerant such as HCFC-22 (R-22) for leak checking, due to potential chemical reactions, flammability of air / R-134a at elevated pressure, contamination of the system, and possible structural damage to the system. |
| •
| To prevent an accumulation of refrigerant in case of a major refrigerant leak, open vehicle windows and doors when charging an A/C system |
| •
| To prevent accidental release of refrigerant and minimize safety concerns, the installation of any refrigerant service equipment to the vehicle shall only be done with the engine off and after the refrigerant high side pressure has been reduced (approximately 2 to 3 min). |
|
| •
| The proper handling procedures should be followed for all refrigerants as designated by the refrigerant manufacturer’s Material Safety Data Sheet (MSDS). |
| •
| Service personnel shall be aware of the high pressure relief valve location when servicing the vehicle. Service personnel shall not be under the vehicle when charging the refrigerant system due to potential sudden release of the high pressure relief valve. |
|
When Handling Refrigerant
| •
| Some of the practices, techniques and procedures, as well as the information, tools and equipment which have been commonly used in mobile air conditioning system diagnosis and service of R-12 and R-134a are different for A/C systems using R-1234yf. Modifications and adjustments have to be made based on the individual characteristics of each refrigerant. No technician may perform service or repair on a mobile air conditioning system using R-1234yf without being trained for the refrigerant being handled. Under the SAE Standard J2845 the refrigerant system should only be serviced by trained and certified technicians to insure proper and safe operation. |
| •
| Service technicians should always wear proper personal protective equipment while handling / servicing systems that contain any refrigerant. |
| •
| Service technicians shall read and follow the appropriate Material Safety Data Sheets (MSDS), which provide information on safety and the proper personal protective equipment to use. - All contact with liquid or gaseous refrigerant shall be avoided. - Goggles with side protection and gloves (insulated against heat loss and impermeable to refrigerant) shall be worn while working with the refrigerant circuit. - Exposure of the skin to refrigerant may result in frostbite, in which case rub affected area with lukewarm water. A physician shall be consulted immediately regarding the affected skin areas. |
| •
| A physician shall be consulted immediately in the event of complaints following exposure to high refrigerant concentrations. Complaint symptoms may include: increased breathing rate, breathlessness, headache, accelerated pulse, dizziness. |
| •
| Avoid breathing A/C refrigerant and lubricant vapor or mist. To remove refrigerant from the A/C system, use service equipment designed for recovery of that refrigerant which is certified to meet the requirements of the appropriate SAE Standards. |
|
| 1. | R-1234yf liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear gloves. |
| 2. | It is standard practice to wear goggles or glasses to protect your eyes, and gloves to protect your hands. If the refrigerant splashes into your eyes, wash them with clean water immediately. |
| 3. | The R-1234yf container is highly pressurized. Never leave it in a hot place, and check storage temperature is below 52°C (125°F). |
| 4. | An electronic leak detector should be used to check the system for refrigerant leakage. Bear in mind that the R-1234yf, upon coming into contact with flame, produces phosgene, a highly toxic gas. |
| 5. | Use only recommended lubricant for R-1234yf systems. If lubricants other than the recommended one used, system failure may occur. |
| 6. | PAG lubricant absorbs moisture from the atmosphere at a rapid rate, therefore the following precautions must be observed : | •
| When removing refrigerant components from a vehicle, cap the components immediately to prevent entry of moisture. |
| •
| When installing refrigerant components to a vehicle, do not remove the cap until just before connecting the components. |
| •
| Complete the connection of all refrigerant tubes and hoses without delay to prevent the A/C system from taking on moisture. |
| •
| Use the recommended lubricant from a sealed container only. |
|
| 7. | If an accidental discharge in the system occurs, ventilate the work area before resume of service. |
| 8. | Clean all dirt, grease and debris from and around connection joints before servicing and disassembly of refrigerant connections. |
When Replacing Parts On A/C System
| 1. | Never open or loosen a connection before discharging the system. |
| 2. | Seal the open fittings of components with a cap or plug immediately to prevent intrusion of moisture or dust. |
| 3. | Do not remove the sealing caps from a replacement component until it is ready to be installed. |
| 4. | Before connecting an open fitting, always install a new sealing ring. Coat the fitting and seal with refrigerant oil before making the connection. |
| 5. | The air conditioning evaporator (cooling coil) shall never be repaired or replaced with one removed from a used or salvaged vehicle and that new replacement A/C evaporators shall be certified (and labeled) as meeting SAE Standard J2842. |
| 6. | In the case of all vehicles being serviced and identified as having a leaking evaporator, the leak shall not be repaired and the system shall only be serviced by replacing the leaking evaporator with a new evaporator meeting SAE J2842 requirements. An evaporator from a salvaged vehicle air conditioning system shall not be repaired or removed from any vehicle air conditioning system with the intention of using it again in the same or a different vehicle. However, if the evaporator assembly includes a refrigerant control device (TXV / Block valve) and is operational, re-use of the refrigerant control device is permitted. |
When Installing Connecting Parts
Flange With Guide Pin
Check the new O-ring for damage (use only the specified) and lubricate by using compressor oil. Tighten the nut to specified torque.
Handling Tubing And Fittings
The internal parts of the refrigeration system will remain in a state of chemical stability as long as pure moisture-free refrigerant and refrigerant oil are used. Abnormal amounts of dirt, moisture or air can upset the chemical stability and cause problems or serious damage.
The Following Precautions Must Be Observed
| 1. | When it is necessary to open the refrigeration system, have everything you will need to service the system ready so the system will not be left open any longer than necessary. |
| 2. | Cap or plug all lines and fittings as soon as they are opened to prevent the entrance of dirt and moisture. |
| 3. | All lines and components in parts stock should be capped or sealed until they are ready to be used. |
| 4. | Never attempt to rebind formed lines to fit. Use the correct line for the installation you are servicing. |
| 5. | All tools, including the refrigerant dispensing manifold, the gauge set manifold and test hoses, should be kept clean and dry. |
| 6. | Carefully inspect refrigerant connections, joint seals and seal surfaces for signs of wear, deformation, contamination or damage after disassembly. Prior to disassembly, look for presence of refrigerant oil on adjacent surfaces that could be sign of a leak. |
| 7. | Never reuse seals / O-rings, but replace with all new parts. |
| 8. | Ensure proper alignment of male/female portions and seal so there is no misalignment and stress on the fitting connection. |

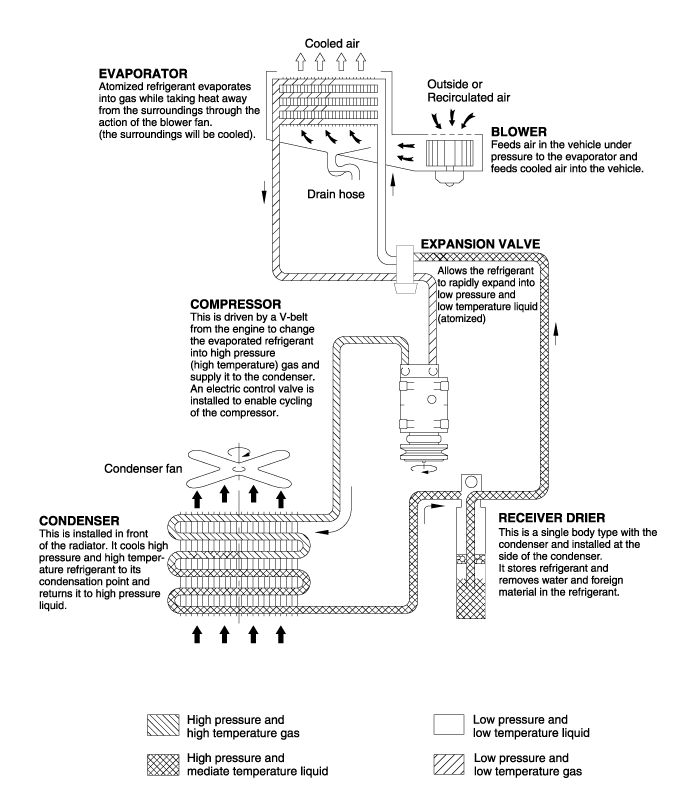

Description and operation

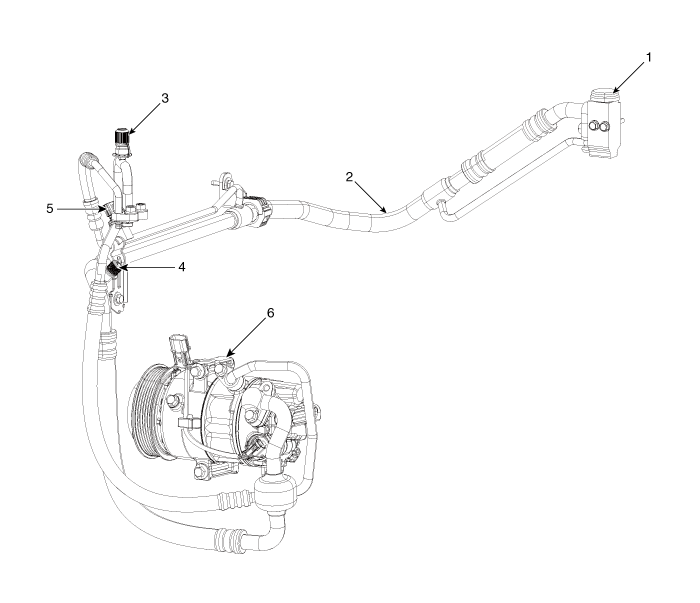

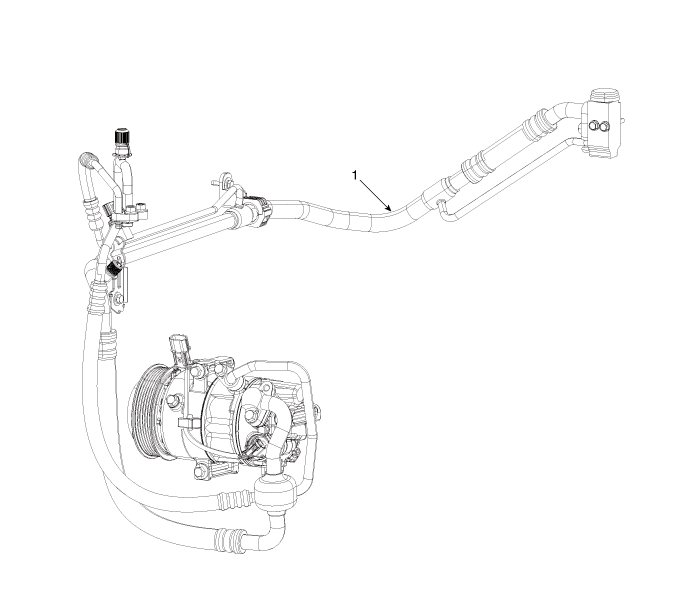

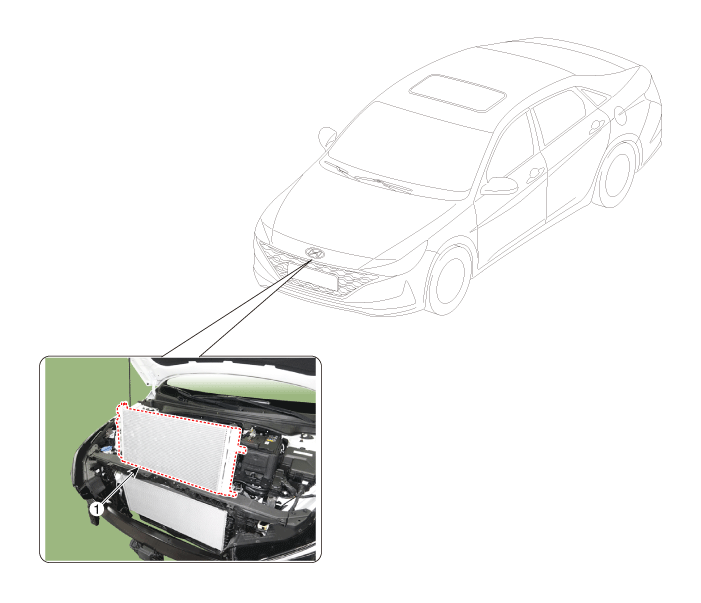

Components and components location

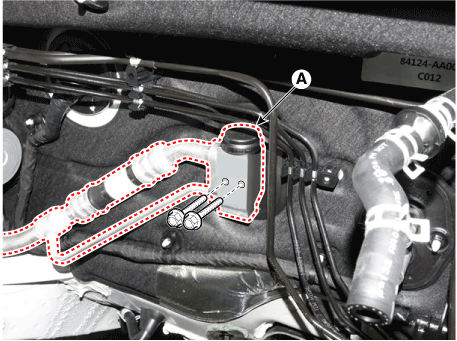

1. Expansion valve
2. Suction & Liquid pipe assembly
3. Service port (High pressure)
| 4. Service port (Low pressure)

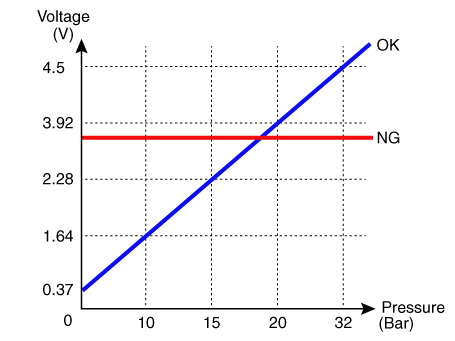

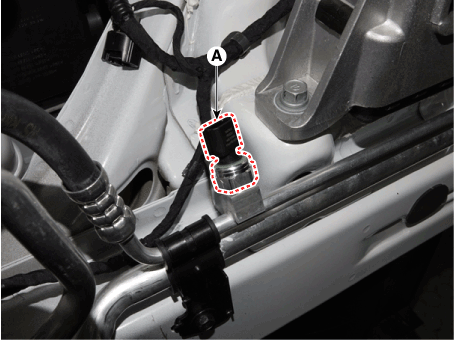

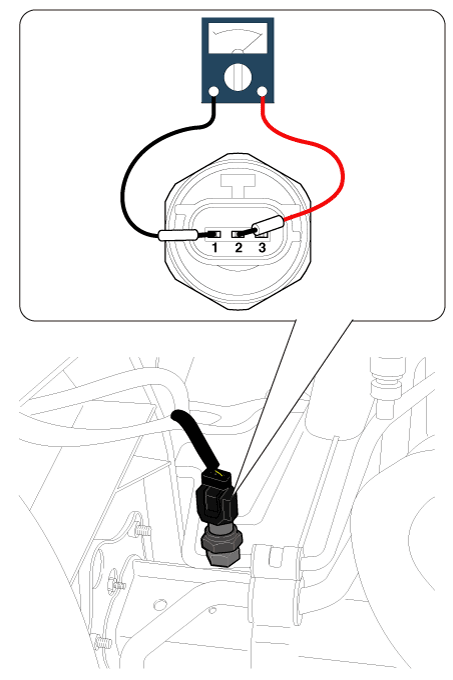

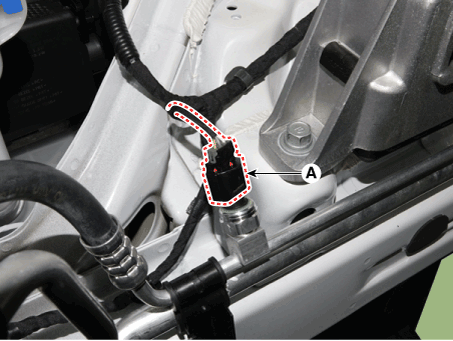

5. A/C Pressure transducer (APT)

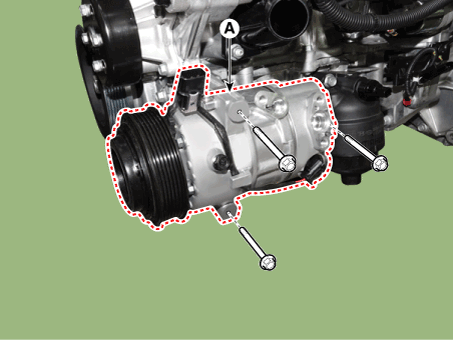

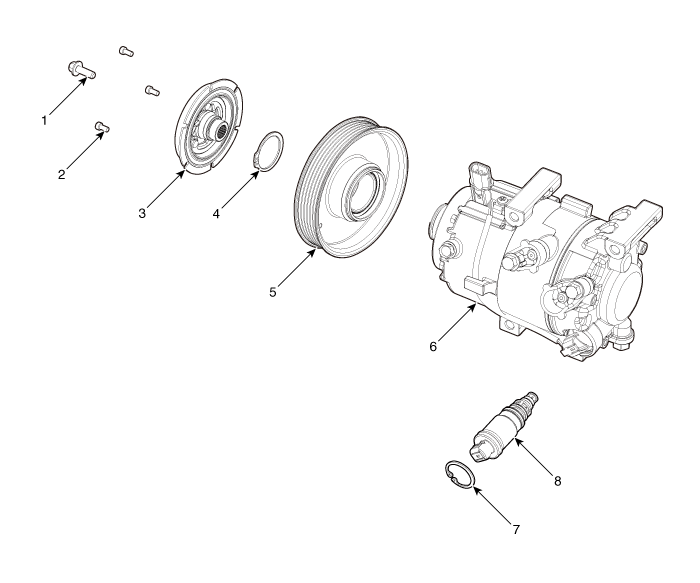

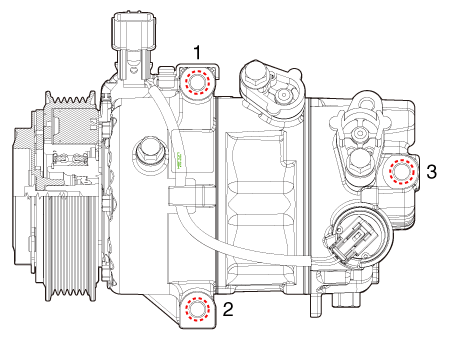

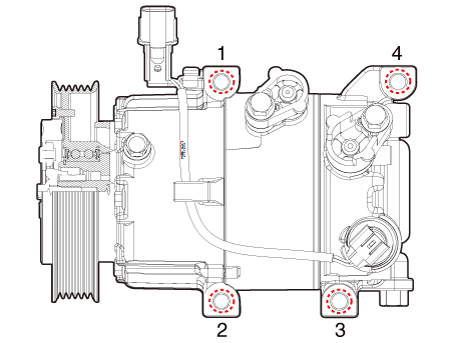

6. Compressor
|
Repair procedures
| Refrigerant System Service Basics (R-134a) |
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system.
| •
| Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat. |
| •
| Be careful when connecting service equipment. |
| •
| Do not breathe refrigerant or vapor. |
|
If accidental system discharge occurs, ventilate work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
| 1. | Connect an R-134a refrigerant Recovery / Recycling / Charging System (A) to the high-pressure service port (B) and the low-pressure service port (C) as shown, following the equipment manufacturer's instructions.
|
| 2. | Measure the amount of refrigerant oil removed from the A/C system after the recovery process is completed. Be sure to install the same amount of new refrigerant oil back into the A/C system before charging. |
System Evacuation
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system.
| •
| Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat. |
| •
| Be careful when connecting service equipment. |
| •
| Do not breathe refrigerant or vapor. |
|
If accidental system discharge occurs, ventilate work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
| 1. | When an A/C System has been opened to the atmosphere, such as during installation or repair, it must be evacuated using an R-134a refrigerant Recovery / Recycling / Charging System. (If the system has been open for several days, the receiver / dryer should be replaced, and the system should be evacuated for several hours.) |
| 2. | Connect an R-134a refrigerant Recovery / Recycling / Charging System to the high-pressure service port and the low-pressure service port as shown, following the equipment manufacturer's instructions. |
| 3. | If the low-pressure does not reach more than 93.3 kPa (700 mmHg, 27.6 in.Hg) in 10 minutes, there is probably a leak in the system. Partially charge the system, and check for leaks (see Refrigerant Leak Test). |
| 4. | Remove the low pressure valve from the low-pressure service port. |
System Charging
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system.
| •
| Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat. |
| •
| Be careful when connecting service equipment. |
| •
| Do not breathe refrigerant or vapor. |
|
If accidental system discharge occurs, ventilate work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
| 1. | Connect an R-134a refrigerant Recovery / Recycling / Charging System to the high-pressure service port as shown, following the equipment manufacturer's instructions. |
| 2. | Add the same amount of new refrigerant oil to system that was removed during recovery. Use only specified refrigerant oil. Charge the system with 500 ± 25 g (17.6 ± 0.88 oz.) of R-134a refrigerant. Do not overcharge the system the compressor will be damaged. |
| 3. | Check if the refrigerant does not leak from the system with a leakage detector (refer to Refrigerant Leakage Inspection). |
Refrigerant Leak Test

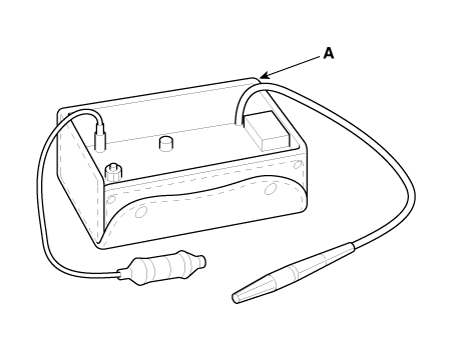

Always conduct a leak test with an electronic leak detector whenever leakage or refrigerant is suspected and when conducting service operations which are accompanied by disassembly or loosening or connection fittings.
In order to use the leak detector properly, read the manual supplied by the manufacturer. |
If a gas leak is detected, proceed as follows:
| 1. | Check the torque on the connection fittings and, if too loose, tighten to the proper torque. Check for gas leakage with a leak detector (A). |
| 2. | If leakage continues even after the fitting has been tightened, discharge the refrigerant from the system, disconnect the fittings, and check their seating faces for damage. Always replace, even if the damage is slight. |
| 3. | Check the compressor oil and add oil if required. |
| 4. | Charge the system and recheck for gas leaks. If no leaks are found, evacuate and charge the system again.
|
| Refrigerant System Service Basics (R-1234yf) |
Refrigerant Identification
| •
| Do not mix HFO-1234yf (R-1234yf) in the vehicle with other refrigerant, such as R-12, R-134a and etc. |
| •
| Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE standards to recover and recycle R-1234yf from the air conditioning system. Do not use service equipment for the other refrigerant, such as R-12, R-134a and etc. |
| •
| Verify what refrigerant is in the system if there is concern that the system has been tampered with in any way and check the type and quantity of refrigerant that shall be in the A/C system and potential issues arising from accidental or intentional mixing of refrigerants. |
| •
| Using an SAE certified refrigerant identification device is recommended to prevent improper recovery and the resulting further spread of contaminated refrigerant, which could potentially damage other A/C systems and service equipment. Contaminated refrigerant (blend of more than one refrigerant or non-system refrigerant) in recovery / recycling equipment could lead to the potential contamination of more refrigerant. |
| •
| Certain types of electronic leak detection devices (heated diode or corona discharge) as well as motors, switches, and controls on recovery and recycling machines, could generate sparks that could serve as ignition sources in the presence of refrigerants classified as flammable (A2 or A3) by ASHRAE standard 34 2006. |
| •
| It is possible that the mixing of refrigerants in a A/C system can result in higher-than-expected system pressures, system and component damage, diagnostic errors and/or other potential hazards to people and environment. |
| •
| In case other refrigerant is mixed, recover the contaminated refrigerant in the A/C system and dispose it in accordance with all applicable national, regional or local regulations. Clean inside the A/C system using the specialized detergent and recharge new refrigerant. |
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE standards to remove HFO-1234yf (R-1234yf) from the air conditioning system.
| •
| The electric compressor of a hybrid vehicle using high voltage uses POE oil of high insulating performance. |
| •
| Use a separate equipment (refrigerant retrieval/charging device) for maintenance of a hybrid vehicle to prevent the PAG oil of a general vehicle from flowing in upon retrieving/refilling the refrigerant. |
|
| •
| Use the refrigerant retrieval/charge device exclusively used for the electric compressor to inject the designated refrigerant (R-134a) and refrigeration oil (POE). If the refrigeration oil (PAG) for the ordinary car is injected, the compressor may be damaged or a safety-related accident may occur. |
|
If accidental system discharge occurs, ventilate work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
| 1. | Connect an R-1234yf refrigerant Recovery / Recycling / Charging System (A) to the high-pressure service port (B) and the low-pressure service port (C) as shown, following the equipment manufacturer's instructions.
|
| 2. | Measure the amount of refrigerant oil removed from the A/C system after the recovery process is completed. Be sure to install the same amount of new refrigerant oil back into the A/C system before charging. |
System Evacuation
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE standards to remove HFO-1234yf (R-1234yf) from the air conditioning system.
| •
| Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat. |
| •
| Be careful when connecting service equipment. |
| •
| Do not breathe refrigerant or vapor. |
|
If accidental system discharge occurs, ventilate work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
| 1. | When an A/C System has been opened to the atmosphere, such as during installation or repair, it must be evacuated using an R-1234yf refrigerant Recovery / Recycling / Charging System. (If the system has been open for several days, the receiver / dryer should be replaced, and the system should be evacuated for several hours.) |
| 2. | Connect an R-1234yf refrigerant Recovery / Recycling / Charging System to the high-pressure service port and the low-pressure service port as shown, following the equipment manufacturer's instructions. |
| 3. | If the low-pressure does not reach more than 87.7 kPa (658 mmHg, 25.9 in.Hg) in 5 minutes, there is probably a leak in the system. Partially charge the system, and check for leaks (see "Refrigerant Leak Test"). |
| 4. | Remove the low pressure valve from the low-pressure service port. |
System Charging
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE standards to remove HFO-1234yf (R-1234yf) from the air conditioning system.
| •
| Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat. |
| •
| Be careful when connecting service equipment. |
| •
| Do not breathe refrigerant or vapor. |
|
If accidental system discharge occurs, ventilate work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

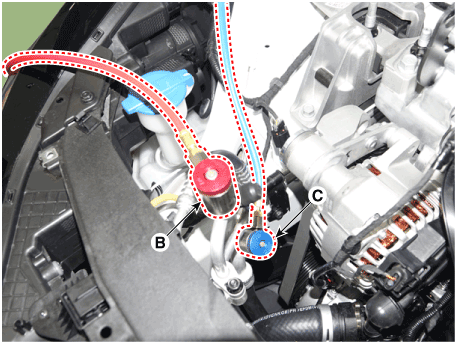

| 1. | Connect an R-1234yf refrigerant Recovery / Recycling / Charging System to the high-pressure service port as shown, following the equipment manufacturer's instructions. |
| 2. | Charge the refrigerant as much as the specified amount using the R-134a retrieval/reproduction/charging device while the high pressure valve is open. Close the high pressure valve afterward. Specified Charging Amount: • 500 ± 25 g (17.6 ± 0.88 oz.) |
| •
| Do not overfill the refrigerant to prevent compressor damage. |
|
|
Refrigerant Leak Test
Always conduct a leak test with an electronic leak detector whenever leakage or refrigerant is suspected and when conducting service operations which are accompanied by disassembly or loosening or connection fittings.
| •
| In order to use the leak detector properly, read the manual supplied by the manufacturer. |
|
| •
| Use only leak detection devices certified to SAE standards for use with R-1234yf. Certain leak detection devices (heated diode or corona discharge) could serve as ignition sources in the presence of hydrocarbons or other flammable refrigerants. |
|
If a gas leak is detected, proceed as follows :
| 1. | Check the torque on the connection fittings and, if too loose, tighten to the proper torque. Check for gas leakage with a leak detector (A). |
| 2. | If leakage continues even after the fitting has been tightened, discharge the refrigerant from the system, disconnect the fittings, and check their seating faces for damage. Always replace, even if the damage is slight. |
| 3. | Check the compressor oil and add oil if required. |
| 4. | Charge the system and recheck for gas leaks. If no leaks are found, evacuate and charge the system again.
|
Compressor oil
Repair procedures
| 1. | The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. |
| 2. | Compressor (PAG) oil varies according to compressor model. Be sure to use oil specified for the model of compressor. |
Handling of Oil
| 1. | The oil should be free from moisture, dust, metal powder, etc. |
| 2. | Do not mix with other oil. |
| 3. | The water content in the oil increases when exposed to air. After use, seal oil from air immediately. (HFC-134a Compressor Oil absorbs moisture very easily.) |
| 4. | The compressor oil must be stored in steel containers, not in plastic containers. |
Compressor Oil Check
The oil used to lubricate the compressor circulates with the refrigerant.
Whenever replacing any component of the system or a large amount of gas leakage occurs, add oil to maintain the original amount of oil.
Oil total volume in system FD46XG (IDEMITSU) 100 ± 10 g |
Oil Return Operation
There is close affinity between the oil and refrigerant.
During normal operation, part of the oil recirculates with the refrigerant in the system. When checking the amount of oil in the system, or replacing any component of the system, the compressor must run in advance for oil return operation. The procedure is as follows:
| 1. | Open all the doors and engine hood. |
| 2. | Start the engine and air conditioning switch to "ON" and set the blower motor control knob at its highest position. |
| 3. | Run the compressor for more than 20 minutes between 800 and 1,000 rpm in order to operate the system. |
Refrigerant Line
Components and components location

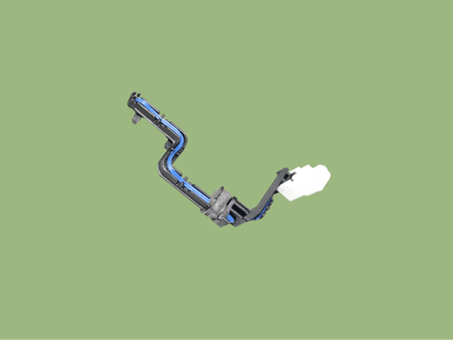

1. Refrigerant Pipe Assembly
|
|
Repair procedures
| 1. | If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off. |
| 2. | Disconnect the negative (-) battery terminal. |
| 3. | Recover the refrigerant with a recovery / charging station. |
| 4. | Remove the bolts and the expansion valve (A) from the evaporator core. Tightening torque : 8.8 - 13.7 N.m ( 0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft) |
|

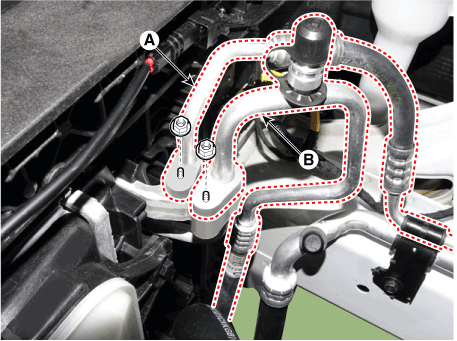

| 5. | Loosen the mounting nuts, and then disconnect the discharge line (B) and liquid line (A) from the condenser. Tightening torque : 8.8 - 13.7 N.m ( 0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft) |
|
| 6. | Disconnect the A/C pressure transducer connector (A).
|
| 7. | Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |

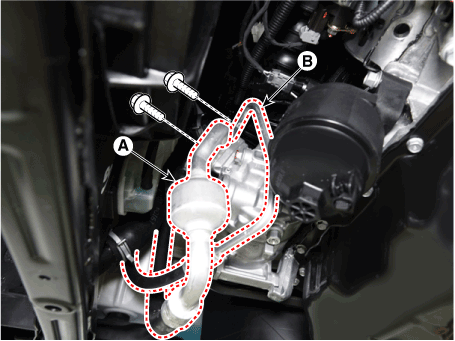

| 8. | Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor. Tightening torque : 21.6 - 32.4 N.m ( 2.2 - 3.3 kgf.m, 15.9 - 23.9 Ib-ft) |
| •
| Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination. |
|
|

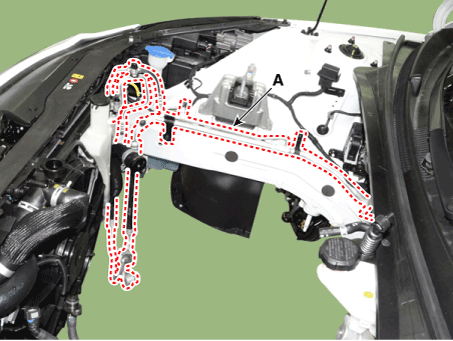

| 9. | Remove the refrigerant line assembly (A) to the upper of engine room. Tightening torque : 7.8 - 11.8 N.m ( 0.8 - 1.2 kgf.m, 5.8 - 8.7 Ib-ft) |
|
| 10. | To install, reverse the removal procedure. | •
| Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination. |
| •
| Tighten the bolt or nut joint to the specified torque. |
| •
| Using a gas leak detector, check for refrigerant leakage. |
| •
| Evacuate air in the refrigeration system and charge system with refrigerant. Capacity : 500 ± 25 g (17.6 ± 0.88 oz.) |
|
|
|
Compressor
Description and operation
The compressor is the power unit of the A/C system.
It is located on the side of engine block and driven by a V-belt of the engine.
The compressor changes low pressure and low temperature refrigerant gas into high pressure and high temperature refrigerant gas.
Variable Swash Plate Compressor
The compressor has a swash plate that rotates to reciprocate pistons, which compress refrigerant.
The variable swash plate compressor controls the swash plate angle to change the refrigerant displacement. It achieves precise cooling capability control in accordance with vehicle interior and driving conditions.
The externally controlled variable swash plate compressor changes the swash plate angle by an ECV (Electric Control Valve) in accordance with an electrical signal from the heater & A/C control unit.
This enables stable temperature control and improved driving sensation.

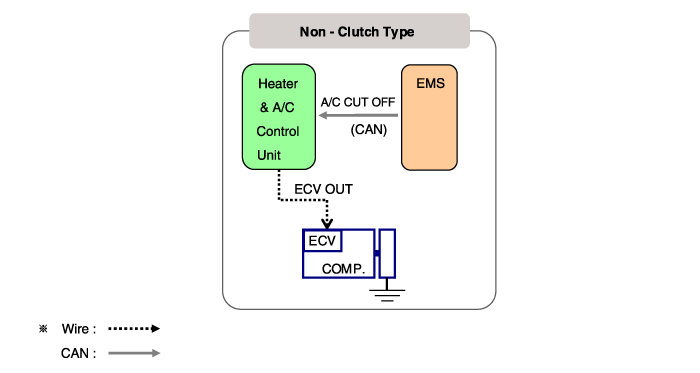

ECV Control Diagram
Components and components location

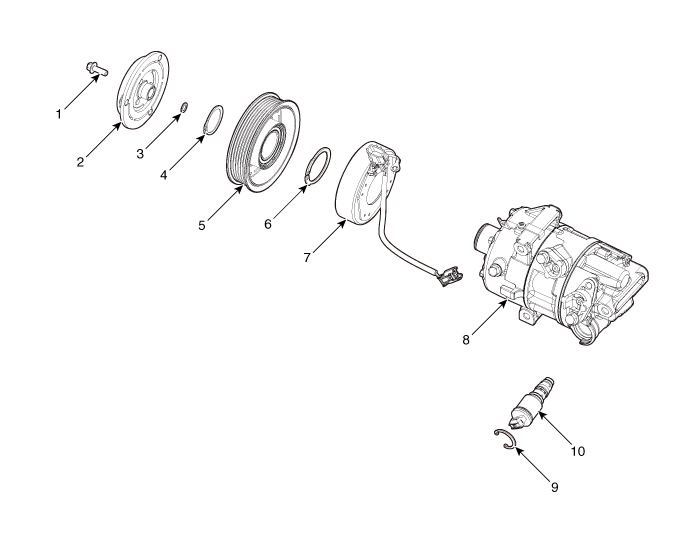

[Gasoline 1.6 MPI]
1. Clutch bolt
2. Disc & Hub assembly
3. Air gap spacer
4. Retainer (A)
5. Pulley
6. Retainer (B)
| 7. Clutch magnetic coil
8. Compressor
9. Electric Control Valve(ECV) Snap ring
10. Electric Control Valve (ECV)
|

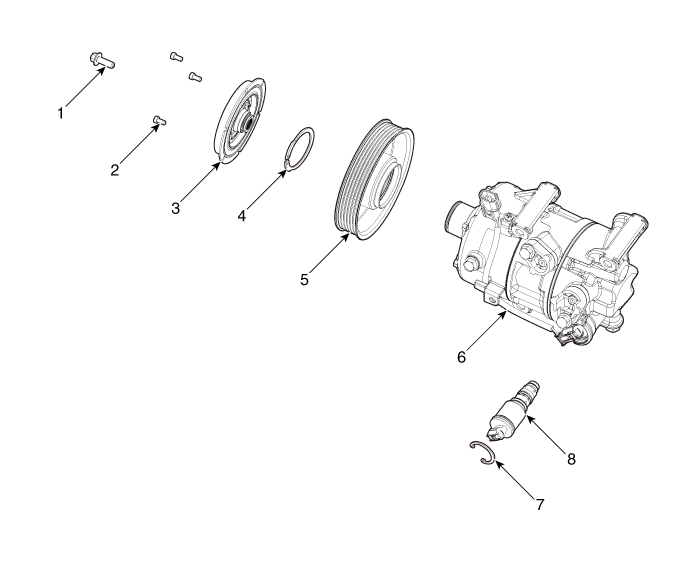

[Gasoline 1.6 T-GDI, Gasoline 2.0 MPI NU]
1. Clutch bolt
2. Limiter bolt
3. Disc & Hub assembly
4. Snap ring
| 5. Pulley
6. Compressor
7. Electric Control Valve(ECV) Snap ring
8. Electric Control Valve (ECV)
|
[Gamma 1.6 MPI]
1. Clutch bolt
2. Limiter bolt
3. Disc & Hub assembly
4. Snap ring
| 5. Pulley
6. Compressor
7. Electric Control Valve(ECV) Snap ring
8. Electric Control Valve (ECV)
|
Repair procedures

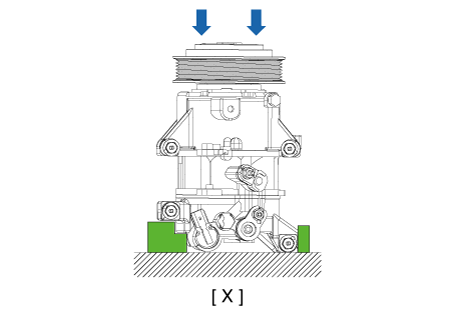

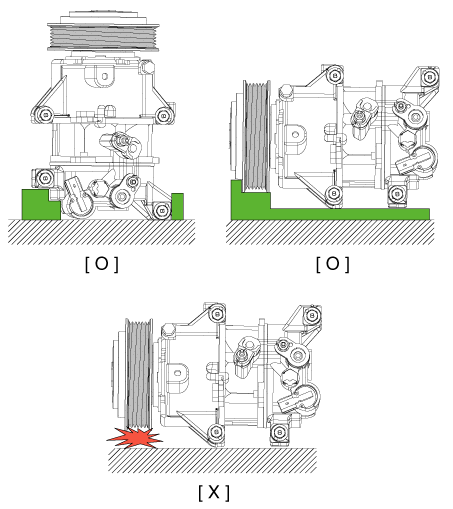

Precautions for using the plastic pulley | •
| Take care not to give physical impact to the plastic pulley. If exposed to the impact of dropping and collision, the pulley should not be used although not damaged. |
| •

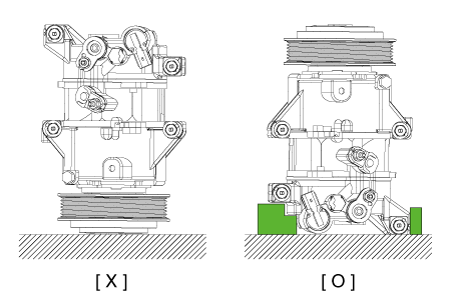

| Be careful not to place the pulley to downwards of the floor or table.
|
| •
| Be careful not to apply the external force and impact on pulley while moving or using.
|
| •
| Be careful not to apply force to the pulley.
|
|
| 1. | If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off. |
| 2. | Disconnect the negative (-) battery terminal. |
| 3. | Recover the refrigerant with a recovery / charging station. |
| 4. | Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Cover") |
| 5. | Remove the front wheel guard. (Refer to Body - "Front Wheel Guard") |
| 6. | Loosen the drive belt. (Refer to Engine Mechanical System - "Drive Belt") |
| 7. | Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor. Tightening torque : 8.8 - 13.7 N.m ( 0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft) |
| •
| Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination. |
|
|

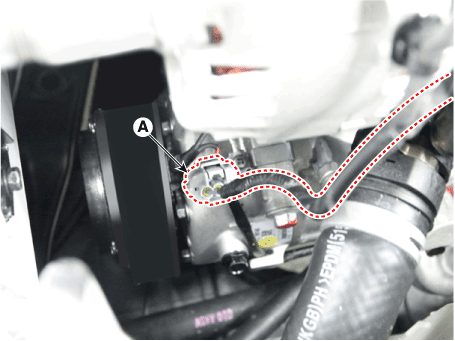

| 8. | Disconnect the compressor switch connector (A).
|
| 9. | Remove the compressor (A) by loosening the mounting bolts. Tightening torque : 20.0 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 Ib-ft) |
|
| 1. | Make sure the compressor mounting bolt with the correct length is screwed in. Tighten the mounting bolts with the specified tightening order. Tightening torque : 20.0 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 Ib-ft) |
[Gasoline 1.6 MPI]
[Gasoline 1.6 T-GDI, Gasoline 2.0 MPI NU]
[Gamma 1.6 MPI]
|
| 2. | To install, reverse the removal procedure. | –
| If you install a new compressor, drain all the refrigerant oil from the removed compressor and measure its volume. Subtract the volume of drained oil from the original capacity. The result is the amount of oilcompressor oil you should drain from the new compressor (through the suction fitting). |
| –
| Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a or R-1234yf to avoid leakage. |
| –
| To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils. |
| –
| Immediately after using the oil, replace the cap on the container and seal it to avoid moisture absorption. |
|
| 1. | Check the plated parts of the limiter & hub assembly for color changes, peeling or other damage. If there is damage, replace the assembly. |

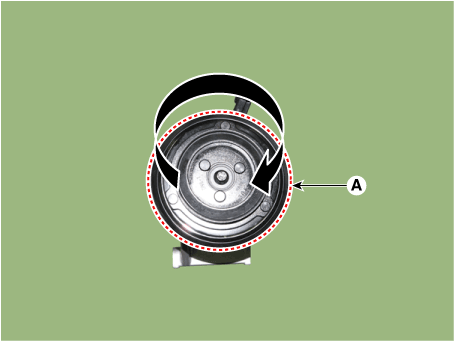

| 2. | Check the pulley (A) bearing play and drag by rotating the pulley by hand. Replace the pulley with a new one if it is noisy or has excessive play / drag.
|
| External Control Valve Compressor Inspection (Diagnostic tool) |
Compressor type: Fixed type compressor, External control valve, Internal control valve.
In cases of fixed type and internal control valve, it is possible to inspect compressor's operation with clutch noise.
When it comes to External control valve, however, it cannot be checked in this way bacause it doesn't have a clutch.
So, ECV should be inspected with diagnostic tool as below.

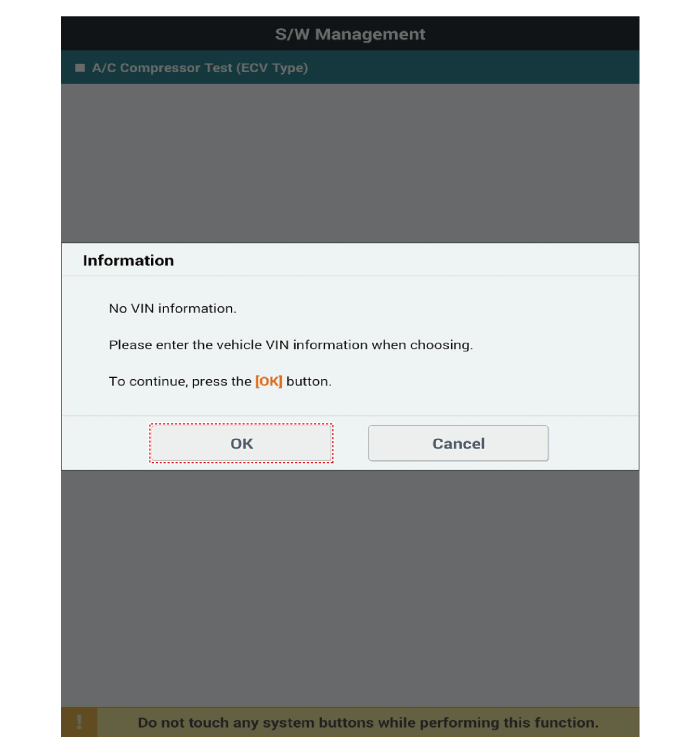

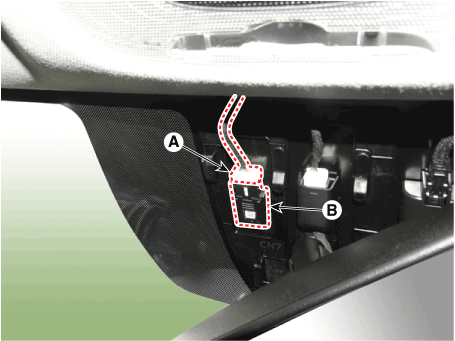

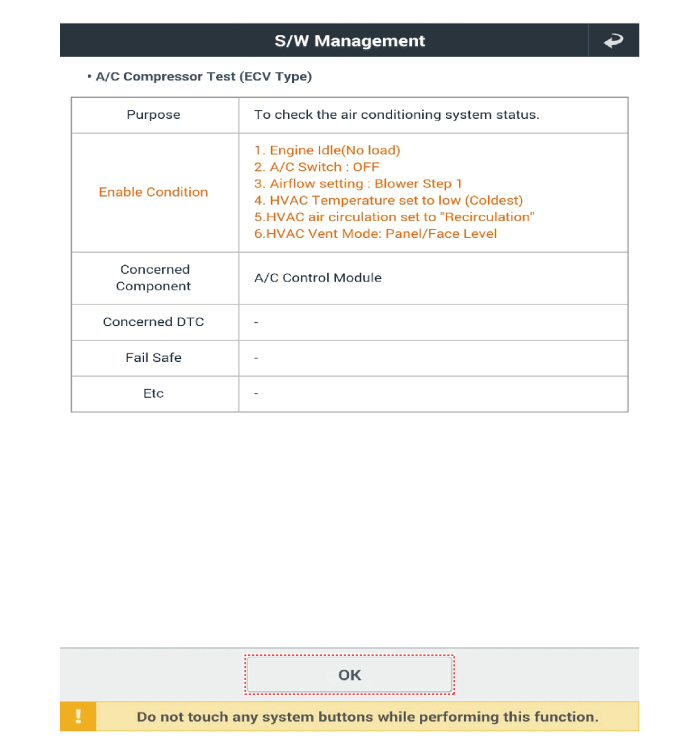

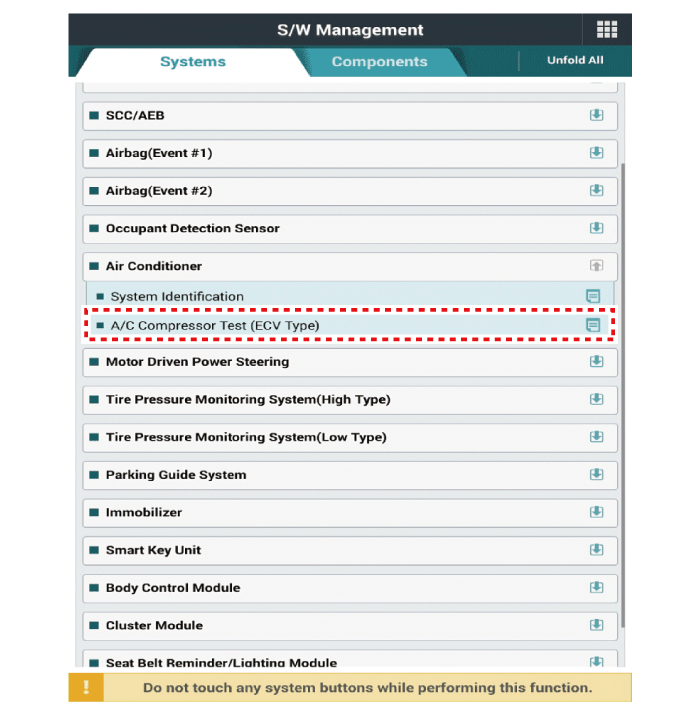

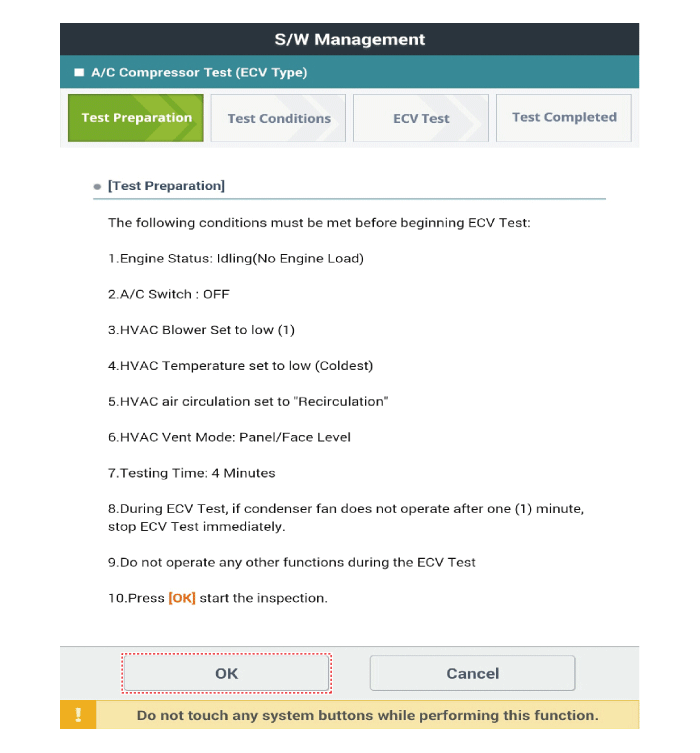

| 1. | Connect diagnostic tool to the vehicle and select 'Aircon Compressor Test(ECV type)' [ECV1]
|
| 2. | Make the vehicle ready as the diagnostic tool instruction on the monitor. (Turn off A/C 'switch' only)
|

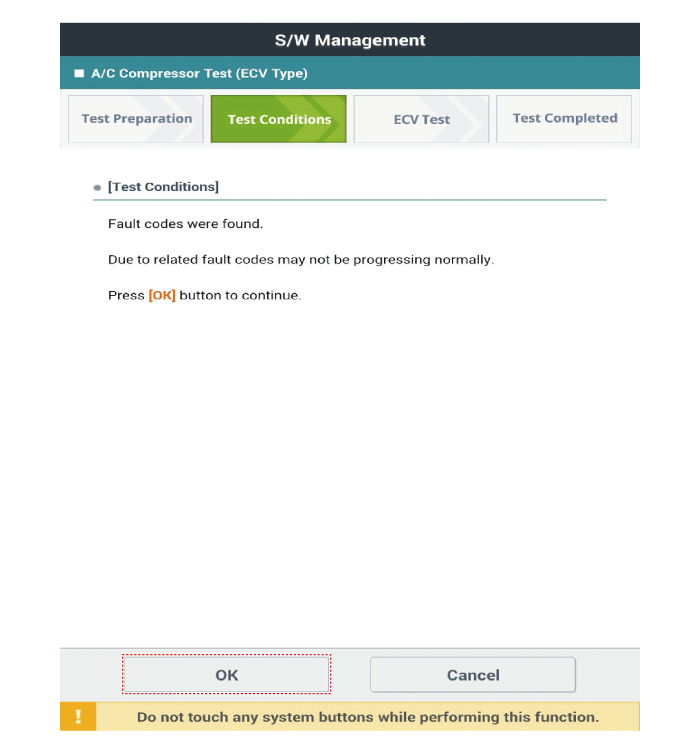

| 3. | Check if other DTC codes are found before inspect ECV compressor. If so, solve that problems first. If not, press 'OK' button to continue. Do not continue inspection if these DTC codes are found: B1241, B1242, B1672, B1685, B1686, B1687 |
|

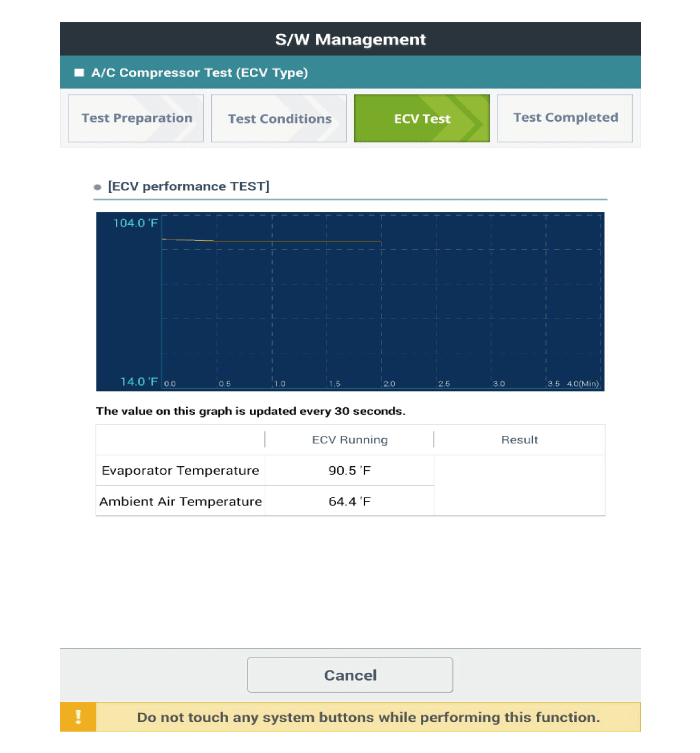

| 4. | Start inspection
Check if condenser fan is operating when condition is changed to 'ECV running' |
Relief valve will operate if condenser fandoesn't work due to overpressure in thecompressor. It helps the airconditiong system torelieve by releasing refrigerant and oil (losed ifrelieved). ※ Refill refrigerant and oil after operation of relief valve ※ Noise occurred when relief valve is in operation |
|

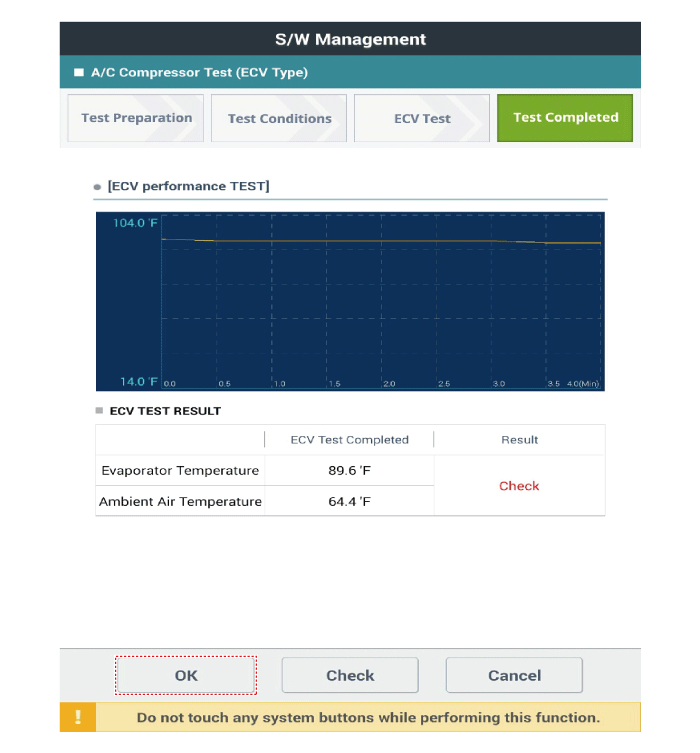

| 5. | Check the result of inspection. [ECV7]
[ECV8]
|

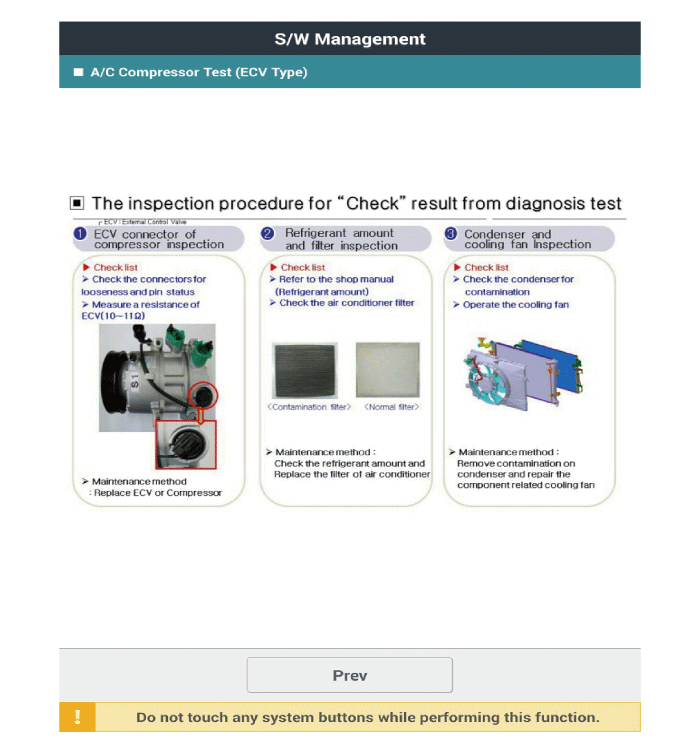

| 6. | If the result shows "Check" , click "Check" and follow the instruction.
|
| 7. | Inspect ECV again from the first step. |
| 1. | Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Cover") |
| 2. | Remove the front wheel guard. (Refer to Body - "Front Wheel Guard") |
| 3. | Loosen the drive belt. (Refer to Engine Mechanical System - "Drive Belt") |

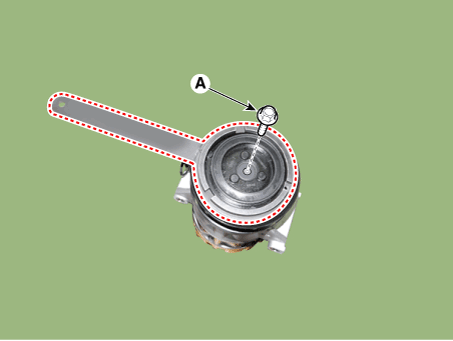

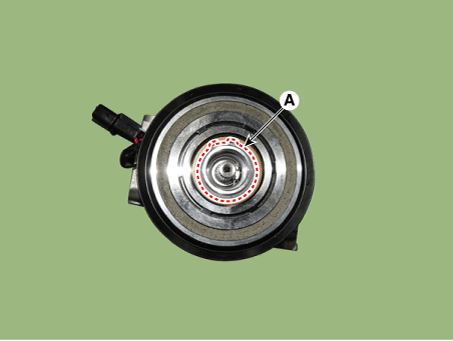

| 4. | Remove the clutch bolt (A) while holding the pulley with a clutch bolt remover (09977-3R000).
|
| 5. | Remove the disc & hub assembly (A).
|
| 6. | Remove the snap ring (A) with a snap ring plier.
|
| 7. | Remove the pulley (A).
| –
| Be careful not to damage the pulley and compressor during disassembly / reassembly. |
| –
| Once the snap ring is removed, replace it with a new one. |
|
|
| 8. | Reassemble in the reverse order of disassembly. | –
| Clean the pulley and compressor sliding surfaces with non-petroleum solvent. |
| –
| Install a new snap ring, and make sure they are fully seated in the groove. |
| –
| Make sure that the pulley turns smoothly after reassembly. |
|
Condenser

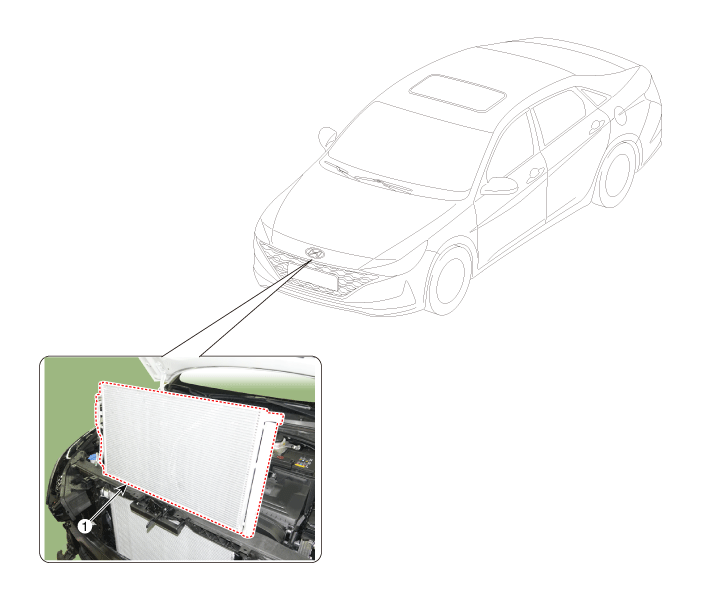

Components and components location
[General type]
[N Line]
Repair procedures
| 1. | Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers. |
| 2. | Check the condenser connections for leakage, and repair or replace it, if required. |
[General type]
| 1. | Recover the refrigerant with a recovery / recycling / charging station. |
| 2. | Disconnect the negative (-) battery terminal. |
| 3. | Remove the front bumper. (Refer to Body - "Front Bumper Assembly") |
| 4. | Loosen the mounting bolts, remove the air duct (A).
|

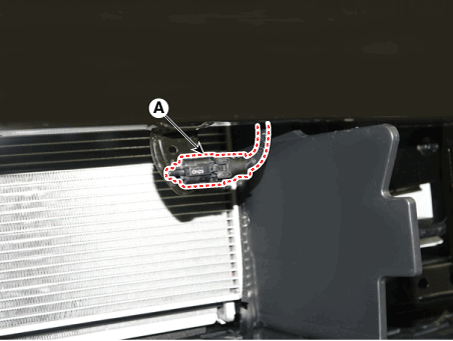

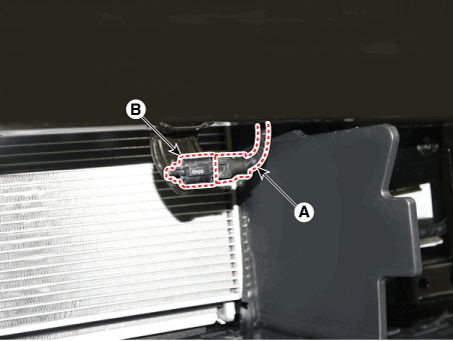

| 5. | Remove the ambient temperature sensor (A)..
|
| 6. | Loosen the mounting nuts, and then disconnect the discharge line (B) and liquid line (A) from the condenser. Tightening torque : 8.8 - 13.7 N.m ( 0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft) |
|

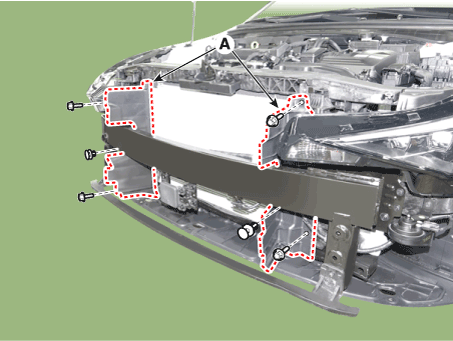

| 7. | Loosen the mounting pin-type retainers and bolts, remove the side air guard (A).
|

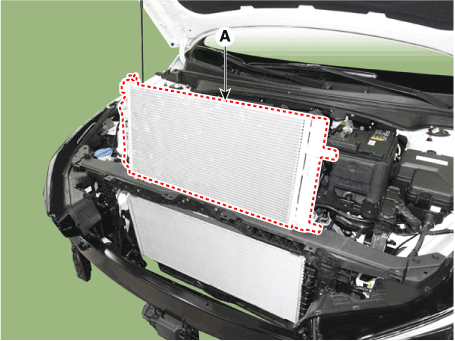

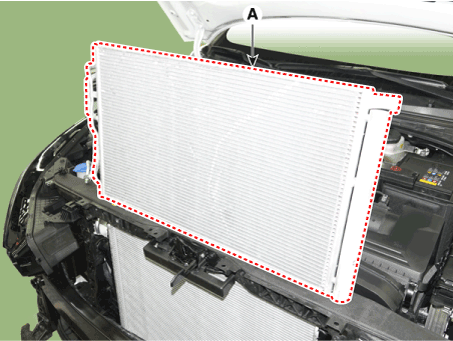

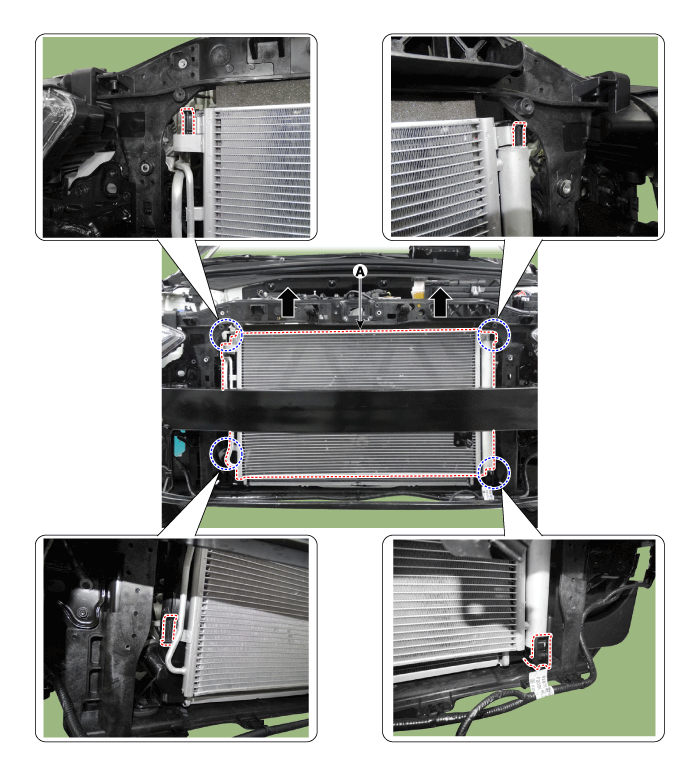

| 8. | Remove the condenser (A) from radiator.
|
| 9. | To install, reverse the removal procedure. | •
| If you're installing a new condenser, add refrigerant oil. |
| •
| Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a or R-1234yf to avoid leakage. |
| •
| Be careful not to damage the radiator and condenser fins when installing the condenser. |
| •
| Charge the system, and test its performance. |
|
|
[N Line]
| 1. | Recover the refrigerant with a recovery / recycling / charging station. |
| 2. | Disconnect the negative (-) battery terminal. |
| 3. | Remove the front bumper. (Refer to Body - "Front Bumper Assembly") |

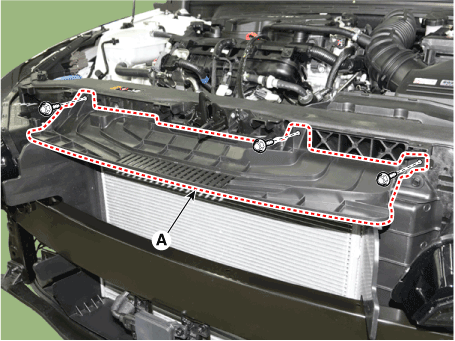

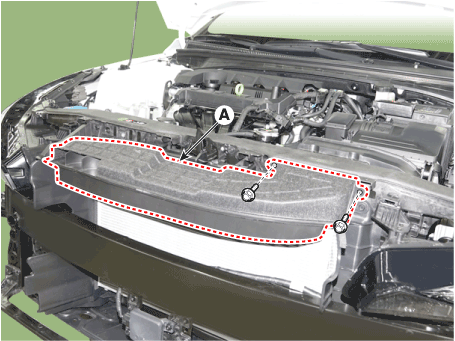

| 4. | Loosen the mounting bolts, remove the air guard (A).
|
| 5. | Remove the intercooler. (Refer to Engine Mechanical System - "Intercooler") |
| 6. | Remove the hood latch assembly. (Refer to Body - "Hood Latch Assembly") |
| 7. | Loosen the mounting nuts, and then disconnect the discharge line (B) and liquid line (A) from the condenser. Tightening torque : 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 Ib-ft) |
|

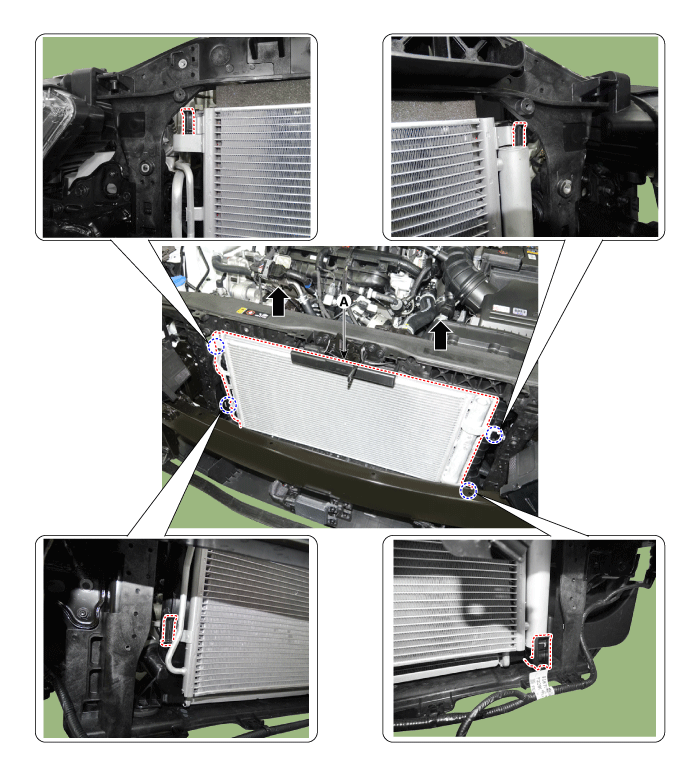

| 8. | Remove the condenser (A) from radiator.
|
| 9. | To install, reverse the removal procedure. | •
| If you're installing a new condenser, add refrigerant oil. |
| •
| Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a or R-1234yf to avoid leakage. |
| •
| Be careful not to damage the radiator and condenser fins when installing the condenser. |
| •
| Charge the system, and test its performance. |
|
|
Receiver-Drier
Repair procedures
| 2. | Remove the cap (A) on the bottom of the condenser with a L wrench.
Tightening torque : 9.81 - 14.71 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft) |
|

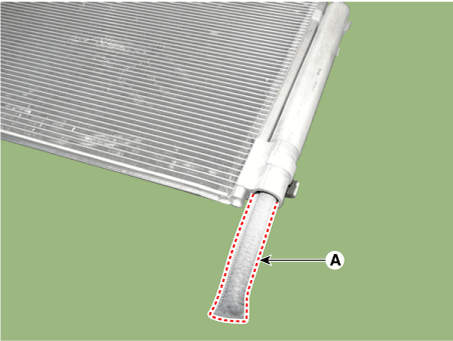

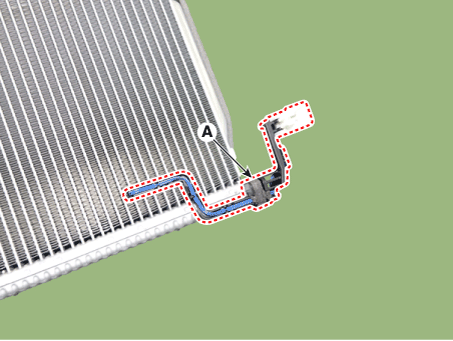

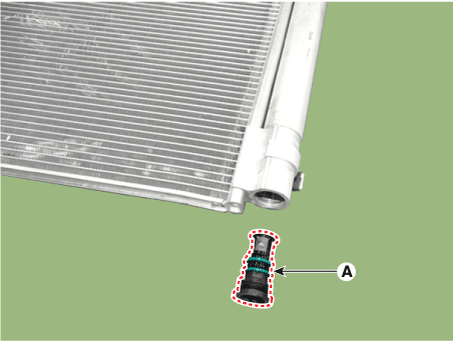

| 3. | Remove the receiver-drier (A) from condenser using a long nose plier. Check for crumbled receiver-drier and clogged bottom cap filter.
|

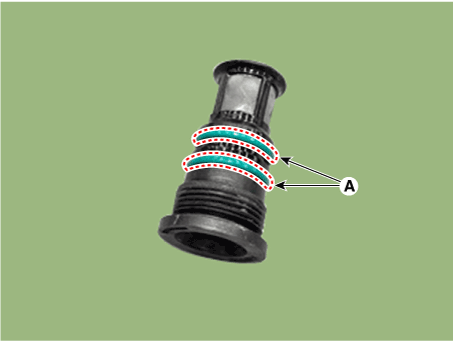

| 4. | Apply air conditioning compressor oil along the O-rings and threads of the new bottom cap. |
| 5. | Insert a new receiver-drier into the receiver drier tank. The receiver-drier must be sealed in vacuum before it is exposed to air for use. |
| 6. | Install a new bottom cap to the condenser. | •
| Always replace the receiver-drier and bottom cap at the same time. |
| •
| Be careful not to damage the radiator and condenser fins when installing the condenser. |
| •
| Charge the system, and test its performance. |
| •
| Replace the O-rings (A) with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings (A) for R-134a or R-1234yf to avoid leakage.
|
|
|
A/C Pressure Transducer
Description and operation
The A/C Pressure Transducer (APT) converts the pressure value of high pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the cooling fan by operating it high speed or low speed. Engine ECU stops the operation of the compressor when the temperature of refrigerant line is very high or very low irregularly to optimize air conditioning system.
Repair procedures
| •
| Before measuring the pressure of the refriferant line, check whether the refrigerant amount is charged in accordance with the specified charging amount. (Refer to Heating, Ventilation, Air Conditioning - "Specifications") |
|
| 1. | Turn the ignition switch OFF. |
| 2. | Install the refrigerant recovery/recycling/charging system. (Refer to Air Conditioning System - "Repair procedures") |
| 3. | Turn ON the ignition switch, put into operation the air conditioner. |
| 4. | Calculate the reference voltage of the Recovery/Recycle/Recharge machine high pressure value using the formula below. Reference voltage (V) = 0.0088 * pressure(psi) + 0.37 |
|

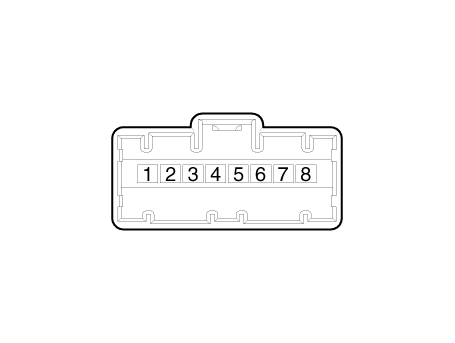

| 5. | Measure the sensor output voltage between terminal "1" and "2".
Pin No
| Function
| 1
| Ground
| 2
| Voltage
| 3
| Power (+5V)
|
|
| 6. | If the reference voltage value and the sensor output voltage value are close to each other, the air conditioner pressure transducer is normal. |
| 7. | If 0V is output or the reference voltage value and sensor output voltage value are not close to each other, replace the air conditioner pressure transducer. | •
| Check if the output voltage changes when the high pressure value of the refrigerant line changes.
|
|
|
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Recover the refrigerant with a recovery/charging station. |
| 3. | Disconnect the A/C pressure transducer connector (A).
|
| 4. | Remove the A/C pressure transducer (A). Tightening torque : 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft) |
| •
| Be careful not to bend the liquid & suction pipe. |
|
|
| 5. | To install, reverse the removal procedure. | •
| When installing, replace it with a new O-ring. |
|
|
Evaporator Temperature Sensor
Description and operation
The evaporator temperature sensor will detect the evaporator core temperature and interrupt compressor relay power in order to prevent evaporator from freezing by excessive cooling. The evaporator temperature sensor has the Negative Temperature Coefficient (NTC). Electrical resistivity of NTC will increase with decreasing temperature and decrease with increasing temperature.
Repair procedures
| 1. | Turn the ignition switch ON. |
| 2. | Turn the A/C switch ON. |
| 3. | Measure the resistance between terminal "+" and "-" of the evaporator temperature sensor.
Evaporator core temperature
| Resistance [KΩ]
| Voltage [V]
| [°C (°F)]
| -10 (14)
| 43.35
| 2.96
| 0 (32)
| 27.62
| 2.4
| 10 (50)
| 18.07
| 1.88
| 20 (68)
| 12.11
| 1.44
| 30 (86)
| 8.3
| 1.08
| 40 (104)
| 5.81
| 0.81
|
|
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the evaporator core. (Refer to Heater - "Evaporator Core") |
| 3. | Remove the evaporator temperature sensor (A) front evaporator core.
|
| 4. | To install, reverse the removal procedure. |
In-car Sensor
Description and operation

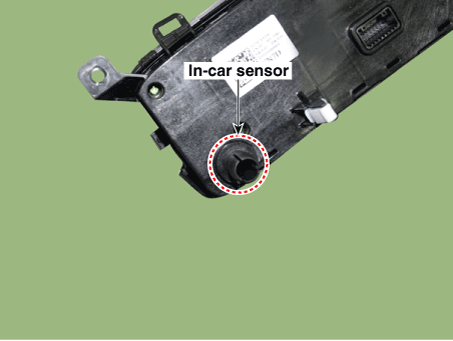

The In-car air temperature sensor is built in the heater & A/C control unit.
The sensor contains a thermistor which measures the temperature of the inside. The signal decided by the resistance value which changes in accordance with perceived inside temperature, is delivered to heater control unit and according to this signal the control unit regulates in-car temperature to intended value.

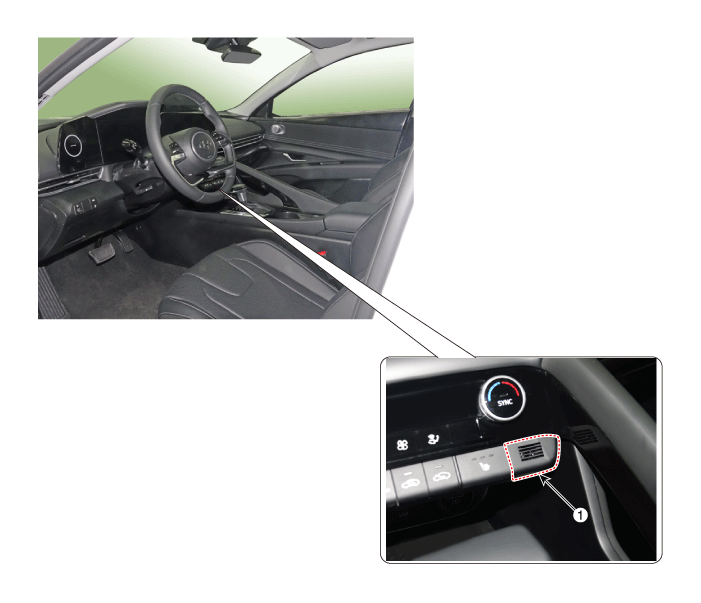

Components and components location
Repair procedures
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the Heater & A/C Control Unit. (Refer to Controller - "Heater & A/C Control Unit (DATC)")
|
| 3. | To install, reverse the removal procedure. |
Photo Sensor
Description and operation
| 1. | The photo sensor is located at the center of the defrost nozzles. |
| 2. | The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control module so that the solar radiation compensation will be performed. |
Repair procedures
| 1. | Emit intensive light toward the photo sensor using a lamp, and check the output voltage change. |
| 2. | The voltage will rise with higher intensive light and reduce with lower intensive light.
1. Auto light signal
2. Auto light ground
3. Photo signal (RH)
4. LED power (B+)
| 5. LED ground (To BCM)
6. Photo signal (LH)
7. Photo power (SW)
8. Auto light power (5V)
|
|
| 1. | Disconnect the negative (-) battery terminal. |

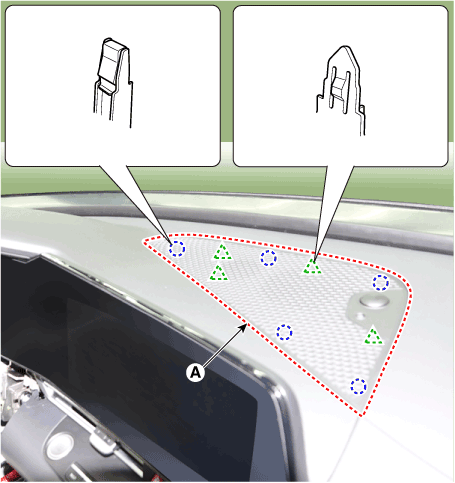

| 2. | Remove the photo sensor cover (A).
|

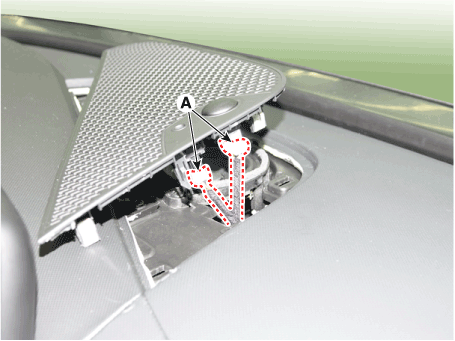

| 3. | Press the lock pin, separate the connectors (A).
|

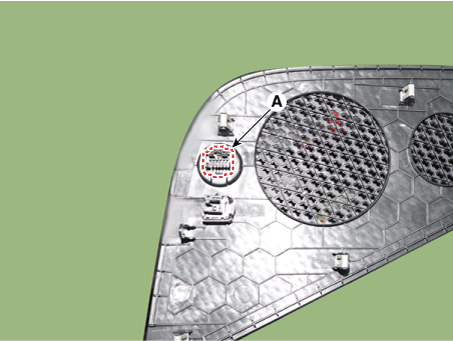

| 4. | Remove the photo sensor (A).
|
| 5. | Install in the reverse order of removal. |
Ambient Temperature Sensor
Description and operation
The ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.
The sensor output will be used for discharge temperature control, temperature regulation door control, blower motor level control, mix mode control and in-car humidity control.
Repair procedures

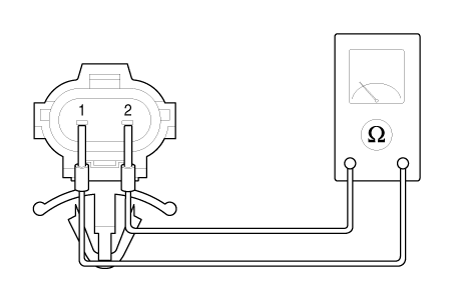

| 1. | Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature. Sensor resistance
Ambient temperature [°C (°F)]
| Resistance between terminal 1 and 2 (kΩ)
| -30 (-22)
| 480.41
| -20 (-4)
| 271.21
| -10 (14)
| 158.18
| 0 (32)
| 95.096
| 10 (50)
| 58.799
| 20 (68)
| 37.315
| 30 (86)
| 24.26
| 40 (104)
| 16.13
| 50 (122)
| 10.95
|
1. Ambient Sensor (+)
2. Sensor ground
|
|
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the front bumper. (Refer to Body - "Front Bumper Assembly") |
| 3. | Disconnect the connector (A) and then remove the ambient temperature sensor (B).
|
| 4. | To install, reverse the removal procedure. |
Auto Defogging Sensor
Description
The auto defogging sensor is installed on the front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging. The air conditioner control module receives signal from the sensor and restrains moisture and eliminate defog by controlling the intake actuator, A/C, auto defogging actuator, blower motor rpm, and mode actuator.
Repair procedures
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the inside rear view mirror cover (A).
|
| 3. | Remove the rain sensor cover (A).
|
| 4. | Disconnect the connector (A) and then remove the auto defogging sensor (B).
|
| 5. | To install, reverse the removal procedure. |
PM Sensor
Description and operation
Monitor the air quality inside the vehicle in real time (PM sensor) and display the status on the screen.
Automatically operate when fine dust concentration is high (Condition: Bet mode + A/C ON + 3rd speed or higher)

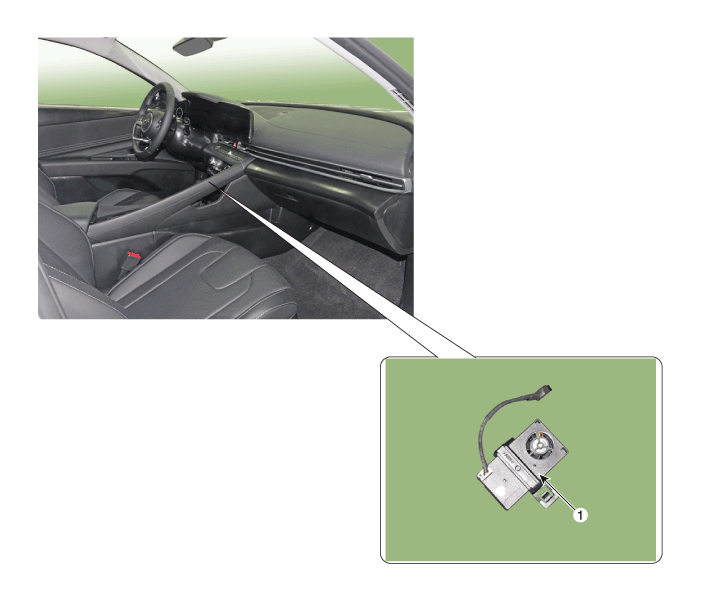

Components and components location
Repair procedures
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the crash pad air vent [RH]. (Refer to Body (Interior and Exterior) - "Crash Pad Air Vent") |

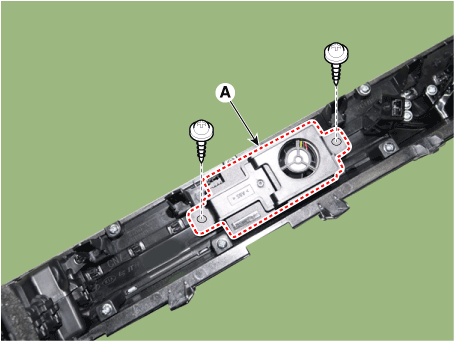

| 3. | Loosen the mounting screw and remove the PM sensor (A).
|
| 4. | Install in the reverse order of removal. | •
| Replace any damaged clips |
| •
| Make sure the connector is connected properly. |
|
|
Special Service Tools
Tool (Number and name)
Illustration
Use
09977-3R000Disc & hub assembly bolt removerRemoval and ...
Heater Unit
Components and components location
Component Location1. Heater unit assemblyCompoents1. Heater unit assembly2. Heater tube cover3. Heater core assembly4. Mode control actuator [LH]5. D ...
Hyundai Elantra CN7: Air Conditioning System
