Hyundai Elantra MD/UD: Yaw-rate and Lateral
G Sensor. Description and Operation
Description
When the vehicle is turning with respect to a vertical axis the yaw rate
sensor detects the yaw rate electronically by the vibration change of plate
fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle'yawing,
the ESC control is reactivated.
The later G sensor senses vehicle's lateral G. A small element inside
the sensor is attached to a deflectable leverarm by later G.
Direction and magnitude of lateral G loaded to vehicle can be known with
electrostatic capacity changing according to lateral G.
Specifications
|
Description |
Specification |
Remarks |
|
|
Operating voltage |
10 ~ 16V |
|
|
|
Output signal |
CAN Interface |
|
|
|
Operating temperature |
-40 ~ 85°C (-40 ~ 185°F) |
|
|
|
Yaw-rate sensor |
Measurement range |
-75 ~ 75°/sec |
|
|
Frequency response |
15 ~ 45Hz |
|
|
|
Lateral G sensor |
Measurement range |
-14.715 ~ +14.715g |
|
|
Frequency response |
50Hz ± 60% |
|
|

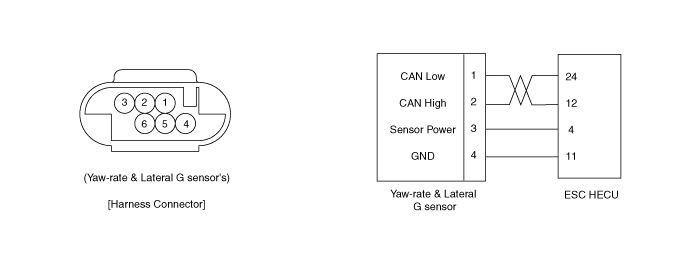

External Diagram
