Hyundai Elantra HD: Windshield wipers - Wipers and washers - Features of your vehicle - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Windshield wipers

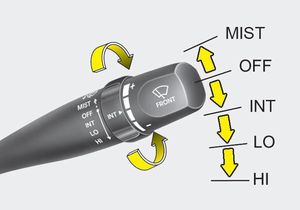

Type A

Type A

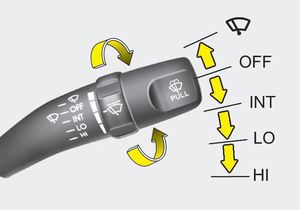

Type B

Type B

Operates as follows when the ignition switch is turned ON.

MIST (push the lever upward and release it with the lever in the OFF position. The wipers) : For a single wiping cycle, push the lever upward and release it with the lever in the OFF position. The wipers will operate continuously if the lever is pushed upward and held.

OFF : Wiper is not in operation

INT :Wiper operates intermittently at the same wiping intervals. Use this mode in a light rain or mist. To vary the speed setting, turn the speed control knob(1).

LO : Normal wiper speed

HI : Fast wiper speed

✽ NOTICE

If there is heavy accumulation of snow or ice on the windshield, defrost the windshield for about 10 minutes, or until the snow and/or ice is removed before using the windshield wipers to ensure proper operation.

CAUTION CAUTION

  • To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry.
  • To prevent damage to the wiper blades, do not use gasoline, kerosene, paint thinner, or other solvents on or near them.
  • To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually.
Wipers and washers
  Type A Type B A :Wiper speed control · MIST ( ) – Single wipe · OFF – Off · INT – Intermittent wipe · LO – Low wiper speed · HI – High wiper speed B : Intermittent ...

Windshield washers
Type A Type B In the OFF position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles. Use this function when the windshield is dirty. ...
