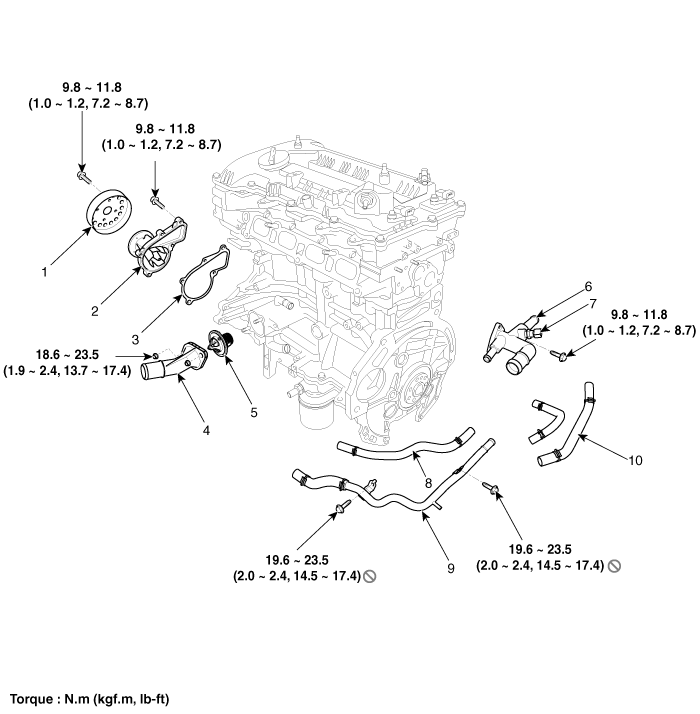

Components

1. Water pump pulley
2. Water pump
3. Water pump gasket
4. Water inlet fitting
5. Thermostat
6. Water temperature control assembly
7. Engine coolant temperature sensor
8. Bypass hose

9. Heater pipe & hose assembly
10. Throttle body coolant hose


Removal and Installation
1. Disconnect the battery terminals. (Refer to Engine and transaxle assembly in this group) 2. Remove the air cleaner assembly. (Refer to Engine an ...
