Hyundai Elantra MD/UD: Variable Charge Motion Actuator (VCMA). Schematic Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Variable Charge Motion Actuator (VCMA). Schematic Diagrams

Circuit diagram

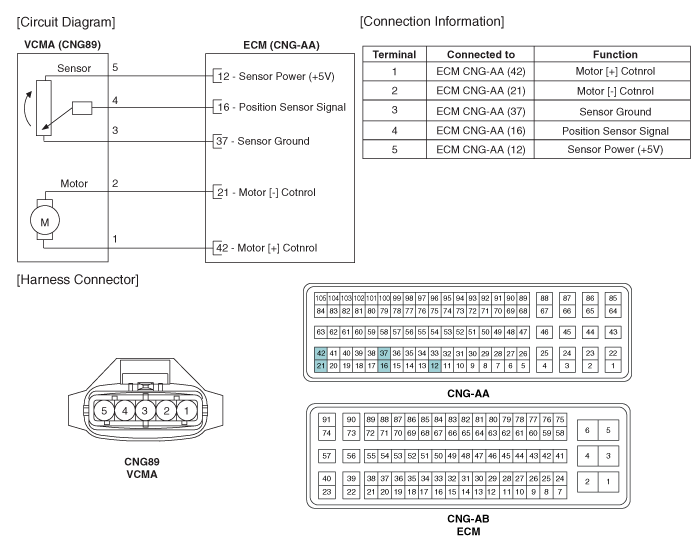

(M/T)

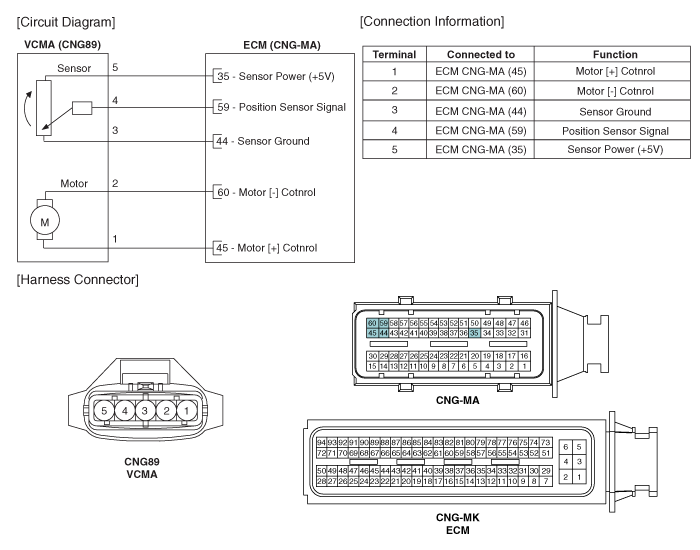

(A/T)
