Hyundai Elantra MD/UD: Transmitter Code Registration (Using GDS)
| 1. |
Connect the DLC cable of GDS to the data link connector (16 pins)
in driver side crash pad lower panel, turn the power on GDS.
|
| 2. |

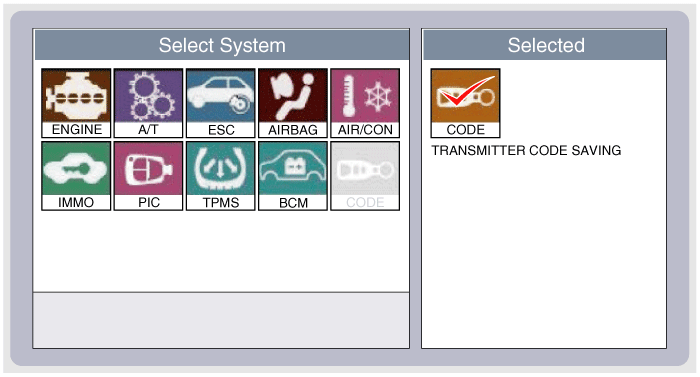

Select the vehicle model and then do "CODE SAVING"
|
| 3. |

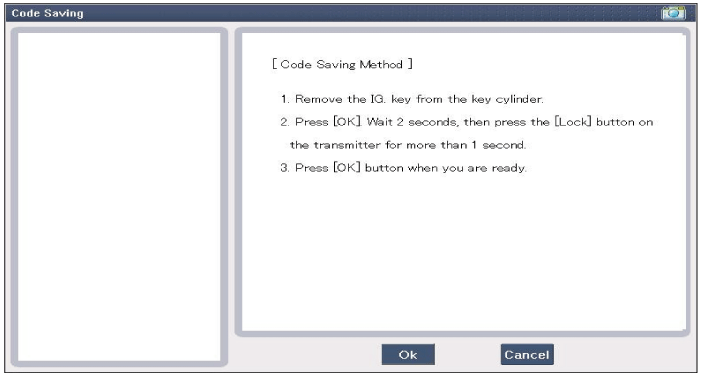

After selecting "CODE SAVING" menu, button "ENTER" key, then the
screen will be shown as below.
|

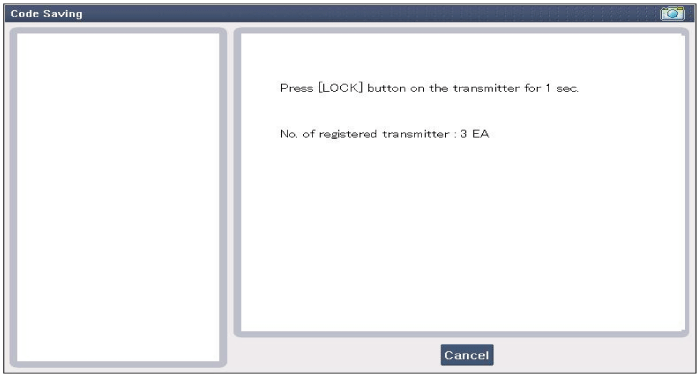

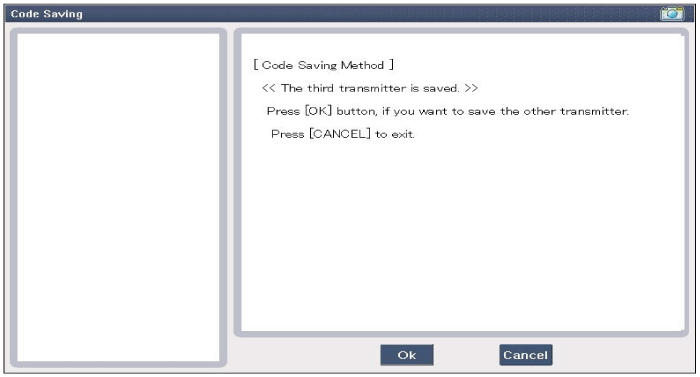

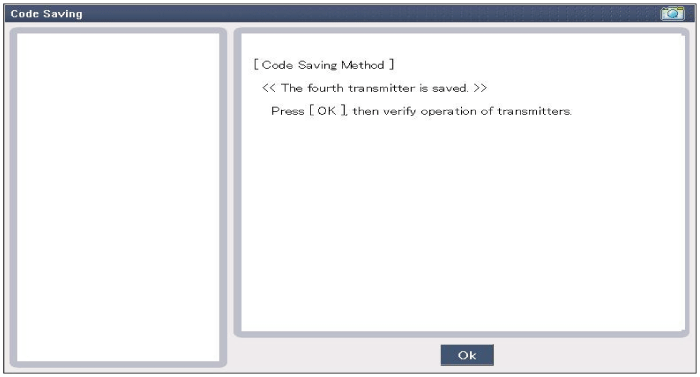

| 4. |
After removing the ignition key from key cylinder, push "ENTER"
key to proceed to the next mode for code saving. Follow steps 1 to 4
and then code saving is completed.
|
