Hyundai Elantra MD/UD: Transaxle Oil Temperature Sensor. Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor. Schematic Diagrams

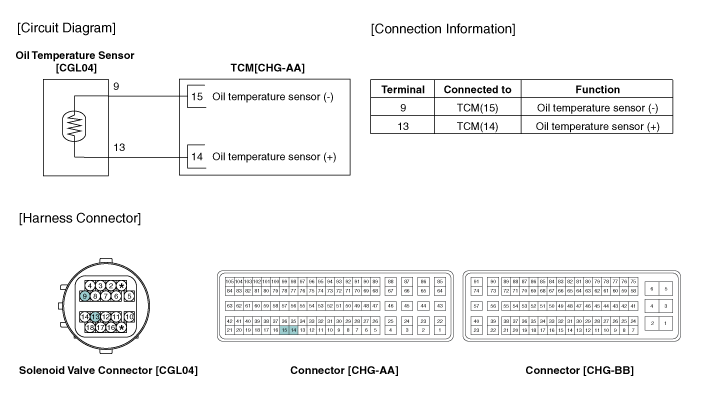

Circuit Diagram
