Hyundai Elantra MD/UD: Sunroof (if equipped) - Features of your vehicle - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Sunroof (if equipped)

Type A

Type A

Type B

Type B

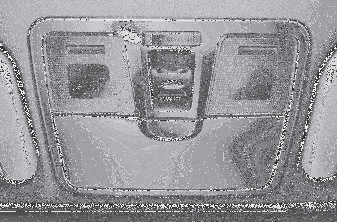

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control switch located on the overhead console.

The sunroof can only be opened, closed, or tilted when the ignition switch is in the ON position.

✽ NOTICE

  • In cold and wet climates, the sunroof may not work properly due to freezing conditions.
  • After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operating it.

✽ NOTICE

The sunroof cannot slide when it is in the tilt position nor can it be tilted while in an open or slide position.

Do not continue to move the sunroof control lever after the sunroof is in the CAUTION

Do not continue to move the sunroof control lever after the sunroof is in the fully open, closed, or tilt position. Damage to the motor or system components could occur.

Never adjust the sunroof or sunshade while driving. This could result in lossWARNING

Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage.
