Hyundai Elantra HD: Sunroof - Features of your vehicle - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Sunroof

If your vehicle is equipped with this feature, you can slide or tilt your sunroof

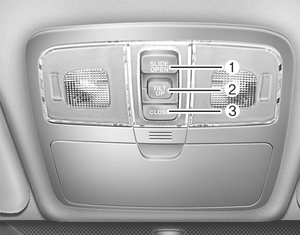

If your vehicle is equipped with this feature, you can slide or tilt your sunroof with the sunroof control buttons located on the overhead console.

1. Slide button
2. Tilt button
3. Close button

The sunroof can only be opened, closed, or tilted when the ignition switch is in the ON position.

✽ NOTICE

In cold and wet climates, sunroof may not work properly due to freezing conditions.

✽ NOTICE

After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operating it.

CAUTION CAUTION

Do not continue to press the sunroof control button(s) after the sunroof is in the fully open, closed, or tilt position(s). Damage to the motor or system components could occur.

✽ NOTICE

The sunroof cannot slide when it is in the tilt position nor can it be tilted while in an open or slide position.

WARNING WARNING

Never adjust the sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage.

Closing the fuel filler lid
1. To install the cap, turn it clockwise until it “clicks”. This indicates that the cap is securely tightened. 2. Close the fuel filler lid and push it lightly and make sure that it is securely ...

Sliding the sunroof
To open the sunroof (autoslide feature), press the slide button (1) on the overhead console (for more than 0.5 seconds). The sunroof will slide all the way open.To stop the sunroof sliding at any ...
