Front Suspension
Item
|
Specification
|
Suspension type
| MacPherson Strut
|
Shock absorber
| Type
| Advanced Valve (RS Valve)
|
Rear Suspension
Item
|
Specification
|
Suspension type
| Torsion Beam Axle
|
Shock absorber
| Type
| Advanced Valve (RS Valve)
|
Wheel & Tire
Item
|
Specification
|
Front wheel
|
Rear wheel
|
Wheel
| Steel
| 6.0J * 15
|
Aluminum
| 6.0J * 15
|
6.5J * 16
|
7.0J * 17
|
Tire
| 195/65 R15
|
205/55 R16
|
225/45 R17
|
Spare tire
| T125/80D15
|
T125/80D16
|
Item
|
Normal Load
|
Max Load
|
Front
|
Rear
|
Front
|
Rear
|
Tire pressure
kPa (bar/psi)
| 195/65 R15
| 235 (2.35/34)
| 215 (2.15/31)
| 240 (2.4/35)
| 240 (2.4/35)
|
205/55 R16
|
225/45 R17
|
T125/80D15
| 420 (4.2/60)
|
T125/80D16
|
Wheel Alignment
Item
|
Specification
|
Front
|
Rear
|
Toe-in
| Total
| 0.1° ± 0.2°
| 0.26° ± 0.3°
|
Individual
| 0.05° ± 0.1°
| 0.13° ± 0.15°
|
Camber angle
| -0.56° ± 0.5° (N.A / CHINA)
-0.5° ± 0.5° (DOM / AUS)
-0.37° ± 0.5° (GEN / M.E / EU / RUS)
-0.30° ± 0.5° (BRZ / MEXICO)
| -1.2° ± 0.5°
|
Caster angle
| 4.55° ± 0.5°
| -
|
King - pin angle
| 14.5° ± 0.5°
| -
|
Ride height
| 383mm ± 10mm
| 383mm ± 10mm
|

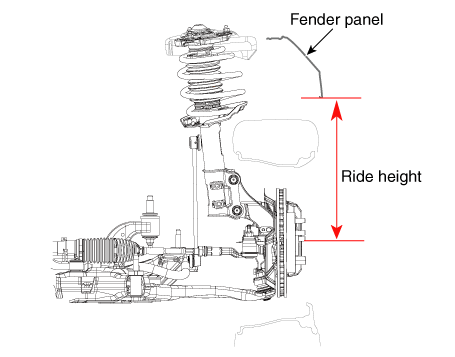

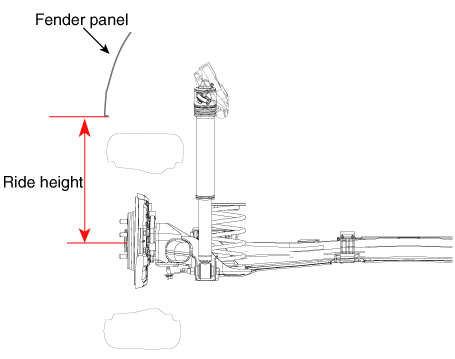

[Ride height]
Front
|
Rear
|
|
|
|
Front Suspension
Item
|
Tightening torque (kgf.m)
|
N.m
|
Kgf.m
|
lb-ft
|
Tire wheel hub nuts
| 107.9 - 127.5
| 11.0 - 13.0
| 79.6 - 94.0
|
Lower arm to sub frame A bush
| 68.6 N.m + 180°
| 7 kgf.m + 180°
| 50.6 lb-ft + 180°
|
Lower arm to sub frame G bush
| 68.6 N.m + 270°
| 7 kgf.m + 270°
| 50.6 lb-ft + 270°
|
Lower arm to front axle
| 68.6 - 80.4
| 7.0 ~ 8.2
| 50.6 - 59.3
|
Tie rod end to front axle
| 34.3 - 44.1
| 3.5 ~ 4.5
| 25.3 - 32.5
|
Steering gear box to sub frame
| 107.9 - 127.5
| 11.0 - 13.0
| 79.6 - 94.0
|
Stabilizer bar to stabilizer link
| 98.1 - 117.7
| 10.0 - 12.0
| 72.3 - 86.8
|
Stabilizer bar to sub frame
| 49.0 - 63.7
| 5.0 - 6.5
| 36.2 - 47.0
|
Stabilizer link to front strut assembly
| 98.1 - 117.7
| 10.0 - 12.0
| 72.3 - 86.8
|
Strut assembly to axle
| 156.9 - 176.5
| 16.0 - 18.0
| 115.7 - 130.2
|
Strut assembly to frame
| 53.9 - 73.5
| 5.5 - 7.5
| 39.8 - 54.2
|
Strut assembly self locking nut
| 98.1 - 107.9
| 10.0 - 11.0
| 72.3 - 79.6
|
Universal joint to pinion of steering gear
| 49.0 - 58.8
| 5.0 - 6.0
| 36.2 - 43.4
|
Sub frame mounting bolt and nut
| 176.5 - 196.1
| 18.0 - 20.0
| 130.2 - 144.7
|
Sub frame bracket stay mounting bolts
| 44.1 - 58.8
| 4.5 - 6.0
| 32.5 - 43.4
|
Roll rod mounting bolt & nut
| 107.9 - 127.5
| 11.0 - 13.0
| 79.6 - 94.0
|
49.0 - 63.7
| 5.0 - 6.5
| 36.2 - 47.0
|
Rear Suspension
Item
|
Tightening torque (kgf.m)
|
N.m
|
Kgf.m
|
lb-ft
|
Tire wheel hub nuts
| 107.9 - 127.5
| 11.0 - 13.0
| 79.6 - 94.0
|
Rear shock absorber to frame
| 49.0 - 63.7
| 5.0 ~ 6.5
| 36.2 - 47.0
|
Rear shock absorber to torsion beam axle
| 98.1 - 117.7
| 10.0 - 12.0
| 72.3 - 86.8
|
Rear torsion beam axle to stay
| 68.6 N.m + 270°
| 7.0 kgf.m + 270°
| 50.6 lb-ft + 270°
|
Rear torsion beam axle stay to body (M12 bolts and nuts)
| 98.1 - 117.7
| 10.0 - 12.0
| 72.3 - 86.8
|
Rear torsion beam axle stay to body (M10 bolt)
| 44.1 - 53.9
| 4.5 ~ 5.5
| 32.5 - 39.8
|
Troubleshooting
Symptom
Possible cause
Remedy
Hard steeringImproper front wheel alignmentCorrectExcessive turning resist ...
Special Service Tools
Tool (Number and Name)
IIIustration
Use
09546-3X100Shock absorber lock nut removal toolUsed for re ...
