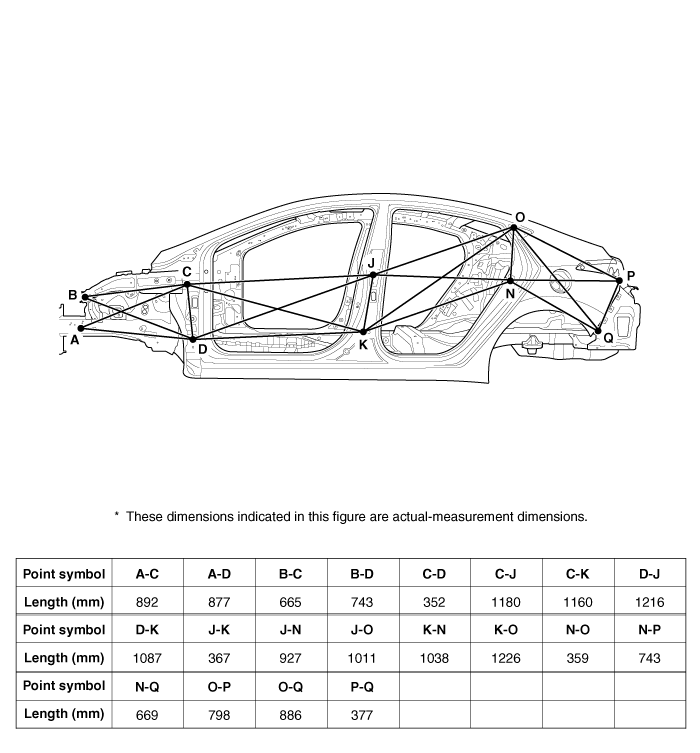

Hyundai Elantra MD/UD: Side Body A - 4Door. Side Body - Body Dimensions - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Side Body A

Front side member tooling hole (Ø12)

Fender apron upper member tooling
hole (Ø7)
Front door upper hinge mounting hole
(Ø13)

Front door lower hinge mounting
hole (Ø13)
Rear door upper hinge mounting hole
(Ø13)
Rear door lower hinge mounting hole
(Ø13)

Rear door switch mounting hole (Ø10)

Quarter fixed garnish mounting hole
(Ø7)
Side outer panel rear corner



Rear bumper mounting hole (8.5X8.5)




Side Body B
Side outer panel notch Side outer panel notch Side outer panel notch ...
