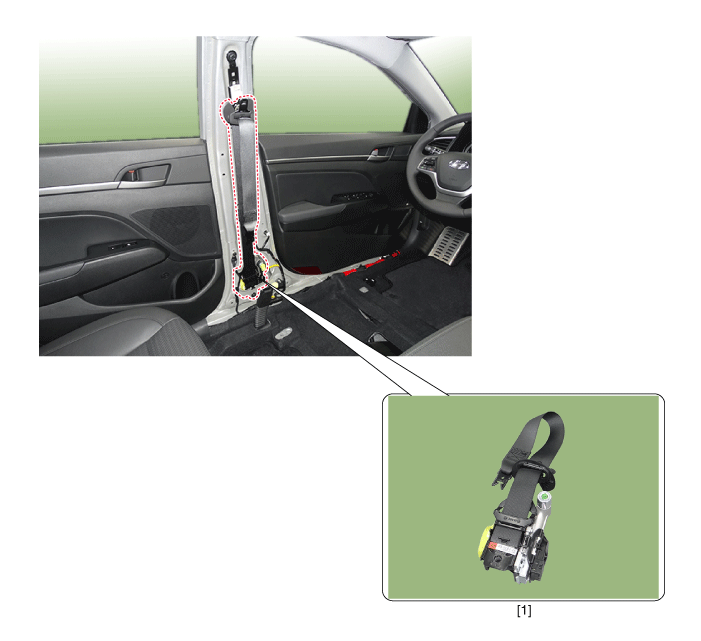

Seat Belt Pretensioner (BPT) Components and Components Location

Components

1. Seat Belt Pretensioner (BPT)

Seat Belt Pretensioner (BPT) Description and Operation

Description

The Seat Belt Pretensioners (BPT) are installed inside Center Pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner seat belt helps to reduce the severity of injury to the front seat occupants by retracting the seat belt webbing. This prevents the front occupants from thrusting forward and hitting the steering wheel or the instrument panel when the vehicle crashes.

(Seat belt pretensioner may be activated in side impact collisions if the vehicle has side airbag or curtain airbag.)

• Never attempt to measure the circuit resistance of the Seat Belt Pretensioner (BPT) even if you are using the specified tester. If the circuit resistance is measured with a tester, the pretensioner will be ignited accidentally. This will result in serious personal injury.

Seat Belt Pretensioner (BPT) Repair procedures

Removal

1.	Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2.	Separate the front seat belt (A) from the emergency fastening device.

3.	Remove the door scuff trim. (Refer to Body - "Interior Trim")

4.	Remove the center pillar trim. (Refer to Body - "Interior Trim")

5.	Remove the front seat belt upper anchor bolt.

6.	Disconnect the front seat belt pretensioner connector (A).

7.	Remove the seat belt pretensioner (A) after loosening the seat belt pretensioner mounting bolts.

Installation

1.	Remove the ignition key from the vehicle.

2.	Disconnect the battery negative cable and wait for at least three minutes.

3.	Install the seat belt pretensioner. Tightening torque : Bolt A : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) Bolt B : 39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

4.	Connect the seat belt pretensioner connector. • Make sure the lock pin is connected in properly.

5.	Install the front seat belt upper anchor bolt. Tightening torque : 39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

6.	Install the center pillar trim. (Refer to Body - "Interior Trim")

7.	Install the door scuff trim. (Refer to Body - "Interior Trim")

8.	Reconnect the battery negative cable.

9.	After installing the seat belt pretensioner, confirm proper system operation: A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

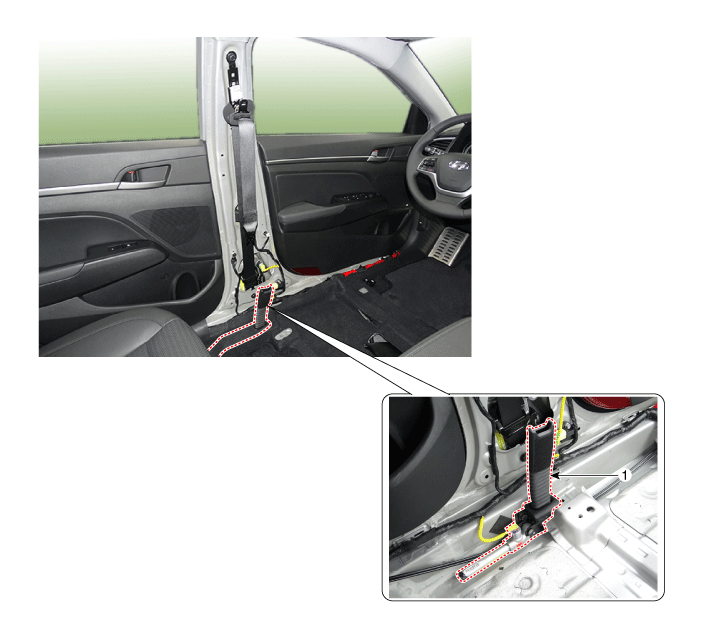

Emergency Fastening Device (EFD) Components and Components Location

Components

1. EFD(Emergency Fastening Device) System

Emergency Fastening Device (EFD) Description and Operation

Description

The Emergency Fastening Device (EFD) operates at the same time with the Seat Belt Pretensioner when it satisifies the deployment condition after a collision. It is an auxiliary equipment to prevent a driver and passenger from breaking away by pulling the seat belt toward the anchor side after a collision. It is located near the anchor on the driver and passenger seat and is supported by two cables.

• Never measure the resistance of the anchor pretensioner directly, the current of the measuring device may cause unexpected airbag deploy.

Emergency Fastening Device (EFD) Repair procedures

Removal

1.	Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.

2.	Remove the front seat. (Refer to Body - "Front Seat Assembly")

3.	Remove the rear seat. (Refer to Body - "Rear Seat Assembly")

4.	Separate the front seat belt (A) from the emergency fastening device.

5.	Remove the door scuff trim. (Refer to Body - "Interior Trim")

6.	Remove the center pillar trim. (Refer to Body - "Interior Trim")

7.	Remove the floor carpet assembly. (Refer to Body - "Floor Carpet")

8.	Disconnect the emergency fastening device connector (A).

9.	Remove the emergency fastening device (A) after loosening the monuting bolt.

Installation

1.	Disconnect the negative (-) cable from battery and wait for at least three minutes.

2.	Install the emergency fastening device with the mounting bolt. Tightening torque : 39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

3.	Connect the emergency fastening device connector (A). • Make sure the lock pin is connected in properly.

4.	Install the floor carpet assembly. (Refer to Body - "Floor Carpet")

5.	Install the center pillar trim. (Refer to Body - "Interior Trim")

6.	Install the door scuff trim. (Refer to Body - "Interior Trim")

7.	Connect the front seat belt to the emergency fastening device.

8.	Install the rear seat. (Refer to Body - "Rear Seat Assembly")

9.	Install the front seat. (Refer to Body - "Front Seat Assembly")

10.	Reconnect the battery negative cable.

11.	After installing the EFD system, confirm proper system operation : Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
