Hyundai Elantra CN7: Schematic diagrams - Emission Control System - Hyundai Elantra CN7 2021-2025 Workshop ManualHyundai Elantra CN7: Schematic diagrams

Schematic Diagram

Specifications
SpecificationsPurge Control Solenoid Valve (PCSV)▷ Specification Item Specification Coil Resistance (Ω)22.0 - 26.0 [20°C (68°F)] ...

Evaporative Emission Control System

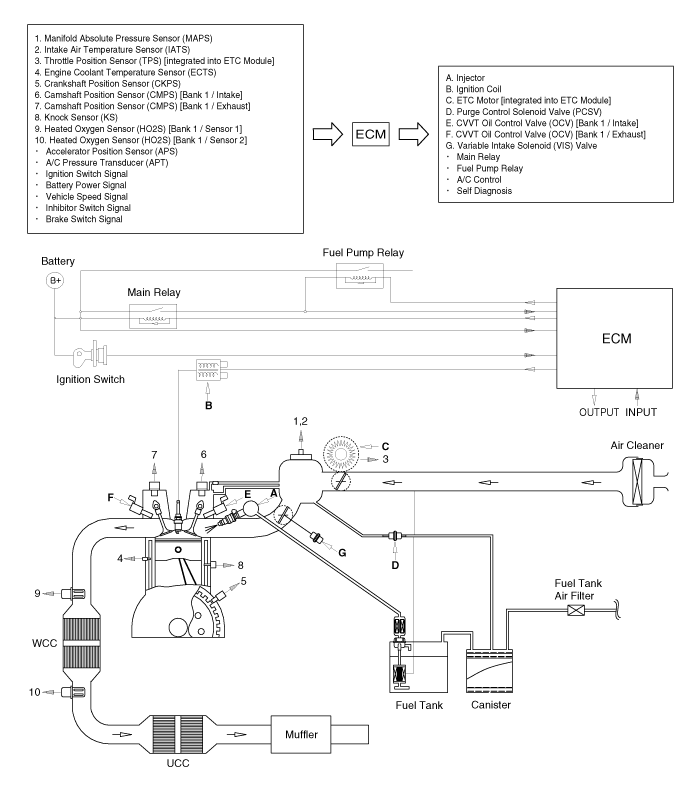

Schematic diagrams Schematic Diagram1. Air cleaner2. Delivery pipe & injector3. Engine4. Purge control solenoid valve (PCSV)5. Fuel tank air filter6. Fuel pump7. Fuel filler neck8. Fuel filler ...
