Hyundai Elantra HD: Schematic Diagrams - SRSCM - Restraint - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra HD: Schematic Diagrams

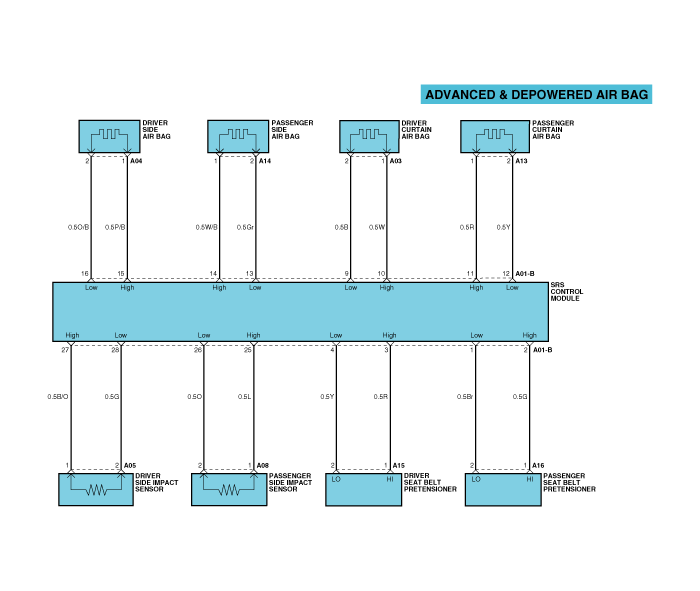

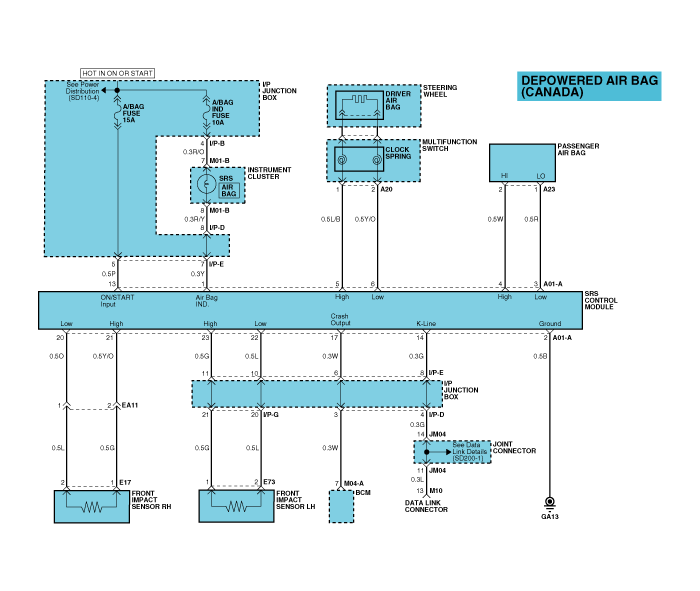

Circuit Diagram (1)

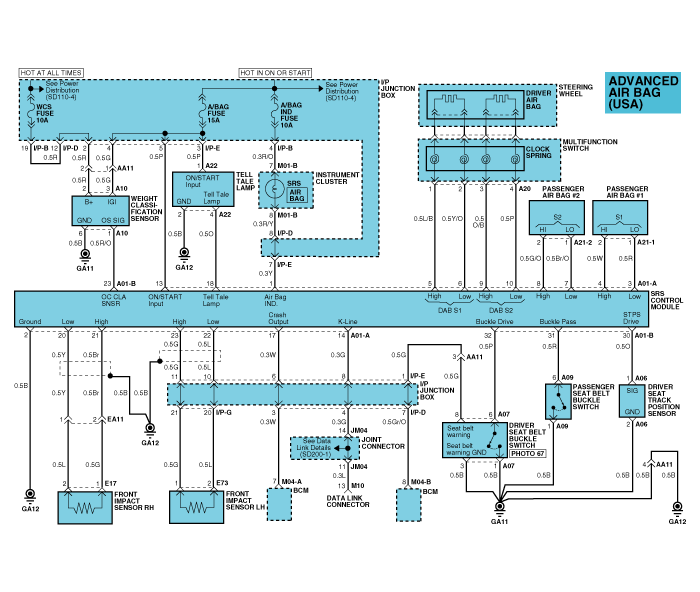

Circuit Diagram (2)

Circuit Diagram (2)

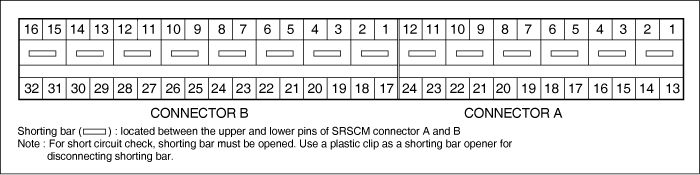

SRSCM Connector Terminal (Depowered)

SRSCM Harness Connector

Pin
 Function (Connector A)
 Pin
 Function (Connector B)
1
 Airbag Warning Lamp
 1
 Seat Belt Pretensioner [Front-Passenger] Low
2
 Ground
 2
 Seat Belt Pretensioner [Front-Passenger] High
3
 Passenger Airbag Low
 3
 Seat Belt Pretensioner [Front-Driver] High
4
 Passenger Airbag High
 4
 Seat Belt Pretensioner [Front-Driver] Low
5
 Driver Airbag High
 5
 -
6
 Driver Airbag Low
 6
 -
7
 -
 7
 -
8
 -
 8
 -
9
 -
 9
 Curtain Airbag [Driver] Low
10
 -
 10
 Curtain Airbag [Driver] High
11
 -
 11
 Curtain Airbag [Passenger] High
12
 -
 12
 Curtain Airbag [Passenger] Low
13
 Ignition
 13
 Side Airbag [Front-Passenger] Low
14
 K-Line Diagnostic
 14
 Side Airbag [Front-Passenger] High
15
 -
 15
 Side Airbag [Front-Driver] High
16
 -
 16
 Side Airbag [Front-Driver] Low
17
 Crash Output
 17
 -
18
 -
 18
 -
19
 -
 19
 -
20
 Front Impact Sensor [Passenger] Low
 20
 -
21
 Front Impact Sensor [Passenger] High
 21
 -
22
 Front Impact Sensor [Driver] Low
 22
 -
23
 Front Impact Sensor [Driver] High
 23
 -
24
 -
 24
 -
　
 　
 25
 Side Impact Sensor [Passenger] High
　
 　
 26
 Side Impact Sensor [Passenger] Low
　
 　
 27
 Side Impact Sensor [Driver] High
　
 　
 28
 Side Impact Sensor [Driver] Low
　
 　
 29
 -
　
 　
 30
 -
　
 　
 31
 -
　
 　
 32
 -

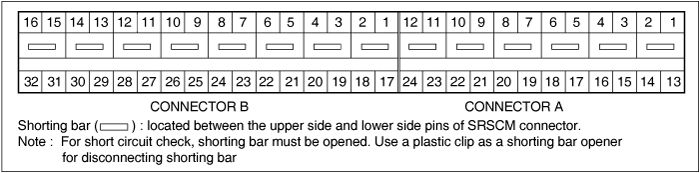

SRSCM Connector Terminal (Advanced)

SRSCM Harness Connector

Pin
 Function (Connector A)
 Pin
 Function (Connector B)
1
 Airbag Warning Lamp
 1
 Seat Belt Pretensioner [Front-Passenger] Low
2
 Ground
 2
 Seat Belt Pretensioner [Front-Passenger] High
3
 (1st Stage) Passenger Airbag Low
 3
 Seat Belt Pretensioner [Front-Driver] High
4
 (1st Stage) Passenger Airbag High
 4
 Seat Belt Pretensioner [Front-Driver] Low
5
 (1st Stage) Driver Airbag High
 5
 -
6
 (1st Stage) Driver Airbag Low
 6
 -
7
 (2nd Stage) Passenger Airbag Low
 7
 -
8
 (2nd Stage) Passenger Airbag High
 8
 -
9
 (2nd Stage) Driver Airbag High
 9
 Curtain Airbag [Driver] Low
10
 (2nd Stage) Driver Airbag Low
 10
 Curtain Airbag [Driver] High
11
 -
 11
 Curtain Airbag [Passenger] High
12
 -
 12
 Curtain Airbag [Passenger] Low
13
 Ignition
 13
 Side Airbag [Front-Passenger] Low
14
 K-Line Diagnostic
 14
 Side Airbag [Front-Passenger] High
15
 -
 15
 Side Airbag [Front-Driver] High
16
 -
 16
 Side Airbag [Front-Driver] Low
17
 Crash Output
 17
 -
18
 Telltale Lamp
 18
 -
19
 -
 19
 -
20
 Front Impact Sensor [Passenger] Low
 20
 -
21
 Front Impact Sensor [Passenger] High
 21
 -
22
 Front Impact Sensor [Driver] Low
 22
 -
23
 Front Impact Sensor [Front-Driver] High
 23
 Occupant Classification
24
 -
 24
 -
　
 　
 25
 Side Impact Sensor [Passenger] High
　
 　
 26
 Side Impact Sensor [Passenger] Low
　
 　
 27
 Side Impact Sensor [Driver] High
　
 　
 28
 Side Impact Sensor [Driver] Low
　
 　
 29
 -
　
 　
 30
 Seat Track Position Sensor [Driver] High
　
 　
 31
 Buckle Switch [Front-Passenger] High
　
 　
 32
 Buckle Switch [Front-Driver] High
